Overview

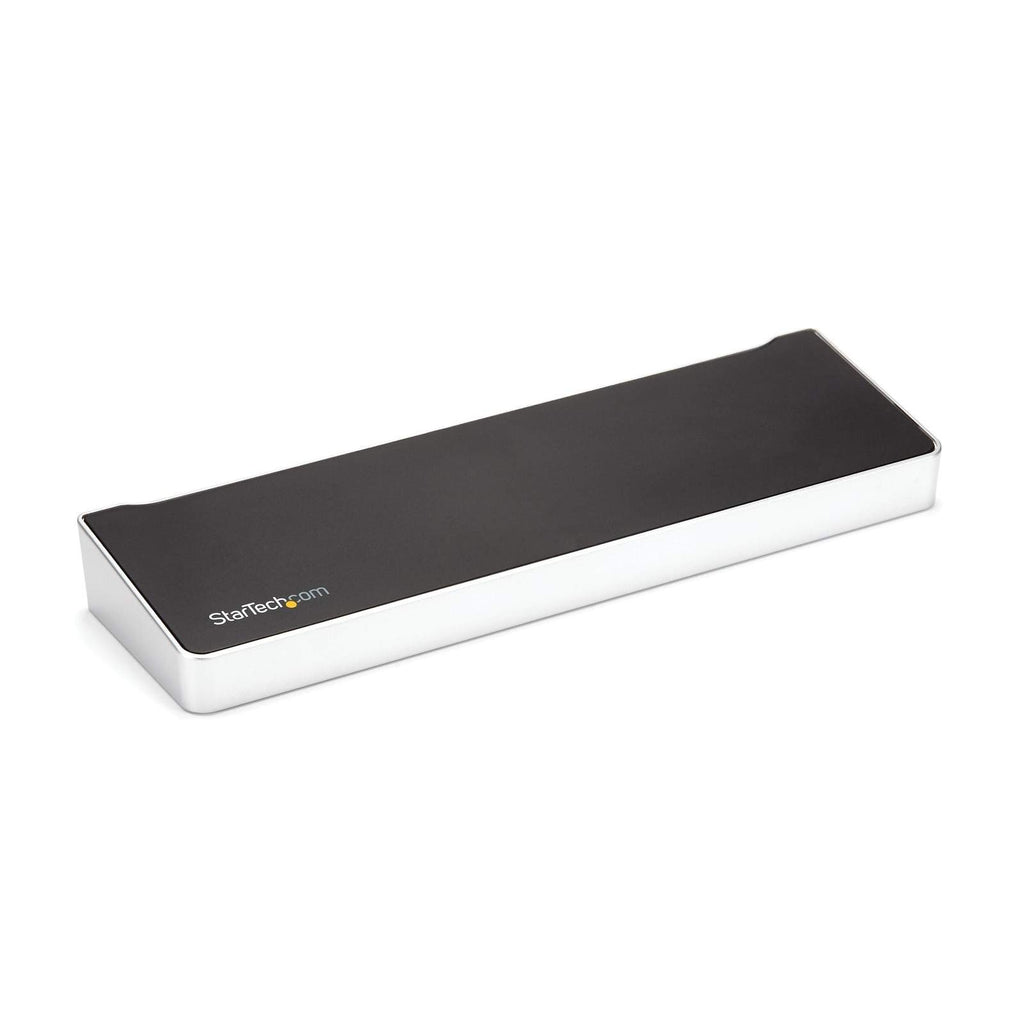

4K USB-C Dock, Triple UHD 4K Monitor Docking Station, Mac & Windows, USB C to HDMI & DisplayPort, 60W Power Delivery, 5x USB 5Gbps Hub - TAA
Laptop Docking Station | Mac & Windows® | 60W Power Delivery| 4K 60 DP + HDMI
This TAA compliant 4K USB-C™ dock for Mac and Windows® laptops takes productivity to a whole new level, with support for triple 4K monitors - a first in the market. The USB Type-C dock provides 60W charging power, and 5x USB 3.0 ports to connect your peripheral devices. It’s the perfect accessory for your Dell™ XPS 15, Chromebook Pixel™, or another USB-C enabled PC laptop.
The dock also connects to USB 3.0 laptops with a USB-A port (using a USB-C to A cable such as the USB315AC1M, sold separately).
Note: Power Delivery to charge your laptop is not available through USB-A, and only dual display is supported.
Enhance Productivity
The 4K USB-C Dock for Mac and Windows lets you create a three-monitor Ultra HD workstation. Connect:
- 2x 4K DisplayPort (DisplayLink) at 4096 x 2160 resolution / 3840 x 2160 @ 60Hz and
- 1x 4K HDMI (DP Alt Mode) at 4096 x 2160 resolution @ 24Hz / 3840 x 2160 @ 30Hz
For high-resolution applications, the universal laptop docking station can also connect to a 5K display (5120 x 2880 resolution) at 60Hz, by connecting the two DisplayPort ports to a single 5K display.
Powerful Connections

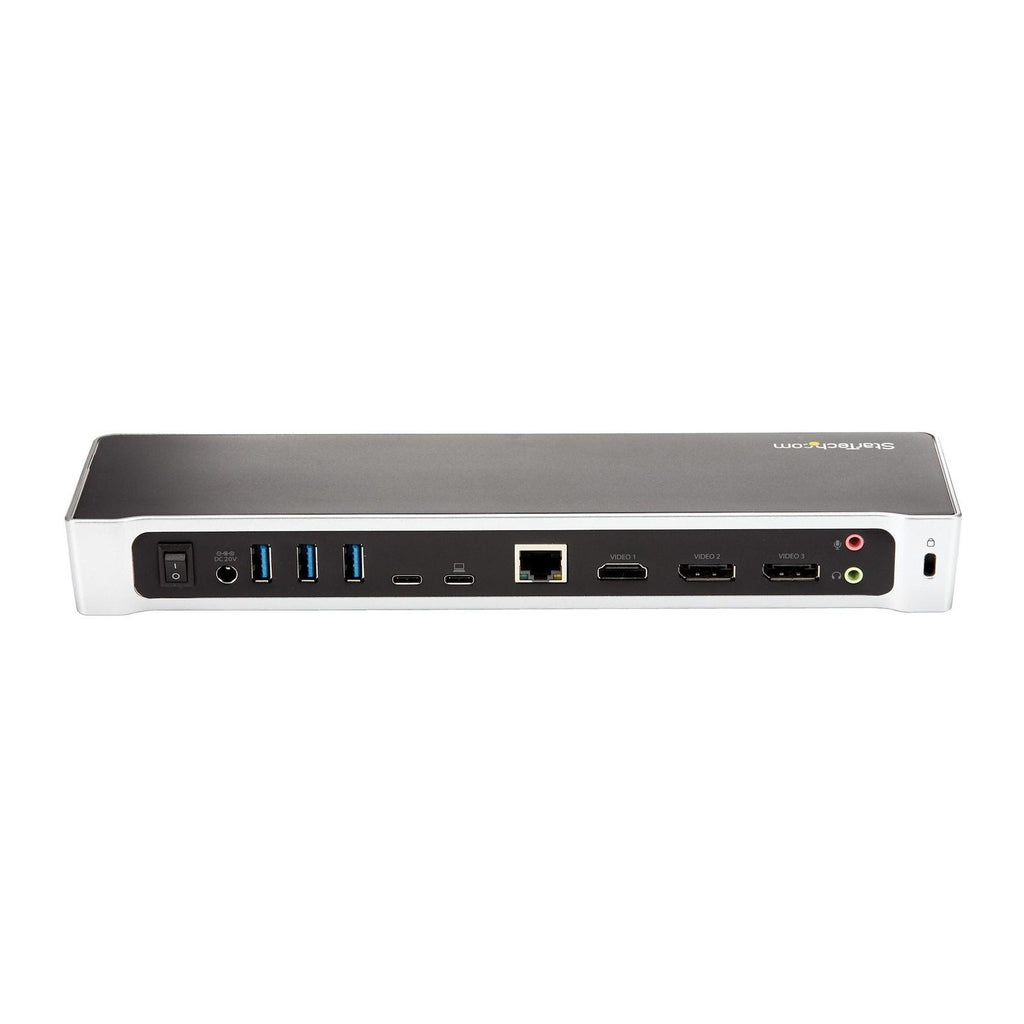

This triple-monitor docking station lets you connect your peripherals to transform your laptop into a full-sized workstation. With five USB 3.0 ports (1x USB Type-C and 4x USB Type-A incl 1x Fast-Charge port), a Gigabit Ethernet port, headset jack and separate 3.5 mm audio and microphone ports, you have all the connections you need for maximum performance.
60W Power Delivery
Using a single cable, the USB-C docking station with Power Delivery (up to 60W) will power and charge your laptop, and power your peripherals with its 120W power adapter.
4K USB-C Dock, Triple UHD 4K Monitor Docking Station, Mac & Windows, USB C to HDMI & DisplayPort, 60W Power Delivery, 5x USB 5Gbps Hub - TAA
Laptop Docking Station | Mac & Windows® | 60W Power Delivery| 4K 60 DP + HDMI
This TAA compliant 4K USB-C™ dock for Mac and Windows® laptops takes productivity to a whole new level, with support for triple 4K monitors - a first in the market. The USB Type-C dock provides 60W charging power, and 5x USB 3.0 ports to connect your peripheral devices. It’s the perfect accessory for your Dell™ XPS 15, Chromebook Pixel™, or another USB-C enabled PC laptop.
The dock also connects to USB 3.0 laptops with a USB-A port (using a USB-C to A cable such as the USB315AC1M, sold separately).
Note: Power Delivery to charge your laptop is not available through USB-A, and only dual display is supported.
Enhance Productivity
The 4K USB-C Dock for Mac and Windows lets you create a three-monitor Ultra HD workstation. Connect:
- 2x 4K DisplayPort (DisplayLink) at 4096 x 2160 resolution / 3840 x 2160 @ 60Hz and
- 1x 4K HDMI (DP Alt Mode) at 4096 x 2160 resolution @ 24Hz / 3840 x 2160 @ 30Hz
For high-resolution applications, the universal laptop docking station can also connect to a 5K display (5120 x 2880 resolution) at 60Hz, by connecting the two DisplayPort ports to a single 5K display.
Powerful Connections
This triple-monitor docking station lets you connect your peripherals to transform your laptop into a full-sized workstation. With five USB 3.0 ports (1x USB Type-C and 4x USB Type-A incl 1x Fast-Charge port), a Gigabit Ethernet port, headset jack and separate 3.5 mm audio and microphone ports, you have all the connections you need for maximum performance.
60W Power Delivery
Using a single cable, the USB-C docking station with Power Delivery (up to 60W) will power and charge your laptop, and power your peripherals with its 120W power adapter.
| Docking Station Specifications | |
|---|---|
| Connector(s) | |
| Connector Type(s) | 2 - DisplayPort (20 pin) 1 - HDMI (19 pin) 2 - USB 3.2 Type-C (24 pin, Gen 1, 5Gbps) 1 - USB 3.2 Type-A (9 pin, Fast-Charge) 3 - USB Type-A (9 pin, 5 Gbps) 1 - RJ-45 1 - 3.5 mm Mini-Jack (4 Position) 2 - 3.5 mm Mini-Jack (3 Position) 1 - Security Lock Slot |
| Environmental | |
| Operating Temperature | 0°C to 60°C (32°F to 140°F) |
| Storage Temperature | -20°C to 60°C (-4°F to 140°F) |
| Humidity | 0~95% RH |
| Hardware | |
| 4K Support | Yes |
| Fast-Charge Port(s) | Yes |
| Displays Supported | 3 |
| Bus Type | USB-C |
| Compatible Lock Slot | Kensington Standard Slot (K-Slot) |
| Industry Standards | USB Power Delivery Specification Rev. 2.0 USB Battery Charging Specification Rev. 1.2 DisplayPort 1.2 IEEE 802.3, IEEE 802.3u, IEEE 802.3ab USB 3.0 - Backward compatible with USB 2.0 and 1.1 |
| Chipset ID | DisplayLink - DL-6950 Genesys Logic - GL3523 Texas Instruments - TPS65982 Parade Technologies - PS176 |
| Packaging Information | |
| Shipping (Package) Weight | 3.1 lb [1.4 kg] |
| Package Quantity | 1 |
| Package Length | 6.5 in [16.5 cm] |
| Package Width | 11.6 in [29.5 cm] |
| Package Height | 2.9 in [7.3 cm] |
| Performance | |
| Maximum Data Transfer Rate | 5 Gbps (USB 3.0), 2 Gbps (Ethernet; Full-Duplex) |
| Maximum Digital Resolutions | 1x HDMI (DP Alt Mode) - 4096 x 2160p @24Hz / 3840 x 2160p @30Hz 2x DisplayPort (DisplayLink) - 4096 x 2160p @60Hz / 3840 x 2160p @60Hz 1x 5K DisplayPort using 2 DP video ports - 5120 x 2880 @60Hz Lower resolutions also supported: 3840 x 2160p, 2560 x 1600p, 2560 x 1440p |
| Type and Rate | USB 3.0 - 5 Gbit/s |
| UASP Support | Yes |
| Compatible Networks | 10/100/1000 Mbps |
| Auto MDIX | Yes |
| Full Duplex Support | Yes |
| Physical Characteristics | |
| Color | Black & Silver |
| Material | Plastic |
| Product Length | 10.6 in [27 cm] |
| Product Width | 3.2 in [8.2 cm] |
| Product Height | 1.3 in [3.4 cm] |
| Weight of Product | 13.6 oz [385 g] |
| Power | |
| Power Source | AC Adapter Included |
| Power Delivery | 60W |
| Input Voltage | 100 - 240 AC |
| Input Current | 2 A |
| Output Voltage | 20V DC |
| Output Current | 6 A |
| Center Tip Polarity | Positive |
| Plug Type | N |
| Software | |
| OS Compatibility | Windows® 7, 8, 8.1, 10, 11, 11 ARM macOS 10.9–15.0 Chrome OS™ v55+ Ubuntu 18.04, 20.04, 22.04, 24.04 |
| Special Notes / Requirements | |
| Note | Not all USB-C ports support full functionality—verify USB Power Delivery 2.0 and DP alt mode support 4K resolution supported on all 3 video ports; 4K-capable DisplayPort display required USB 2.0 host port or cable may limit performance (USB 3.0 host cable included) USB 3.0 = USB 3.1 Gen 1 (5Gbps) 5K resolution supported via dual DisplayPort connection to a single 5K display Dock connects via USB-C; USB-A connection (sold separately) supports dual display only, no Power Delivery DisplayLink supports multiple external displays on Apple M1-based Macs (driver required) |
| System and Cable Requirements | USB-C enabled computer with an available USB Type-C port |
| What's in the Box | |

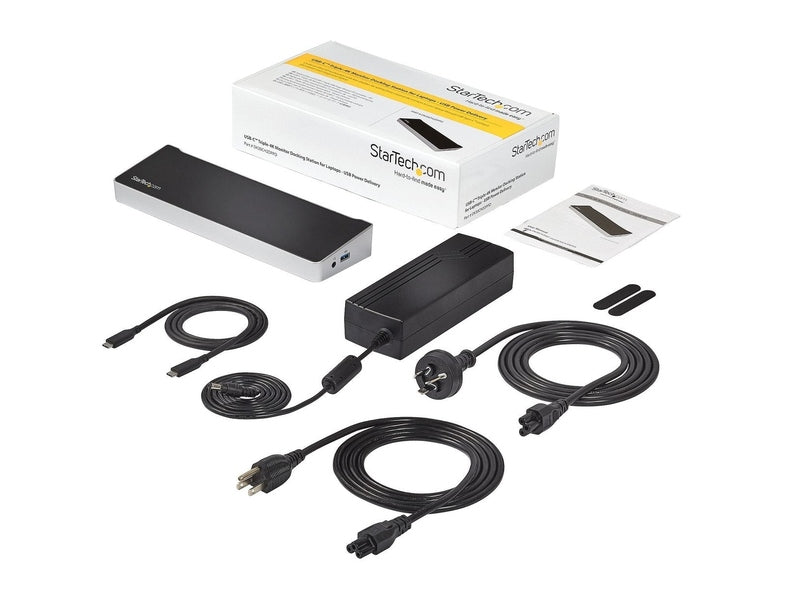

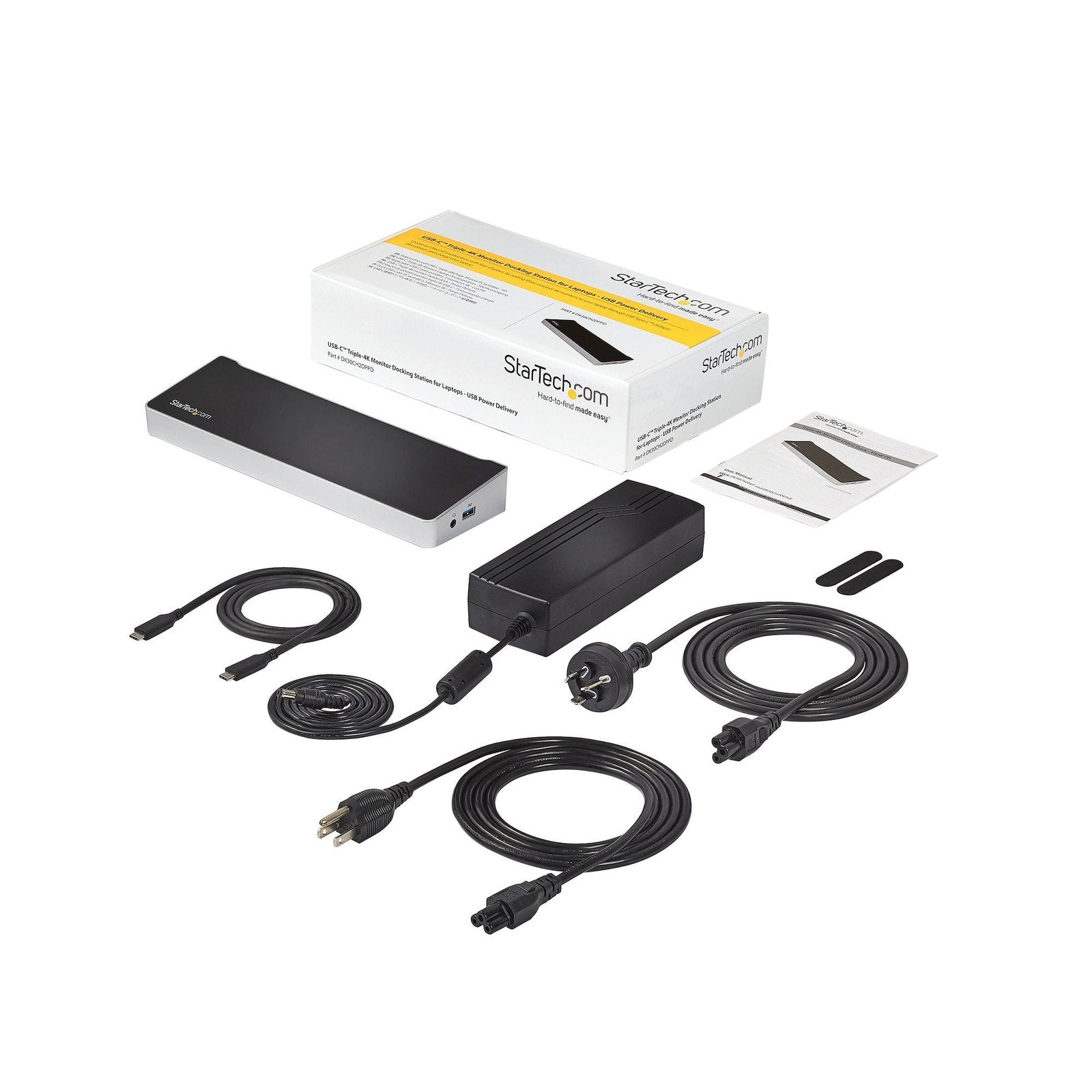

| Included in Package | 1 - Docking Station 1 - 3.3ft (1m) USB-C Cable 1 - Universal Power Adapter (NA/JP, ANZ) 1 - Instruction Manual 1 - Anti-slip Rubber Pads |
