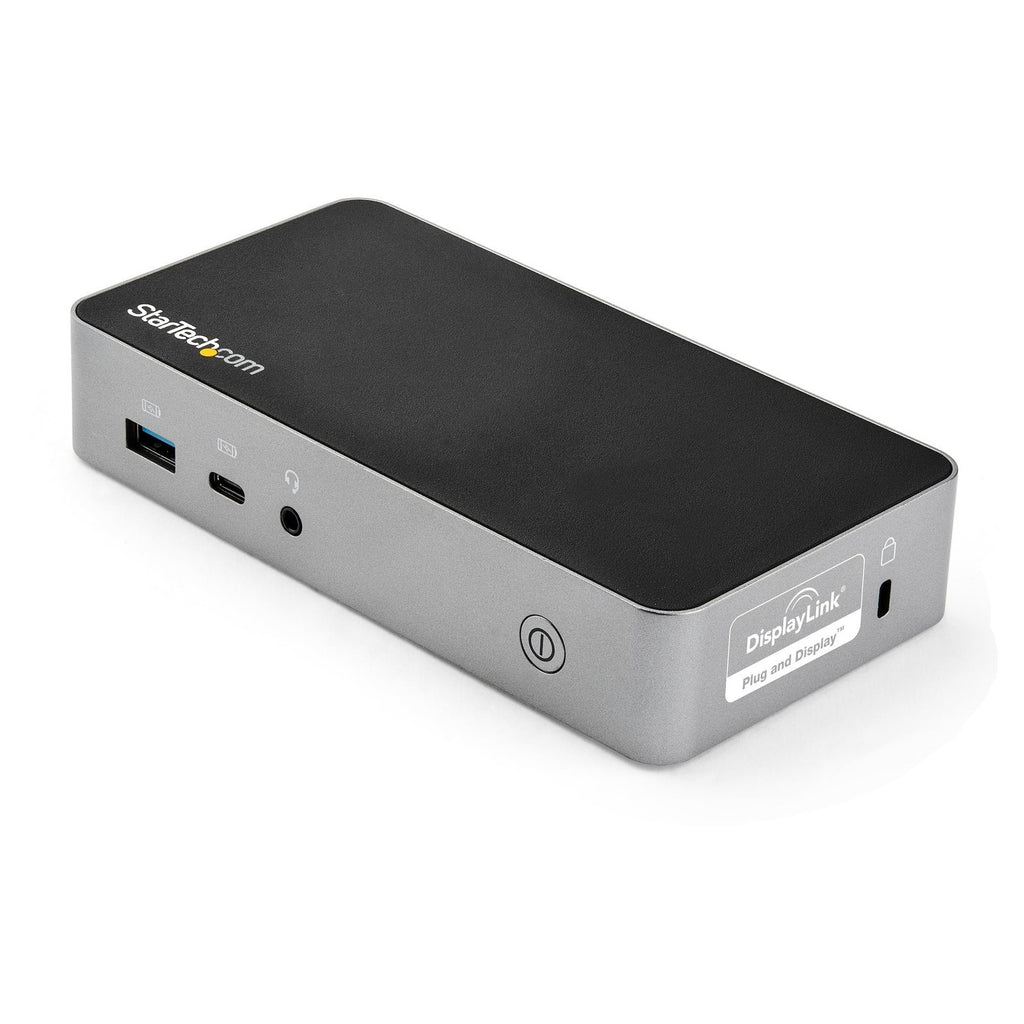

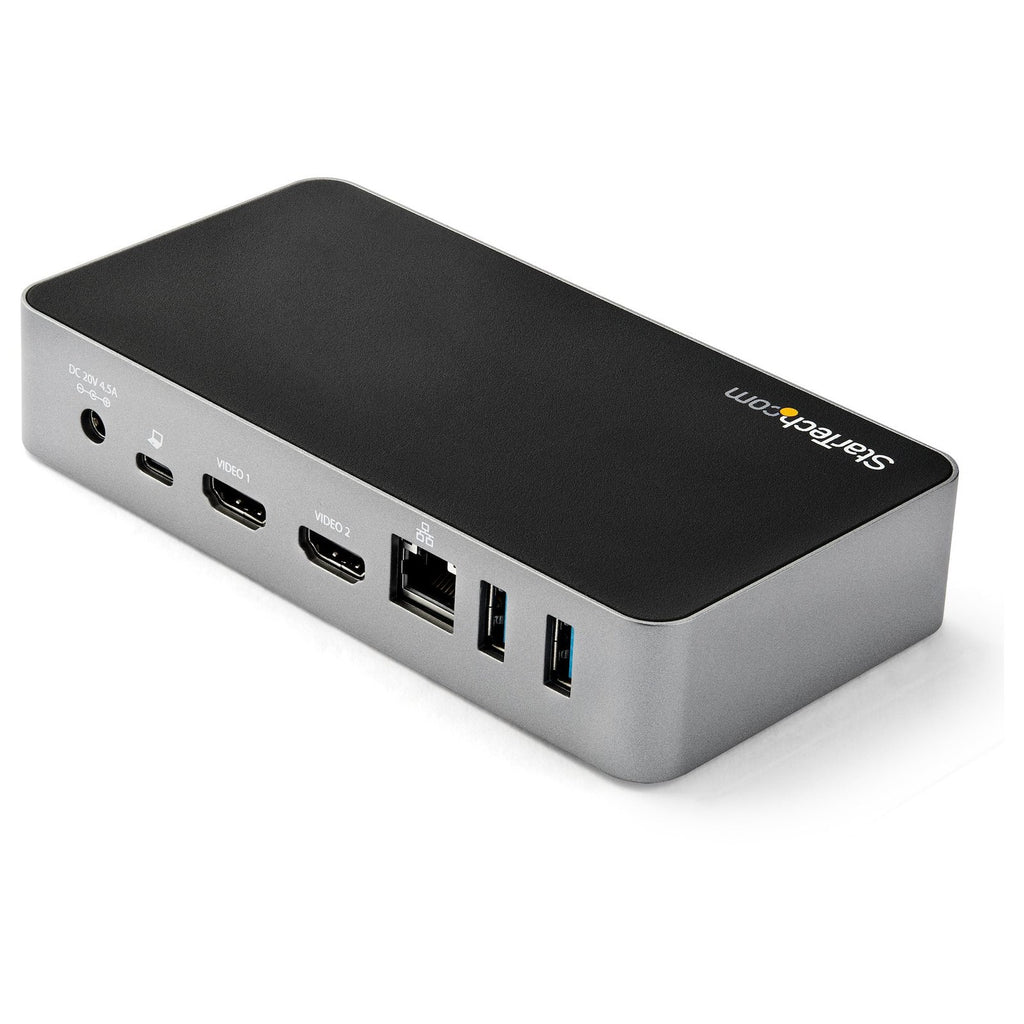

USB-C Dock - Dual Monitor 1080p HDMI Laptop Docking Station - 65W Power Delivery - 1x USB-C, 3x USB-A, Ethernet - Dual Video Display USB 3.1 Gen 1 Type-C Dock - Mac & Windows
USB 3.1 Gen 1 Type-C Docking Station| Mac & Windows® | 3x USB-A | 1x USB-C | GbE | Mountable | 65W PD
This USB-C docking station is ideal for use in large organizations to meet widespread office productivity requirements and compatibility with all USB-C and Thunderbolt 3 laptops. The USB-C dock features support for Dual HDMI monitors, 65W Power Delivery 3.0, fast-charge, and both USB-C and USB-A peripheral ports.
Dual Full HD 1080p HDMI Displays
The USB-C docking station adds dual HDMI monitors support to your workstation, with full high definitions resolutions of 1920x1080 or 1920x1200 at 60Hz. With more screen space, you can access multiple applications and reference material on one display while composing on the other.
Charge Devices via USB-C & USB-A
The USB-A and USB-C charge ports can charge your smartphone, tablet or other USB peripherals whether you're working or away from your desk, and even if you disconnect your laptop.
65W Power Delivery
Using a single cable, the dock powers and charges your laptop as you work with 65W PD for faster charging, using the 90W power adapter.
Convenient Setup with a Modest Desktop Footprint
With a smaller size and extended length 3.3’ (1 meter) host cable, this USB-C dock fits easily into a workspace environment. Even where desk space is limited, this dock can be mounted to the wall, monitor or underneath the desk with StarTech.com mounting brackets (SSPMSUDWM & SSPMSVESA). These mounting brackets are specifically designed for our docks and hubs to give you the customized setup you need.
The Connections You Need

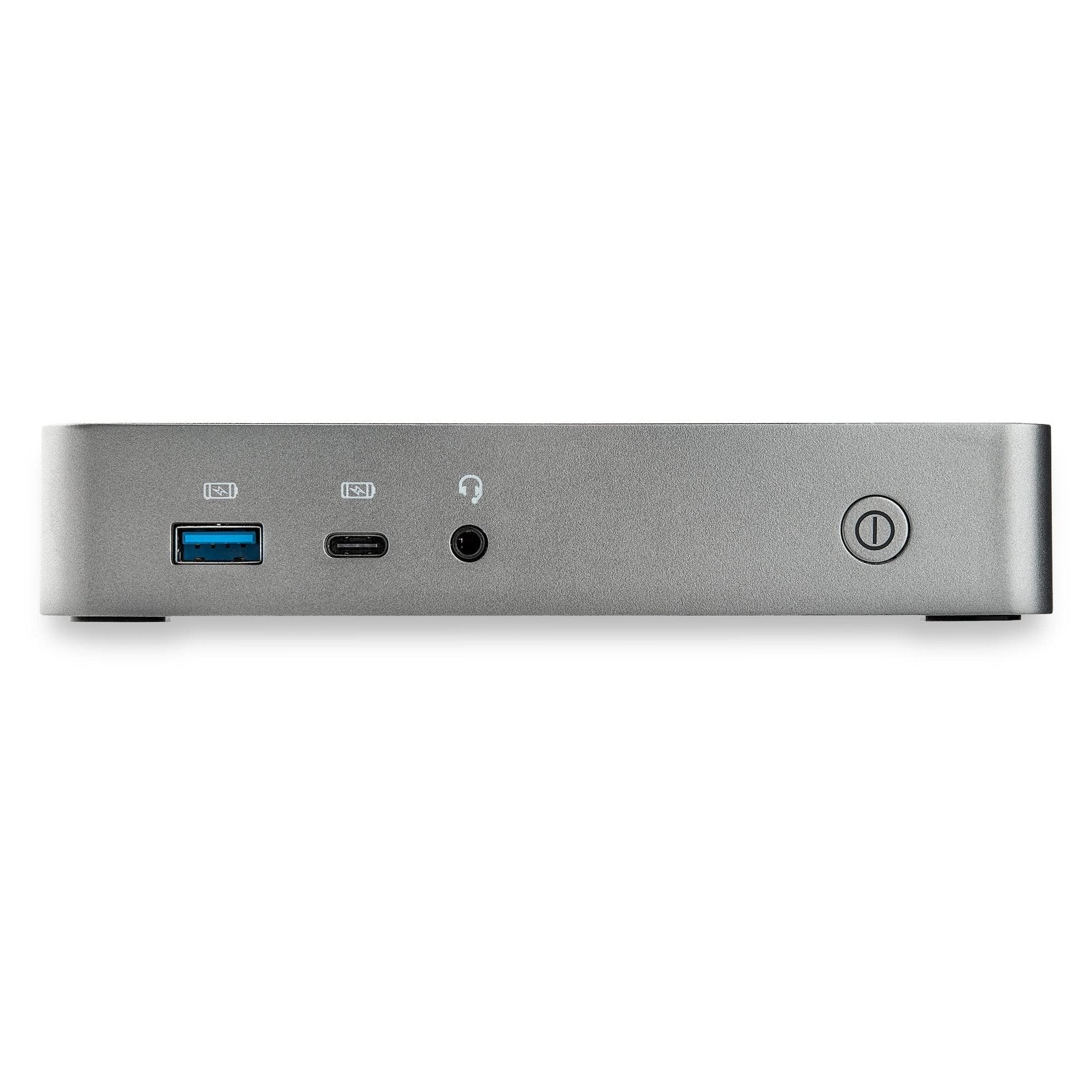

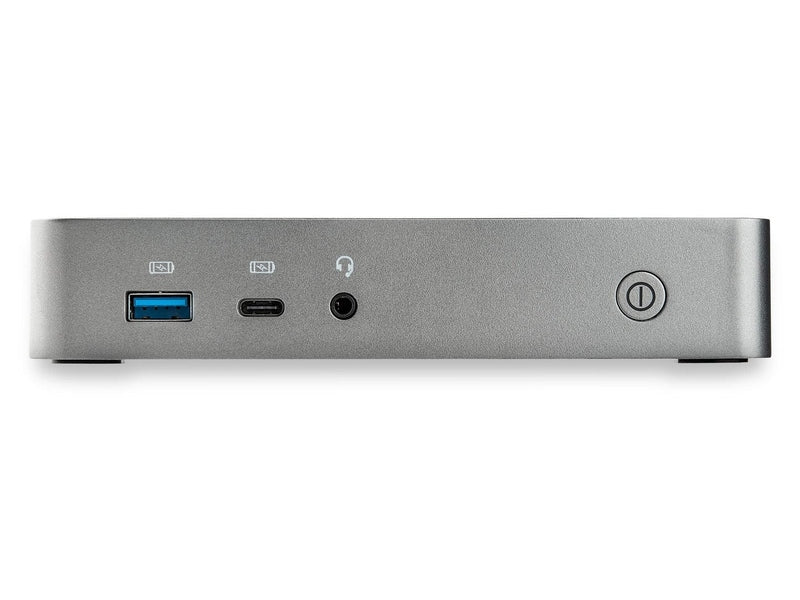

Connect your devices with four USB 3.1 ports: 1x USB[CC2] -C and 3x USB-A. Fast-charge your USB-C or USB-A smartphone. The dock provides a GbE port (Wake-on-LAN) and a 3.5 mm 4-position headset audio jack. It also includes a security lock slot (K-slot) to protect against theft.
Enhance Productivity and Device Management with the StarTech.com Connectivity Tools Application
Developed to improve performance and security, StarTech.com Connectivity Tools is the only software suite on the market that works with a wide range of IT connectivity accessories. The software suite includes:
- Advanced Windows Layout Utility: To setup and save custom windows layouts.
- Mac Address Pass-Through Utility: To improve network security.
- USB Event Monitoring Utility: To track and log connected USB devices
- Wi-Fi Auto Switch Utility: Enabling users to quickly access faster network speeds via wired LAN.
USB-C Dock - Dual Monitor 1080p HDMI Laptop Docking Station - 65W Power Delivery - 1x USB-C, 3x USB-A, Ethernet - Dual Video Display USB 3.1 Gen 1 Type-C Dock - Mac & Windows
USB 3.1 Gen 1 Type-C Docking Station| Mac & Windows® | 3x USB-A | 1x USB-C | GbE | Mountable | 65W PD
This USB-C docking station is ideal for use in large organizations to meet widespread office productivity requirements and compatibility with all USB-C and Thunderbolt 3 laptops. The USB-C dock features support for Dual HDMI monitors, 65W Power Delivery 3.0, fast-charge, and both USB-C and USB-A peripheral ports.
Dual Full HD 1080p HDMI Displays
The USB-C docking station adds dual HDMI monitors support to your workstation, with full high definitions resolutions of 1920x1080 or 1920x1200 at 60Hz. With more screen space, you can access multiple applications and reference material on one display while composing on the other.
Charge Devices via USB-C & USB-A
The USB-A and USB-C charge ports can charge your smartphone, tablet or other USB peripherals whether you're working or away from your desk, and even if you disconnect your laptop.
65W Power Delivery
Using a single cable, the dock powers and charges your laptop as you work with 65W PD for faster charging, using the 90W power adapter.
Convenient Setup with a Modest Desktop Footprint
With a smaller size and extended length 3.3’ (1 meter) host cable, this USB-C dock fits easily into a workspace environment. Even where desk space is limited, this dock can be mounted to the wall, monitor or underneath the desk with StarTech.com mounting brackets (SSPMSUDWM & SSPMSVESA). These mounting brackets are specifically designed for our docks and hubs to give you the customized setup you need.
The Connections You Need
Connect your devices with four USB 3.1 ports: 1x USB[CC2] -C and 3x USB-A. Fast-charge your USB-C or USB-A smartphone. The dock provides a GbE port (Wake-on-LAN) and a 3.5 mm 4-position headset audio jack. It also includes a security lock slot (K-slot) to protect against theft.
Enhance Productivity and Device Management with the StarTech.com Connectivity Tools Application
Developed to improve performance and security, StarTech.com Connectivity Tools is the only software suite on the market that works with a wide range of IT connectivity accessories. The software suite includes:
- Advanced Windows Layout Utility: To setup and save custom windows layouts.
- Mac Address Pass-Through Utility: To improve network security.
- USB Event Monitoring Utility: To track and log connected USB devices
- Wi-Fi Auto Switch Utility: Enabling users to quickly access faster network speeds via wired LAN.
| Docking Station Specifications | |
|---|---|
| Connector(s) | |

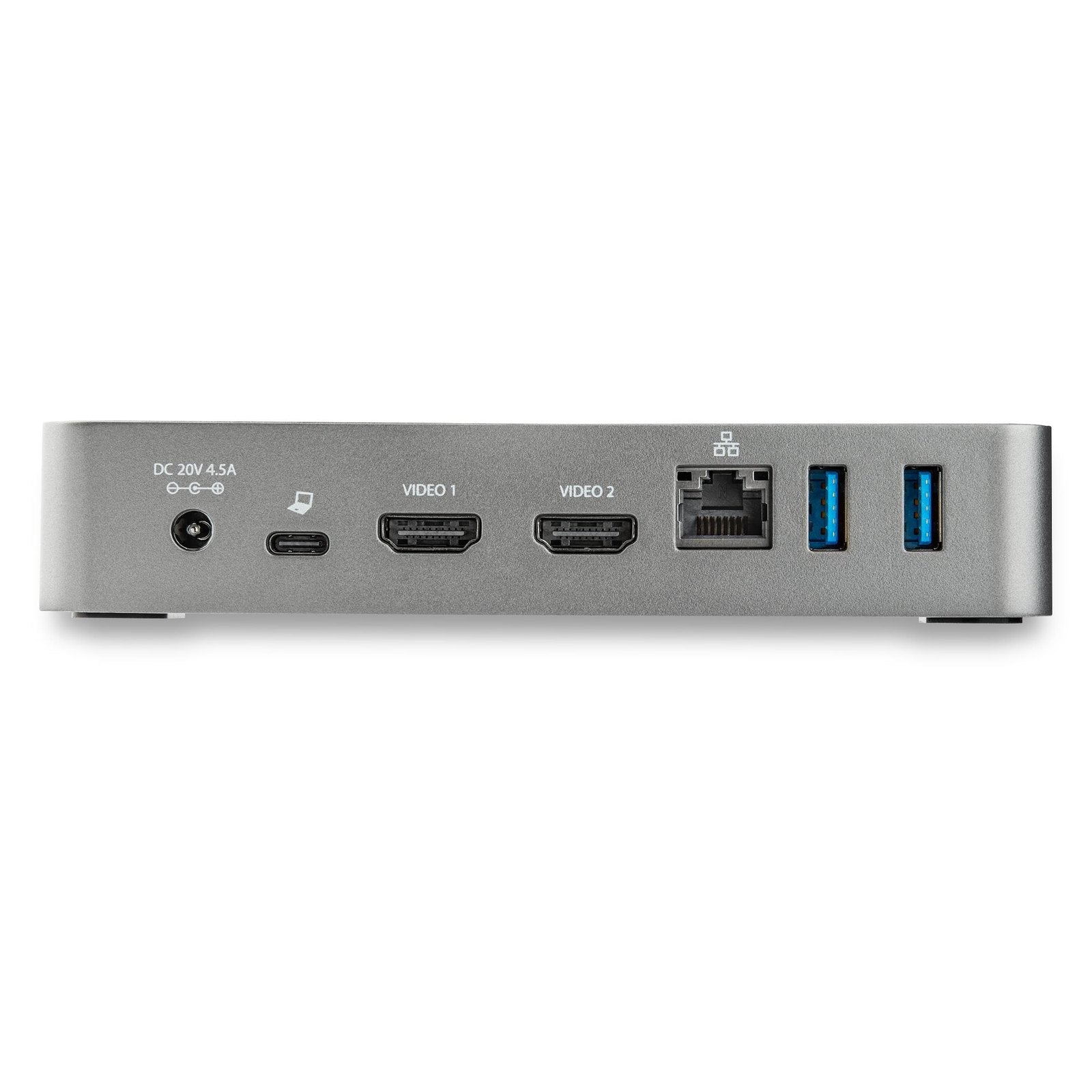

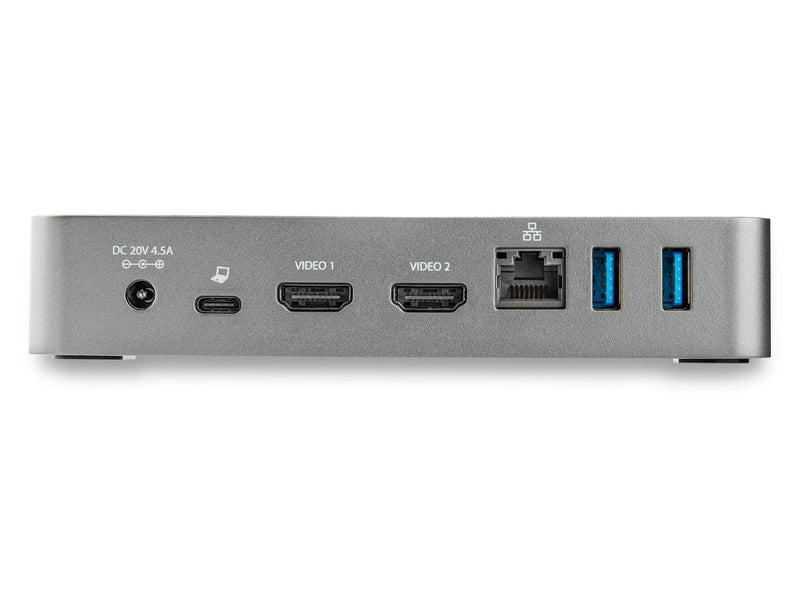

| Connector Type(s) | 1 - USB 3.2 Type-C (24 pin, Gen 1, 5Gbps) 1 - USB 3.2 Type-A (9 pin, Fast-Charge) 2 - USB Type-A (9 pin, 5 Gbps) 2 - HDMI 1.4 1 - RJ-45 1 - 3.5 mm Mini-Jack (4 Position) Female 1 - USB Type-C (Fast-Charge, 24 pin) USB 3.2 |
| Environmental | |
| Humidity | 0% to 95% (non-condensing) at 25°C |
| Operating Temperature | 0 to 50°C |
| Storage Temperature | -20 to 70°C |
| Hardware | |
| USB-C Device Port(s) | USB Power Delivery |
| USB-C Host Connection | Yes |
| 4K Support | No |
| Displays Supported | 2 |
| Ports | 4 |
| Audio | Yes |
| Interface | USB 3.2 Gen 1 |
| Bus Type | USB 3.2 Gen 1 |
| Compatible Lock Slot | Kensington Standard Slot (K-Slot) |
| Chipset ID | DisplayLink DL3900 Realtek RTS5423 Realtek RTS5411 or RTS5411E |
| Packaging Information | |
| Package Height | 3.2 in [8.2 cm] |
| Package Length | 9.2 in [23.4 cm] |
| Package Width | 5.7 in [14.5 cm] |
| Shipping (Package) Weight | 2.2 lb [1.0 kg] |
| Package Quantity | 1 |
| Performance | |
| Wake On Lan | Yes |
| Maximum Data Transfer Rate | 5 Gbps (USB 3.0), 1 Gbps (Ethernet) |
| Maximum Digital Resolutions | Dual HDMI Displays: 1080p (1920x1080, 1920x1200 @ 60Hz) |
| Audio Specifications | Type: Copper |
| Type and Rate | USB 3.0 - 5 Gbit/s |
| UASP Support | Yes |
| Supported Charging Modes | Charging Downstream Port (CDP) |
| Compatible Networks | 10/100/1000 Mbps |
| Full Duplex Support | No |
| Physical Characteristics | |
| Product Height | 1.2 in [3.0 cm] |
| Product Length | 5.9 in [15.0 cm] |
| Product Width | 3.1 in [8.0 cm] |
| Weight of Product | 10.6 oz [300.0 g] |
| Power | |
| Power Source | AC Adapter Included |
| Power Delivery | 65W |
| Input Voltage | 100 - 240 AC |
| Input Current | 1.5A |
| Output Voltage | 20V DC |
| Output Current | 4.5A |
| Center Tip Polarity | Positive |
| Plug Type | N |
| Software | |
| OS Compatibility | Windows® 7, 8, 8.1, 10, 11 macOS 10.15–15.0 Ubuntu 18.04, 20.04 Chrome OS™ v55+ |
| Special Notes / Requirements | |
| Note | DisplayLink docking stations and video adapters support more than one external display on Apple's M1-based Mac. Requires driver installation. Please contact StarTech.com support for a recommendation based on your specific setup. |
| What's in the Box | |
| Included in Package | 1 - Docking Station 1 - USB-C Host Cable (1 m) 1 - Universal Power Adapter (JP, ANZ) 1 - Quick-Start Guide |
