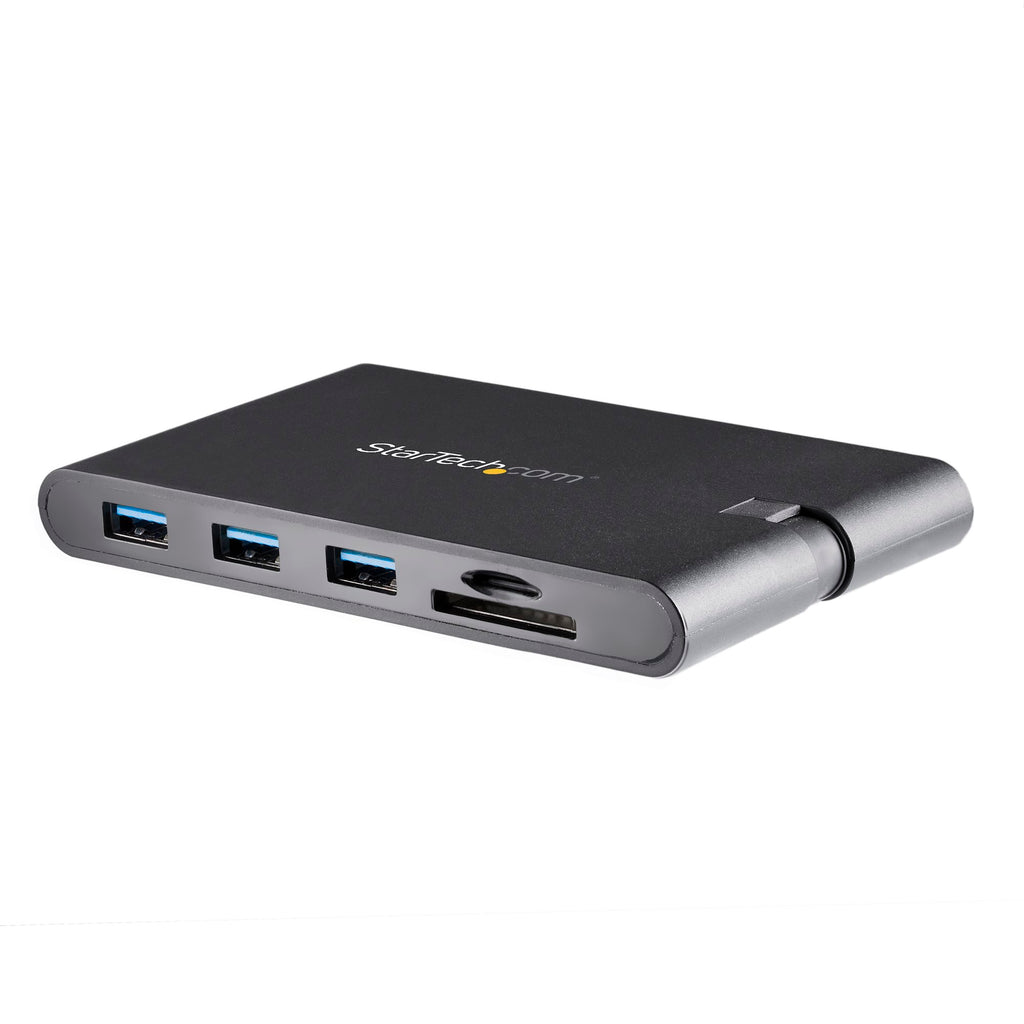

USB C Multiport Adapter - USB Type-C Mini Dock with HDMI 4K or VGA 1080p Video - 100W Power Delivery Passthrough, 3-port USB 3.0 Hub, GbE, SD & MicroSD - Laptop Travel Dock
Add video output, three USB 3.0 ports, SD/micro SD card readers, and GbE port to your laptop through a single USB-C port
Turn your USB-C™ equipped laptop into a mobile workstation. This sleek, compact USB-C multiport adapter makes it easy to connect your MacBook Pro or Windows laptop to an HDMI or VGA monitor. Power through your workday, with three USB 3.0 (Type-A) ports with Fast-Charge support, SD™ and microSD™ card slots, and a Gigabit Ethernet port.

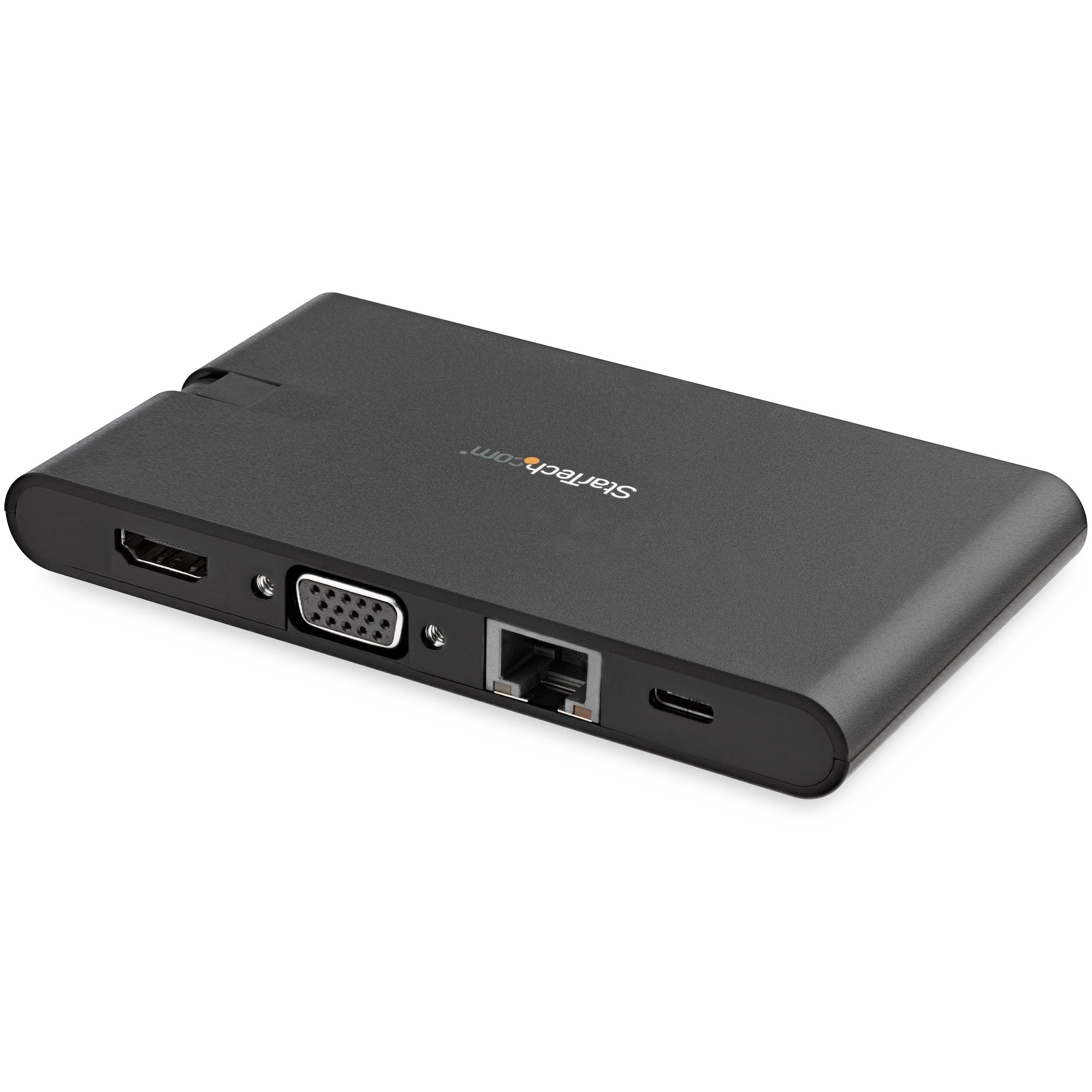

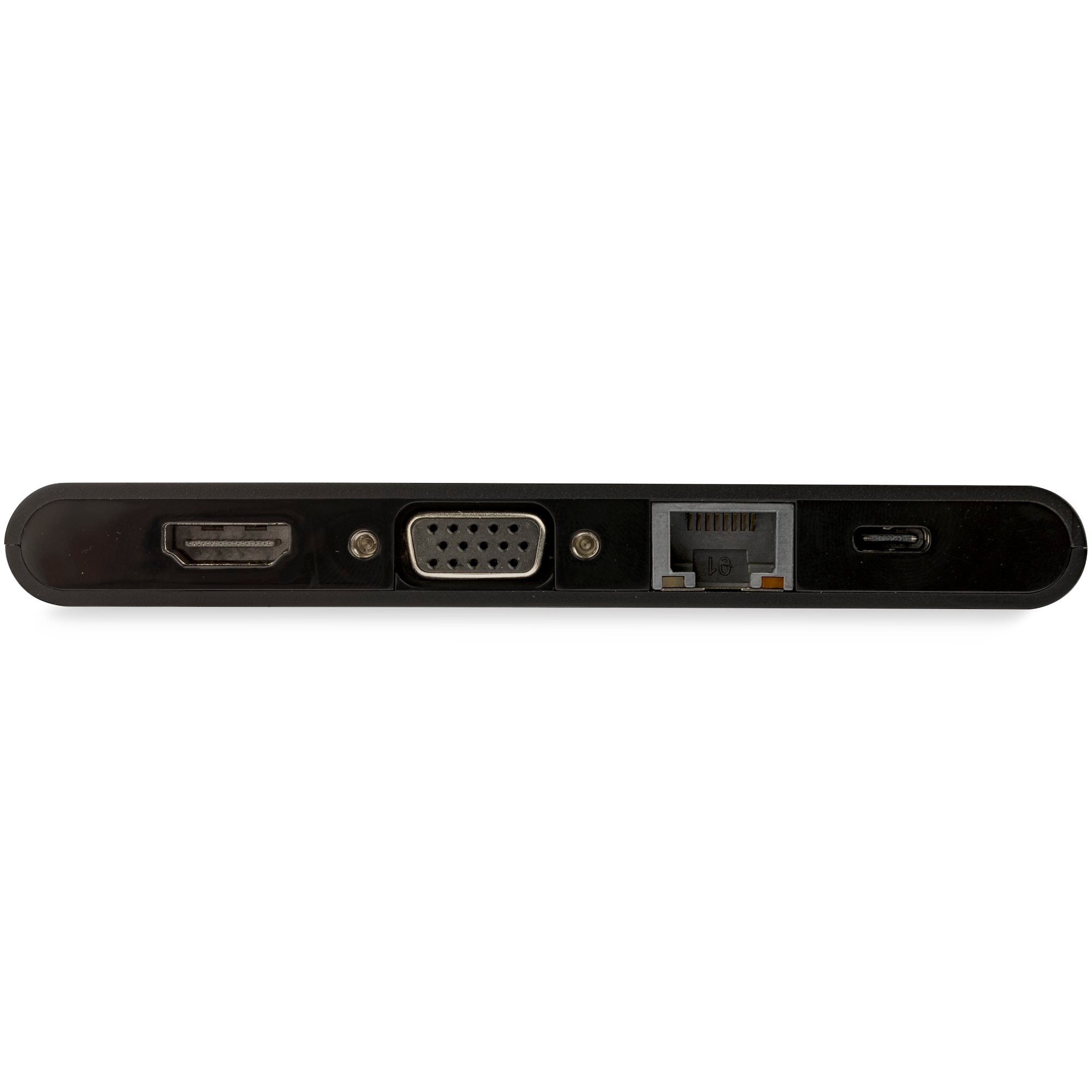

Connect to an external monitor
The universal USB Type-C™ multiport adapter (Thunderbolt 3 port compatible) offers enhanced productivity in the boardroom or classroom. Connect your laptop to one external monitor:
4K HDMI (3840 x 2160p @ 30Hz) or VGA (1920 x 1200 @ 60Hz)
Charge your laptop and peripherals
With support for USB Power Delivery 3.0 (up to 85W), the USB-C multiport adapter lets you power and charge your laptop, and power your peripherals at the same time. PD 3.0 features Fast Role Swap to prevent USB data disruption when switching power sources (bus power and USB-C power adapter).

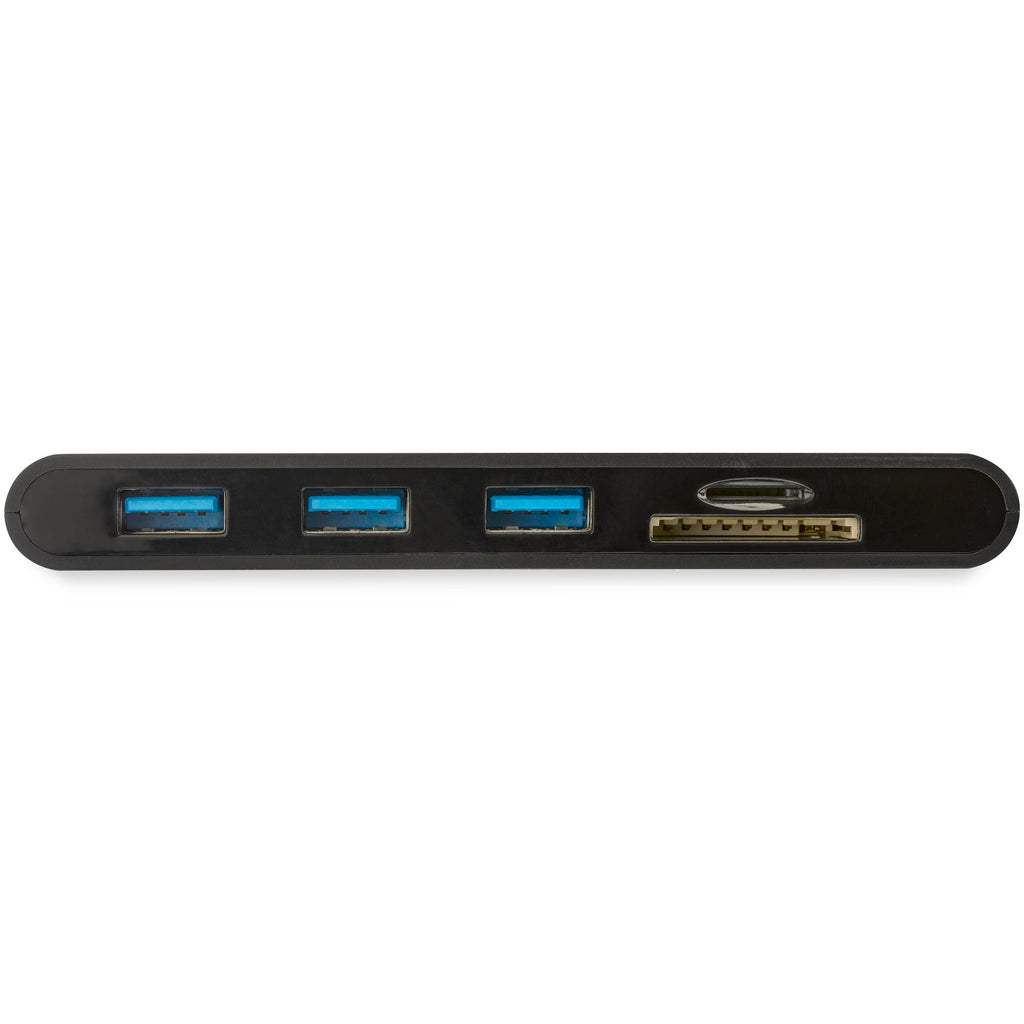

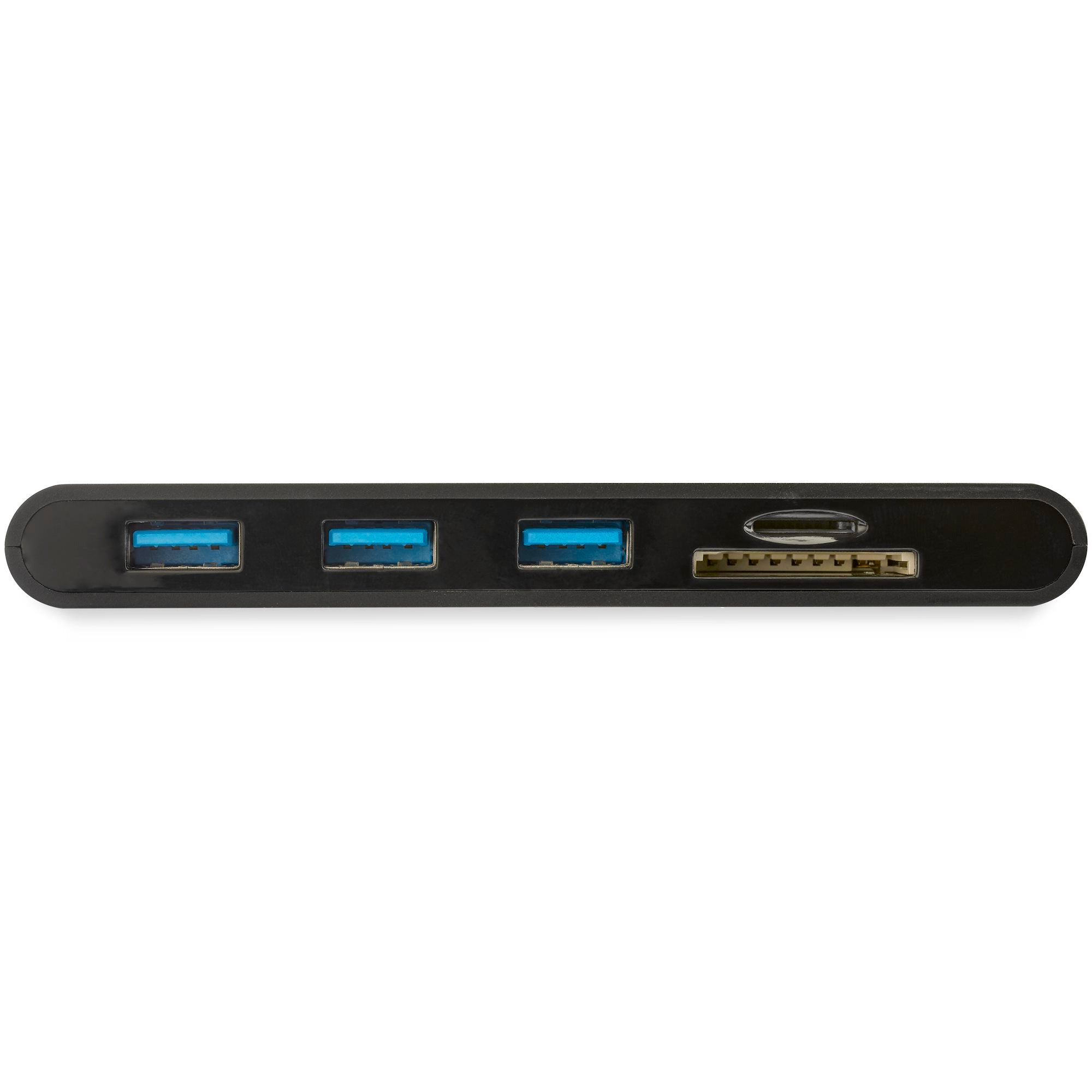

Connect USB devices
Connect your USB devices using the three USB 3.0 (Type-A) ports. Each USB port is a fast-charge and sync port, to ensure your tablet and smartphone are charged and ready. Each port offers 7.5W of charging power, with a combined total of 10W with all three ports in use.

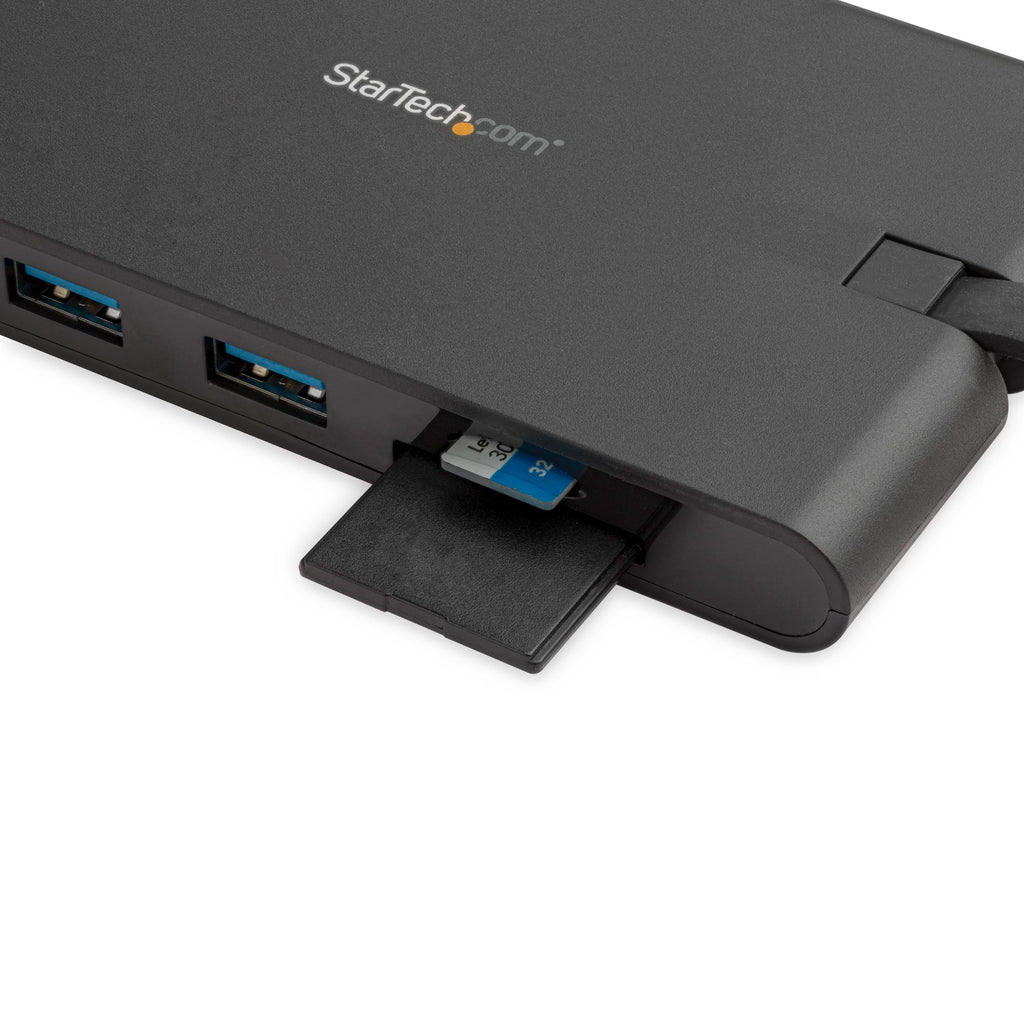

SD/microSD card access
Access the SD and microSD slots at the same time, and easily move data from one card to the other.
Easy portability

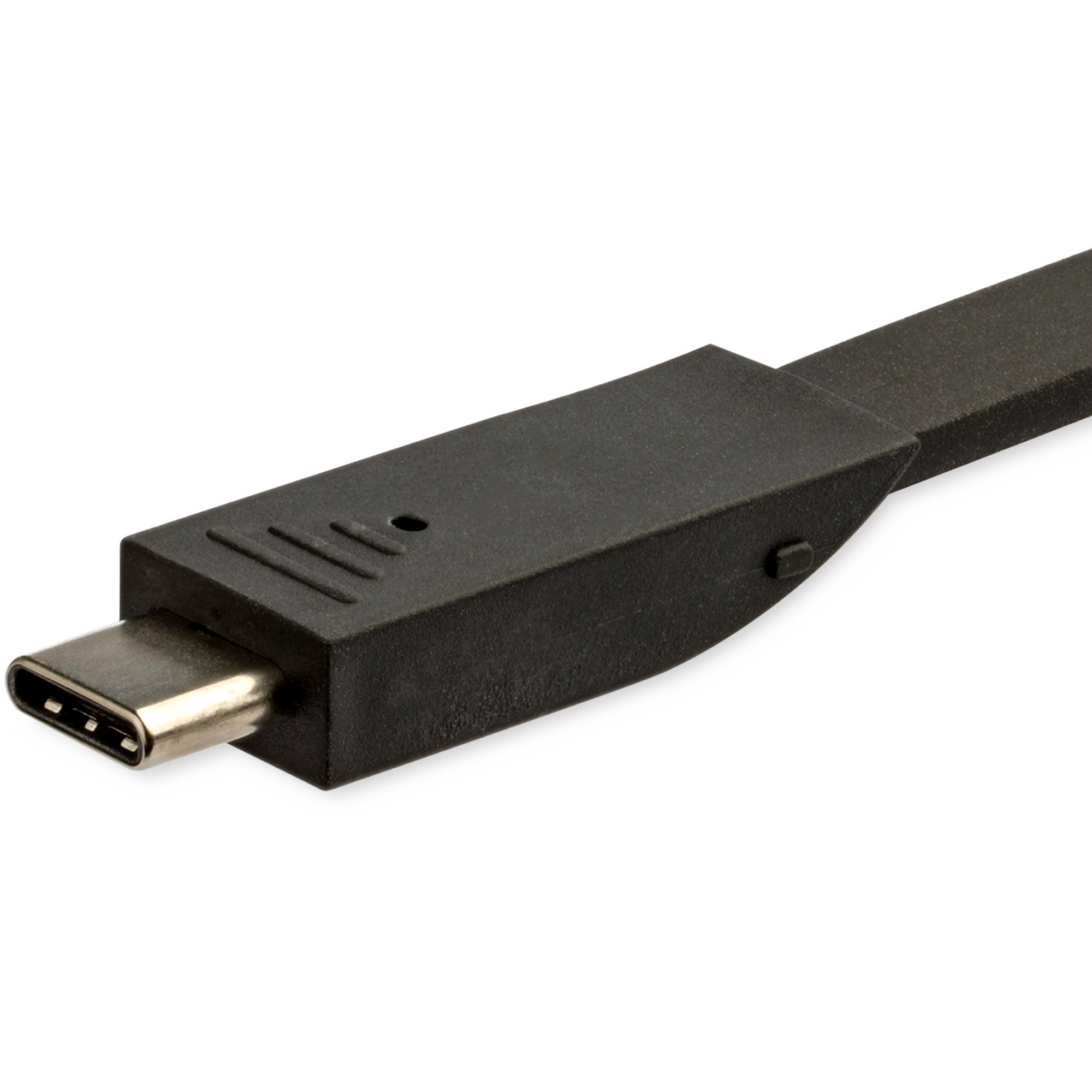

For mobile use, the USB-C adapter is bus-powered and lightweight, with a wraparound USB-C cable.
USB C Multiport Adapter - USB Type-C Mini Dock with HDMI 4K or VGA 1080p Video - 100W Power Delivery Passthrough, 3-port USB 3.0 Hub, GbE, SD & MicroSD - Laptop Travel Dock
Add video output, three USB 3.0 ports, SD/micro SD card readers, and GbE port to your laptop through a single USB-C port
Turn your USB-C™ equipped laptop into a mobile workstation. This sleek, compact USB-C multiport adapter makes it easy to connect your MacBook Pro or Windows laptop to an HDMI or VGA monitor. Power through your workday, with three USB 3.0 (Type-A) ports with Fast-Charge support, SD™ and microSD™ card slots, and a Gigabit Ethernet port.
Connect to an external monitor
The universal USB Type-C™ multiport adapter (Thunderbolt 3 port compatible) offers enhanced productivity in the boardroom or classroom. Connect your laptop to one external monitor:
4K HDMI (3840 x 2160p @ 30Hz) or VGA (1920 x 1200 @ 60Hz)
Charge your laptop and peripherals
With support for USB Power Delivery 3.0 (up to 85W), the USB-C multiport adapter lets you power and charge your laptop, and power your peripherals at the same time. PD 3.0 features Fast Role Swap to prevent USB data disruption when switching power sources (bus power and USB-C power adapter).
Connect USB devices
Connect your USB devices using the three USB 3.0 (Type-A) ports. Each USB port is a fast-charge and sync port, to ensure your tablet and smartphone are charged and ready. Each port offers 7.5W of charging power, with a combined total of 10W with all three ports in use.
SD/microSD card access
Access the SD and microSD slots at the same time, and easily move data from one card to the other.
Easy portability
For mobile use, the USB-C adapter is bus-powered and lightweight, with a wraparound USB-C cable.
| USB-C Multiport Adapter Specifications | |
|---|---|
| Connector(s) | |
| Connector Type(s) | 1 x HDMI (19 pin) 1 x VGA (15 pin, High Density D-Sub) 3 x USB 3.2 Type-A (9 pin, Fast-Charge) 1 x RJ-45 1 x SD / MMC Slot 1 x MicroSD 1 x USB Type-C (Power Delivery Only) 1 x USB 3.2 Type-C (Gen 1, 5Gbps) |
| Environmental | |
| Operating Temperature | 0°C to 45°C (32°F to 113°F) |
| Storage Temperature | -10°C to 70°C (14°F to 158°F) |
| Humidity | 10% – 85% RH |
| Hardware | |
| 4K Support | Yes |
| Fast-Charge Port(s) | Yes |
| Displays Supported | 1 |
| Bus Type | USB-C |
| Industry Standards | IEEE 802.3 / 802.3u / 802.3ab USB 3.0 (Backward compatible with USB 2.0 and 1.1) |
| Chipset ID | VIA/VLI - VL102, VL817 Parade - PS8338B, PS176 Analogix - ANX9833 ALCOR MICRO - AU84612 Realtek - RTL8153 |
| Packaging Information | |
| Package Length | 6.7 in (17.0 cm) |
| Package Width | 5.7 in (14.6 cm) |
| Package Height | 1.3 in (3.2 cm) |
| Shipping Weight | 6.0 oz (170.0 g) |
| Package Quantity | 1 |
| Performance | |
| Maximum Data Transfer Rate | 5 Gbps (USB 3.0) 2 Gbps (Ethernet; Full-Duplex) |
| Maximum Analog Resolutions | 1920 x 1200 @ 60Hz (VGA) |
| Maximum Digital Resolutions | 3840 x 2160 @ 30Hz (HDMI) |
| Supported Resolutions | 3840 x 2160 (4K) 2560 x 1600 2560 x 1440 Lower resolutions also supported |
| Audio Specifications | HDMI - Multi-channel Audio |
| Type and Rate | USB 3.0 - 5 Gbit/s |
| UASP Support | Yes |
| Compatible Networks | 10/100/1000 Mbps |
| Auto MDIX | Yes |
| Full Duplex Support | Yes |
| General Specifications | |
| Power Delivery | USB PD 3.0 up to 85W (with 100W adapter) Fast Role Swap supported Each USB-A port: up to 7.5W Combined USB-A charging: up to 10W Only one fast-charge port usable at a time |
| Physical Characteristics | |
| Color | Black |
| Material | Plastic |
| Cable Length | 4.6 in (118 mm) |
| Product Length | 4.8 in (12.2 cm) |
| Product Width | 2.8 in (7.0 cm) |
| Product Height | 0.6 in (1.4 cm) |
| Weight of Product | 4.6 oz (129.0 g) |
| Power | |
| Power Source | USB-Powered |
| Output Voltage | 5V DC |
| Software | |
| OS Compatibility | Windows® 7, 8, 8.1, 10, 11, 11 ARM macOS 10.11 to 15.0 Chrome OS™ |
| Special Notes / Requirements | |
| System Requirements | Host laptop with USB-C port supporting PD 3.0 and DP Alt Mode USB-C power adapter recommended for full functionality |
| Note | PD 2.0 ports support pass-through but not Fast Role Swap Non-PD ports do not support pass-through 4K-capable display required for 3840 x 2160p resolution USB 3.0 = USB 3.1 Gen 1 (5Gbps) Charging power depends on adapter wattage and device draw |
| What's in the Box | |
| Included in Package | 1 x Multiport Adapter 1 x User Manual |
