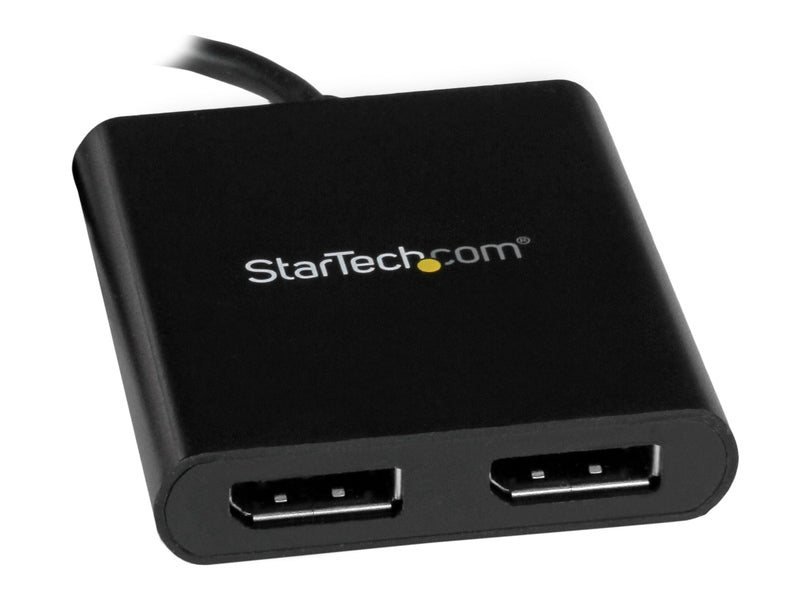

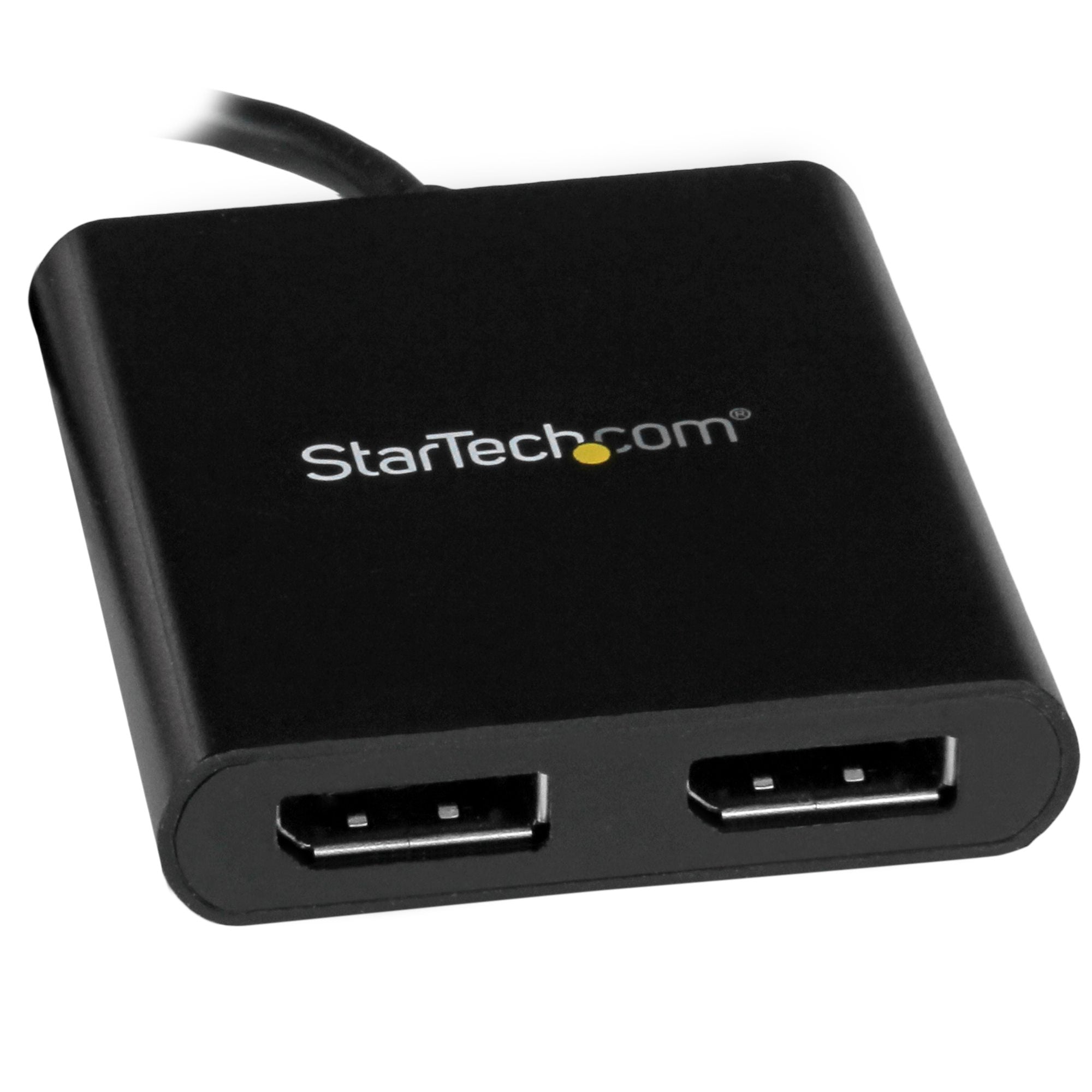

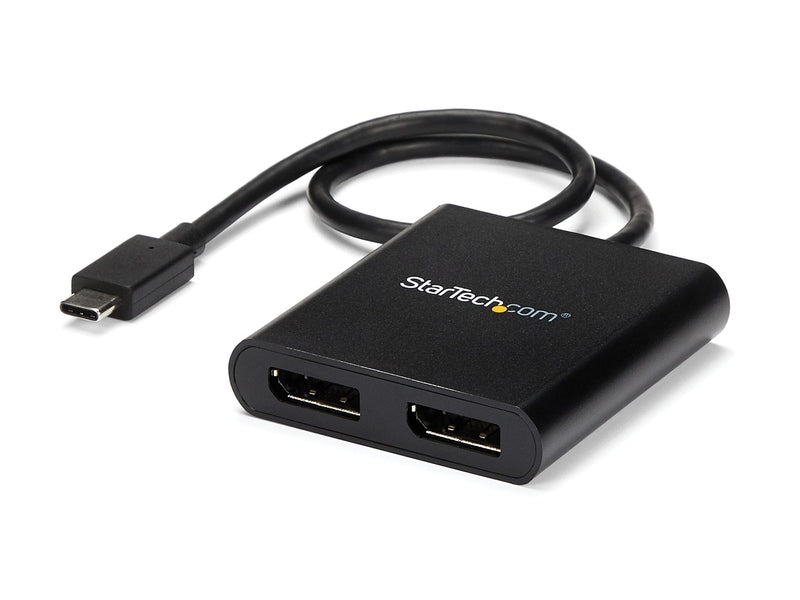

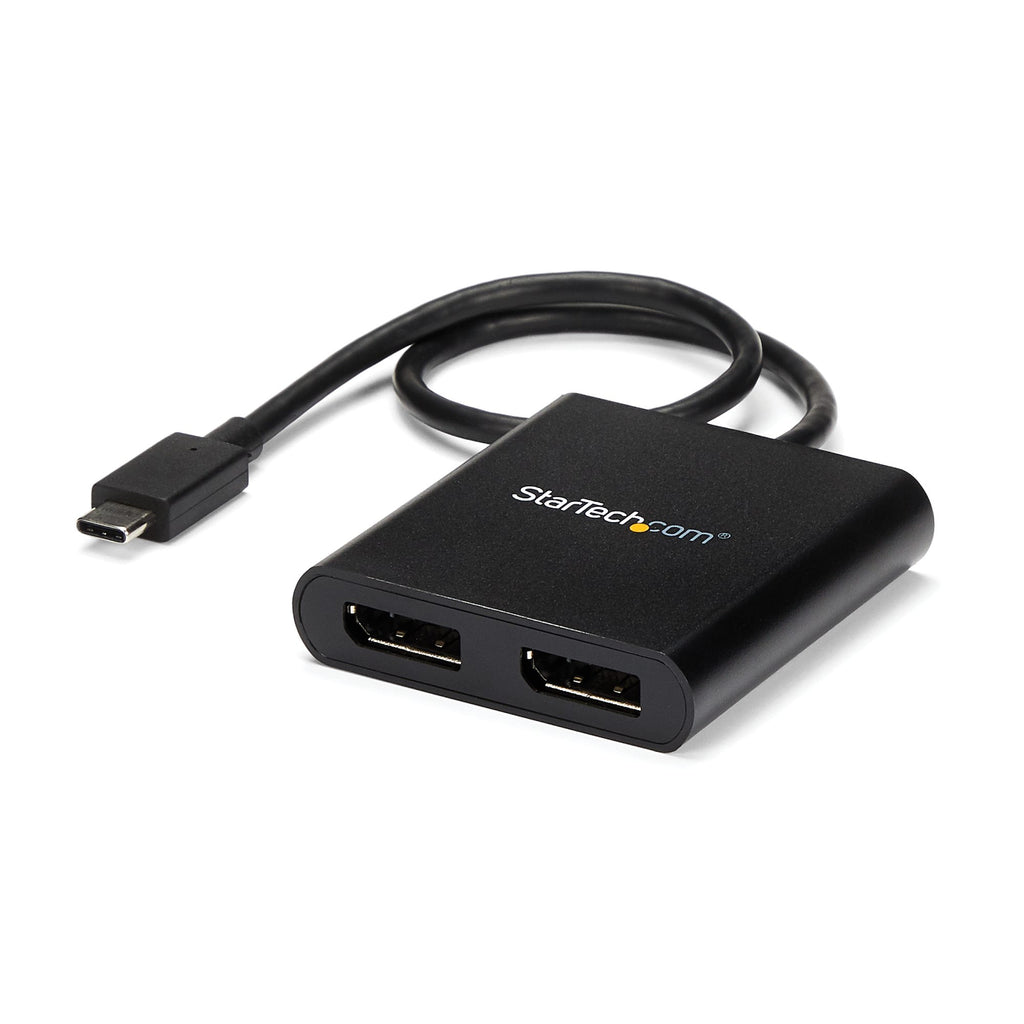

USB-C to Dual DisplayPort 1.2 Adapter, USB Type-C Multi-Monitor MST Hub, Dual 4K 30Hz/1080p 60Hz DP Laptop Display Extender / Splitter, Extra-Long Built-In Cable - Windows Only
Create a high-performance dual-display workstation by connecting a USB Type-C™ device to two independent DisplayPort™ monitors
This USB-C to DisplayPort MST Hub lets you connect two DisplayPort monitors to your USB Type-C Windows device, conveniently helping you to maximize your productivity.
Multitasking Made Easy
With devices becoming more portable than ever, you can be limited to fewer video outputs and confined to your small integrated screen. This multi-stream transport hub solves that problem by enabling you to connect two separate displays to your USB-C computer, making multitasking much easier.
Using this USB-C to dual DisplayPort monitor adapter, you can mirror your display onto additional monitors or stream independent content to each display, which makes it the ideal accessory for travel or hot-desking.

Astonishing Picture Quality
MST technology uses your existing video card to minimize the use of system resources, while delivering UHD 4K resolutions for two monitors or displays simultaneously. With support for HD 1080p and UHD 4K, the dual-monitor splitter is perfect for all high-resolution applications such as graphic design and CAD drawing.

Hassle-Free Setup
Multi-stream transport offers an easy setup, by natively working on any Windows device that supports DP Alt Mode over USB Type-C. This USB-C dual-monitor adapter is Thunderbolt 3 compatible, and offers plug-and-play installation with no drivers or software required. Additionally, this DP MST hub is powered by the USB-C port, meaning no external power cords are necessary.

USB-C to Dual DisplayPort 1.2 Adapter, USB Type-C Multi-Monitor MST Hub, Dual 4K 30Hz/1080p 60Hz DP Laptop Display Extender / Splitter, Extra-Long Built-In Cable - Windows Only
Create a high-performance dual-display workstation by connecting a USB Type-C™ device to two independent DisplayPort™ monitors
This USB-C to DisplayPort MST Hub lets you connect two DisplayPort monitors to your USB Type-C Windows device, conveniently helping you to maximize your productivity.
Multitasking Made Easy
With devices becoming more portable than ever, you can be limited to fewer video outputs and confined to your small integrated screen. This multi-stream transport hub solves that problem by enabling you to connect two separate displays to your USB-C computer, making multitasking much easier.
Using this USB-C to dual DisplayPort monitor adapter, you can mirror your display onto additional monitors or stream independent content to each display, which makes it the ideal accessory for travel or hot-desking.

Astonishing Picture Quality
MST technology uses your existing video card to minimize the use of system resources, while delivering UHD 4K resolutions for two monitors or displays simultaneously. With support for HD 1080p and UHD 4K, the dual-monitor splitter is perfect for all high-resolution applications such as graphic design and CAD drawing.

Hassle-Free Setup
Multi-stream transport offers an easy setup, by natively working on any Windows device that supports DP Alt Mode over USB Type-C. This USB-C dual-monitor adapter is Thunderbolt 3 compatible, and offers plug-and-play installation with no drivers or software required. Additionally, this DP MST hub is powered by the USB-C port, meaning no external power cords are necessary.

| USB-C to DisplayPort MST Hub Specifications | |
|---|---|
| Connector(s) | |

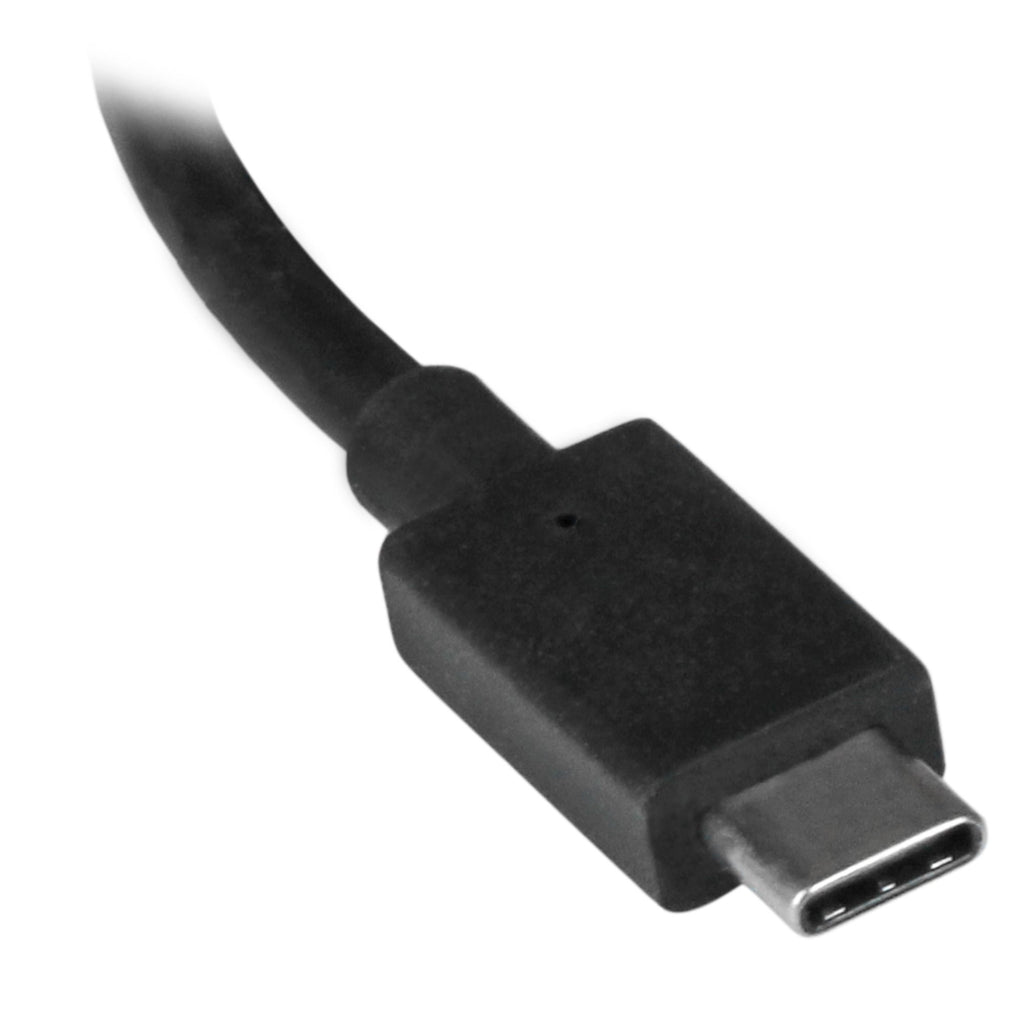

| Connector A | 1 × USB-C (24 pin) DisplayPort Alt Mode |
| Connector B | 2 × DisplayPort (20 pin) |
| Environmental | |
| Operating Temperature | 5°C to 35°C (41°F to 95°F) |
| Storage Temperature | -20°C to 60°C (-4°F to 140°F) |
| Humidity | 50–90% |
| Hardware | |
| AV Input | USB-C |
| Ports | 2 |
| AV Output | DisplayPort 1.2 |
| Audio | Yes |
| Chipset ID | MegaChips STDP4320, VIA/VLI VL100 |
| Packaging Information | |
| Package Height | 1.3 in [3.4 cm] |
| Package Length | 5.6 in [14.3 cm] |
| Package Width | 6.9 in [17.5 cm] |
| Package Weight | 4.5 oz [128.0 g] |
| Package Quantity | 1 |
| Performance | |
| Audio Specifications | DisplayPort - 5.1 Channel Audio |
| Max Cable Distance to Display | 6.6 ft [2 m] |
| Max Digital Resolution | 3840×2160 @ 30Hz |
| Bandwidth Allocation Notes | MST shares 21.6 Gbps across all displays. Typical Bandwidth Usage: 1920×1080 @60Hz – 22% 1920×1200 @60Hz – 30% 2560×1440 @60Hz – 35% 2560×1600 @60Hz – 38% 3840×2160 @30Hz – 38% Note: Exceeding 100% may reduce functionality. |
| Wide Screen Supported | Yes |
| Physical Characteristics | |
| Color | Black |
| Cable Length | 12.8 in [32.4 cm] |
| Product Length | 15.2 in [38.6 cm] |
| Product Width | 2.3 in [5.8 cm] |
| Product Height | 0.6 in [1.4 cm] |
| Product Weight | 1.6 oz [44.0 g] |
| Power | |
| Power Source | USB-Powered |
| Software | |
| OS Compatibility | Microsoft Windows® 11, 11 ARM Windows 10, 8/8.1, 7 |
| Special Notes / Requirements | |
| Note | DisplayPort 1.2 with MST + HBR2 support required for independent display output. USB-C device must support video (DP Alt Mode). |
| What's in the Box | |
| Included Items | 1 × MST Hub 1 × Quick-start Guide |
