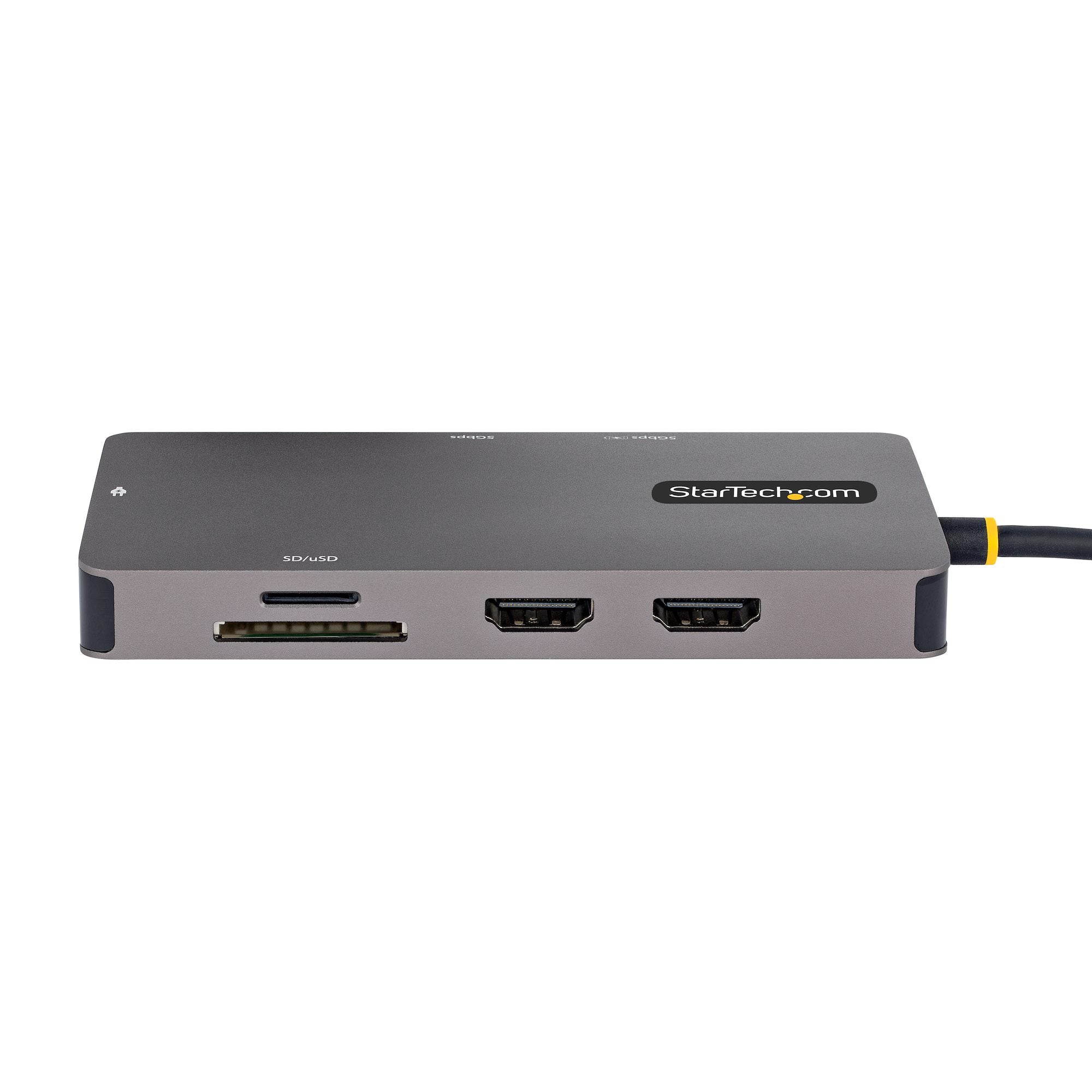

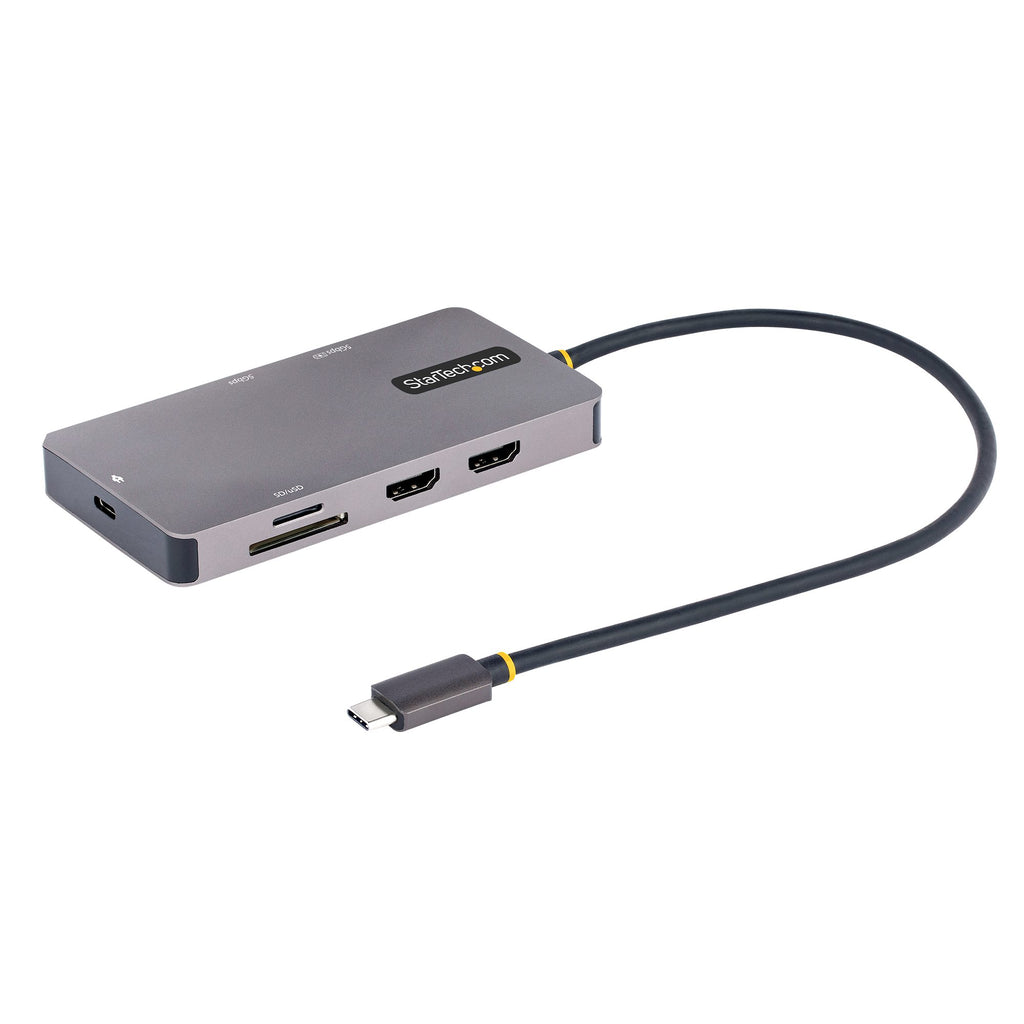

StarTech USB-C Multiport Adapter, 4K Dual HDMI, 5Gbps USB Hub, 100W PD 3 Yr

StarTechSKU: 120B-USBC-MULTIPORT

Availability:

✅ In Stock at Supplier (ETA: Usually in 1-3 Business Days)

Pickup available at PC LAN Store

1-3 Business Days

Price:
Sale price$159.00

Estimate shipping

Description

Overview

USB C Multiport Adapter, Dual HDMI Video, 4K 60Hz, 2Pt 5Gbps USB-A Hub, 100W Power Delivery Pass-Through/GbE/SD/MicroSD, 12"/30cm Cable, Travel Dock, Laptop Docking Station
Portable Docking Station | Up to Dual-4K 60Hz | GbE | SD & MicroSD Card Readers | Thunderbolt™ 3 & 4 Compatible

This USB Type-C Multiport Adapter with DP 1.4 Alternative Mode, DSC and MST, supports dual-HDMI® (HDR) video with resolutions of up to 4K 60Hz uncompressed video. The mini travel dock turns your Dell XPS, Lenovo X1 Carbon, HP Elite/ProBook, or other USB-C laptop into a workstation, anywhere you go. The USB-C docking station provides dual HDMI outputs, a 2-port USB 3.2 Gen 1 Type-A (5Gbps) Hub including a BC 1.2 port to power and charge a USB peripheral, SD and MicroSD card readers, and a Gigabit Ethernet port, all through one connection to your laptop's USB-C or Thunderbolt 3/4™ port. In addition, it offers advanced charging through USB Power Delivery (PD) 3.0 pass-through via an integrated 12-inch (30 cm) USB-C host cable, for more set up flexibility.

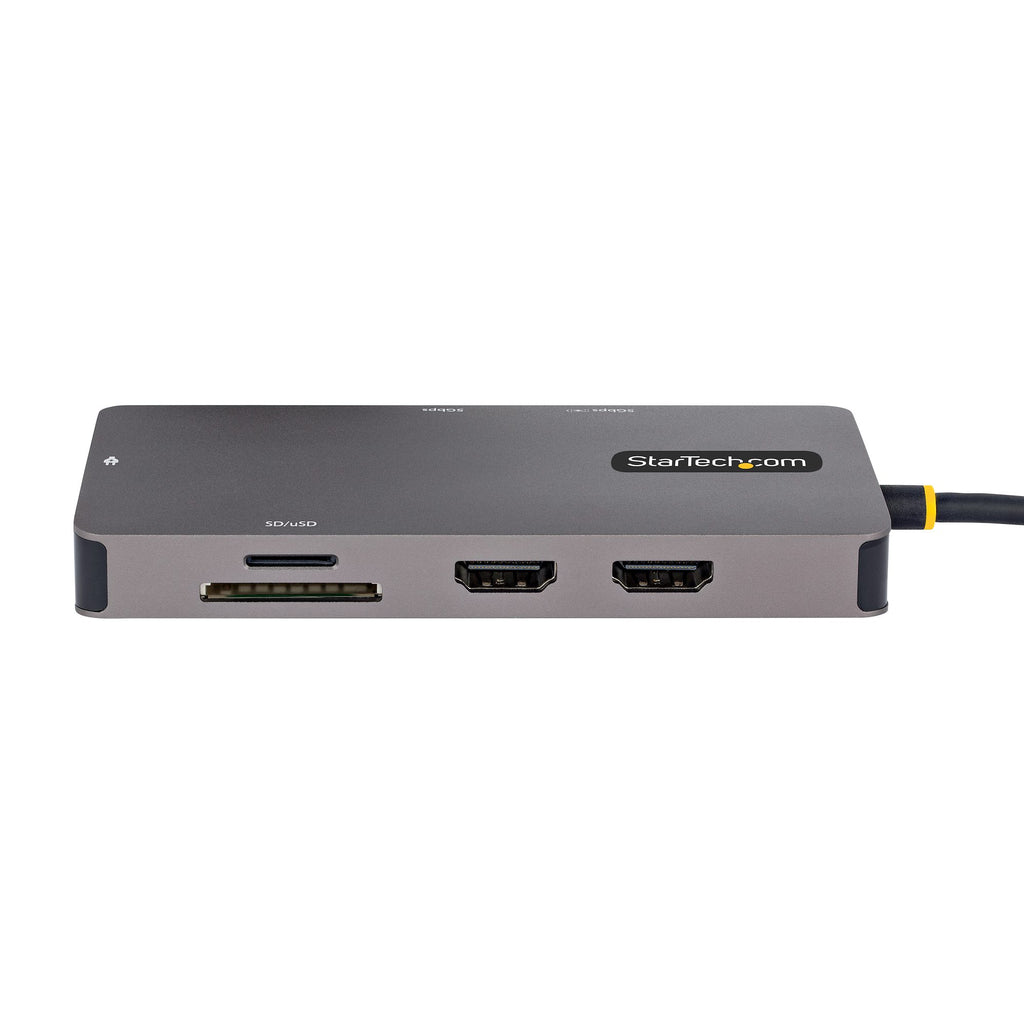

High-Performance Dual-HDMI Video via MST
The compact docking station connects your laptop to two HDMI monitors, creating a powerful workstation. It supports DP 1.4 Alt Mode with DSC and MST, for uncompressed video performance up to dual 4K (3840 x 2160p) at 60Hz, depending upon your host computer. The dock also supports the use of ultrawide monitors.

Video performance, such as resolution and refresh rate across both monitors, is dependent upon your host computer and its video controller. A source device with support for DisplayPort 1.4, paired with DSC and DP 1.4 enabled HDMI displays, are required to achieve dual 4K 60Hz. Please review the specifications of your computer and displays, to determine expected video performance. StarTech.com performs rigorous performance benchmarks with all major computer models. The video performance results of our testing are listed below:

Dual Display

Host Computer
Model

Monitor #1
Maximum Resolution

Monitor #2
Maximum Resolution

Lenovo X1 Carbon G9 3840x2160@60Hz 3840x2160@60Hz
HP EliteBook 850 G8 3840x2160@60Hz 3840x2160@30Hz
Dell XPS 9310 2560x1600@60Hz 2560x1600@60Hz

Single Display

Host Computer
Model

Monitor
Maximum Resolution

Dell XPS 9310 3840x2160@60Hz
Lenovo X1C G9 3840x2160@60Hz
HP EliteBook 850 3840x2160@60Hz
HP ProBook 450 G8 3840x2160@60Hz
Surface Laptop 3 3840x2160@60Hz
Dell G5 SE (AMD) 3840x2160@60Hz

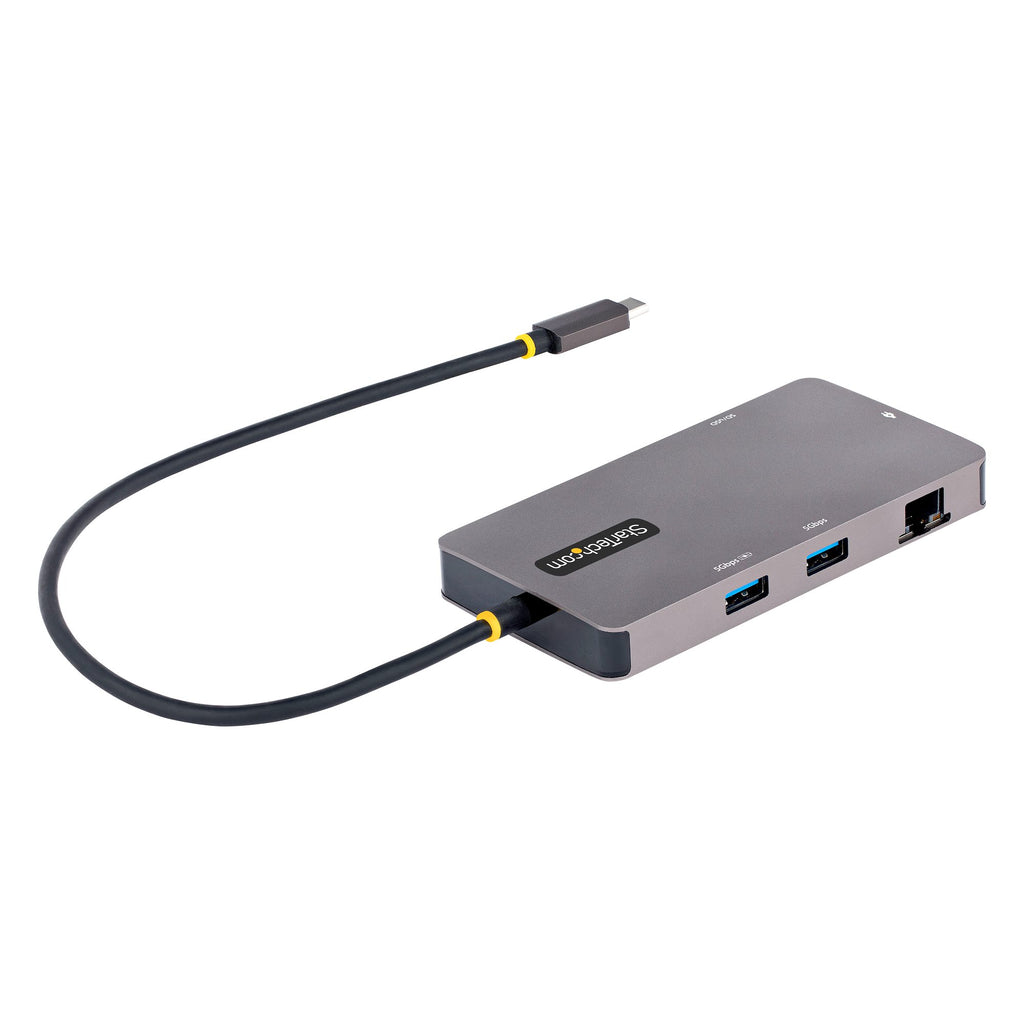

Connect Your Devices

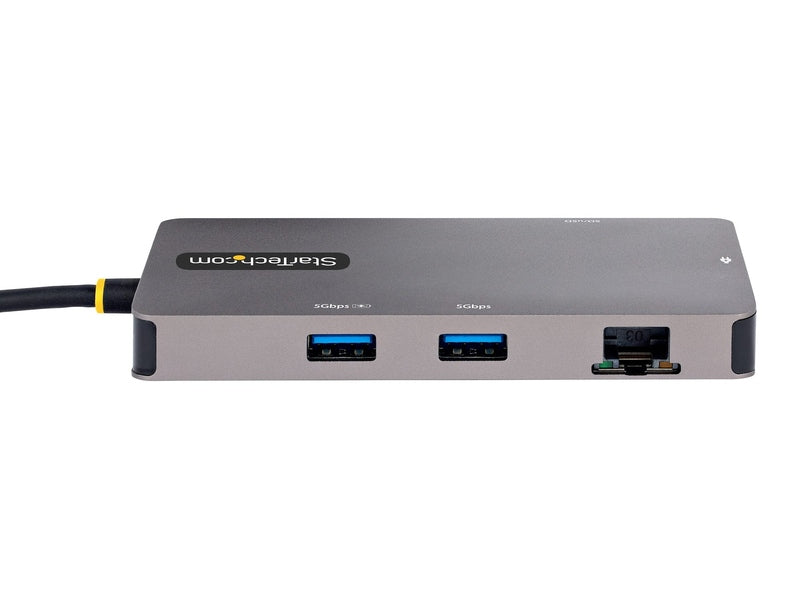

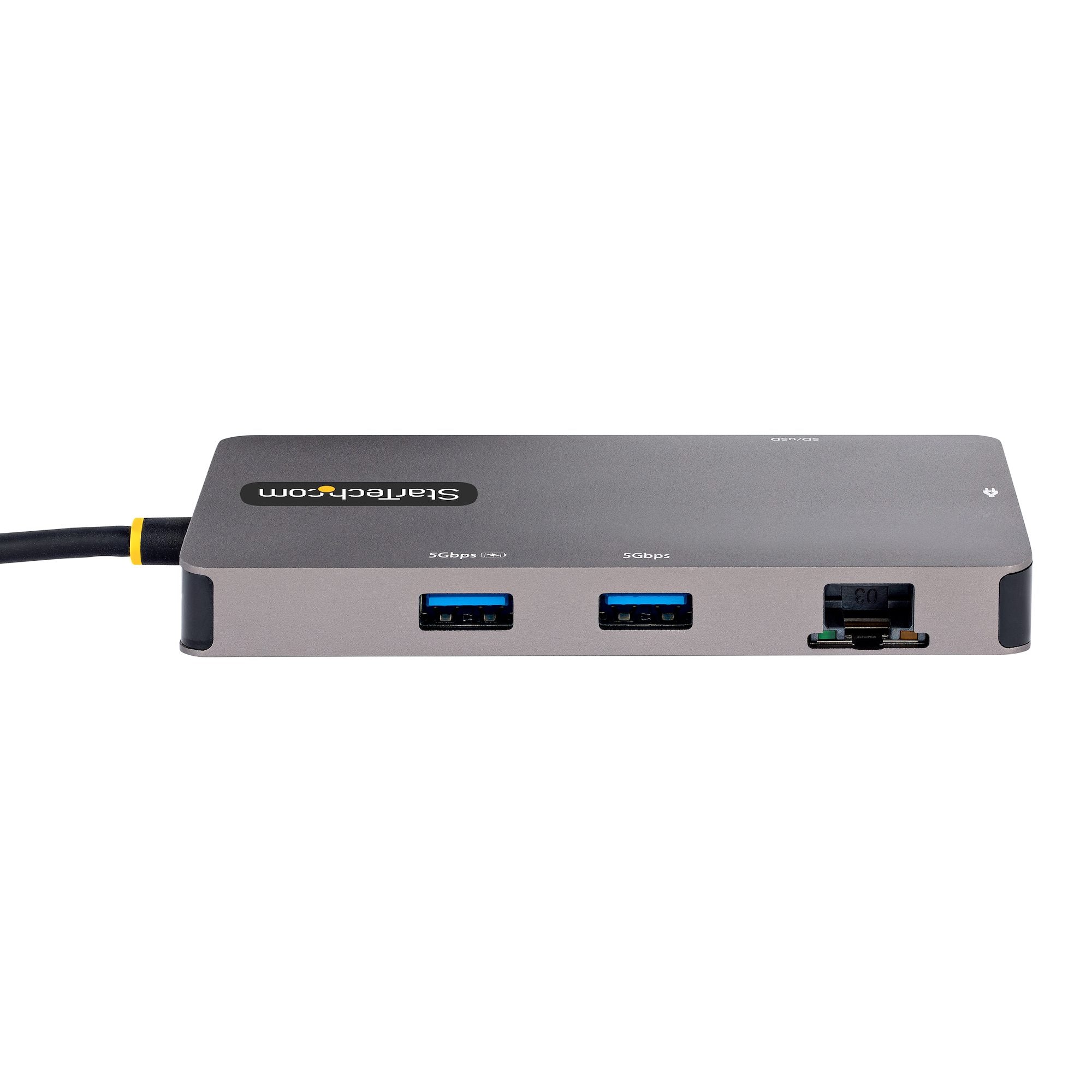

The USB-C to USB 3.2 Gen 1 (5Gbps) hub provides two USB-A ports for connecting your USB devices.

Multiple Use Cases
A versatile dock solution for use at your office desk, home office, hotel desk, or in the boardroom. It's portable enough to be carried in your bag / backpack for mobile use. The USB-C dock can operate with bus-power alone, , or with a USB-C power adapter connected to the pass-through port - for full laptop and peripheral charging. The lightweight docking station features a built-in 12 in (30 cm) USB-C host cable.

Built-In SD Card Reader

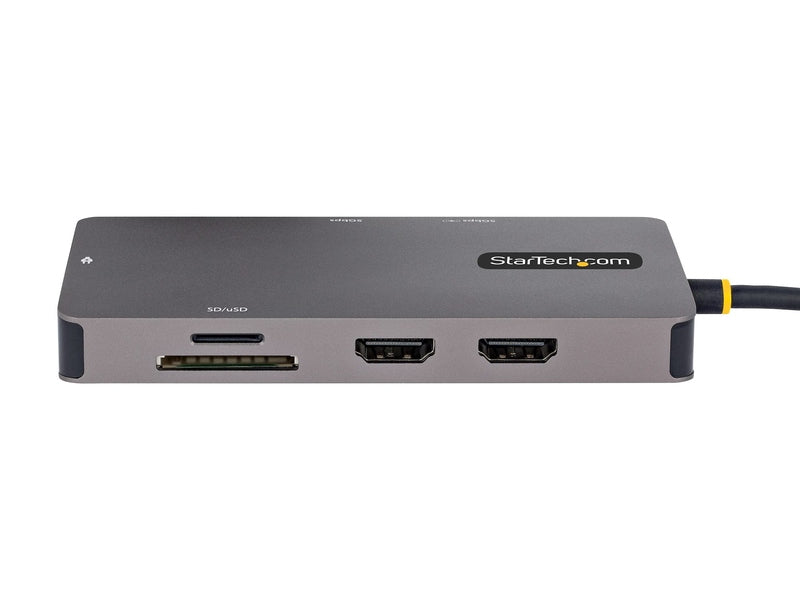

Access your multimedia content with ease. The multiport adapter provides direct access to your SD / SDHC™ / SDXC™ or microSD (uSD) memory cards.

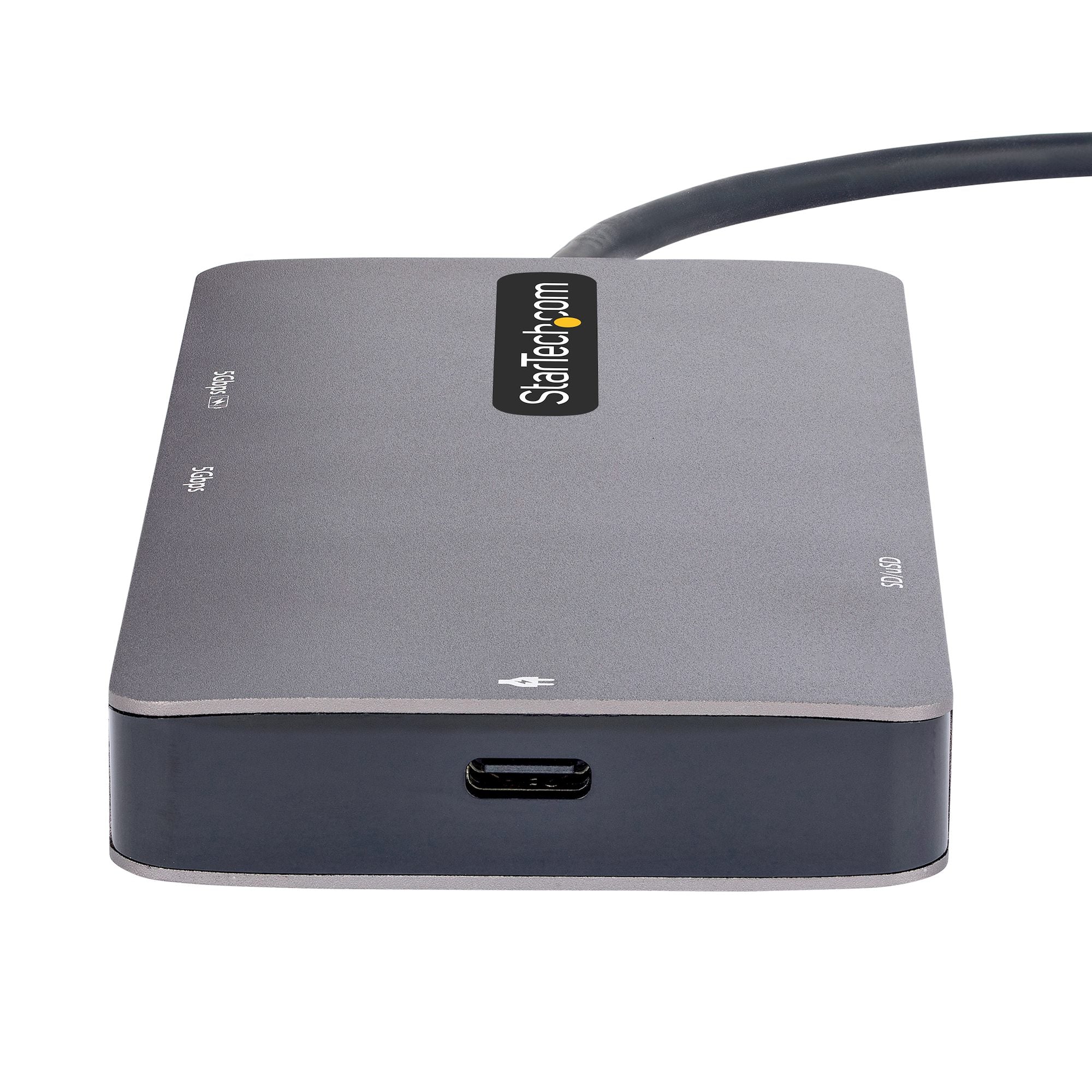

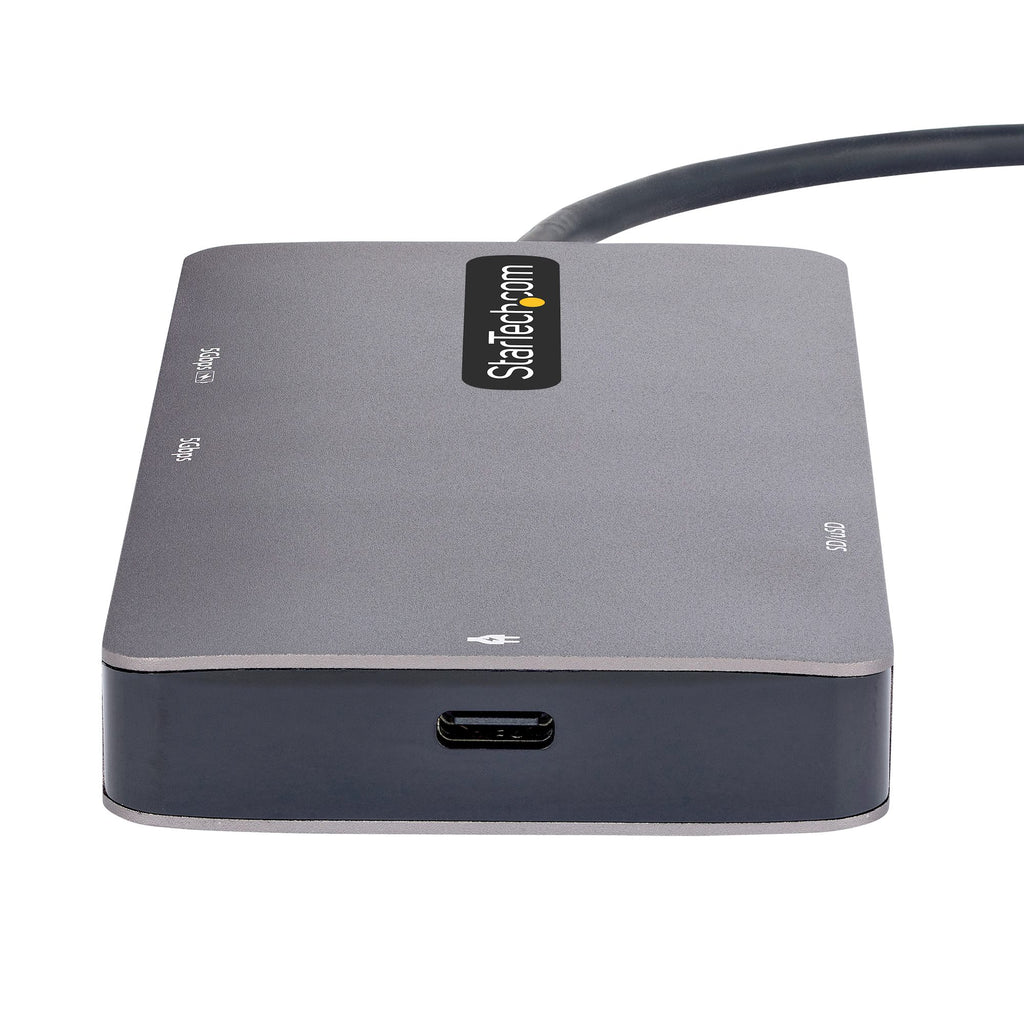

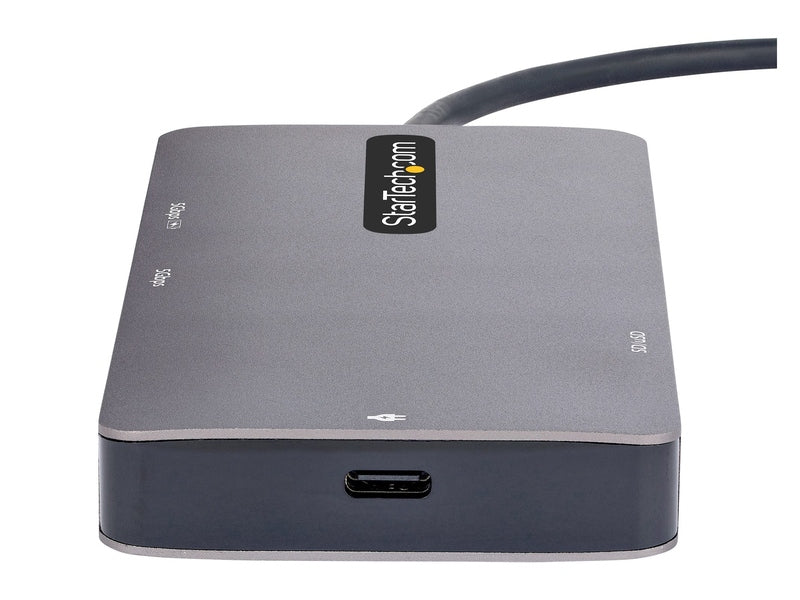

Charge Your Laptop and Peripherals
With support for USB PD 3.0 (up to 100W), the USB Type-C multiport adapter enables you to power and charge your laptop and a USB peripheral, when a USB-C power adapter is connected to the pass-through port. PD 3.0 features Fast Role Swap (FRS) which prevents USB data disruption when switching power sources (e.g., USB-C power adapter to bus power).

Reliable Network Connectivity
The Gigabit Ethernet port ensures reliable wired network access. Support for WoL allows you to boot the host computer from a remote location.

Enhance Productivity and Device Management with the StarTech.com Connectivity Tools Application
Developed to improve performance and security, StarTech.com Connectivity Tools is the only software suite on the market that works with a wide range of IT connectivity accessories. The software suite includes:

- Advanced Windows Layout Utility: To setup and save custom windows layouts.
- MAC Address Pass-Through Utility: To improve network security.
- USB Event Monitoring Utility: To track and log connected USB devices.
- Wi-Fi Auto Switch Utility: Enable users to quickly access faster network speeds via wired LAN.

USB-C Multiport Adapter Specifications
Package Quantity
Package Quantity 1
Connector(s)
External Ports 2 - HDMI (19 pin)
2 - USB 3.2 Type-A (9 pin, Gen 1, 5Gbps)
1 - RJ-45
1 - SD Slot
1 - MicroSD
1 - USB Type-C (24 pin) USB Power Delivery Only
Host Connectors 1 - USB 3.2 Type-C (24 pin, Gen 1, 5Gbps)
Environmental
Operating Temperature 0°C to 45°C (32°F to 133°F)
Storage Temperature -10°C to 70°C (14°F to 185°F)
Humidity 10~90% RH (Non-condensing)
Hardware
4K Support Yes
Fast-Charge Port(s) Yes
Displays Supported 2
Interface USB 3.2 Gen 1
Bus Type USB-C
Industry Standards HDMI 2.0
HDR10
DisplayPort 1.4
USB 3.2 Gen 1 (5Gbps)
USB Power Delivery Specification Rev. 3.0
Chipset ID VIA - VL102
VIA - VL817
NOREL Systems - NS1081
ASIX - AX88179A
Synaptics - VMM6210
LED Indicators 1 - Connection state/activity LEDs under GbE port.
Packaging Information
Package Length 5,6 in [14,2 cm]
Package Width 6,8 in [17,3 cm]
Package Height 1,3 in [3,2 cm]
Shipping (Package) Weight 6,6 oz [186,0 g]
Performance
Wake On Lan Yes
Maximum Data Transfer Rate 5 Gbps
Maximum Digital Resolutions Up to dual 4K (3840 x 2160p) 60Hz
Type and Rate USB 3.2 Gen 1 - 5 Gbit/s
UASP Support Yes
Compatible Networks 10/100/1000 Mbps
Full Duplex Support Yes
Physical Characteristics
Color Space Gray
Product Length 2,3 in [5,9 cm]
Product Width 5,7 in [14,5 cm]
Product Height 0,6 in [1,4 cm]
Weight of Product 5,8 oz [165,0 g]
Material Aluminum
Cable Length 11,8 in [30 cm]
Power
Power Source Bus Powered and Host USB-C Power Adapter
Output Voltage 5 DC
Power Consumption (In Watts) 15W
Software
OS Compatibility Windows® 7, 8, 8.1, 10, 11, 11 ARM
Chrome OS™
Ubuntu 20.04 Kernel 5.15 and up - LTS Versions only
Special Notes / Requirements
System and Cable Requirements A host laptop with an available USB-C port (to ensure full adapter functionality, the host USB-C port must support USB Power Delivery 2.0 and DP alt mode).
For a multi-monitor configuration, the computer must support MST
Optional: USB-C power adapter (for example, your laptop's USB-C based power adapter).
Note Not all USB-C ports support the full functionality of the USB Type-C standard. Ensure that your host USB-C port supports USB Power Delivery and DP alt mode.
The adapter can connect to a host laptop's USB-C port that doesn't support USB Power Delivery. However, in this configuration if a power adapter is connected to the multifunction adapter, it will not pass power through to your host laptop.
A 4K-capable display is required to achieve 3840 x 2160p resolution (4K is also known as 4K x 2K).
A 4K-capable computer is required to achieve 3840 x 2160p resolution (4K is also known as 4K x 2K).
USB 3.2 Gen 1 (5Gbps) is also known as USB 3.1 Gen 1 (5Gbps) and USB 3.0 (5Gbps).
Your laptop might have specific charging requirements. For example, if your laptop requires exactly 60W of power and an adapter consumes some of the 60W, your laptop might not recognize that it is getting enough power. For more information about Power Delivery, refer to the manufacturer of your hardware.
What's in the Box
Included in Package 1 - USB-C Multiport Adapter
1 - Quick-Start Guide
