StarTech USB-C Multiport Adapter, 4K, HDMI, GbE, USB(2), Single Display, 48W, 3Yr

StarTechSKU: DKT30CHPDW

Availability:

✅ In Stock at Supplier (ETA: Usually in 1-3 Business Days)

Price:
Sale price$73.00

Estimate shipping

Description

Overview

USB-C Multiport Adapter - USB-C Travel Docking Station w/ 4K HDMI - 60W Power Delivery Pass-Through, GbE, 2pt USB-A 3.0 Hub - Portable Mini USB Type-C Dock for Laptop - White - TAA
Portable Docking Station | Mac & Windows® | GbE | Thunderbolt™ 3 Compatible | TAA

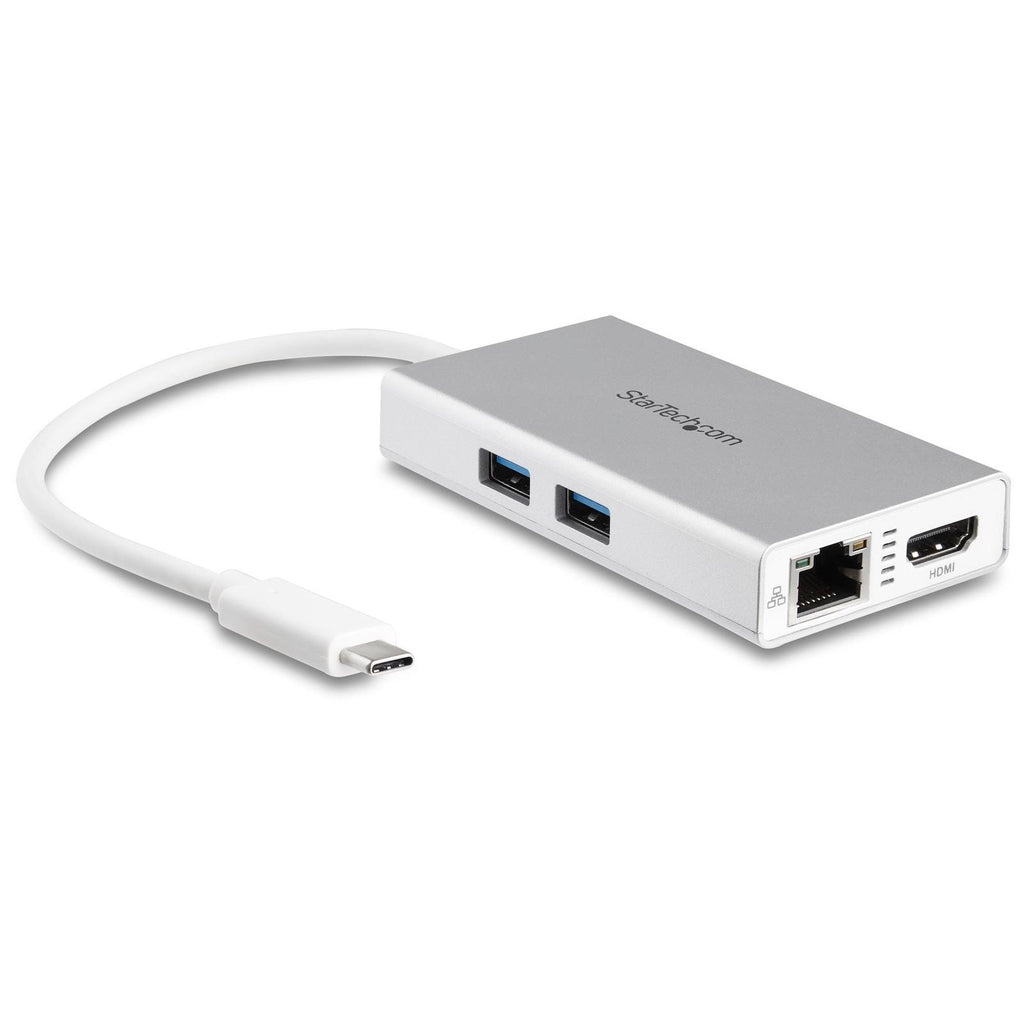

This sleek USB-C Multiport Adapter with HDMI combines the capability of three single-function adapters into a portable docking station for your laptop. You get the convenience of a USB-C to USB adapter, USB-C to Ethernet adapter, and USB-C 4K HDMI adapter all in one portable solution.

And, with support for 60W USB Power Delivery 2.0, you can power both the adapter and charge your laptop at the same time.

Create a Powerful Workstation
The versatile USB-C adapter lets you create a dual-monitor workstation virtually anywhere, providing 4K Ultra HD (3840 x 2160p) HDMI output with 30 Hz refresh rate and audio, two USB 3.0 ports, and a Gigabit Ethernet port, with support for USB Power Delivery 2.0.

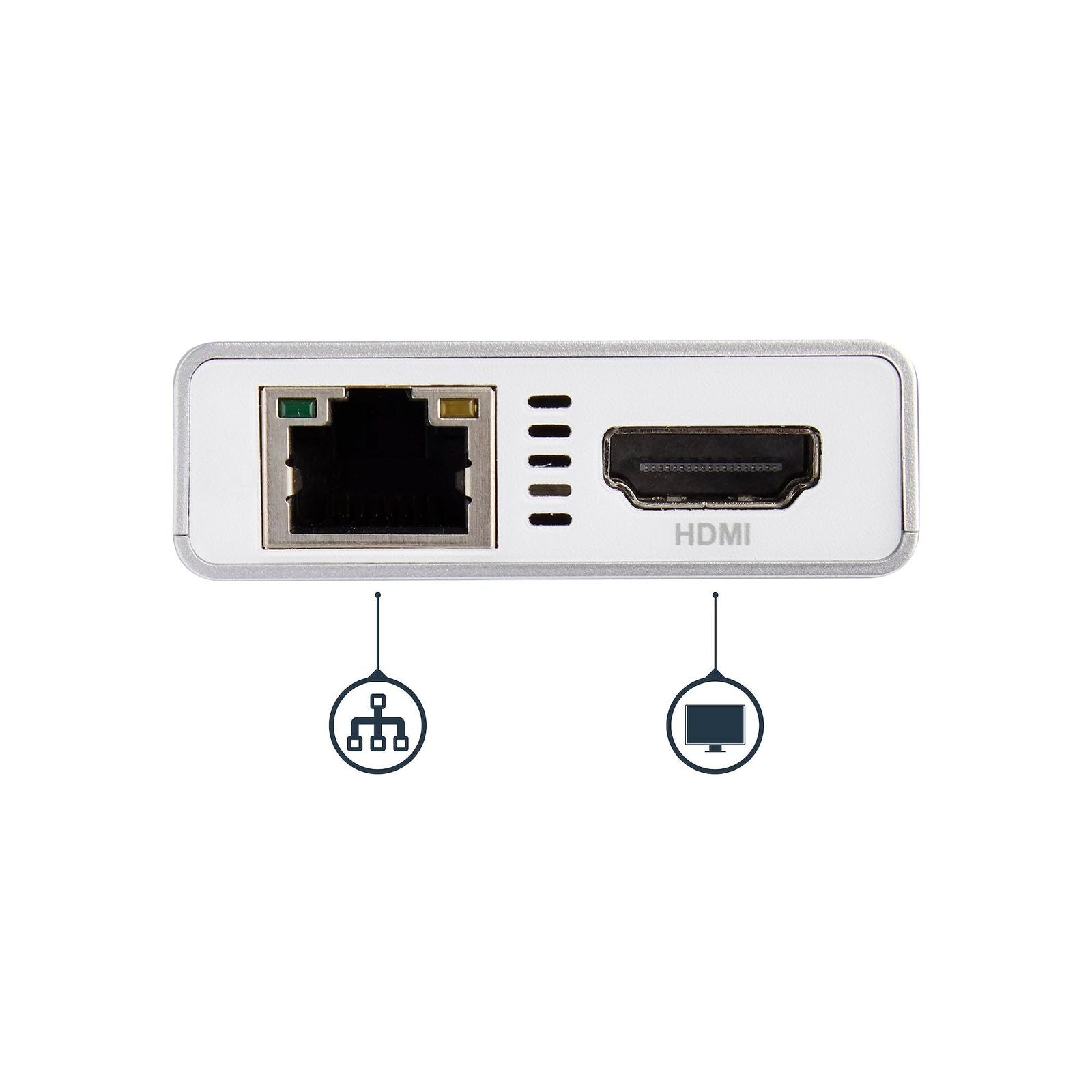

The Gigabit Ethernet port with support for Wake-on-LAN (WOL), jumbo frames, VLAN tagging, and Energy-Efficient Ethernet, delivers a reliable wired network connection, ideal for areas with limited Wi-Fi access. Plus, with two additional USB 3.0 ports (USB Type-A) you can connect productivity devices like your mouse and/or flash drive.

Designed for Easy Portability

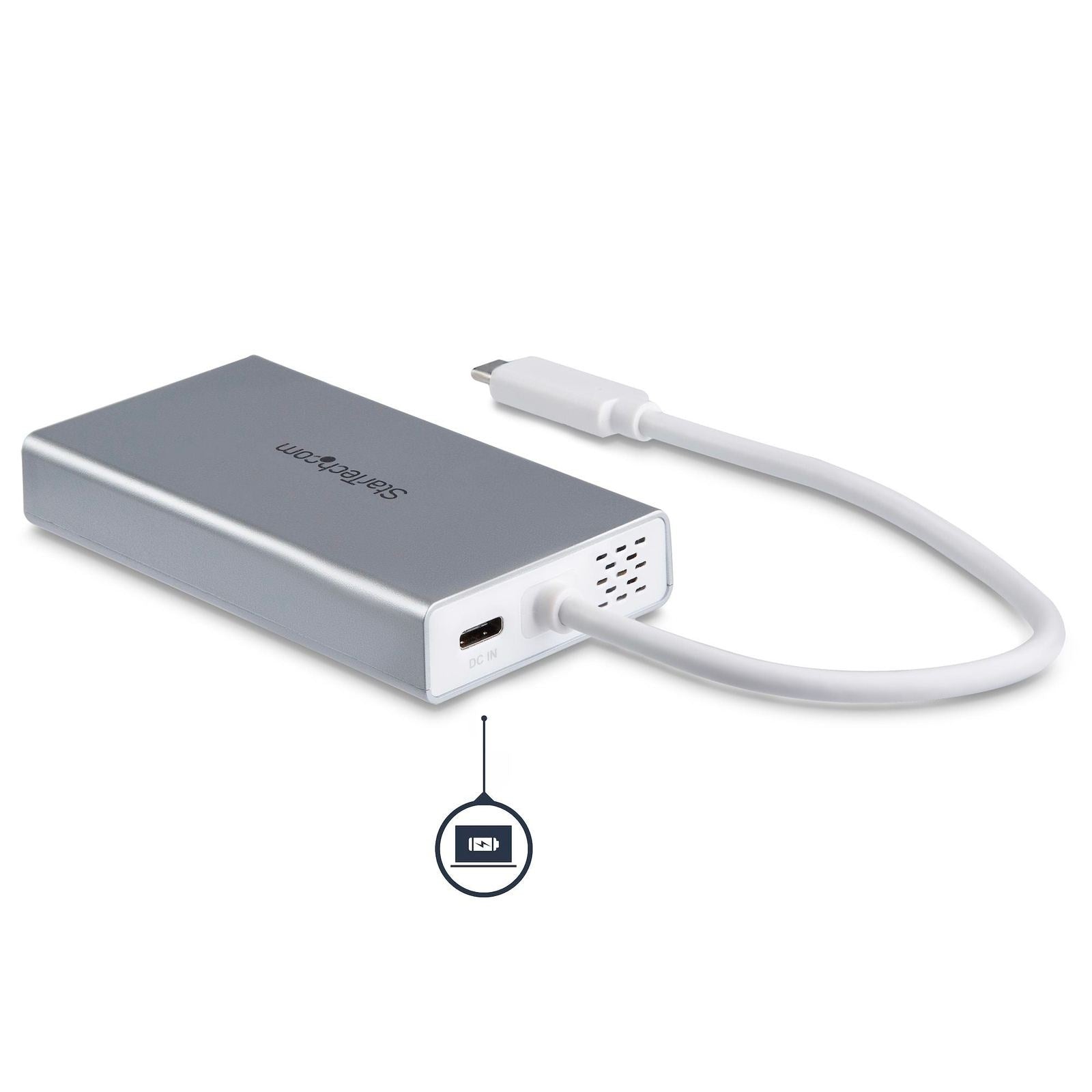

Ideal for mobile use, the compact multiport adapter supports USB Power Delivery 2.0 (PD 2.0), so you can use your laptop’s USB-C power adapter to power both your laptop and the adapter. The adapter also features an integrated extended-length USB-C cable, for added flexibility in connecting to your laptop, which means one less cable to carry with you.

The StarTech.com Advantage for Docking Stations
Maximum compatibility - StarTech.com has a docking station to fit every operating system, laptop brand, and connectivity need
Get more done faster - More ports and more displays maximize end user connectivity and productivity

Quick installation - eliminate deployment headaches that waste time and frustrate end users

IT Grade quality - trusted by IT pros around the world for our rigorous in-house product testing, robust compliance, and lifetime multilingual technical support

Note: To ensure full adapter functionality, your laptop’s USB-C port must support USB Power Delivery and DP alt mode.

USB-C Multiport Adapter Specifications
Connector(s)
Connector Type(s) 1 x USB 3.2 Type-C (24 pin, Gen 1, 5Gbps)
1 x HDMI (19 pin)
1 x RJ-45
2 x USB Type-A (9 pin, 5Gbps)
1 x USB 3.2 Type-C (24 pin, Gen 1, 5Gbps)
Environmental
Operating Temperature 0°C to 50°C (32°F to 122°F)
Storage Temperature -10°C to 65°C (14°F to 149°F)
Humidity 0–85% RH (Non-condensing)
Hardware
4K Support Yes
Fast-Charge Port(s) No
Displays Supported 1
Bus Type USB-C
Industry Standards IEEE 802.3, 802.3u, 802.3ab
USB 3.0 (Backward compatible with USB 2.0 and 1.1)
Chipset ID VIA/VLI - VL813
VIA/VLI - VL100
Parade - PS176
ASIX - AX88179
Packaging Information
Package Height 1.7 in (4.2 cm)
Package Length 8.1 in (20.5 cm)
Package Width 5.6 in (14.2 cm)
Shipping Weight 6.6 oz (187.0 g)
Package Quantity 1
Performance
Wake On LAN Yes
Maximum Data Transfer Rate 5 Gbps (USB 3.0)
2 Gbps (Ethernet; Full-Duplex)
Maximum Digital Resolutions 4096 x 2160 @ 24Hz or 3840 x 2160 @ 30Hz (HDMI)
Type and Rate USB 3.0 - 5 Gbit/s
UASP Support Yes
Compatible Networks 10/100/1000 Mbps
Auto MDIX Yes
Full Duplex Support Yes
Physical Characteristics
Color Silver & White
Material Plastic
Cable Length 9.8 in (250 mm)
Product Length 13.4 in (34.0 cm)
Product Width 2.0 in (5.1 cm)
Product Height 0.6 in (1.6 cm)
Weight of Product 2.3 oz (64.0 g)
Power
Power Source USB-Powered
Power Delivery 60W
Software
OS Compatibility Windows® 7, 8, 8.1, 10, 11
macOS 10.9 to 10.15, 11.3 to 15.0
Chrome OS™
Ubuntu 20.04 Kernel 5.15 and up (LTS only)
Special Notes / Requirements
System and Cable Requirements Host laptop with USB-C port supporting Power Delivery 2.0 and DP Alt Mode
Optional: USB-C power adapter (e.g., laptop’s USB-C charger)
Note Not all USB-C ports support full functionality
Adapter may not pass power through if host lacks Power Delivery 2.0
4K-capable display required for 3840 x 2160p resolution
USB 3.0 = USB 3.1 Gen 1 (5Gbps)
Some laptops may require exact 60W input—check with manufacturer
What's in the Box
Included in Package 1 x USB-C multiport adapter
1 x Quick-start guide
