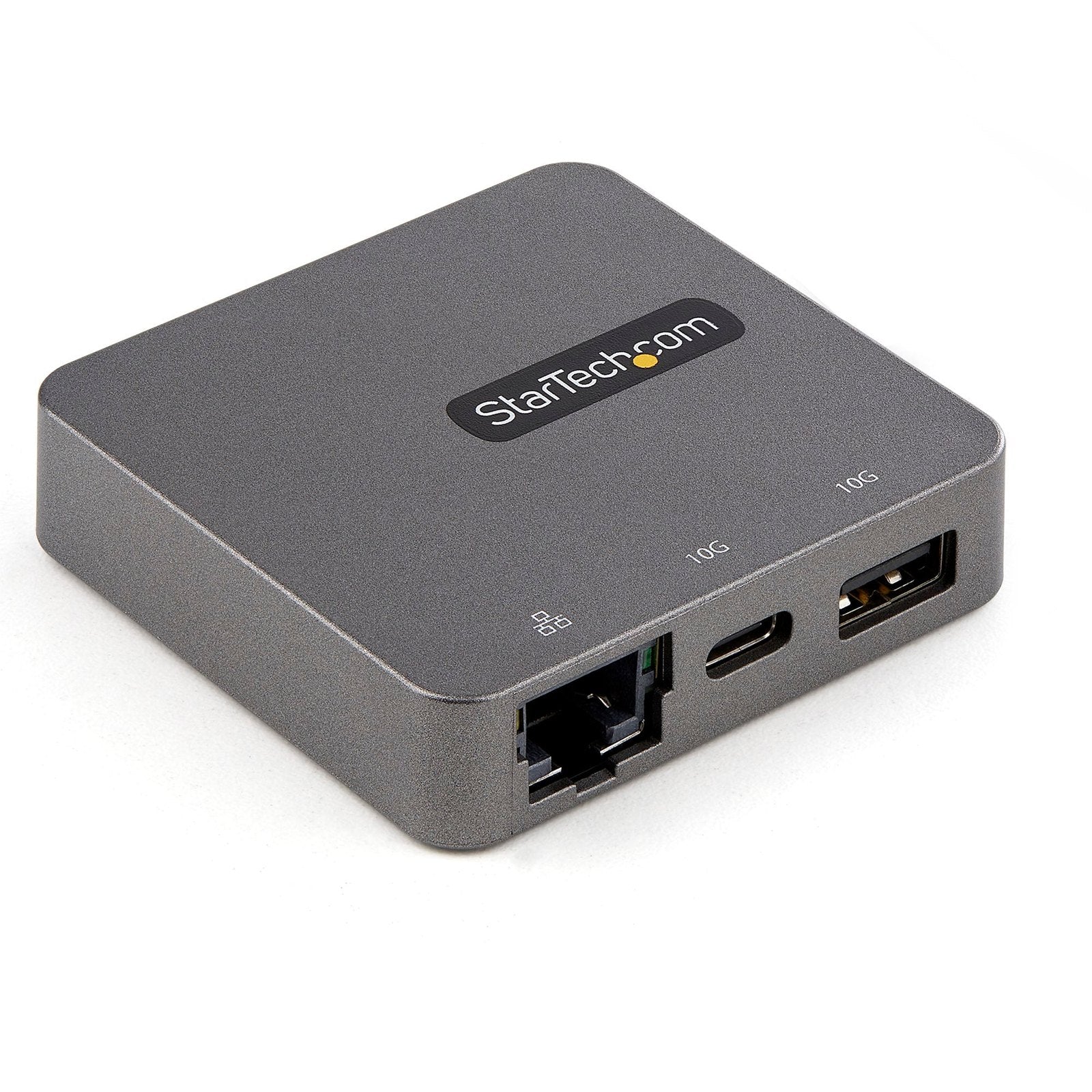

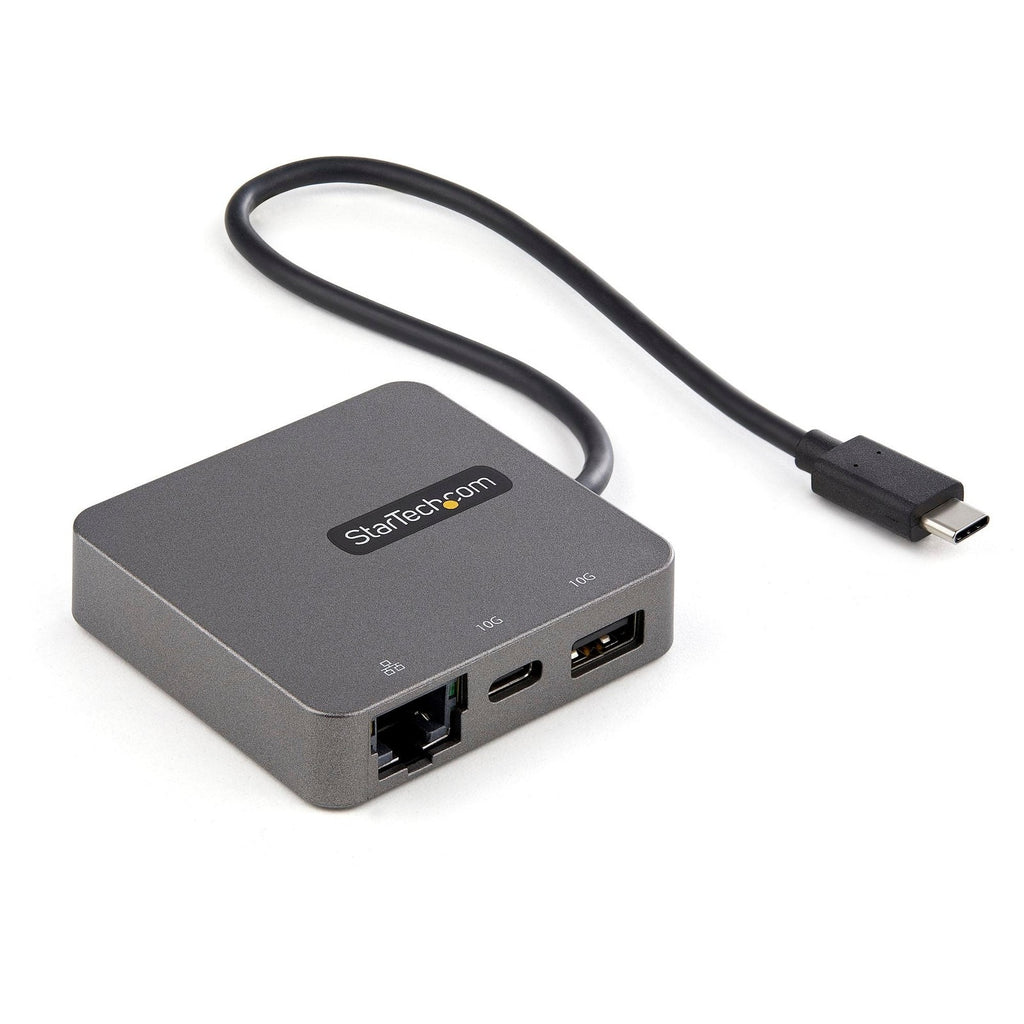

StarTech USB-C Multiport Adapter, 4K, HDMI, VGA, GbE, USB, Single Display, 3Yr

StarTechSKU: DKT31CHVL

Availability:

✅ In Stock at Supplier (ETA: Usually in 1-3 Business Days)

Price:
Sale price$123.00

Estimate shipping

Description

Overview

USB-C Multiport Adapter - USB 3.1 Gen 2 Type-C Mini Dock - USB-C to 4K HDMI or 1080p VGA Video - 10Gbps USB-A USB-C, GbE - Portable Travel Laptop Dock - Works w/Thunderbolt 3 - TAA
USB-C Travel Dock | MacBook Pro | USB-C & A Ports | Mac, Windows, Chrome & Android OS

This USB-C multiport adapter turns your USB-C ® or Thunderbolt™ 3 MacBook Pro, Windows laptop, Chromebook and Android tablet into a workstation, anywhere you go. A USB 3.1 Gen 2 Type-C hub adapter, ideal for travel, features everything from the essential HDMI or VGA video outputs to faster 10G USB-C & USB-A peripheral ports. All through a single extended length 29cm USB-C® attached host cable, providing more flexibility for harder to reach laptop and tablet connections. 

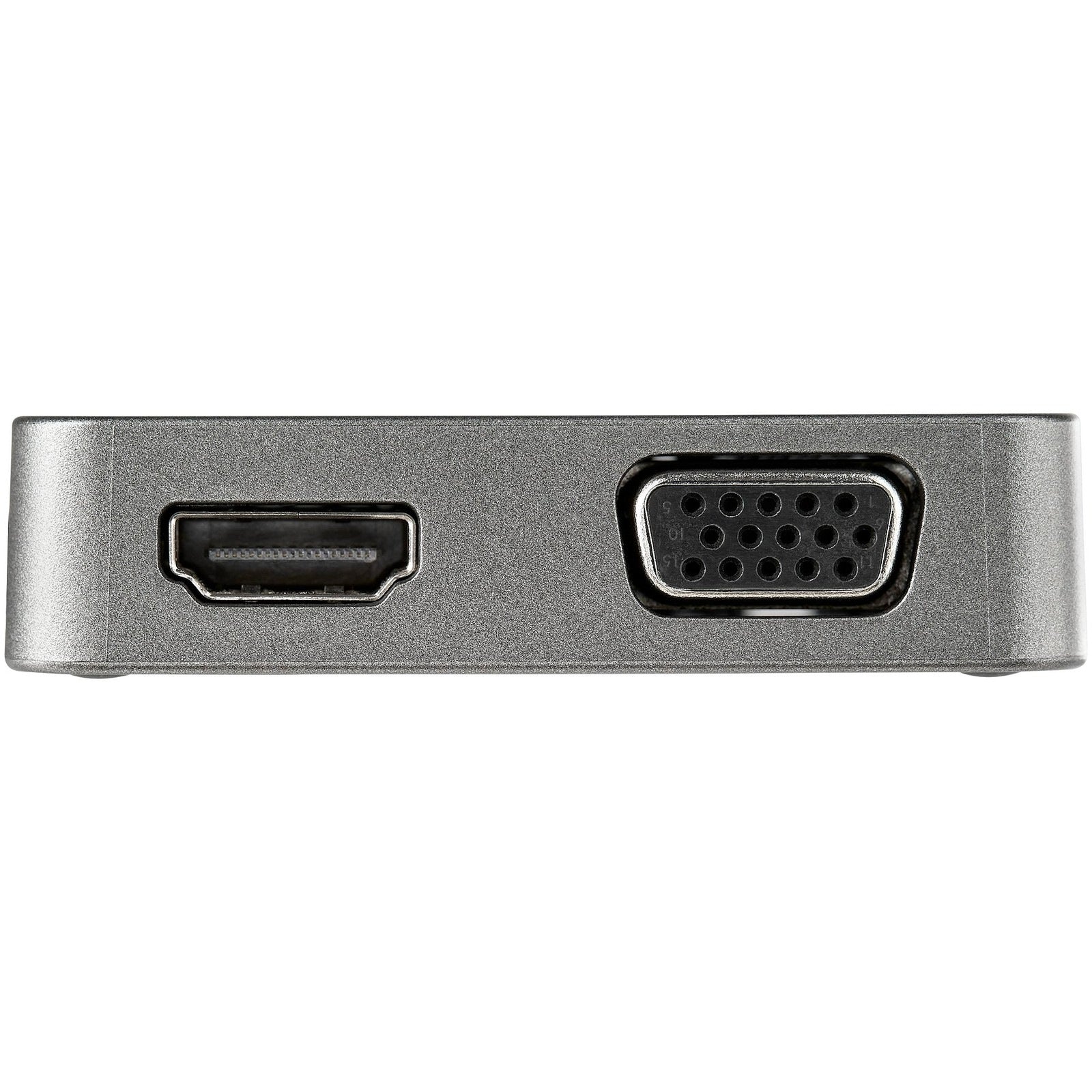

Two Video Output Options with HDMI & VGA
This USB-C multiport adapter features both an 4K 30Hz HDMI and VGA port providing you with two single video output options for your boardroom presentations or your workstation setup including support for an ultra-wide monitor.

Designed for Portability & Ease of Use

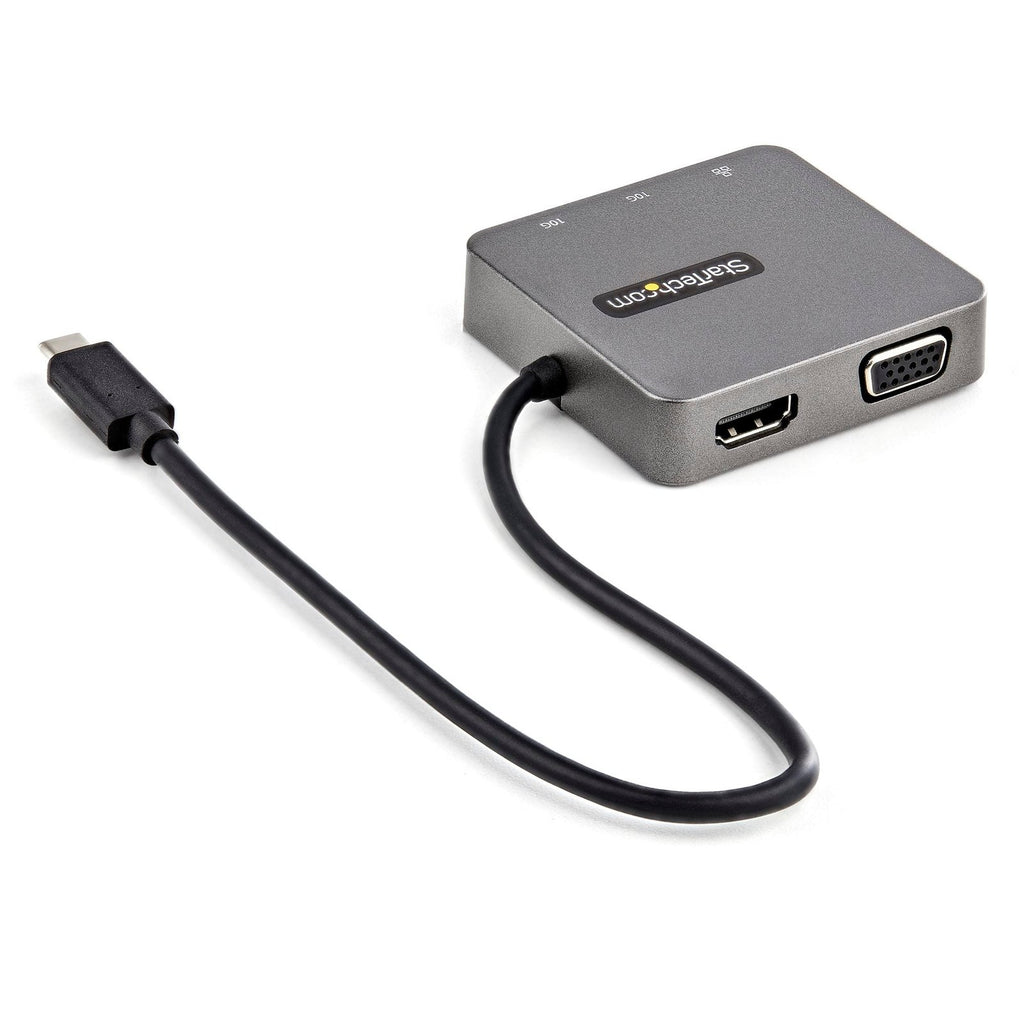

The USB-C travel dock is bus-powered through an attached extended length 29cm host cable, accommodating a wide variety of setups, so there’s no need to carry around a separate bulky power adapter. Installation is fast and simple, with native support in most operating systems and at only 1.94 ounces (55 g) and taking up less space than your smartphone, this dock easily fits in your laptop bag or briefcase.

Simplistic Port Configuration
In addition to the video outputs, the portable USB-C dock gives you one 10G USB-C port and USB-A port to connect your latest and legacy USB devices. The adapter also integrates a Gigabit Ethernet port to access a wired network.

USB-C Multiport Adapter Specifications
Connector(s)
Connector Type(s) 1 x HDMI (19 pin)
1 x VGA (15 pin, High Density D-Sub)
1 x RJ-45
1 x USB 3.2 Type-A (9 pin, Gen 2, 10Gbps)
1 x USB 3.2 Type-C (10 pin, Gen 2, 10Gbps)
Host Connectors 1 x USB 3.2 Type-C (10 pin, Gen 2, 10Gbps)
Environmental
Operating Temperature 0°C to 60°C
Storage Temperature -20°C to 60°C
Humidity <90% RH
Hardware
USB-C Device Port(s) Yes
USB-C Host Connection Yes
Displays Supported 1
Fast-Charge Port(s) No
4K Support Yes
Ports 2
Interface USB 3.2 Gen 2
Bus Type USB-C
Chipset ID Realtek RTL8153
Genesys Logic GL3590
ITE Tech IT6564FN
Silicon Labs EFM8UB20F32G
Packaging Information
Package Length 5.7 in (14.6 cm)
Package Width 8.3 in (21.2 cm)
Package Height 1.7 in (4.2 cm)
Shipping Weight 5.9 oz (166.0 g)
Package Quantity 1
Performance
Maximum Data Transfer Rate 10 Gbps (USB 3.2 Gen 2)
2 Gbps (Ethernet; Full-Duplex)
Maximum Analog Resolutions 2048 x 1280 @ 30Hz (VGA)
Maximum Digital Resolutions 3840 x 2160 @ 30Hz (HDMI)
Lower Resolutions Supported Yes
Type and Rate USB 3.2 Gen 2 - 10 Gbit/s
UASP Support Yes
Compatible Networks 10/100/1000 Mbps
Auto MDIX Yes
Full Duplex Support Yes
MTBF 49,444 hours
Physical Characteristics
Color Black
Form Factor Attached Cable
Material Aluminum and Plastic
Cable Length 9.8 in (25 cm)
Product Length 14.2 in (36.0 cm)
Product Width 2.4 in (6.1 cm)
Product Height 0.6 in (1.5 cm)
Weight of Product 1.9 oz (54.0 g)
Power
Power Source Bus Powered
Software
OS Compatibility Windows 7, 8, 8.1, 10, 11
macOS 10.12 to 15.0
Chrome OS
Android
Special Notes / Requirements
System Requirements Host laptop with USB-C port supporting DP Alt Mode
What's in the Box
Included in Package 1 x USB-C Multiport Adapter
1 x Quick-Start Guide
