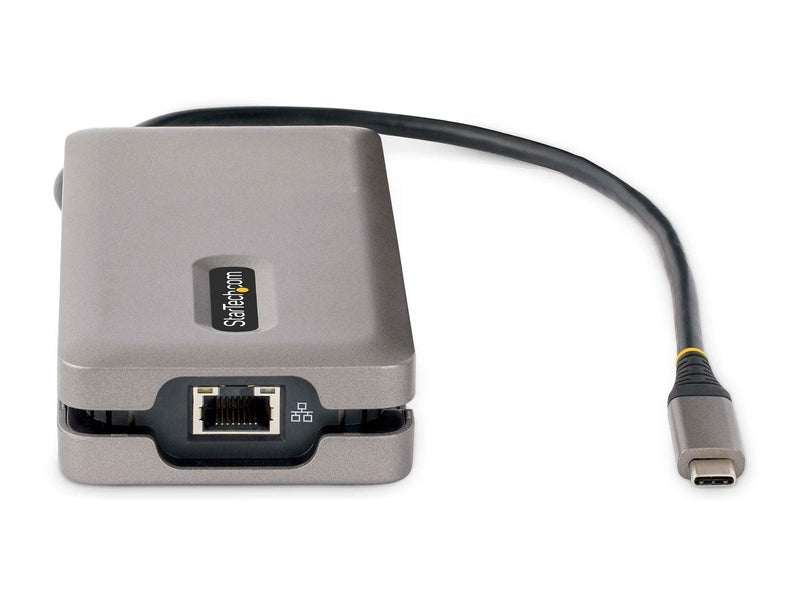

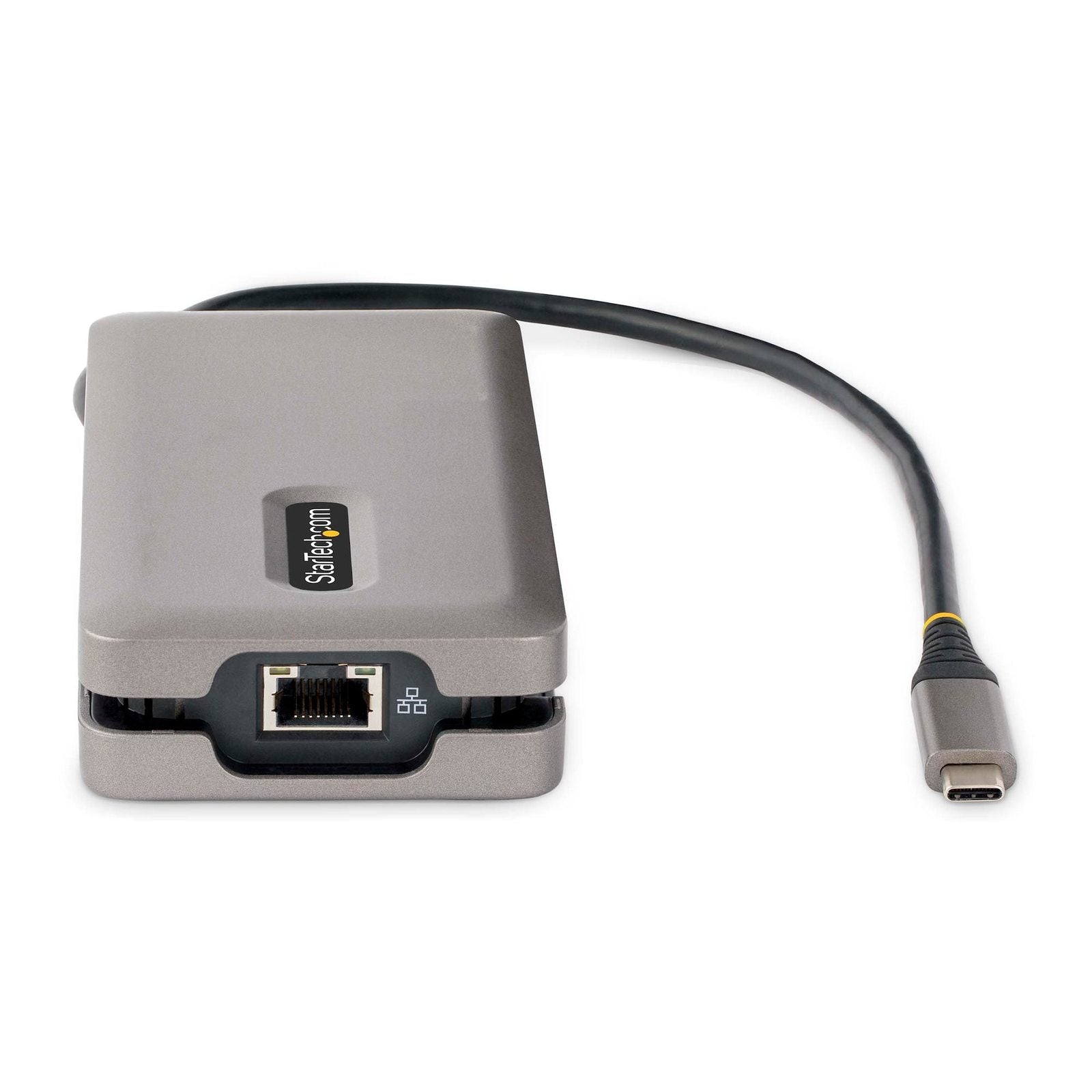

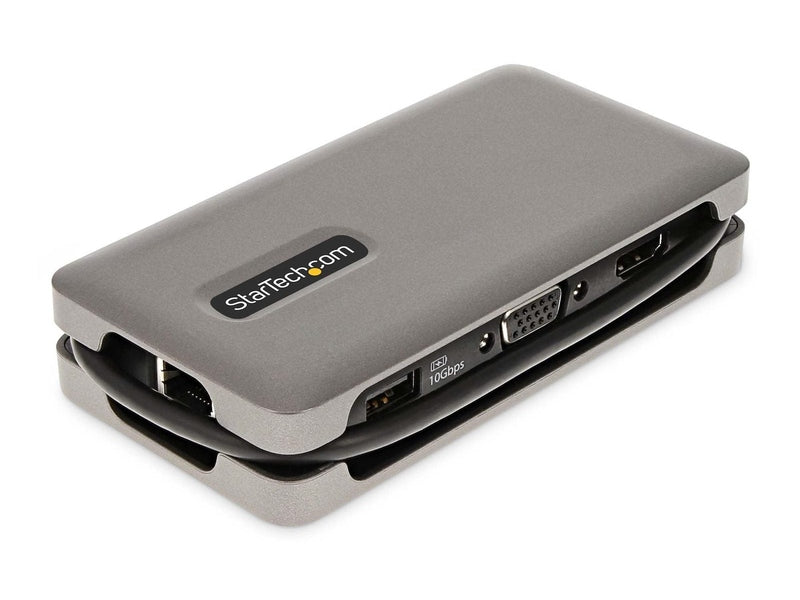

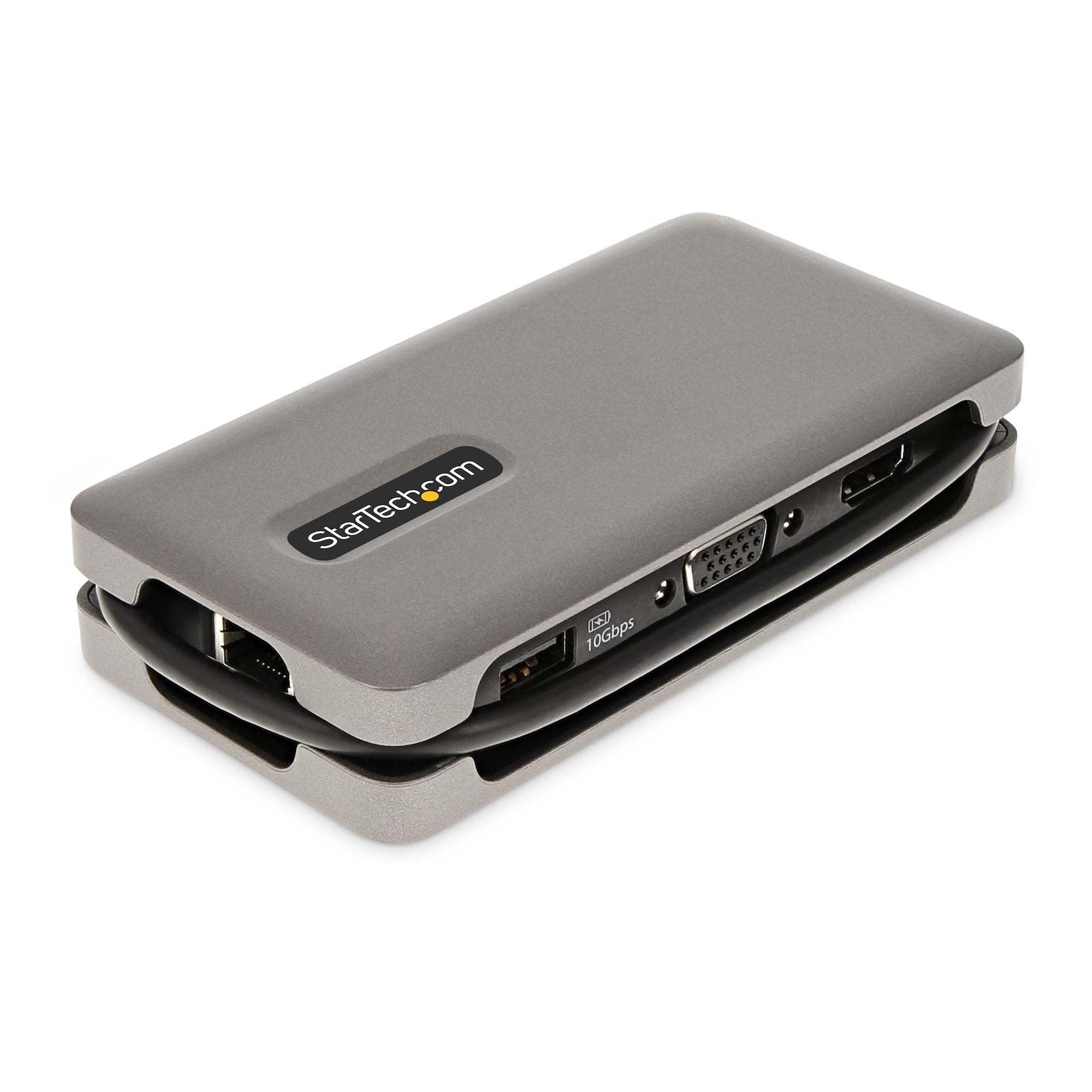

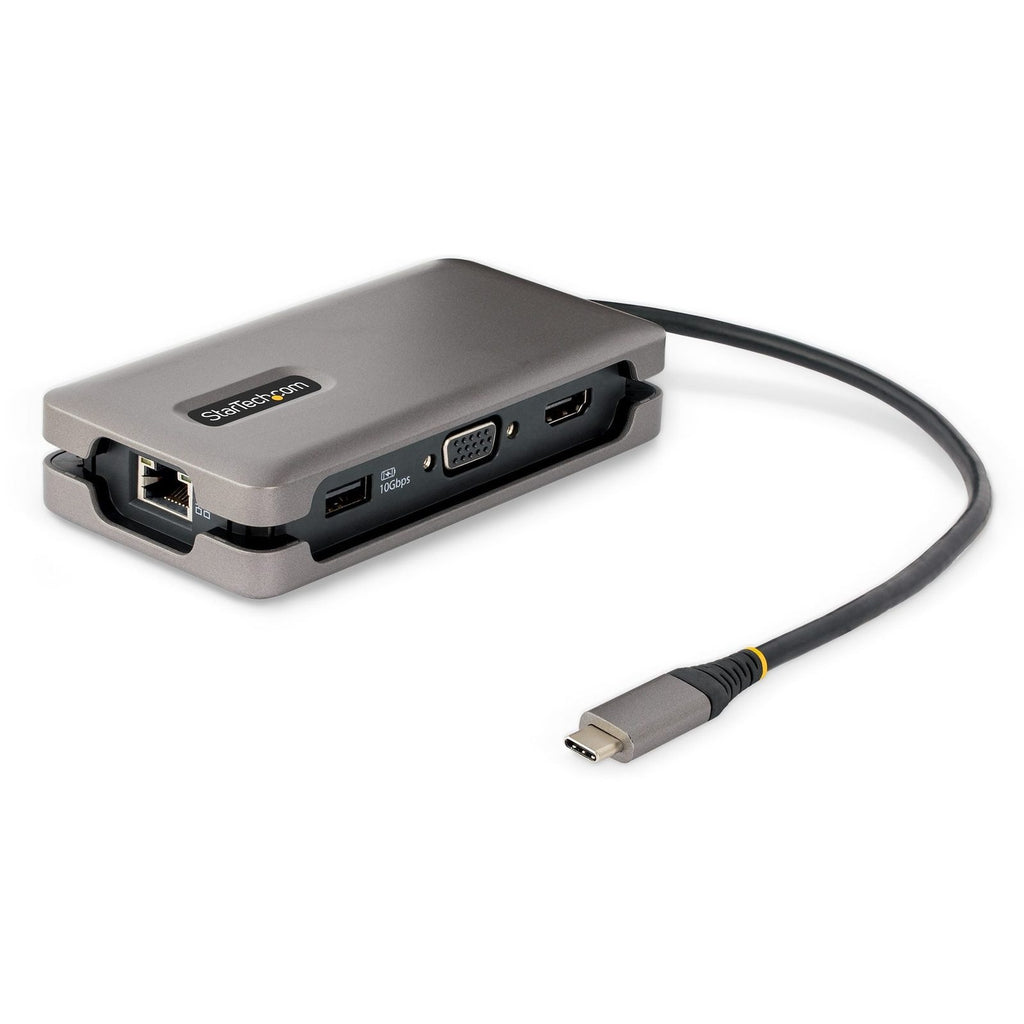

USB-C Multiport Adapter - HDMI/VGA - 4K 60Hz - 3-Port USB Hub - 100W Power Delivery Pass-Through - GbE - Travel Mini Docking Station w/ Charging - 1ft/30cm Wrap-Around Cable
Create a workstation, with a single 4K 60Hz HDMI or 1080p VGA, multiple USB ports, Gigabit Ethernet, and 100W Power Delivery pass-through
Connect this USB Type-C Multiport Adapter to a USB-C, USB4, or Thunderbolt 3/4™ laptop to enable single-display 4K 60Hz HDMI 2.0b or 1080p 60Hz VGA video output via DP Alt Mode. The USB-C dock works with USB Type-C laptops or tablets, such as a Chromebook, Dell XPS, or MacBook. It features a 3-Port USB 3.2 Gen 2 (10Gbps) Hub (2x USB-A, 1x USB-C), and Gigabit Ethernet. Connect the laptop USB-C power supply to the dedicated USB Power Delivery (PD) 3.0 port, to charge the laptop.

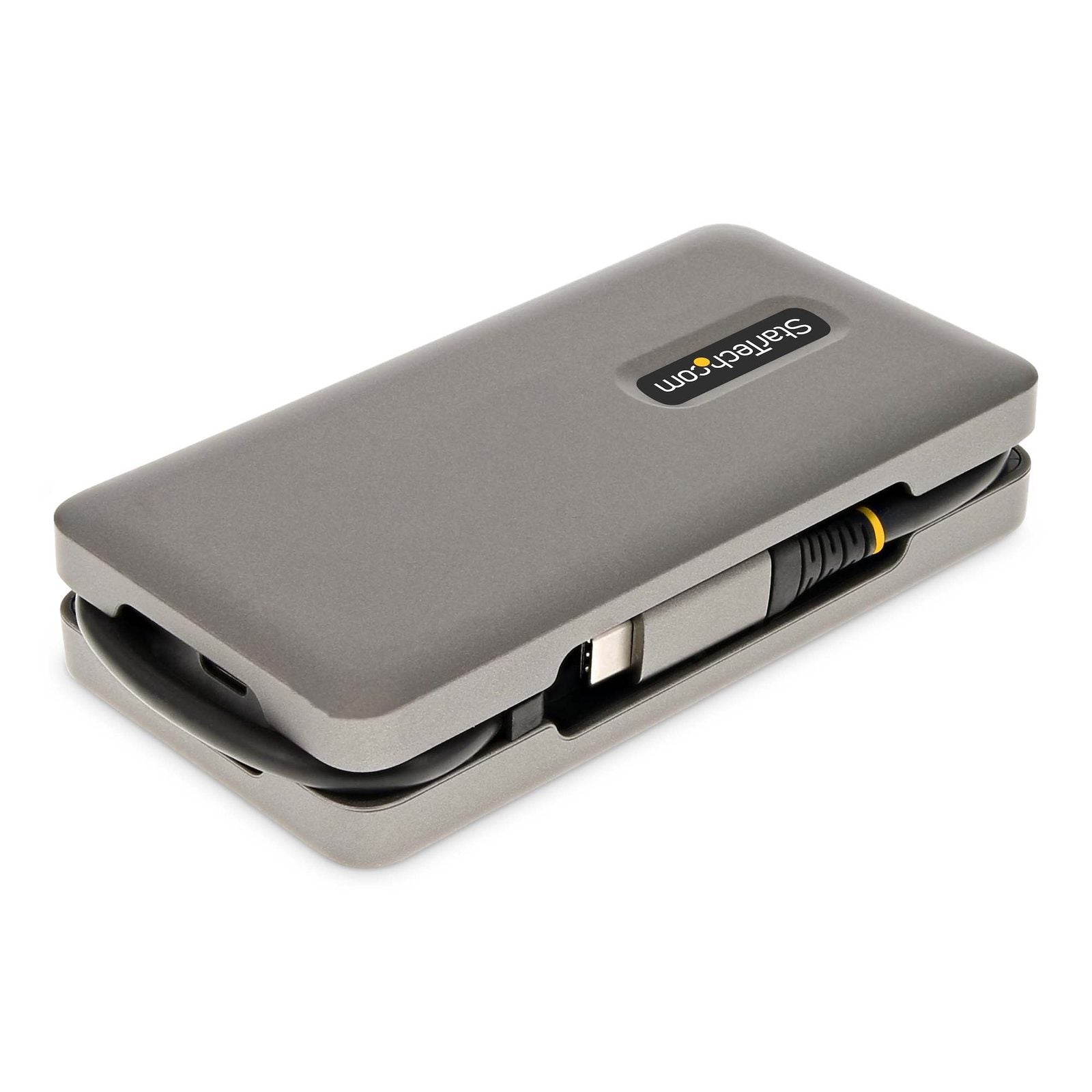

Extra-Long Cable with Built-in Cable Manager
The Multiport Adapter features an extra-long attached 12.6in. (32cm) USB-C host cable. The Thermoplastic Elastomer (TPE) cable jacket is softer and more flexible than PVC jacketed cables. The extra-long cable reduces port/connector strain, particularly when laptops are placed on riser stands, or on 2-in-1 devices with raised USB-C ports, such as the Microsoft Surface. In addition, the Multiport Adapter also features an innovative wrap-around cable manager that facilitates tangle-free storage in a laptop bag.

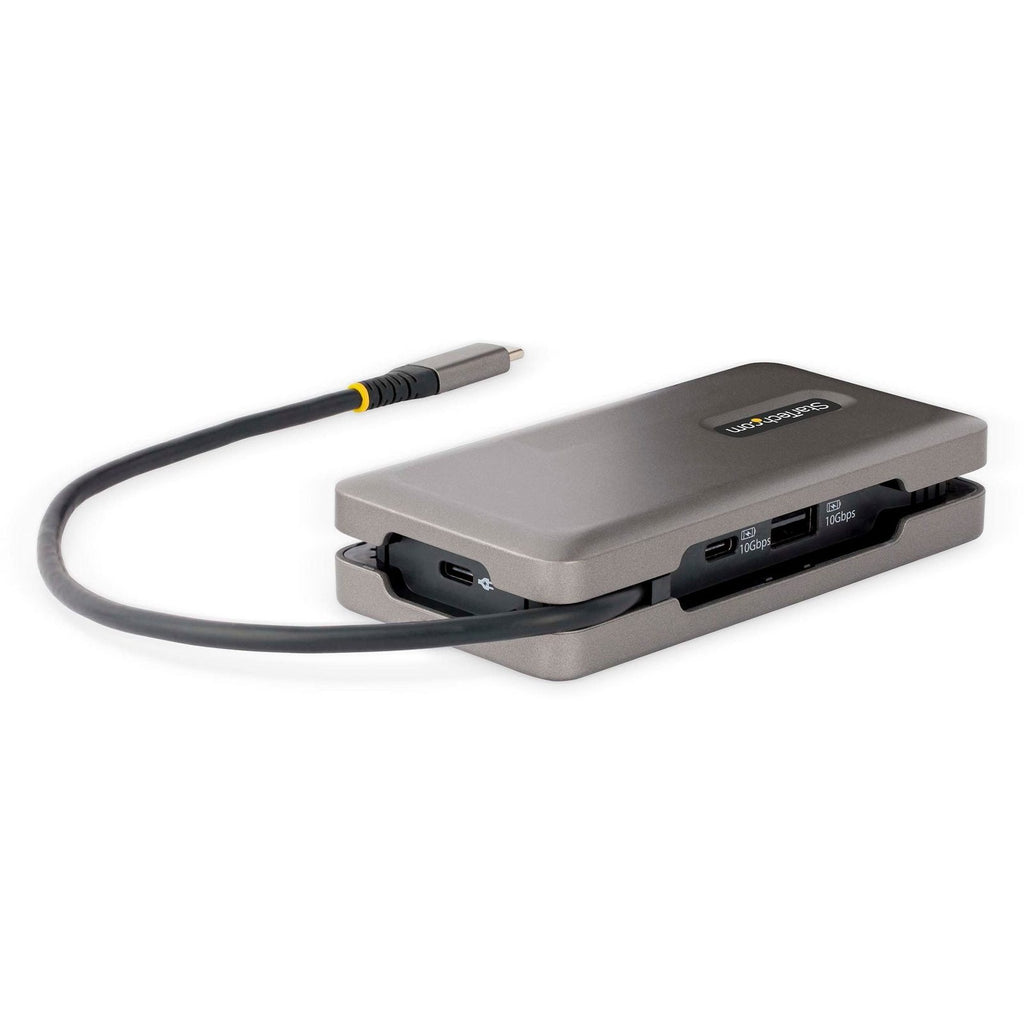

USB 3.2 Gen 2 Hub
Connect one USB-C and two USB-A peripherals to the USB 3.2 Gen 2 (10Gbps) ports.
Multiple Applications
A versatile solution for adding docking station capabilities in an office, home office, hotel, or in the boardroom. It's portable enough to be carried in a bag or backpack. This lightweight USB-C Adapter can operate with bus-power alone or connect a USB-C power adapter (not included with Multiport Adapter) for laptop charging.
USB PD 3.0 features Fast Role Swap (FRS) to prevent USB data disruption when disconnecting the power source.
Wired Gigabit Network Connectivity
The Gigabit Ethernet port ensures reliable wired network access, with support for PXE Boot and Wake-on-LAN (WoL).
Enhance Productivity and Device Management with the StarTech.com Connectivity Tools Application
Developed to improve performance and security, StarTech.com Connectivity Tools is the only software suite on the market that is compatible with a wide variety of IT connectivity accessories. The software suite includes:
- Advanced Windows Layout Utility: Setup and save custom windows layouts.
- MAC Address Pass-Through Utility: Improve network security.
- USB Event Monitoring Utility: Track and log connected USB devices.
- Wi-Fi Auto Switch Utility: Enable quick access to wired LAN.
USB-C Multiport Adapter - HDMI/VGA - 4K 60Hz - 3-Port USB Hub - 100W Power Delivery Pass-Through - GbE - Travel Mini Docking Station w/ Charging - 1ft/30cm Wrap-Around Cable
Create a workstation, with a single 4K 60Hz HDMI or 1080p VGA, multiple USB ports, Gigabit Ethernet, and 100W Power Delivery pass-through
Connect this USB Type-C Multiport Adapter to a USB-C, USB4, or Thunderbolt 3/4™ laptop to enable single-display 4K 60Hz HDMI 2.0b or 1080p 60Hz VGA video output via DP Alt Mode. The USB-C dock works with USB Type-C laptops or tablets, such as a Chromebook, Dell XPS, or MacBook. It features a 3-Port USB 3.2 Gen 2 (10Gbps) Hub (2x USB-A, 1x USB-C), and Gigabit Ethernet. Connect the laptop USB-C power supply to the dedicated USB Power Delivery (PD) 3.0 port, to charge the laptop.
Extra-Long Cable with Built-in Cable Manager
The Multiport Adapter features an extra-long attached 12.6in. (32cm) USB-C host cable. The Thermoplastic Elastomer (TPE) cable jacket is softer and more flexible than PVC jacketed cables. The extra-long cable reduces port/connector strain, particularly when laptops are placed on riser stands, or on 2-in-1 devices with raised USB-C ports, such as the Microsoft Surface. In addition, the Multiport Adapter also features an innovative wrap-around cable manager that facilitates tangle-free storage in a laptop bag.
USB 3.2 Gen 2 Hub
Connect one USB-C and two USB-A peripherals to the USB 3.2 Gen 2 (10Gbps) ports.
Multiple Applications
A versatile solution for adding docking station capabilities in an office, home office, hotel, or in the boardroom. It's portable enough to be carried in a bag or backpack. This lightweight USB-C Adapter can operate with bus-power alone or connect a USB-C power adapter (not included with Multiport Adapter) for laptop charging.
USB PD 3.0 features Fast Role Swap (FRS) to prevent USB data disruption when disconnecting the power source.
Wired Gigabit Network Connectivity
The Gigabit Ethernet port ensures reliable wired network access, with support for PXE Boot and Wake-on-LAN (WoL).
Enhance Productivity and Device Management with the StarTech.com Connectivity Tools Application
Developed to improve performance and security, StarTech.com Connectivity Tools is the only software suite on the market that is compatible with a wide variety of IT connectivity accessories. The software suite includes:
- Advanced Windows Layout Utility: Setup and save custom windows layouts.
- MAC Address Pass-Through Utility: Improve network security.
- USB Event Monitoring Utility: Track and log connected USB devices.
- Wi-Fi Auto Switch Utility: Enable quick access to wired LAN.
| USB-C Multiport Adapter Specifications | |
|---|---|
| Package Information | |
| Package Quantity | 1 |
| Ports | 3 |
| Connector(s) | |
| External Ports | 1 - HDMI (19 pin) 1 - VGA (15 pin, High Density D-Sub) 2 - USB 3.2 Type-A (9 pin, Gen 2, 10Gbps) 1 - USB 3.2 Type-C (24 pin, Gen 2, 10Gbps) 1 - USB Type-C (24 pin) USB Power Delivery Only 1 - RJ-45 |
| Host Connectors | 1 - USB 3.2 Type-C (24 pin, Gen 2, 10Gbps) |
| Environmental | |
| Operating Temperature | 0°C to 50°C (32°F to 122°F) |
| Storage Temperature | -20°C to 55°C (-4°F to 158°F) |
| Humidity | 0% to 85% (non-condensing) |
| Hardware | |
| 4K Support | Yes |
| Fast-Charge Port(s) | No |
| Displays Supported | 1 |
| Interface | USB 3.2 Gen 2 (10 Gbps) |
| Bus Type | USB-C |
| Industry Standards | HDMI 2.0b, DisplayPort 1.4 |
| Chipset ID | Realtek - RTD2142 Realtek - RTL8153B VIA - VL822-Q8 VIA - VL103 |
| LED Indicators | 1 - Network Link Speed: Green (1Gbps or 100Mbps), Off (10Mbps or lower) 1 - Network Link Status: Solid Amber (Link Detected), Flashing Amber (Activity), Off (No Link) |
| Packaging Dimensions | |
| Package Length | 6.8 in [17.3 cm] |
| Package Width | 5.6 in [14.3 cm] |
| Package Height | 1.3 in [3.3 cm] |
| Shipping Weight | 5.9 oz [166.0 g] |
| Performance | |
| Wake On Lan | Yes |
| Maximum Data Transfer Rate | 10Gbps |
| Maximum Digital Resolutions | HDMI: 4K (4096 × 2160) @ 60Hz VGA: 1080p (1920 x 1200/1080) @ 60Hz |
| Type and Rate | USB 3.2 Gen 2 - 10 Gbit/s |
| UASP Support | Yes |
| Compatible Networks | 10/100/1000 Mbps |
| PXE | Yes |
| Full Duplex Support | Yes |
| General Specifications | |
| Maximum Laptop Charging | 84W |
| Physical Characteristics | |
| Color | Space Gray |
| Product Length | 4.9 in [12.4 cm] |
| Product Width | 2.5 in [6.4 cm] |
| Product Height | 1.0 in [2.5 cm] |
| Weight of Product | 4.6 oz [130.0 g] |
| Material | Plastic |
| Cable Length | 12.6 in [32 cm] |
| Power | |
| Power Source | Bus Powered and Host USB-C Power Adapter |
| Power Delivery | 100W |
| Power Consumption | 16W |
| Software | |
| OS Compatibility | Windows® 7, 8, 8.1, 10, 11, 11 ARM macOS 10.15–15.0 Android™ Linux® Ubuntu 18.04, 20.04 ChromeOS™ |
| Special Notes / Requirements | |
| System and Cable Requirements | Host laptop with USB-C port supporting USB Power Delivery 3.0 and DP alt mode |
| Note | Ensure host USB-C port supports Power Delivery and DP alt mode PD port will not supply power if host lacks Power Delivery support USB 3.2 Gen 2 (10Gbps) = SuperSpeed USB 10Gbps / USB 3.1 Gen 2 Charging issues may occur if laptop requires exact wattage Refer to host laptop documentation for Power Delivery requirements |
| What's in the Box | |
| Included in Package | 1 - USB-C Multiport Adapter 1 - Quick-Start Guide |
