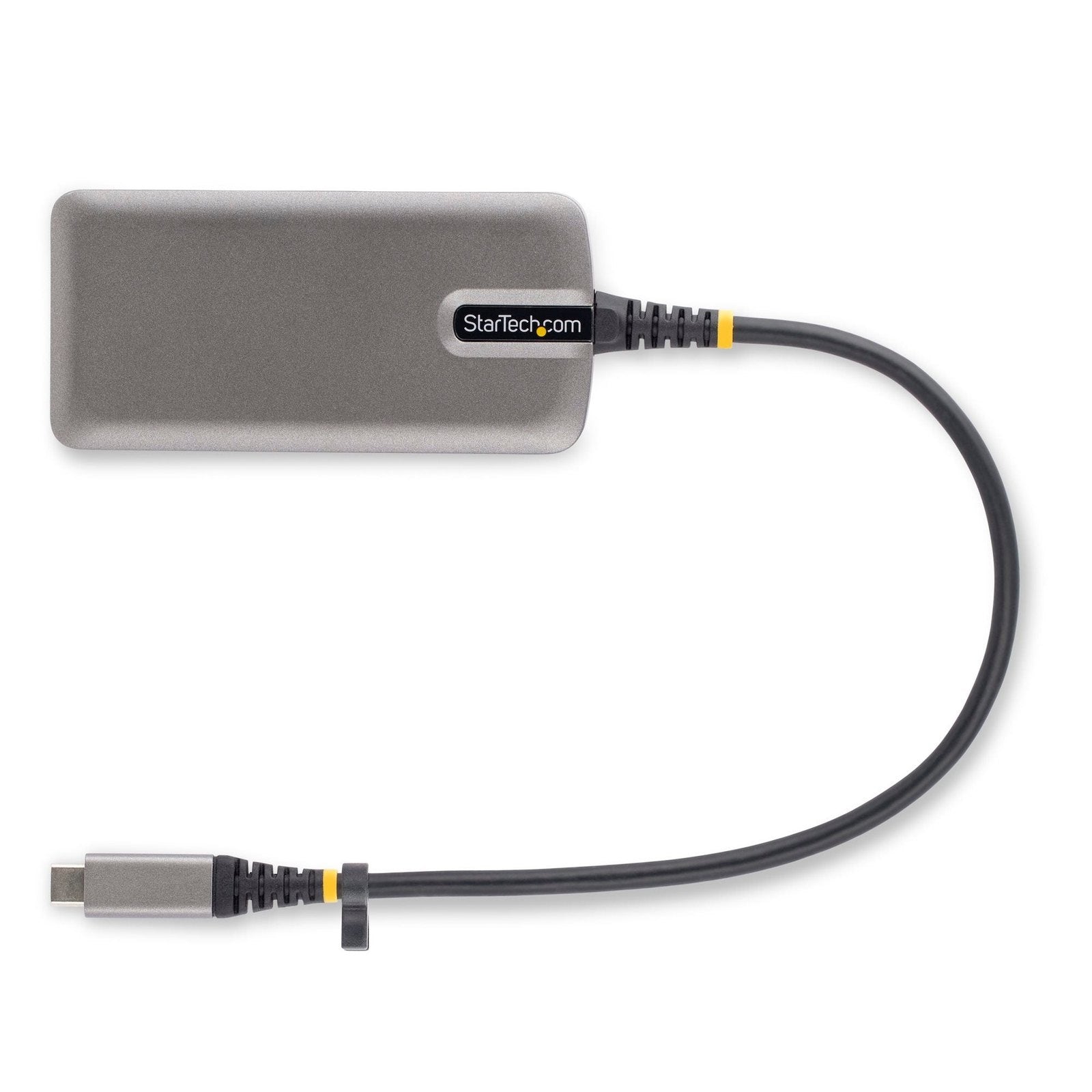

StarTech USB-C Multiport Adapter HDMI/GbE, Works With Chromebook (Wwcb) 3 Yr

StarTechSKU: 103B-USBC-MULTIPORT

Availability:

✅ In Stock at Supplier (ETA: Usually in 1-3 Business Days)

Price:
Sale price$84.00

Estimate shipping

Description

Overview

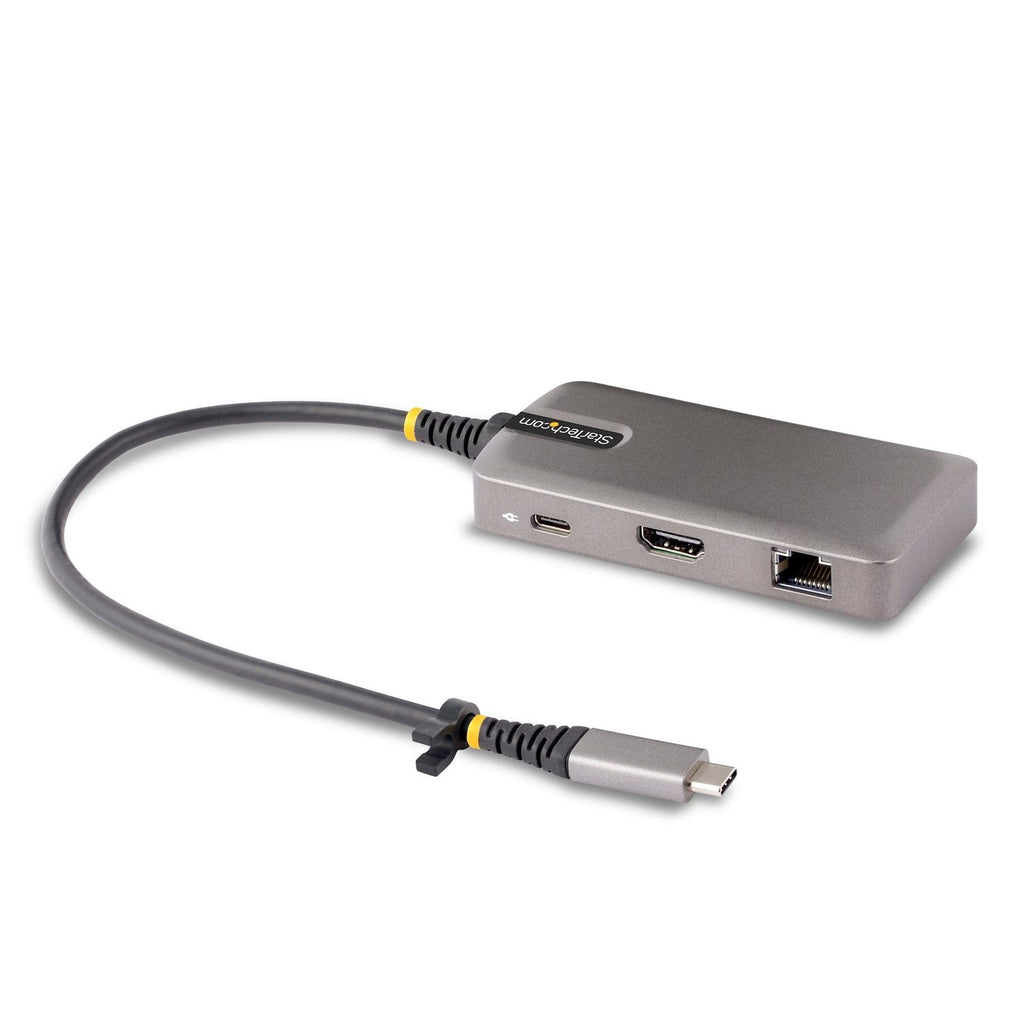

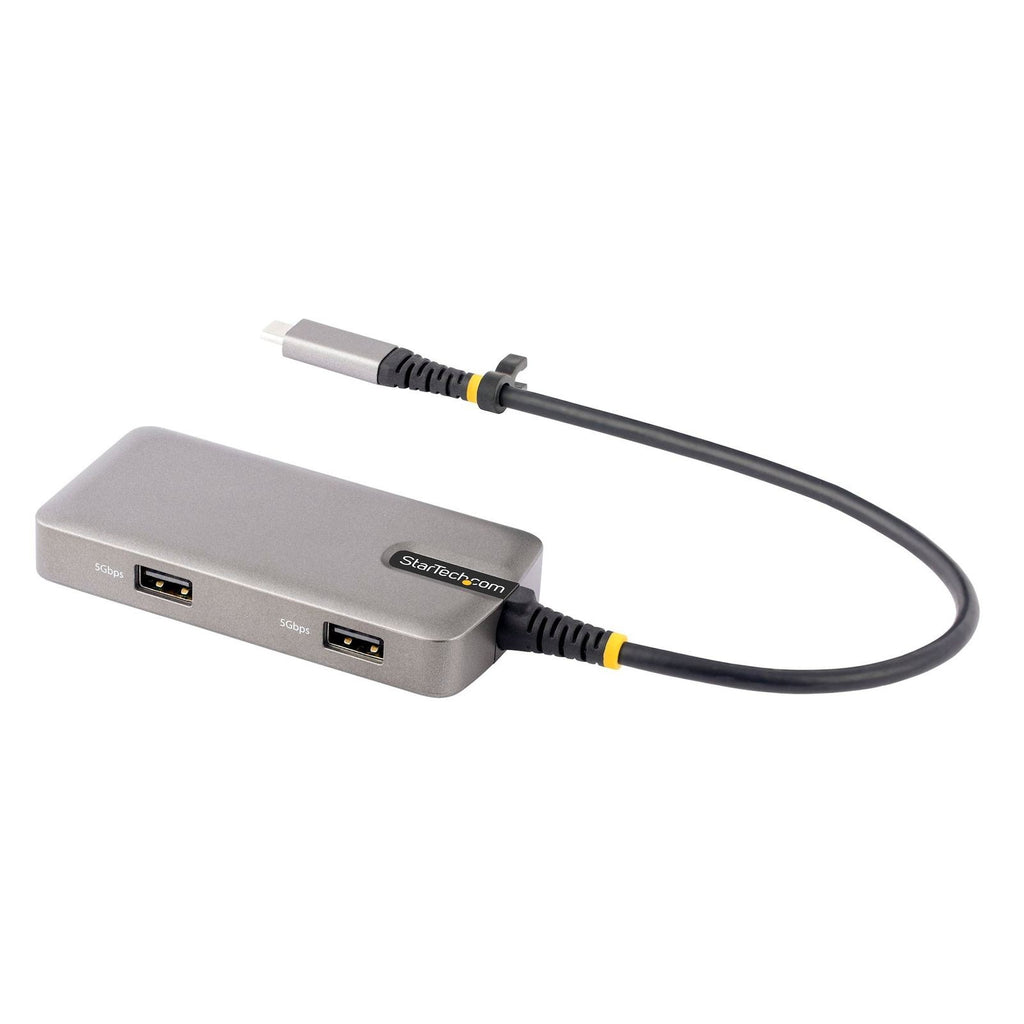

USB-C Multiport Adapter, 4K 60Hz HDMI, HDR - 2-Port 5Gbps USB 3.0 Hub, 100W Power Delivery Pass-Through, GbE, USB Type C Mini Docking Station, Windows/macOS/ChromeOS
Built-in 1ft (30cm) USB-C Host Cable | 2-Port USB Type-A 3.2 Gen 1 (5Gbps) Hub | HDMI 2.0b (HDR) 4K 60Hz

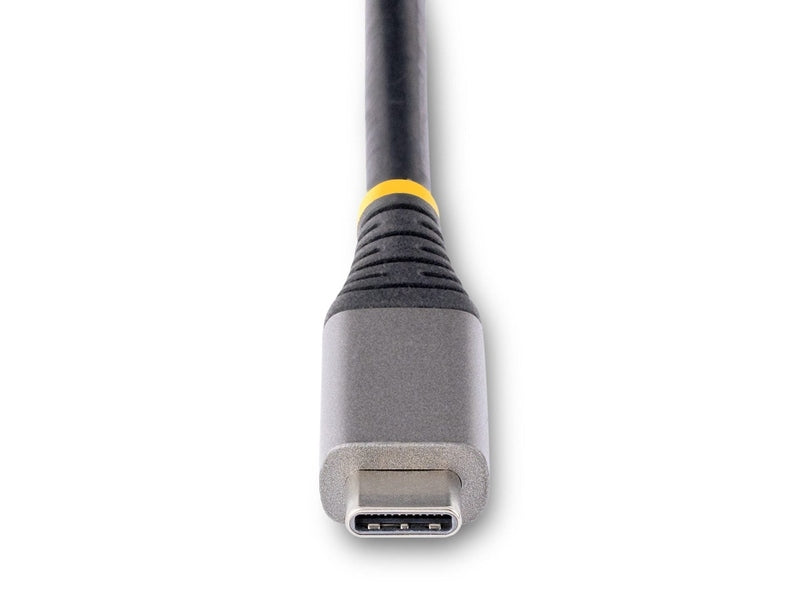

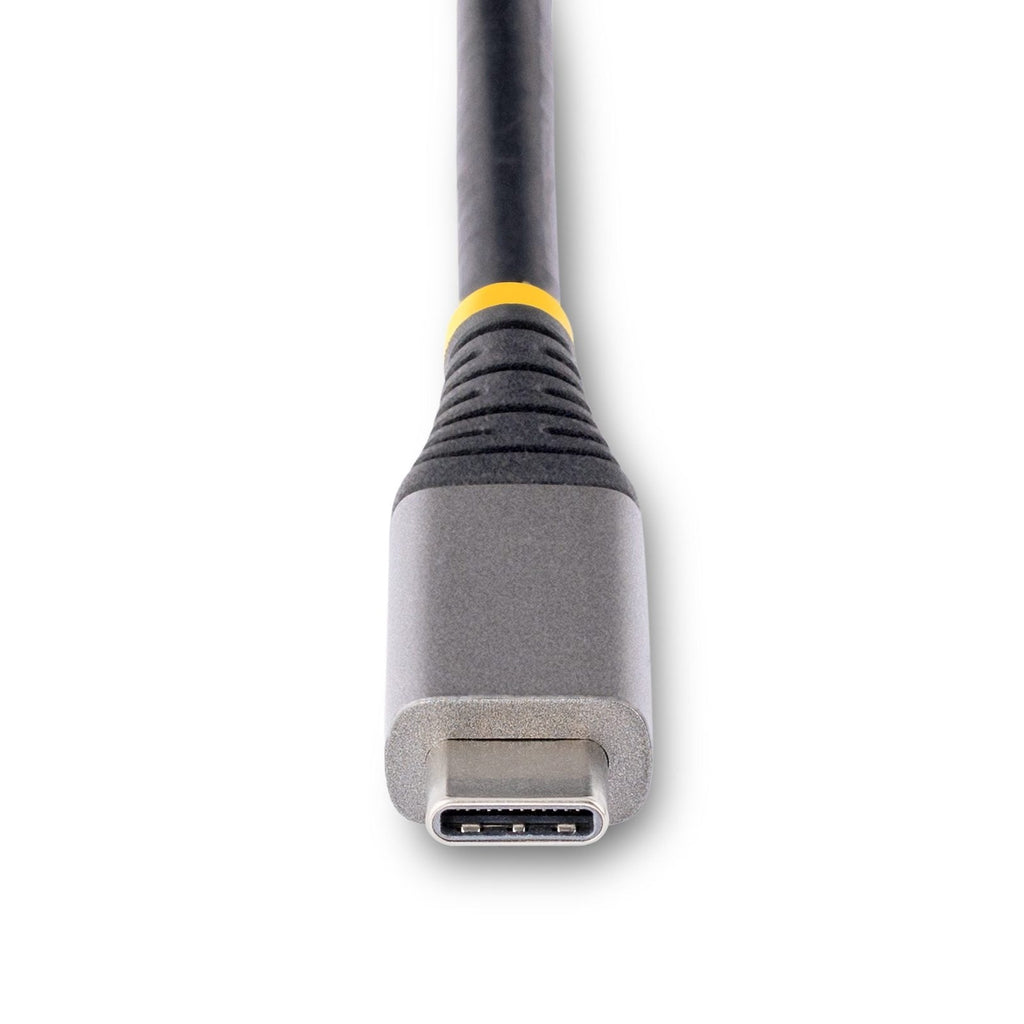

This Works With Chromebook (WWCB) certified USB-C Multiport Adapter supports up to 4K 60Hz HDMI 2.0b (HDR10) via DP Alt Mode. The USB-C dock converts a USB-C laptop or tablet, such as a Chromebook, Dell XPS, or a MacBook, into a workstation. The adapter connects to a host computer's USB-C, USB4, or Thunderbolt™ 3/4 port. It features one HDMI video output, a 2-Port USB 3.2 Gen 1 (5 Gbps) Hub, and Gigabit Ethernet. Connect a laptop USB-C power supply to the dedicated USB Power Delivery (PD) 3.0 port, located on the Multiport Adapter, to charge the laptop. The Multiport Adapter features an extra-long built-in 12-inch (30 cm) USB-C host cable.

Works With Chromebook (WWCB) certified
This USB-C Multiport Adapter is tested and certified to meet Google's compatibility standards ensuring seamless operation with Chromebook devices. The Multiport Adapter is ideal for setup and deployment in business and education environments. Automatic firmware updates are available through ChromeOS for maximum security, compatibility, and performance.

Connect USB Peripherals

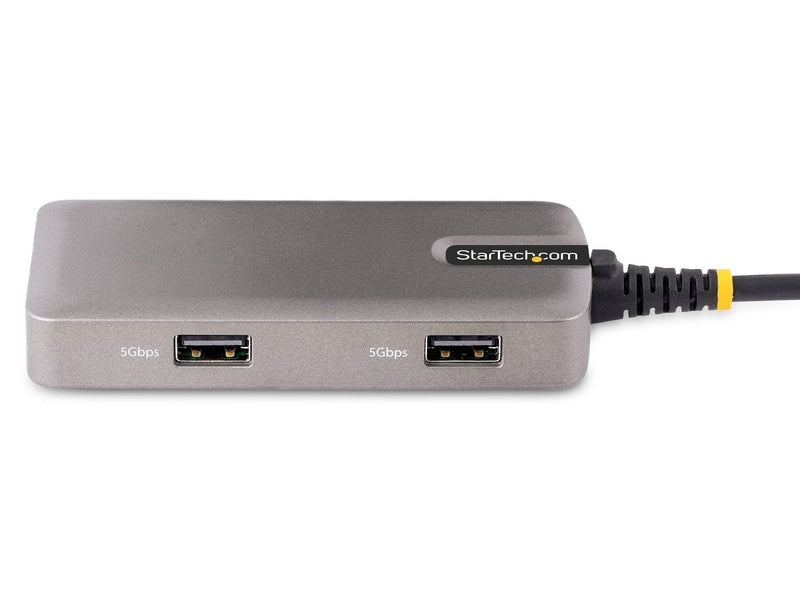

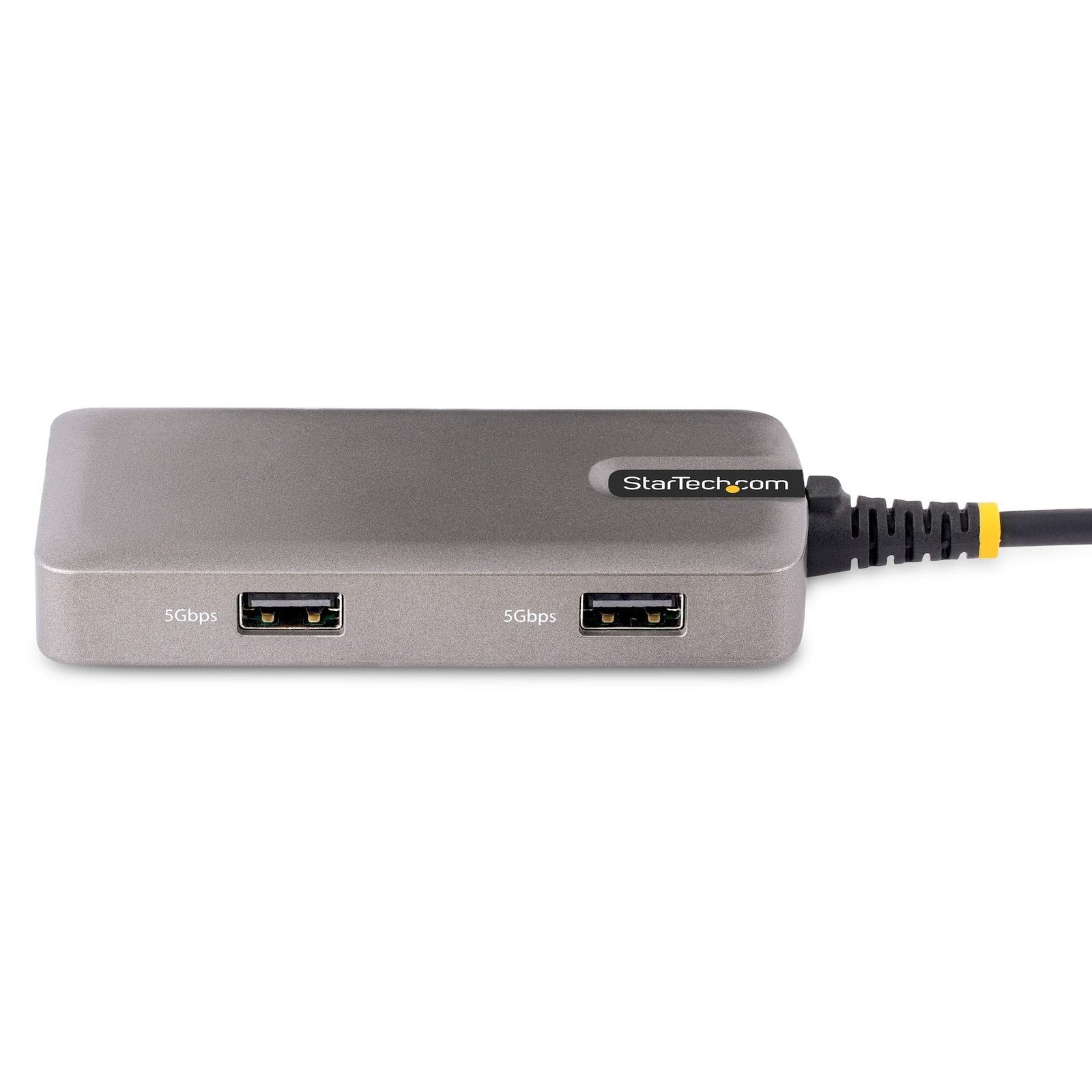

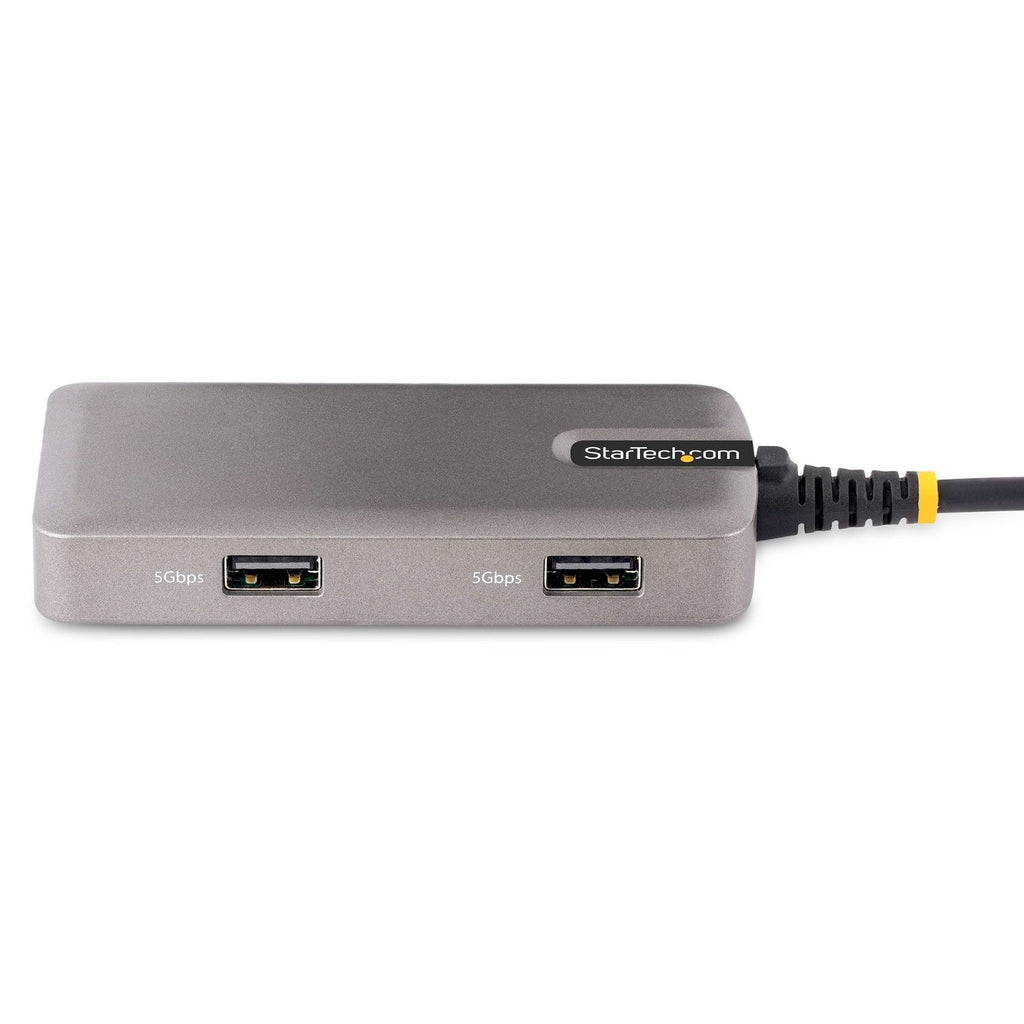

The USB-C to USB 3.2 Gen 1 hub features two 5Gbps USB Type-A ports, for connecting USB peripherals.

Multiple Use Cases
A versatile dock solution for use at your office, home office, hotel, or in the boardroom. It's portable enough to be carried in a bag or backpack. This lightweight USB-C Adapter can operate with bus-power alone, or use the dedicated USB-C Power Delivery port to connect a USB-C power adapter (not included with Multiport Adapter) for laptop charging.

Charge Your Laptop
Connect a USB-C power source (not included), such as the power adapter included with a laptop, to the USB-C Power Delivery pass-through port. With support for USB Power Delivery 3.0 pass-through (up to 100W), the USB Type-C Multiport Adapter allows you to power and charge your laptop. USB PD 3.0 features Fast Role Swap (FRS) to prevent USB data disruption when disconnecting the power source.

Wired Gigabit Network Connectivity
The Gigabit Ethernet port ensures reliable wired network access, with support for PXE Boot and Wake-on-LAN (WoL).

Enhance Productivity and Device Management with the StarTech.com Connectivity Tools Application
Developed to improve performance and security, StarTech.com Connectivity Tools is the only software suite on the market that is compatible with a wide variety of IT connectivity accessories. The software suite includes:

- Advanced Windows Layout Utility: Setup and save custom windows layouts.
- MAC Address Pass-Through Utility: Improve network security.
- USB Event Monitoring Utility: Track and log connected USB devices.
- Wi-Fi Auto Switch Utility: Enable quick access to wired LAN.

USB-C Multiport Adapter Specifications
Package Information
Package Quantity 1
Package Length 4.3 in [11.0 cm]
Package Width 7.0 in [17.8 cm]
Package Height 1.6 in [4.0 cm]
Shipping Weight 6.9 oz [196.0 g]
Connector(s)

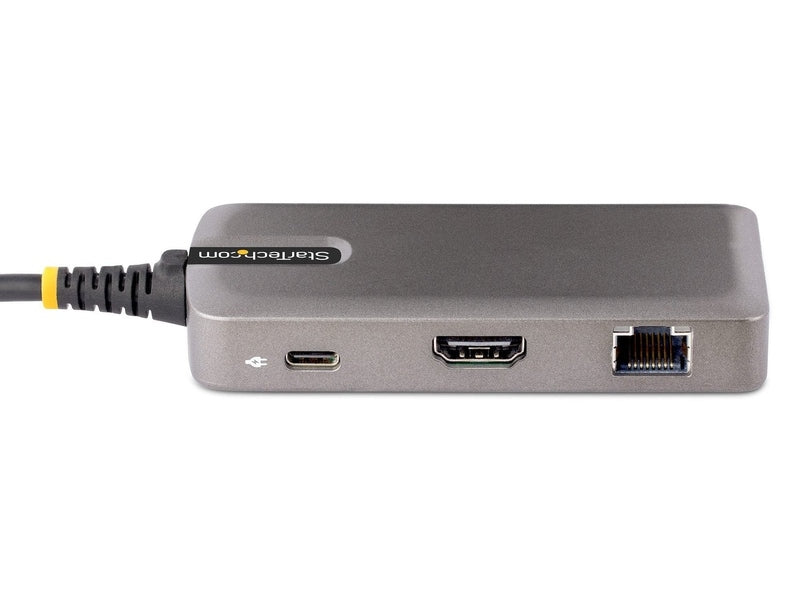

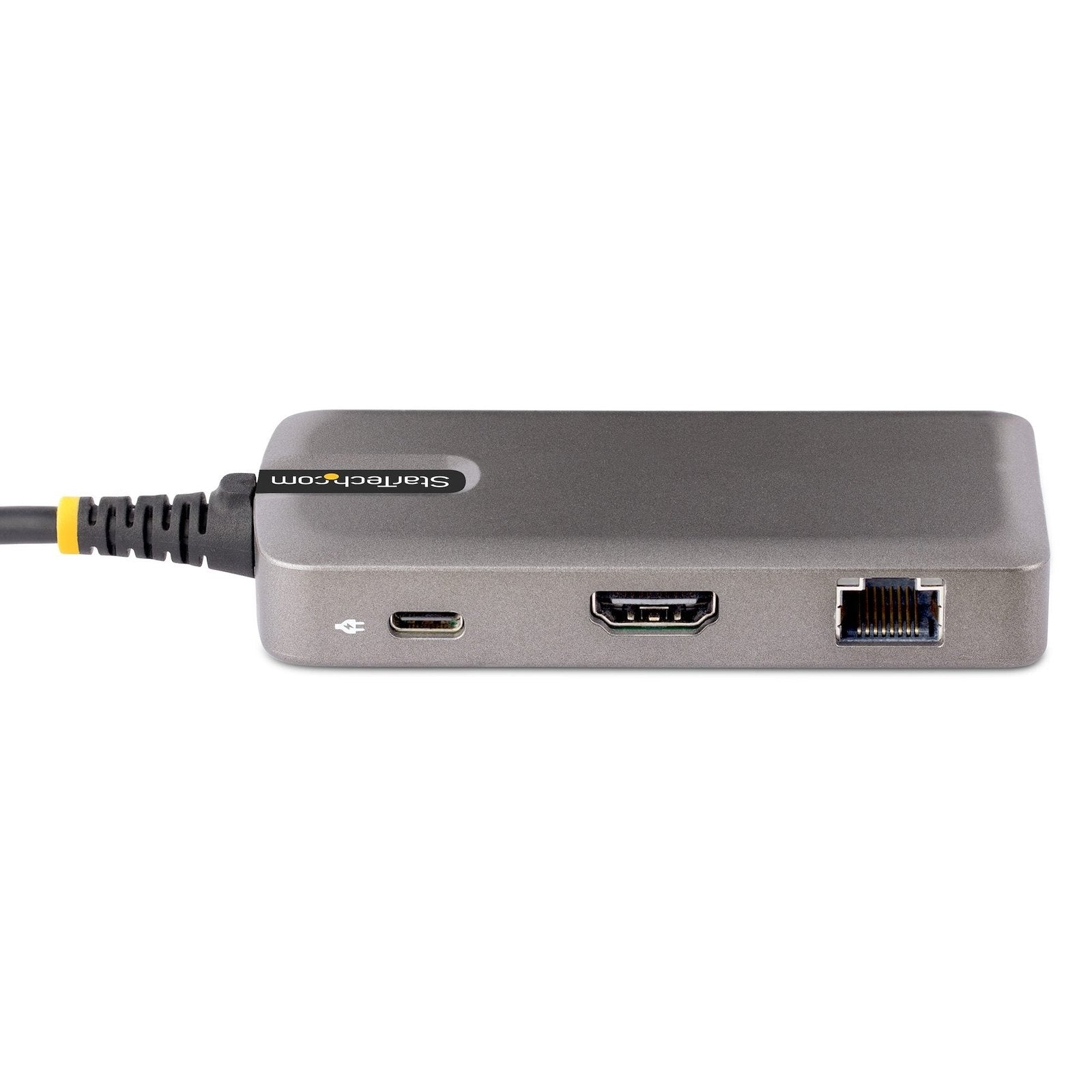

External Ports 1 × HDMI (19 pin)
2 × USB 3.2 Type-A (Gen 1, 5Gbps)
1 × RJ-45
1 × USB Type-C (Power Delivery Only)
Host Connectors 1 × USB 3.2 Type-C (Gen 1, 5Gbps)
Environmental
Operating Temperature 0°C to 35°C (32°F to 95°F)
Storage Temperature -25°C to 65°C (-13°F to 149°F)
Humidity 0–95% RH (Non-condensing)
Hardware
4K Support Yes
Fast-Charge Port(s) No
Displays Supported 1
Interface USB 3.2 Gen 1 – 5 Gbit/s
Bus Type USB-C
Industry Standards HDMI 2.0b
USB 3.2 Gen 1 (5Gbps)
USB Power Delivery Specification Rev. 3.0
Certified Works with Chromebook (WWCB)
Chipset ID Realtek RTL8153B
Analogix ANX7327
Analogix ANX7518
VIA VL817-Q7
Performance
Wake On LAN Yes
Maximum Data Transfer Rate 5Gbps
Maximum Digital Resolutions Up to 4K (4096×2160) @ 60Hz
Type and Rate USB 3.2 Gen 1 – 5 Gbit/s
UASP Support Yes
Compatible Networks 10/100/1000 Mbps
PXE Yes
Full Duplex Support Yes
Maximum Laptop Charging 86W
Physical Characteristics
Color Space Gray
Material Plastic
Cable Length 11.8 in [30 cm]
Product Length 3.9 in [10.0 cm]
Product Width 1.9 in [4.8 cm]
Product Height 0.6 in [1.6 cm]
Product Weight 3.7 oz [105.0 g]
Power
Power Source Bus Powered and Host USB-C Power Adapter
Power Delivery 100W
Power Consumption 14W
Software
OS Compatibility Windows® 10, 11, 11 ARM
macOS 10.15–15.0
Android™
Linux® Ubuntu 18.04, 20.04
ChromeOS™ (WWCB Certified)
Special Notes / Requirements
System and Cable Requirements Host device with USB-C port supporting Power Delivery 2.0 and DP Alt Mode
Optional: USB-C power adapter
Note Jumbo Frames not supported in macOS
Not all USB-C ports support full functionality—verify PD and DP Alt Mode support
PD passthrough disabled if host lacks Power Delivery support
4K-capable display required for UHD resolution
USB 3.2 Gen 1 (5Gbps) also known as USB 3.1 Gen 1 and USB 3.0
Laptop charging behavior may vary—consult manufacturer for Power Delivery specs
What's in the Box
Included Items 1 × USB-C Multiport Adapter
1 × Quick-Start Guide
