Description
Overview

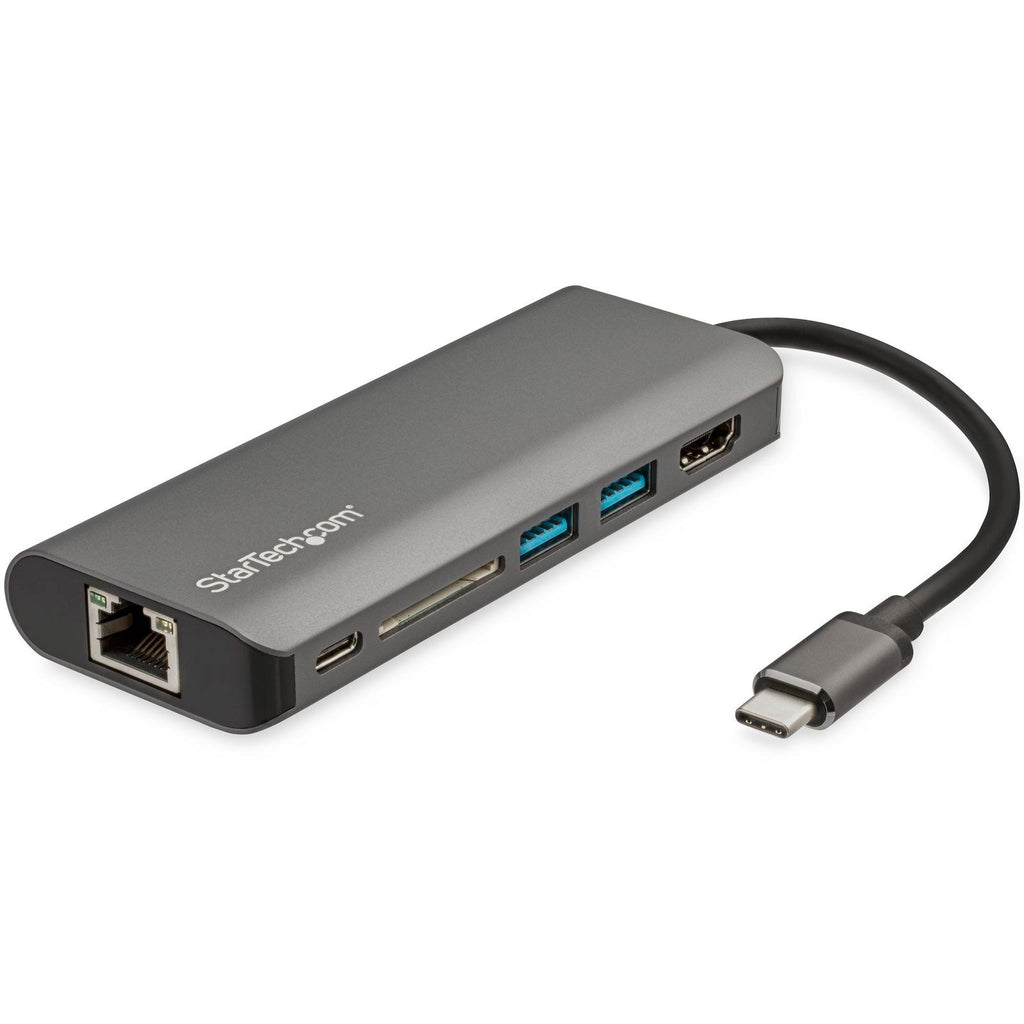

USB C Multiport Adapter - USB-C Travel Dock to 4K HDMI, 3x USB 3.0 Hub, SD/SDHC, GbE, 60W PD 3.0 Pass-Through - Portable USB-C Mini Docking Station USB Type-C/Thunderbolt 3
Portable Docking Station | Mac & Windows® | 4K | GbE | Thunderbolt™ 3 Compatible
This USB-C multiport adapter with HDMI® turns your MacBook Pro, Dell XPS, or other USB-C™ laptop into a workstation, anywhere you go. The USB Type-C multiport adapter provides 4K HDMI video output, a USB Type-C™ port (data/power), two USB 3.0 Type-A ports, a Gigabit Ethernet port and an SD card reader slot, all through one connection to your laptop’s USB-C or Thunderbolt 3™ port. Plus, it offers advanced charging through USB Power Delivery 3.0.
Enhance Productivity
The portable docking station connects your laptop to a 4K HDMI monitor (4096 x 2160p) to create a powerful workstation. It can also connect to an ultrawide monitor.
Connect Your Devices

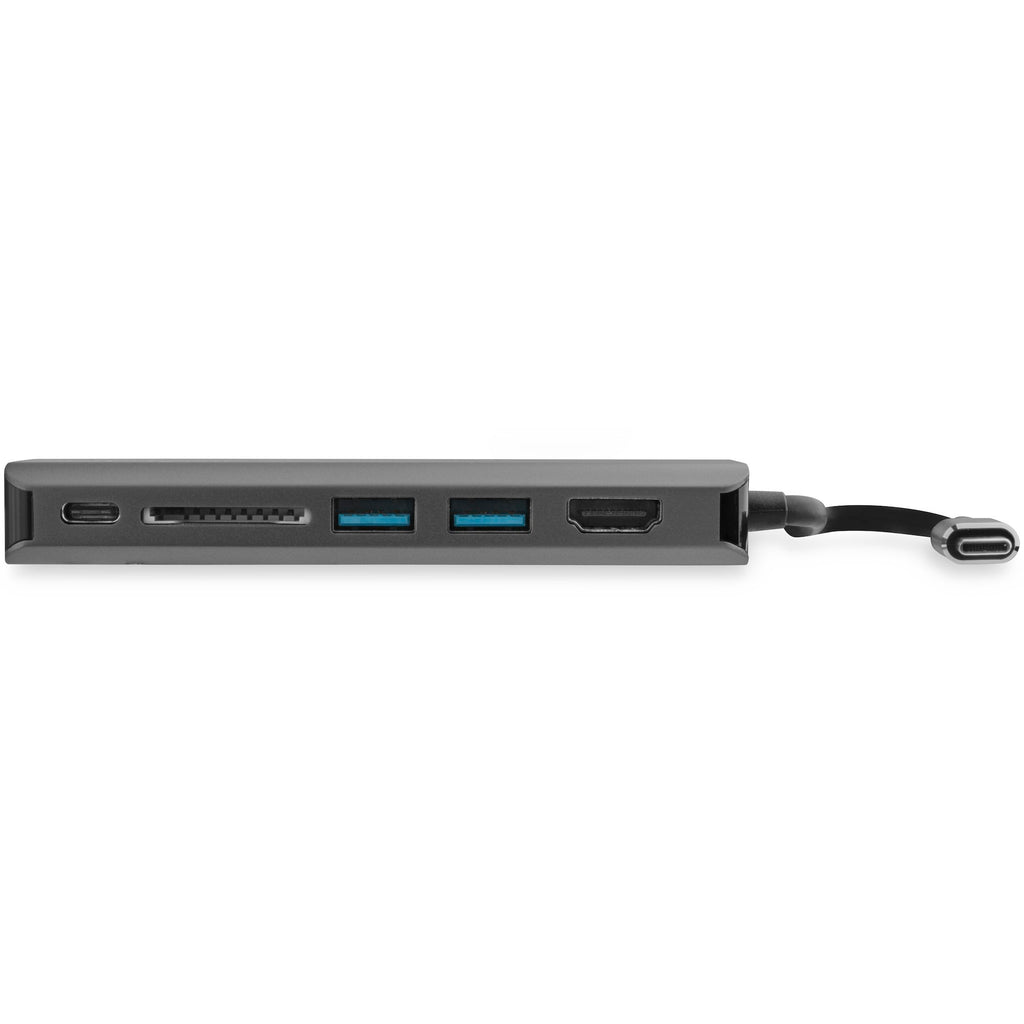

The USB-C to USB 3.0 hub gives you one USB-C port and two USB-A ports to connect your latest and legacy USB devices.
Built-In SD Card Reader
Access your multimedia content with ease. The multiport adapter provides direct access to your SD, SDHC™ and SDXC™ memory cards or microSD cards (with adapter, sold separately).
Charge Your Laptop and Peripherals
With support for USB PD 3.0 (up to 60W), the USB Type-C multiport adapter lets you power and charge your laptop, and power your peripherals when connected to a USB-C power adapter. PD 3.0 features Fast Role Swap to prevent USB data disruption when you switch power sources (USB-C power adapter to bus power).

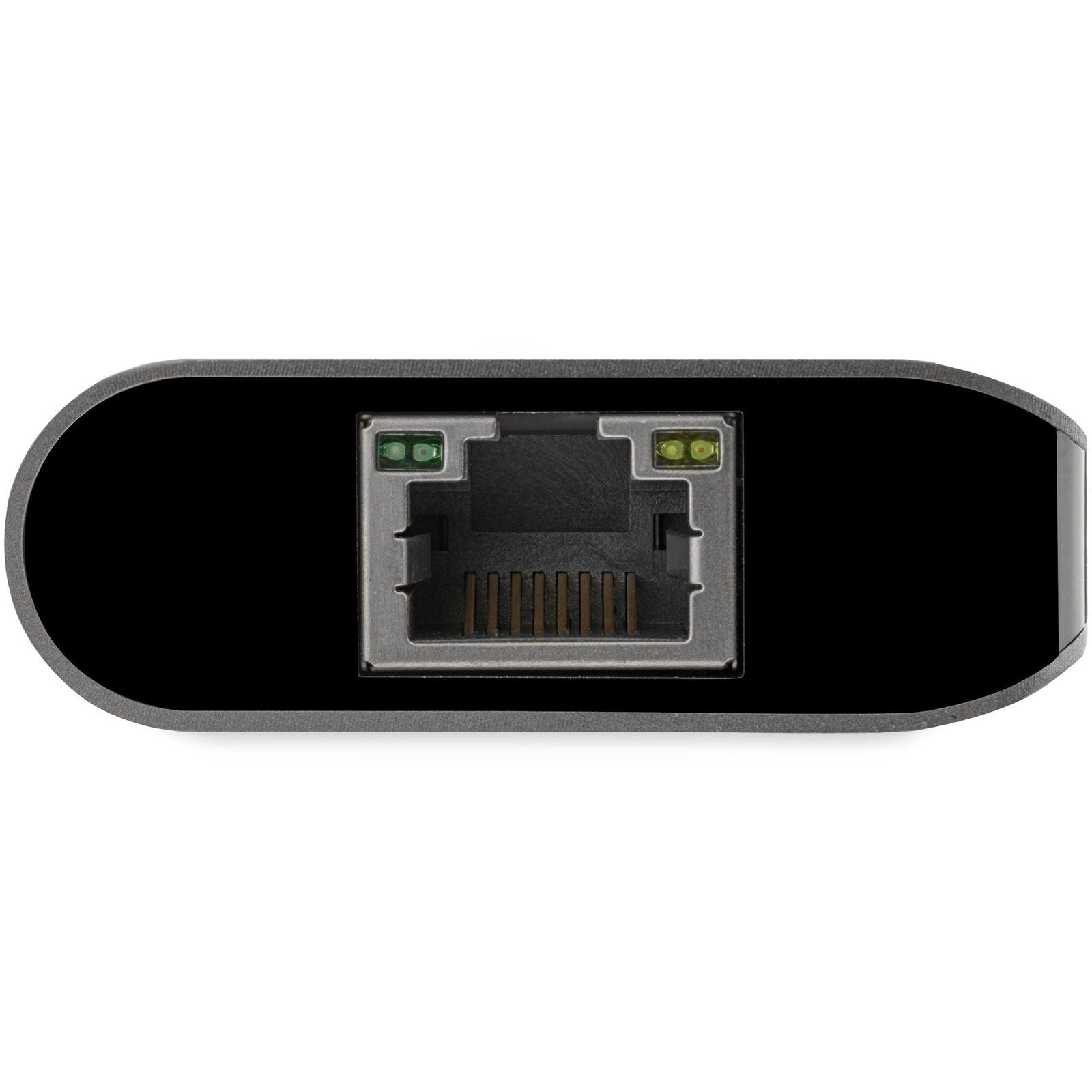

Reliable Network Connectivity
The Gigabit Ethernet port ensures reliable wired network access.
Note: To ensure full adapter functionality, your laptop’s USB-C port must support USB Power Delivery and DP Alt Mode.
USB C Multiport Adapter - USB-C Travel Dock to 4K HDMI, 3x USB 3.0 Hub, SD/SDHC, GbE, 60W PD 3.0 Pass-Through - Portable USB-C Mini Docking Station USB Type-C/Thunderbolt 3
Portable Docking Station | Mac & Windows® | 4K | GbE | Thunderbolt™ 3 Compatible
This USB-C multiport adapter with HDMI® turns your MacBook Pro, Dell XPS, or other USB-C™ laptop into a workstation, anywhere you go. The USB Type-C multiport adapter provides 4K HDMI video output, a USB Type-C™ port (data/power), two USB 3.0 Type-A ports, a Gigabit Ethernet port and an SD card reader slot, all through one connection to your laptop’s USB-C or Thunderbolt 3™ port. Plus, it offers advanced charging through USB Power Delivery 3.0.
Enhance Productivity
The portable docking station connects your laptop to a 4K HDMI monitor (4096 x 2160p) to create a powerful workstation. It can also connect to an ultrawide monitor.
Connect Your Devices
The USB-C to USB 3.0 hub gives you one USB-C port and two USB-A ports to connect your latest and legacy USB devices.
Built-In SD Card Reader
Access your multimedia content with ease. The multiport adapter provides direct access to your SD, SDHC™ and SDXC™ memory cards or microSD cards (with adapter, sold separately).
Charge Your Laptop and Peripherals
With support for USB PD 3.0 (up to 60W), the USB Type-C multiport adapter lets you power and charge your laptop, and power your peripherals when connected to a USB-C power adapter. PD 3.0 features Fast Role Swap to prevent USB data disruption when you switch power sources (USB-C power adapter to bus power).
Reliable Network Connectivity
The Gigabit Ethernet port ensures reliable wired network access.
Note: To ensure full adapter functionality, your laptop’s USB-C port must support USB Power Delivery and DP Alt Mode.
| USB-C Multiport Adapter Specifications | |
|---|---|
| Connector(s) | |
| Connector Type(s) | 1 x USB 3.2 Type-C (24 pin, Gen 1, 5Gbps) 1 x HDMI (19 pin) 1 x RJ-45 2 x USB Type-A (9 pin, 5Gbps) 1 x SD Slot 1 x USB 3.2 Type-C (24 pin, Gen 1, 5Gbps) |
| Environmental | |
| Operating Temperature | 0°C to 45°C (32°F to 113°F) |
| Storage Temperature | -10°C to 85°C (14°F to 185°F) |
| Humidity | 5% – 90% RH (Non-condensing) |
| Hardware | |
| 4K Support | Yes |
| Fast-Charge Port(s) | No |
| Displays Supported | 1 |
| Bus Type | USB-C |
| Industry Standards | IEEE 802.3 / 802.3u / 802.3ab USB 3.0 (Backward compatible with USB 2.0 and 1.1) |
| Chipset ID | VIA/VLI - VL163, VL817S VIA Labs - VL163 Genesys Logic - GL3224 Parade - PS178 Realtek - RTL8153B |
| Packaging Information | |
| Package Length | 4.8 in (12.2 cm) |
| Package Width | 6.4 in (16.2 cm) |
| Package Height | 1.3 in (3.3 cm) |
| Shipping Weight | 5.1 oz (144.0 g) |
| Package Quantity | 1 |
| Performance | |
| Maximum Data Transfer Rate | 5 Gbps (USB 3.0) 2 Gbps (Ethernet; Full-Duplex) |
| Maximum Digital Resolutions | 4096 x 2160 @ 24Hz 3840 x 2160 @ 30Hz (HDMI) UltraWide: 3440 x 1440 @ 60Hz, 2560 x 1080 @ 60Hz Also supports 2560 x 1600 and 2560 x 1440 |
| Type and Rate | USB 3.0 - 5 Gbit/s |
| UASP Support | Yes |
| Memory Media Type | SD / SDHC / SDXC microSD / microSDHC / microSDXC (adapter required) |
| Compatible Networks | 10/100/1000 Mbps |
| Auto MDIX | Yes |
| Full Duplex Support | Yes |
| Physical Characteristics | |
| Color | Space Gray |
| Material | Aluminum |
| Cable Length | 6.0 in (152 mm) |
| Product Length | 10.6 in (27.0 cm) |
| Product Width | 1.8 in (4.5 cm) |
| Product Height | 0.6 in (1.5 cm) |
| Weight of Product | 3.0 oz (85.0 g) |
| Power | |
| Power Source | USB-Powered |
| Power Delivery | 60W |
| Output Voltage | 5V DC |
| Software | |
| OS Compatibility | Windows® 7, 8, 8.1, 10, 11, 11 ARM macOS 10.11 to 15.0 Android Chrome OS™ |
| Special Notes / Requirements | |
| System Requirements | Host laptop with USB-C port supporting Power Delivery 2.0 and DP Alt Mode Optional: USB-C power adapter |
| Note | Non-PD ports will not pass power through 4K-capable display required for 3840 x 2160 resolution USB 3.0 = USB 3.1 Gen 1 (5Gbps) Charging behavior may vary depending on laptop power requirements |
| What's in the Box | |
| Included in Package | 1 x Multiport Adapter 1 x Quick-Start Guide |
