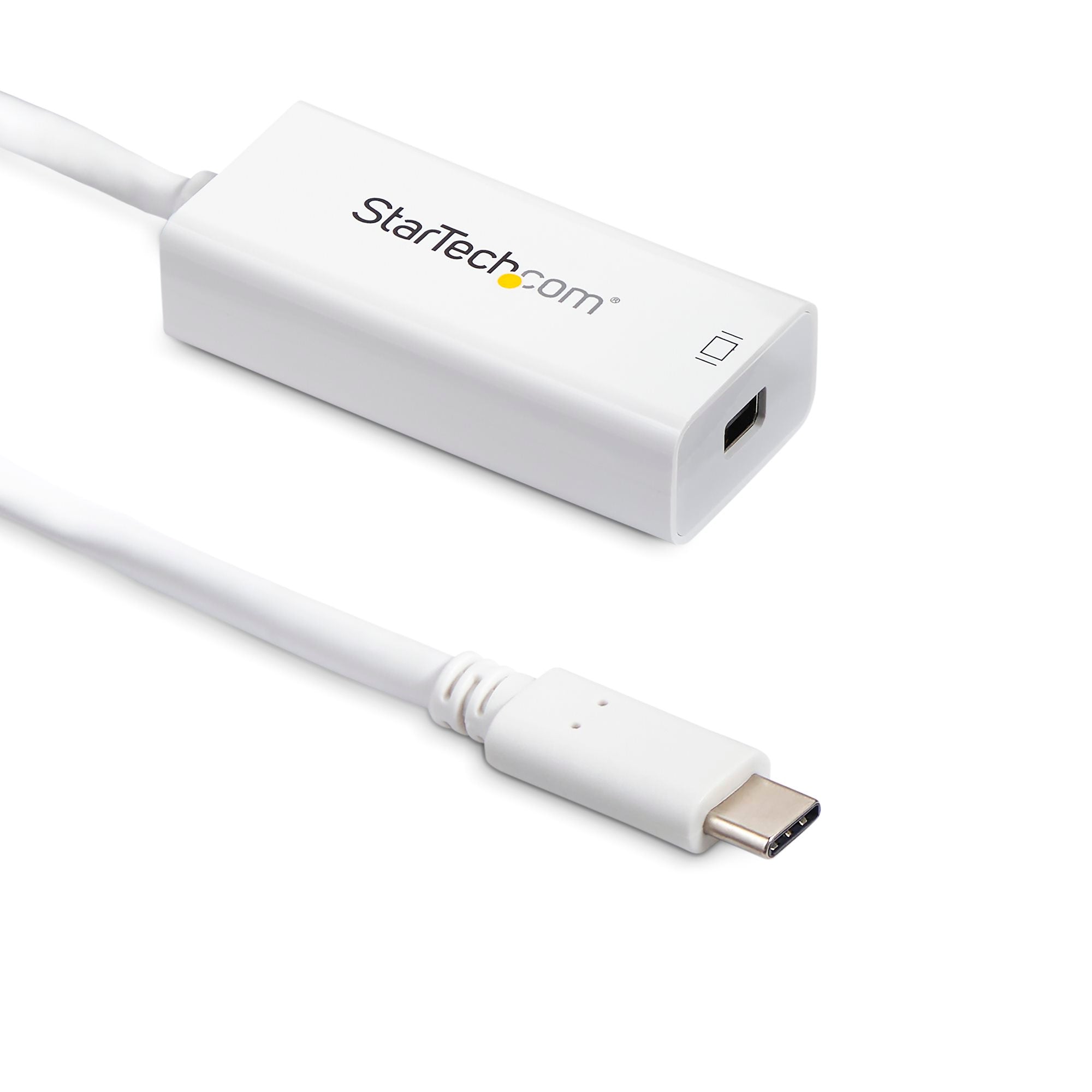

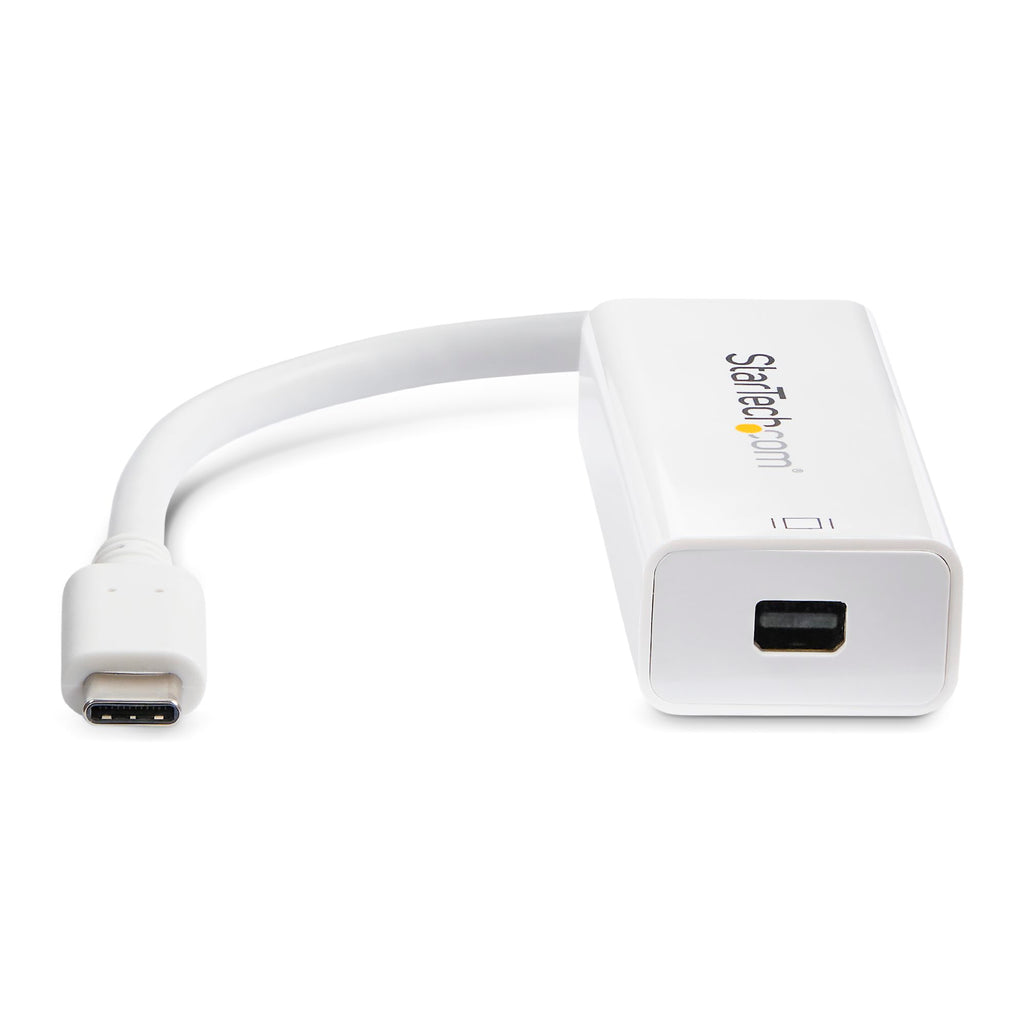

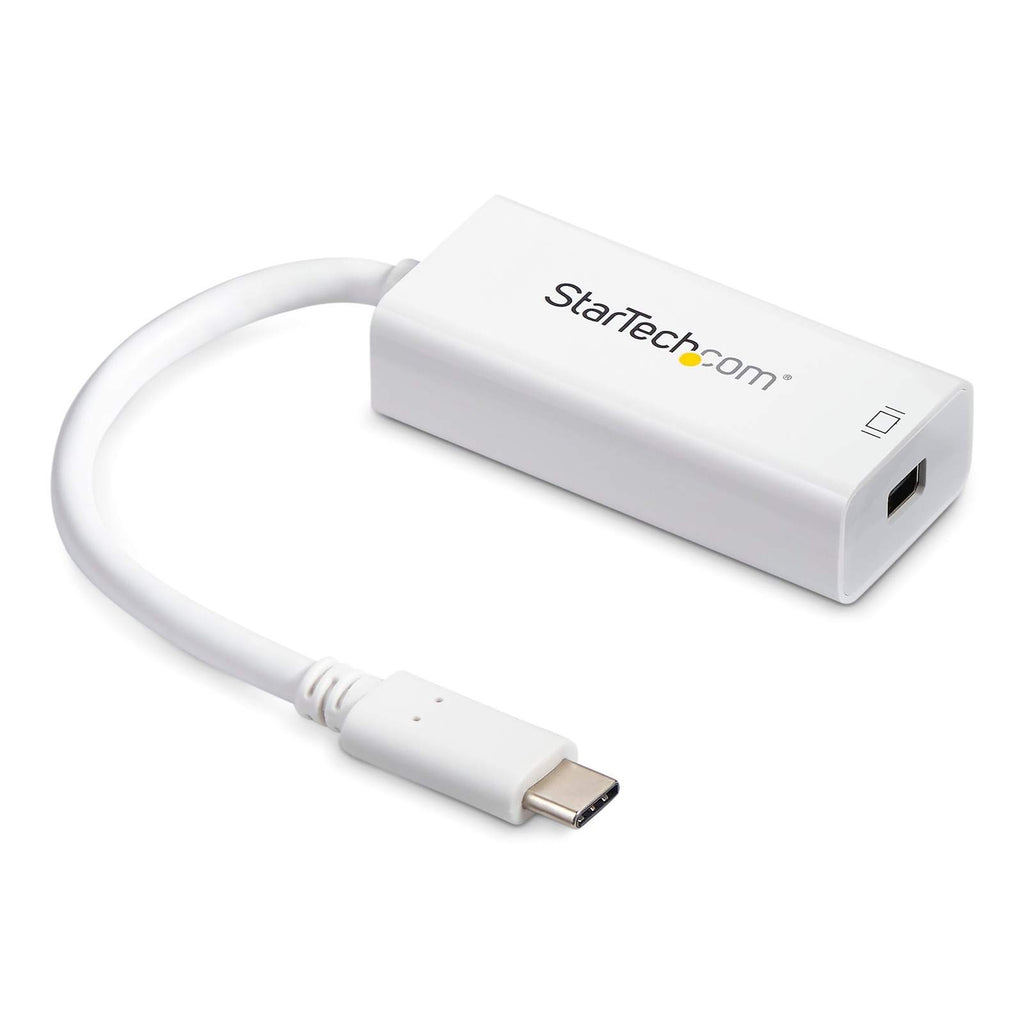

USB-C to Mini DisplayPort Adapter - 4K 60Hz - White - USB 3.1 Type-C to Mini DP Adapter - Upgraded Version is CDP2MDPEC
USB Type-C™ to Mini DP Adapter| Thunderbolt™ 3 Compatible | DP Alt Mode
This USB Type-C to Mini DisplayPort adapter lets you output mini DisplayPort (mDP) video and audio from the USB Type-C port on your laptop or other device. It works with USB 3.1 or Thunderbolt 3 Type-C devices that pass an mDP video signal, such as your MacBook Pro, Chromebook or 2018 iPad Pro.
IT Pro Performance
This adapter features a unique video signal booster which amplifies the signal and ensures reliable performance, even with lower quality cables. The amplifier also increases the max. supported DP cable length compared to other brands.
Enjoy High-Definition Resolution up to 4K at 60Hz
Harness the video capabilities that are built into your computer's USB-C connection, using the adapter to deliver the astonishing quality of UHD to your 4K 60Hz display.
You can achieve an output resolution of up to 3840 x 2160p at 60Hz, perfect for high-resolution tasks such as viewing 4K video. The USB-C video adapter is backward compatible with 1080p monitors or displays, which makes it a great accessory for workspace applications.
Hassle-Free Connection for Your USB Type-C Laptop
This adapter lets you use the versatile USB Type-C port on your portable device. USB-C is a reversible connector, enabling you to plug it into your device in any direction. The Thunderbolt 3 compatible adapter provides a hassle-free connection to your Windows or Mac based Thunderbolt 3 computer.
Lightweight Design for Easy Portability
The compact USB-C to mDP adapter is lightweight and fits perfectly in your laptop bag. Its portable design is ideal for BYOD (Bring Your Own Device) applications at the office or on the road.
Notes:
- Your USB-C device must support DisplayPort over USB-C (DP Alt Mode) to work with this adapter
- This adapter outputs a single-mode Mini DisplayPort signal and will not work with additional video adapters such as Mini DisplayPort to HDMI, Mini DisplayPort to VGA or Mini DisplayPort to DVI adapters
USB-C to Mini DisplayPort Adapter - 4K 60Hz - White - USB 3.1 Type-C to Mini DP Adapter - Upgraded Version is CDP2MDPEC
USB Type-C™ to Mini DP Adapter| Thunderbolt™ 3 Compatible | DP Alt Mode
This USB Type-C to Mini DisplayPort adapter lets you output mini DisplayPort (mDP) video and audio from the USB Type-C port on your laptop or other device. It works with USB 3.1 or Thunderbolt 3 Type-C devices that pass an mDP video signal, such as your MacBook Pro, Chromebook or 2018 iPad Pro.
IT Pro Performance
This adapter features a unique video signal booster which amplifies the signal and ensures reliable performance, even with lower quality cables. The amplifier also increases the max. supported DP cable length compared to other brands.
Enjoy High-Definition Resolution up to 4K at 60Hz
Harness the video capabilities that are built into your computer's USB-C connection, using the adapter to deliver the astonishing quality of UHD to your 4K 60Hz display.
You can achieve an output resolution of up to 3840 x 2160p at 60Hz, perfect for high-resolution tasks such as viewing 4K video. The USB-C video adapter is backward compatible with 1080p monitors or displays, which makes it a great accessory for workspace applications.
Hassle-Free Connection for Your USB Type-C Laptop
This adapter lets you use the versatile USB Type-C port on your portable device. USB-C is a reversible connector, enabling you to plug it into your device in any direction. The Thunderbolt 3 compatible adapter provides a hassle-free connection to your Windows or Mac based Thunderbolt 3 computer.
Lightweight Design for Easy Portability
The compact USB-C to mDP adapter is lightweight and fits perfectly in your laptop bag. Its portable design is ideal for BYOD (Bring Your Own Device) applications at the office or on the road.
Notes:
- Your USB-C device must support DisplayPort over USB-C (DP Alt Mode) to work with this adapter
- This adapter outputs a single-mode Mini DisplayPort signal and will not work with additional video adapters such as Mini DisplayPort to HDMI, Mini DisplayPort to VGA or Mini DisplayPort to DVI adapters
| USB-C to Mini DisplayPort Adapter Specifications | |
|---|---|
| Connector(s) | |
| Connector A | 1 x USB-C (24 pin) DisplayPort Alt Mode |
| Connector B | 1 x Mini-DisplayPort (20 pin) |
| Environmental | |
| Operating Temperature | 0°C to 45°C (32°F to 113°F) |
| Storage Temperature | -10°C to 70°C (14°F to 158°F) |
| Humidity | 10% – 85% RH |
| Hardware | |
| Adapter Type | Passive |
| AV Input | USB-C |
| AV Output | Mini DisplayPort 1.2 |
| Audio | Yes |
| Chipset ID | NXP - PTN5100, Pericom - PI3DPX1203 |
| Packaging Information | |
| Shipping Weight | 1.3 oz (36.0 g) |
| Package Quantity | 1 |
| Package Length | 8.6 in (21.8 cm) |
| Package Width | 2.3 in (5.9 cm) |
| Package Height | 1.6 in (4.1 cm) |
| Performance | |
| Audio Specifications | DisplayPort - 7.1 Channel Audio |
| Video Revision | DisplayPort 1.2 |
| Maximum Cable Distance to Display | 6.6 ft (2 m) |
| Maximum Digital Resolutions | 3840 x 2160 @ 60Hz |
| Supported Resolutions | 1024 x 768 1280 x 720 1920 x 1080 @ 144Hz 1920 x 1200 2560 x 1440 2560 x 1600 3840 x 2160 @ 60Hz |
| Wide Screen Supported | Yes |
| Physical Characteristics | |
| Color | White |
| Material | Plastic |
| Cable Length | 5.5 in (140 mm) |
| Product Length | 7.1 in (18.0 cm) |
| Product Width | 1.1 in (2.7 cm) |
| Product Height | 0.6 in (1.6 cm) |
| Weight of Product | 0.8 oz (23.0 g) |
| Special Notes / Requirements | |
| System Requirements | USB-C device must support DisplayPort over USB-C (DP Alt Mode) Adapter outputs single-mode Mini DisplayPort signal only Not compatible with Mini DisplayPort to HDMI/VGA/DVI adapters Does not support Thunderbolt displays |
| What's in the Box | |
| Included in Package | 1 x USB-C to Mini DisplayPort adapter |
