Overview

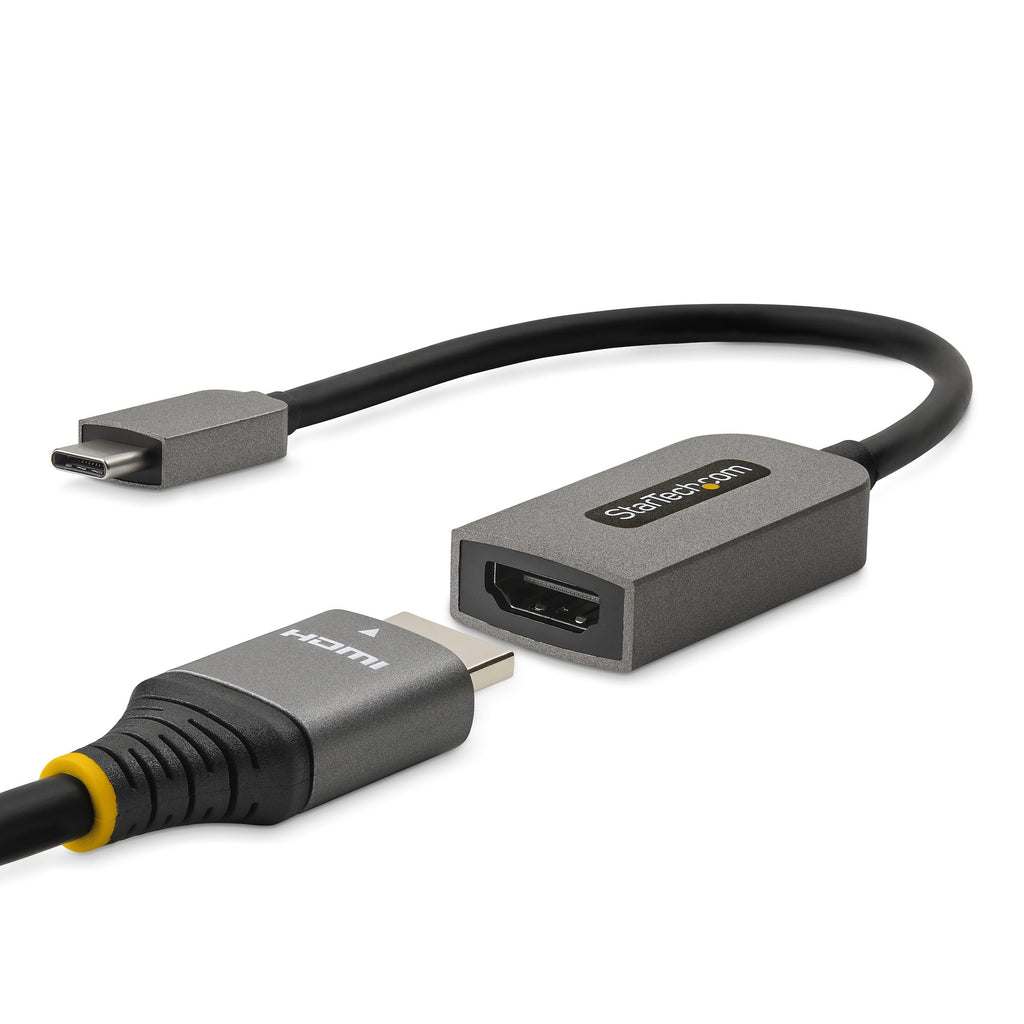

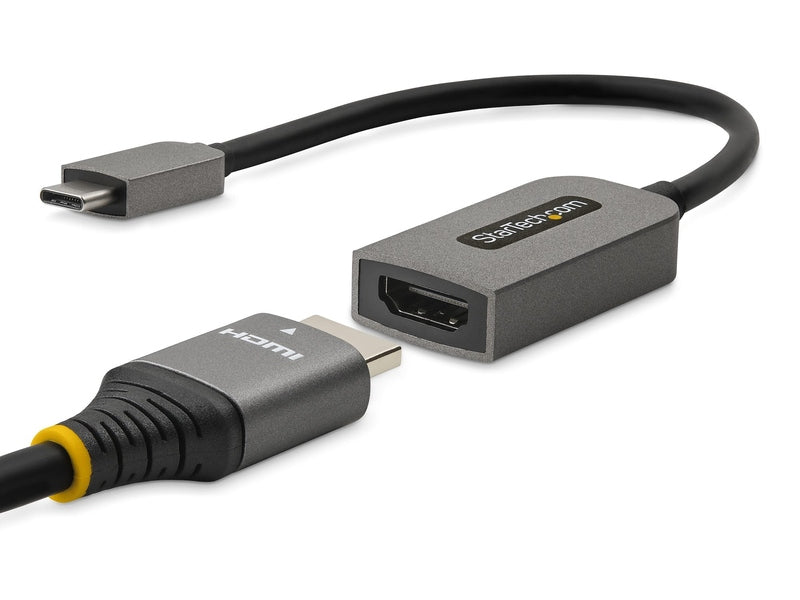

USB-C to HDMI Adapter, 4K 60Hz Video, HDR10, USB-C to HDMI Monitor Dongle, USB4 / Thunderbolt Compatible
Compact USB-C to 4K 60Hz HDMI dongle with HDR10 support
This adapter is a practical solution for ultra-slim USB Type-C laptops and tablets that don't include HDMI ports, an increasingly common challenge in today's mobile work environments.
4K 60Hz with HDR
The USB-C video adapter is fully compatible with your HDMI 2.0b equipment, supporting resolutions up to 4K 60Hz (3840 X 2160) and bandwidths up to 18Gbps. It delivers 4:4:4 chroma subsampling for accurate color reproduction and sharp image fidelity. Backward compatibility ensures smooth integration with earlier HDMI versions.
Enjoy enhanced contrast, brightness, and color accuracy thanks to High Dynamic Range (HDR) support, enabling more vivid and true-to-life visuals in digital signage, video conferencing, or high-resolution presentations.
Built for Business Durability
Designed for daily use, this compact lightweight adapter features a metal inner housing for EMI shielding on the USB-C connector, a high-impact plastic shell for durability, and a heavy-duty cable with molded strain relief for long-term reliability.
Notes:
- To achieve HDR, your USB-C port must support DisplayPort 1.4 and your display must support HDMI 2.0b.
- NVIDIA graphics adapters may not support 4:4:4 chroma subsampling.
USB-C to HDMI Adapter, 4K 60Hz Video, HDR10, USB-C to HDMI Monitor Dongle, USB4 / Thunderbolt Compatible
Compact USB-C to 4K 60Hz HDMI dongle with HDR10 support
This adapter is a practical solution for ultra-slim USB Type-C laptops and tablets that don't include HDMI ports, an increasingly common challenge in today's mobile work environments.
4K 60Hz with HDR
The USB-C video adapter is fully compatible with your HDMI 2.0b equipment, supporting resolutions up to 4K 60Hz (3840 X 2160) and bandwidths up to 18Gbps. It delivers 4:4:4 chroma subsampling for accurate color reproduction and sharp image fidelity. Backward compatibility ensures smooth integration with earlier HDMI versions.
Enjoy enhanced contrast, brightness, and color accuracy thanks to High Dynamic Range (HDR) support, enabling more vivid and true-to-life visuals in digital signage, video conferencing, or high-resolution presentations.
Built for Business Durability
Designed for daily use, this compact lightweight adapter features a metal inner housing for EMI shielding on the USB-C connector, a high-impact plastic shell for durability, and a heavy-duty cable with molded strain relief for long-term reliability.
Notes:
- To achieve HDR, your USB-C port must support DisplayPort 1.4 and your display must support HDMI 2.0b.
- NVIDIA graphics adapters may not support 4:4:4 chroma subsampling.
| USB-C to HDMI Adapter Specifications | |
|---|---|
| Connector(s) | |

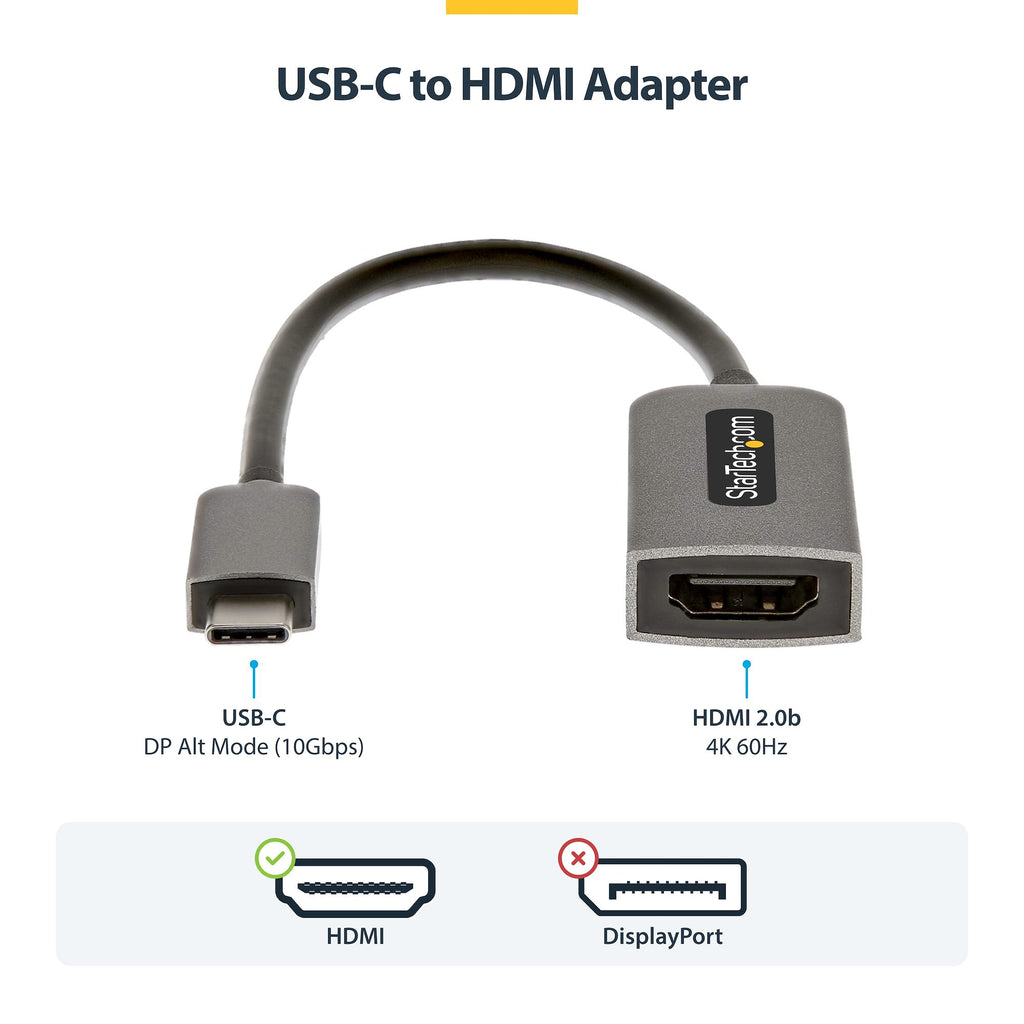

| Connector A | 1 × USB-C (24 pin, DisplayPort Alt Mode) |
| Connector B | 1 × HDMI (19 pin) |
| Environmental | |
| Operating Temperature | 5°C to 35°C (41°F to 95°F) |
| Storage Temperature | -20°C to 60°C (-4°F to 140°F) |
| Humidity | 25% – 60% RH |
| Hardware | |
| Active or Passive Adapter | Active |
| AV Input | USB-C |
| AV Output | HDMI 2.0 |
| Industry Standards | HDMI 2.0b, DisplayPort 1.4 |
| Chipset ID | ANX7517 |
| Packaging Information | |
| Package Height | 0.6 in [1.4 cm] |
| Package Length | 4.9 in [12.5 cm] |
| Package Width | 5.0 in [12.8 cm] |
| Package Weight | 1.1 oz [30.0 g] |
| Package Quantity | 1 |
| Performance | |
| Audio Specifications | HDMI – 2 Channel Audio |
| Video Revision | HDMI 2.0b |
| Maximum Cable Distance to Display | 23.0 ft [7 m] |
| Supported Resolutions | 4096 × 2160 @ 60Hz 3840 × 2160 @ 60Hz Lower resolutions and refresh rates also supported |
| Wide Screen Supported | Yes |
| MTBF | 166,527 hours |
| Physical Characteristics | |
| Color | Space Gray |
| Material | Not specified |
| Cable Length | 5.1 in [13 cm] |
| Product Length | 8.5 in [215 mm] |
| Product Width | 0.9 in [22.0 mm] |
| Product Height | 0.4 in [10.5 mm] |
| Product Weight | 0.6 oz [16.0 g] |
| Special Notes / Requirements | |
| Note | USB-C port must support DisplayPort over USB-C (DP Alt Mode). For maximum performance, both source and destination devices must support the required specifications. |
| What's in the Box | |
| Included Items | 1 × USB-C to HDMI Adapter |
