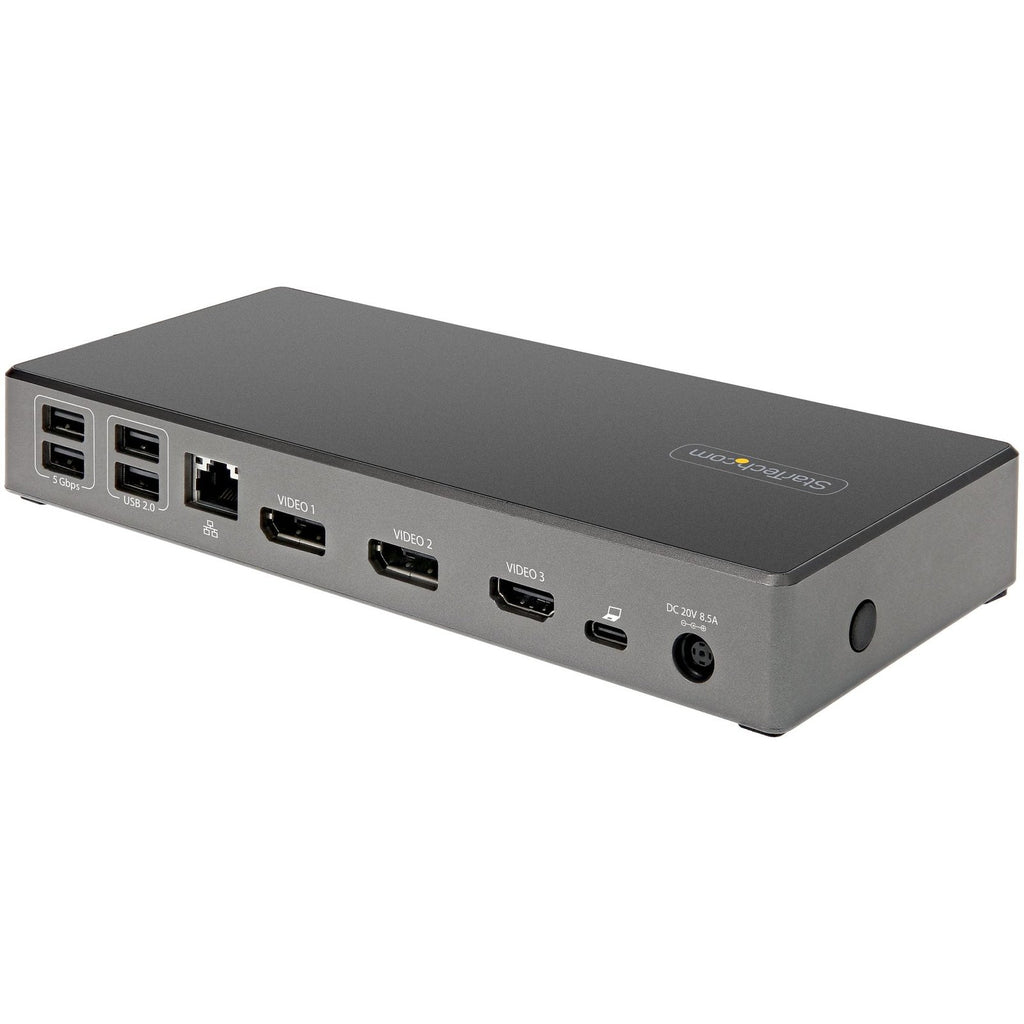

USB C Dock - Triple 4K Monitor USB Type-C Docking Station - 100W Power Delivery - DP 1.4 Alt Mode & DSC, 2x DisplayPort 1.4/HDMI 2.0 - 6xUSB (2x 10Gbps), SD - Windows/Chrome
USB Type-C Docking Station | Triple 4K with DP 1.4 & HDMI 2.0 | 100W PD | 6x Downstream USB Ports
This USB-C Gen 2 10Gbps docking station turns your USB-C ® or Thunderbolt™ 3 Windows laptop or Chromebook into a powerful workstation. A USB 3.2 Gen 2 Type-C dock features everything you need, from triple video outputs up to 4K 60Hz to 10Gbps USB-C & USB-A downstream peripheral ports to 100W Power Delivery.
HDMI & DisplayPort for Multiple Monitor Outputs
This USB-C Gen 2 docking station with DP 1.4 and HDMI 2.0 HBR3 support, is a perfect choice for dual or triple monitor setup, supporting up to triple 4K 30Hz nearly uncompressed video resolution output , with two DisplayPort and one HDMI outputs. Maximum dual and triple 4K display performance is supported on USB-C 11th Gen Intel-based (DP 1.4 HBR3 with DSC support) Windows Thunderbolt 3 or USB-C laptops, but backwards compatibility to older laptop generations and lower resolution monitor requirements.
Power & Charge with 100W Power Delivery
Power and charge USB-C/Thunderbolt 3 workstation laptops & ultrabooks with 100 watt power delivery, to keep high performance laptops sufficiently charged during heavy productivity usage.
Charge smartphones and other devices with USB-C downstream charging ports featuring BC 1.2 charging specification. Fast-charge ports support always-on charging so devices will charge whether or not a host laptop is connected.

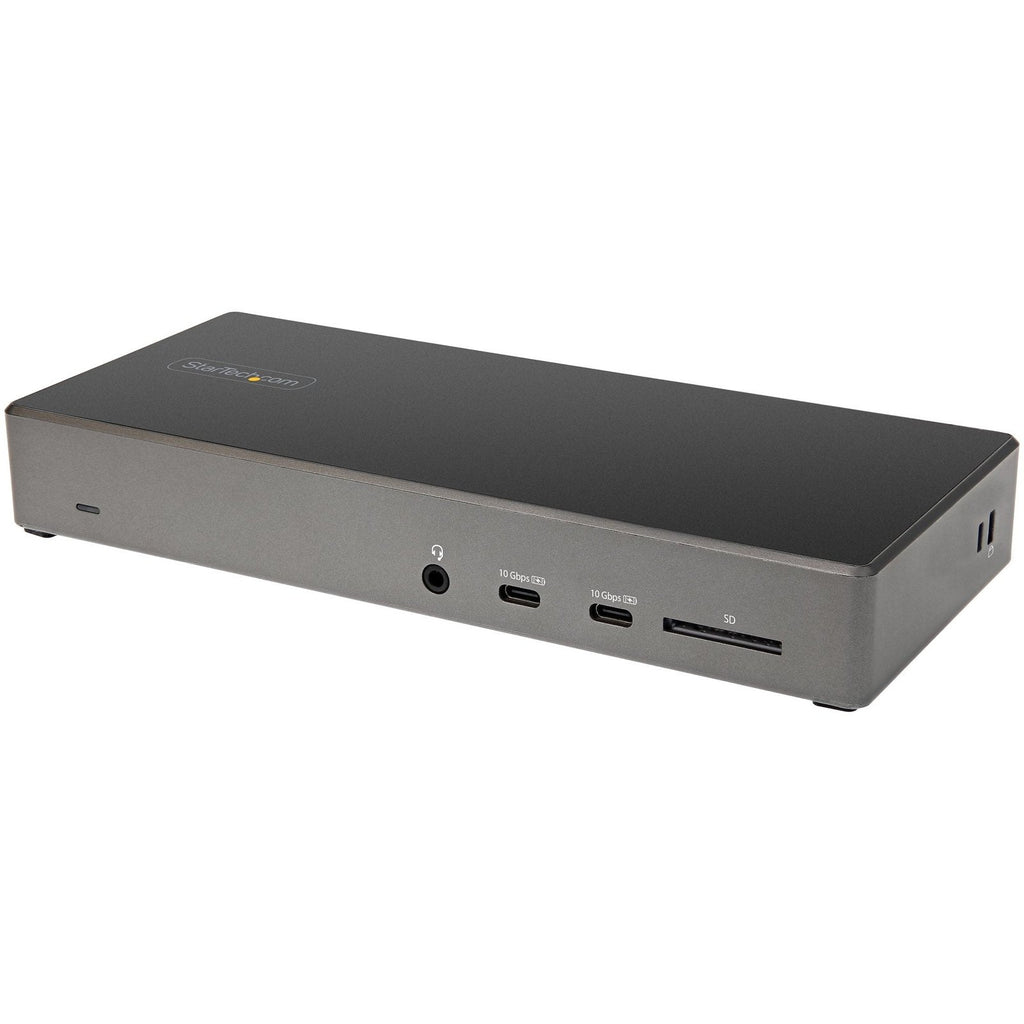

Integrated 6-Port USB Hub & SD Card Reader
This USB-C Gen 2 docking station features 6 downstream USB ports in total to connect USB peripherals and an SD 3.0 UHS-I card reader for media storage.
- 2x USB-C 3.2 Gen 2 - 10 Gbps (BC 1.2 Fast-Charge + Always-On)
- 2x USB-A 3.2 Gen 1 - 5 Gbps
- 2x USB-A 2.0 - 480 Mbps
- SD 3.0 UHS-I Card Reader
Also included, is a gigabit Ethernet port with PXE Boot, as well as 4-position TRRS stereo audio for a headset and mic.
Additional Security Features

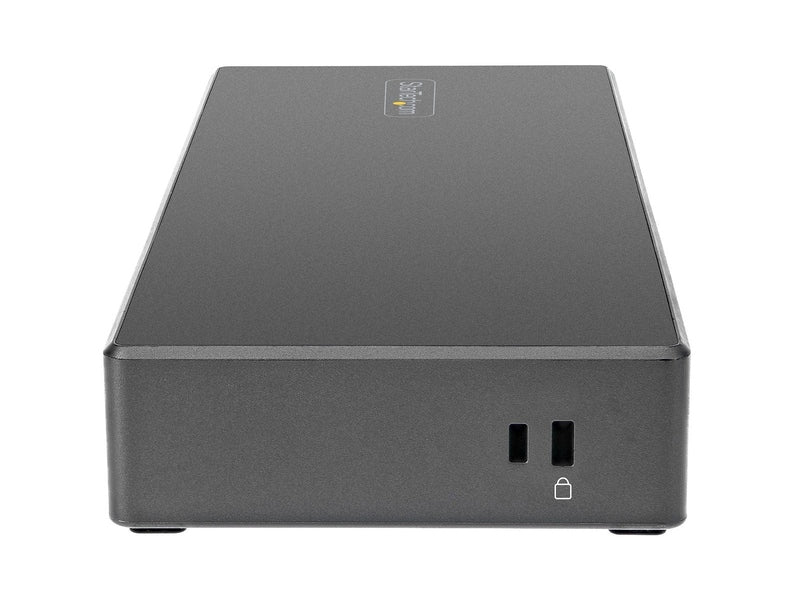

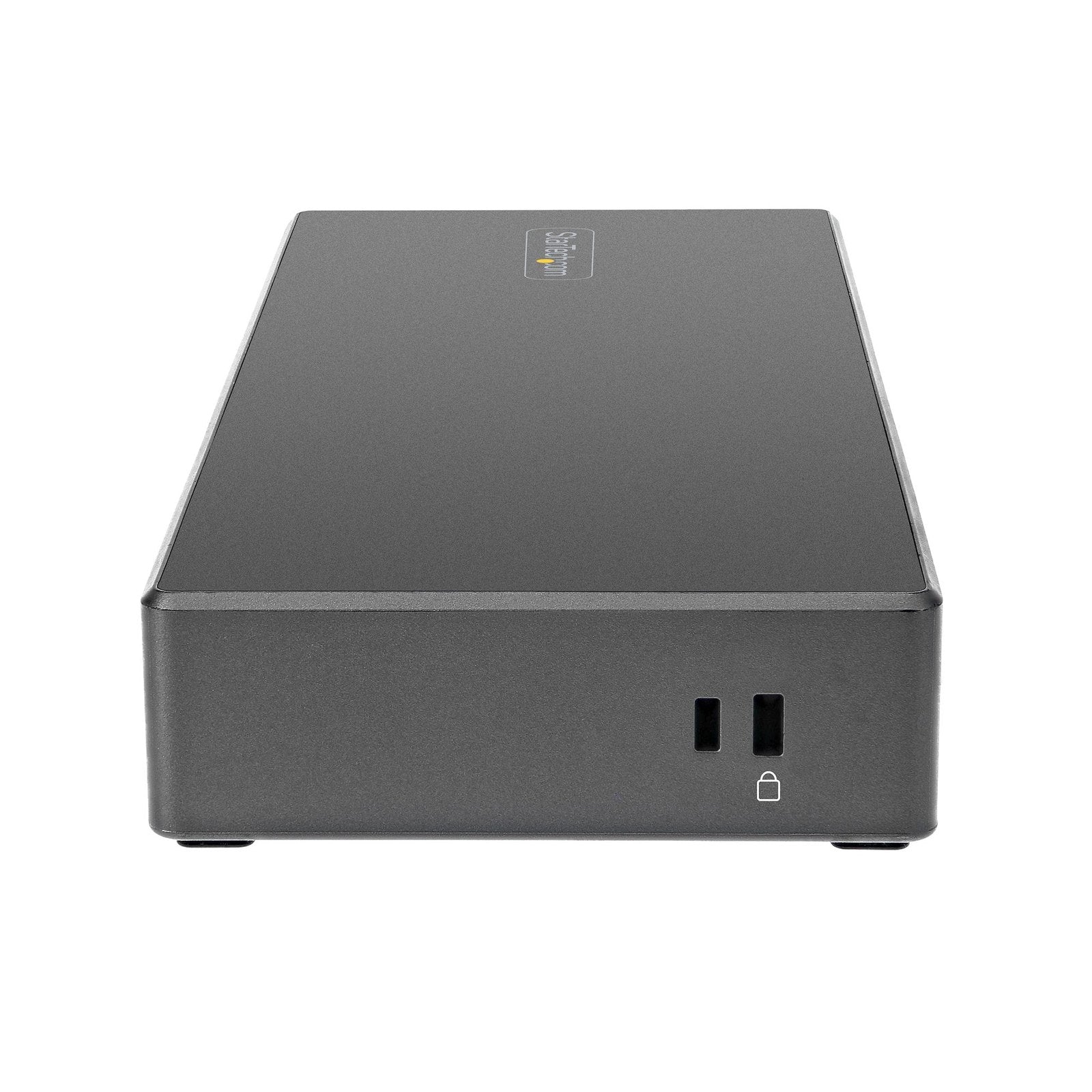

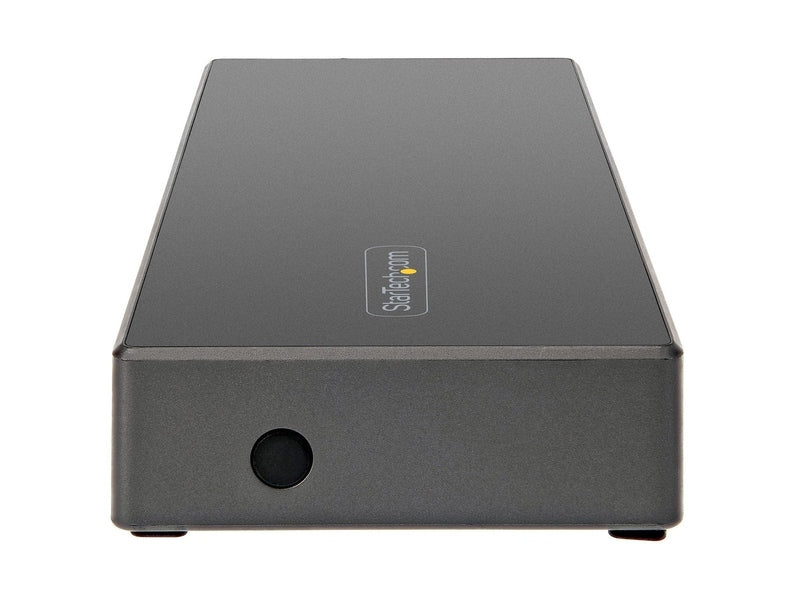

This USB-C docking station comes with plenty of security features two K-slots for a Kensington style laptop lock.
Enhance Productivity and Device Management with the StarTech.com Connectivity Tools Application
Developed to improve performance and security, StarTech.com Connectivity Tools is the only software suite on the market that works with a wide range of IT connectivity accessories. The software suite includes:
- Advanced Windows Layout Utility: To setup and save custom windows layouts.
- Mac Address Pass-Through Utility: To improve network security.
- USB Event Monitoring Utility: To track and log connected USB devices
- Wi-Fi Auto Switch Utility: Enabling users to quickly access faster network speeds via wired LAN.
USB C Dock - Triple 4K Monitor USB Type-C Docking Station - 100W Power Delivery - DP 1.4 Alt Mode & DSC, 2x DisplayPort 1.4/HDMI 2.0 - 6xUSB (2x 10Gbps), SD - Windows/Chrome
USB Type-C Docking Station | Triple 4K with DP 1.4 & HDMI 2.0 | 100W PD | 6x Downstream USB Ports
This USB-C Gen 2 10Gbps docking station turns your USB-C ® or Thunderbolt™ 3 Windows laptop or Chromebook into a powerful workstation. A USB 3.2 Gen 2 Type-C dock features everything you need, from triple video outputs up to 4K 60Hz to 10Gbps USB-C & USB-A downstream peripheral ports to 100W Power Delivery.
HDMI & DisplayPort for Multiple Monitor Outputs
This USB-C Gen 2 docking station with DP 1.4 and HDMI 2.0 HBR3 support, is a perfect choice for dual or triple monitor setup, supporting up to triple 4K 30Hz nearly uncompressed video resolution output , with two DisplayPort and one HDMI outputs. Maximum dual and triple 4K display performance is supported on USB-C 11th Gen Intel-based (DP 1.4 HBR3 with DSC support) Windows Thunderbolt 3 or USB-C laptops, but backwards compatibility to older laptop generations and lower resolution monitor requirements.
| DP 1.4 HBR3 with DSC Enabled | DP 1.4 HBR3 (without DSC) | DP 1.2 HBR2 | |
|---|---|---|---|
|
Triple Display |
Up to 4096 x 2160 @ 30Hz | Up to 1920 x 1080 @ 60Hz | Up to 1600 x 900 @ 60Hz |
| Dual Display |
Up to 4096 x 2160 @ 60Hz* *HDMI port + DP port or 2 DP ports |
Up to 2560 x 1440 @ 60Hz | Up to 1920 x 1080 @ 60Hz |
| Single Display | Up to 4096 x 2160 @ 60Hz | Up to 3840 x 2160 @ 60Hz | Up to 3840 x 2160 @ 30Hz |
Power & Charge with 100W Power Delivery
Power and charge USB-C/Thunderbolt 3 workstation laptops & ultrabooks with 100 watt power delivery, to keep high performance laptops sufficiently charged during heavy productivity usage.
Charge smartphones and other devices with USB-C downstream charging ports featuring BC 1.2 charging specification. Fast-charge ports support always-on charging so devices will charge whether or not a host laptop is connected.
Integrated 6-Port USB Hub & SD Card Reader
This USB-C Gen 2 docking station features 6 downstream USB ports in total to connect USB peripherals and an SD 3.0 UHS-I card reader for media storage.
- 2x USB-C 3.2 Gen 2 - 10 Gbps (BC 1.2 Fast-Charge + Always-On)
- 2x USB-A 3.2 Gen 1 - 5 Gbps
- 2x USB-A 2.0 - 480 Mbps
- SD 3.0 UHS-I Card Reader
Also included, is a gigabit Ethernet port with PXE Boot, as well as 4-position TRRS stereo audio for a headset and mic.
Additional Security Features
This USB-C docking station comes with plenty of security features two K-slots for a Kensington style laptop lock.
Enhance Productivity and Device Management with the StarTech.com Connectivity Tools Application
Developed to improve performance and security, StarTech.com Connectivity Tools is the only software suite on the market that works with a wide range of IT connectivity accessories. The software suite includes:
- Advanced Windows Layout Utility: To setup and save custom windows layouts.
- Mac Address Pass-Through Utility: To improve network security.
- USB Event Monitoring Utility: To track and log connected USB devices
- Wi-Fi Auto Switch Utility: Enabling users to quickly access faster network speeds via wired LAN.
| USB-C Dock Specifications | |
|---|---|
| Connector(s) | |

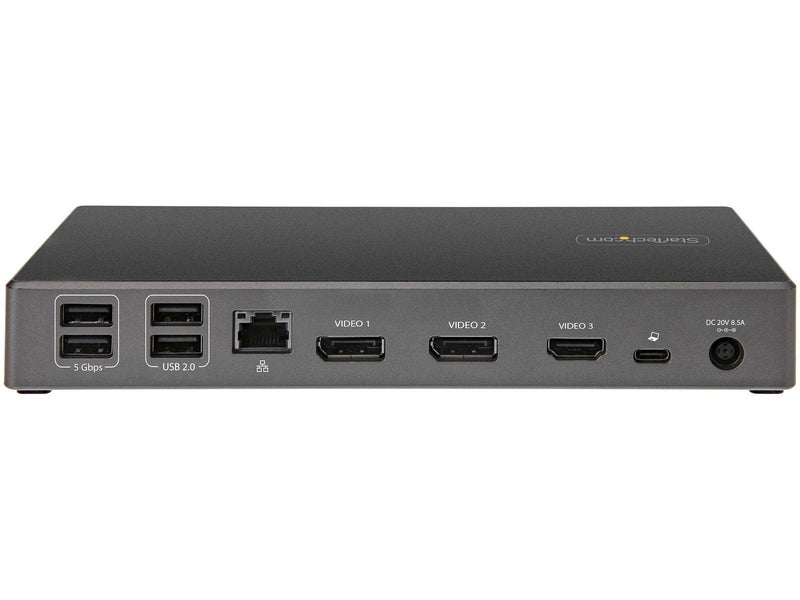

| External Ports | 2 - USB Type-C (Fast-Charge, 24 pin) USB 3.2 2 - USB 3.2 Type-A (9 pin, Gen 1, 5Gbps) 2 - USB 2.0 Type-A (4 pin, 480Mbps) 2 - DisplayPort 1 - HDMI 1 - SD / MMC Slot 1 - RJ-45 1 - 3.5 mm Stereo Audio 2 - Security Lock Slot |
| Host Connectors | 1 - USB 3.2 USB Type C (10 pin, Gen 2, 10 Gbps) |
| Environmental | |
| Operating Temperature | 0°C to 50°C |
| Storage Temperature | -20°C to 70°C |
| Humidity | 0% to 95% (non-condensing) at 25°C |
| Hardware | |
| Displays Supported | 3 |
| 4K Support | Yes |
| Fast-Charge Port(s) | Yes |
| Audio | Yes |
| Interface | USB 3.2 Gen 2 - 10 Gbit/s |
| Bus Type | USB 3.2 Gen 2 - 10Gbps |
| Compatible Lock Slot | Kensington Mini Slot / Standard Slot |
| Industry Standards | IEEE802.3ab - 1000Base-T IEEE802.3u - 100Base-TX IEEE802.3i - 10Base-T |
| Chipset ID | Cypress - CYPD3125 Cypress - CYPD4236 Synaptics - VMM5320BJG-R Genesys - GL850, GL3523, GL3590, GL3232S TI - TUSB1064RNQR Realtek - RTL8153B, ALC4030U |
| LED Indicators | 1 - White On: Power 1 - Yellow On: Link Detected 1 - Yellow Flashing: Activity 1 - Green On: 1Gbps 1 - Yellow On: 100Mbps |
| Packaging Information | |
| Package Height | 3.6 in [9.1 cm] |
| Package Length | 5.7 in [14.6 cm] |
| Package Width | 9.3 in [23.5 cm] |
| Shipping (Package) Weight | 2.9 lb [1.3 kg] |
| Package Quantity | 1 |
| Performance | |
| Maximum Digital Resolutions |
Triple Display: 4096 x 2160 @ 30Hz (DP 1.4 HBR3 with DSC) 1920 x 1080 @ 60Hz (DP 1.4 HBR3 without DSC) 1600 x 900 @ 60Hz (DP 1.2 HBR2) Dual Display: 4096 x 2160 @ 60Hz (DP 1.4 HBR3 with DSC) 2560 x 1440 @ 60Hz (DP 1.4 HBR3 without DSC) 1920 x 1080 @ 60Hz (DP 1.2 HBR2) Single Display: 4096 x 2160 @ 60Hz (DP 1.4 HBR3 with DSC) 3840 x 2160 @ 60Hz (DP 1.4 HBR3 without DSC) 3840 x 2160 @ 30Hz (DP 1.2 HBR2) |
| GPU Capabilities | Discrete GPU recommended for dual 4K 60Hz or triple 4K 30Hz Must support DP 1.4 Alt-Mode HBR3 with DSC Verify GPU display limits; some integrated GPUs may only support three displays |
| Audio Specifications | Analog Stereo - 2 Channel Audio |
| Memory Media Type | SD/MMC (Secure Digital/Multimedia Card) |
| Compatible Networks | 10/100/1000 Mbps |
| PXE | Yes |
| MTBF | 215,990 hours |
| Physical Characteristics | |
| Color | Black & Space Gray |
| Product Height | 1.2 in [3.0 cm] |
| Product Length | 8.3 in [21.0 cm] |
| Product Width | 3.5 in [9.0 cm] |
| Weight of Product | 10.6 oz [300.0 g] |
| Cable Length | 3.3 ft [1 m] |
| Power | |
| Power Source | AC Adapter Included |
| Power Delivery | 100W |
| Input Voltage | 100 - 240 AC |
| Input Current | 2.5A |
| Output Voltage | 20V DC |
| Output Current | 8.5A |
| Plug Type | CP (OD:7.4/ID:5.1/CPD:0.6) |
| Power Consumption (In Watts) | 170 |
| Software | |
| OS Compatibility | Windows 10, 11, 11 ARM Windows 8.1 Chrome OS 78.x |
| Special Notes / Requirements | |
| System and Cable Requirements | Windows-based laptop with USB-C port supporting Power Delivery and DP alt mode |
| Note | Ensure laptop drivers, firmware, and OS are up to date MST support required for multi-monitor configuration |
| What's in the Box | |

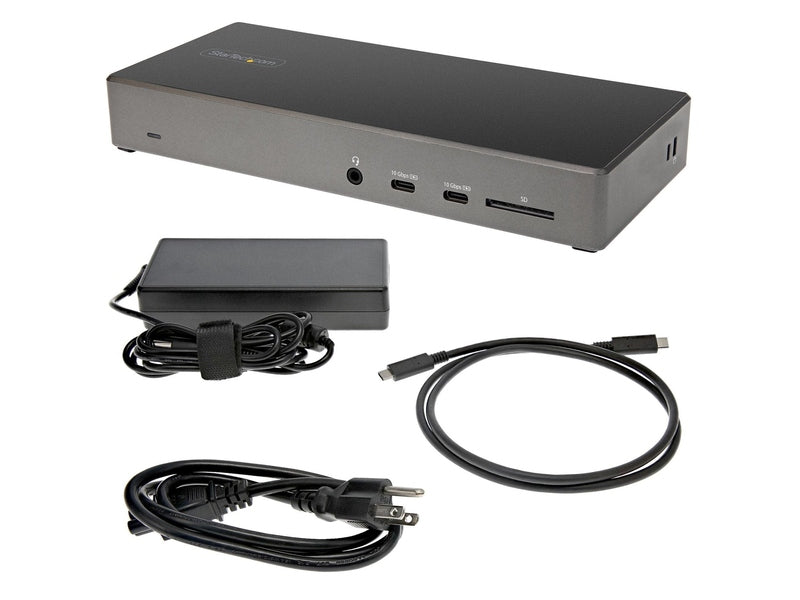

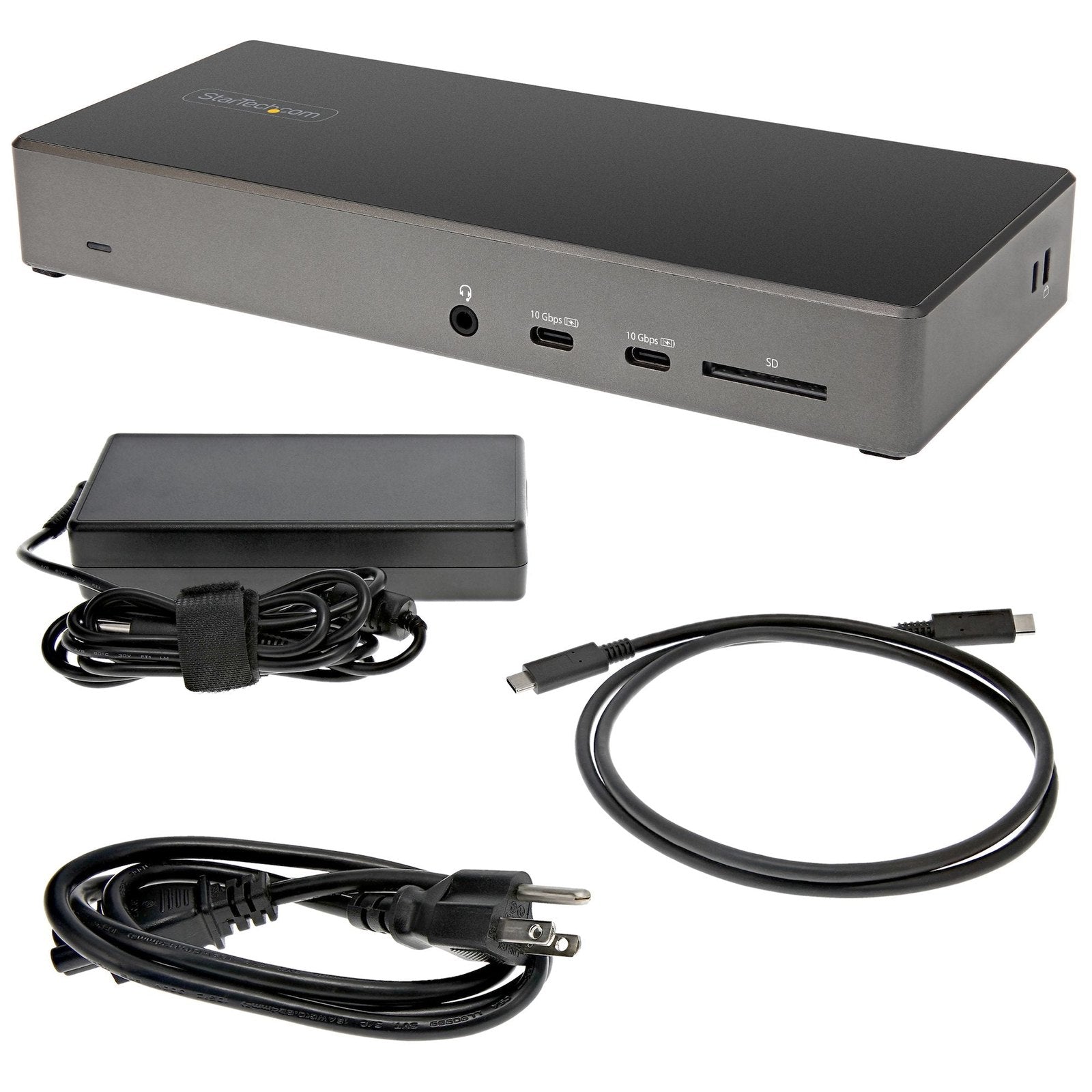

| Included in Package | 1 - USB-C Dock 2 - Power Cable NA/JP & ANZ 1 - USB-C Cable (1 m) 1 - Quick-Start Guide 1 - Power Adapter |
