StarTech USB-C USB-A Hybrid 4K Dock, Dual Display, DP(2), HDMI(2), USB(3), 100W, 3Yr

StarTechSKU: DK30C2DPEP

Availability:

✅ In Stock at Supplier (ETA: Usually in 1-3 Business Days)

Price:
Sale price$509.00

Estimate shipping

Description

Overview

Universal Laptop Docking Station, Hybrid USB-C & USB-A Dock, Dual 4K DP & HDMI, 100W PD, Mac / Windows / Chrome OS, 4x USB 5Gbps Hub, GbE
Dual 4K60 | DisplayPort and/or HDMI | USB-IF Certified | 3x USB-A | 1x USB-C | Mac, Windows® & Chrome OS™ | Lock Slot

Transition from the legacy USB-A (USB 3.0) to the new USB-C with this certified universal laptop docking station for USB-C and USB-A laptops. The USB-C dock features 100W Power Delivery 3.0, dual HDMI and/or DisplayPort monitors, fast-charge, and both USB-C and USB-A peripheral ports.

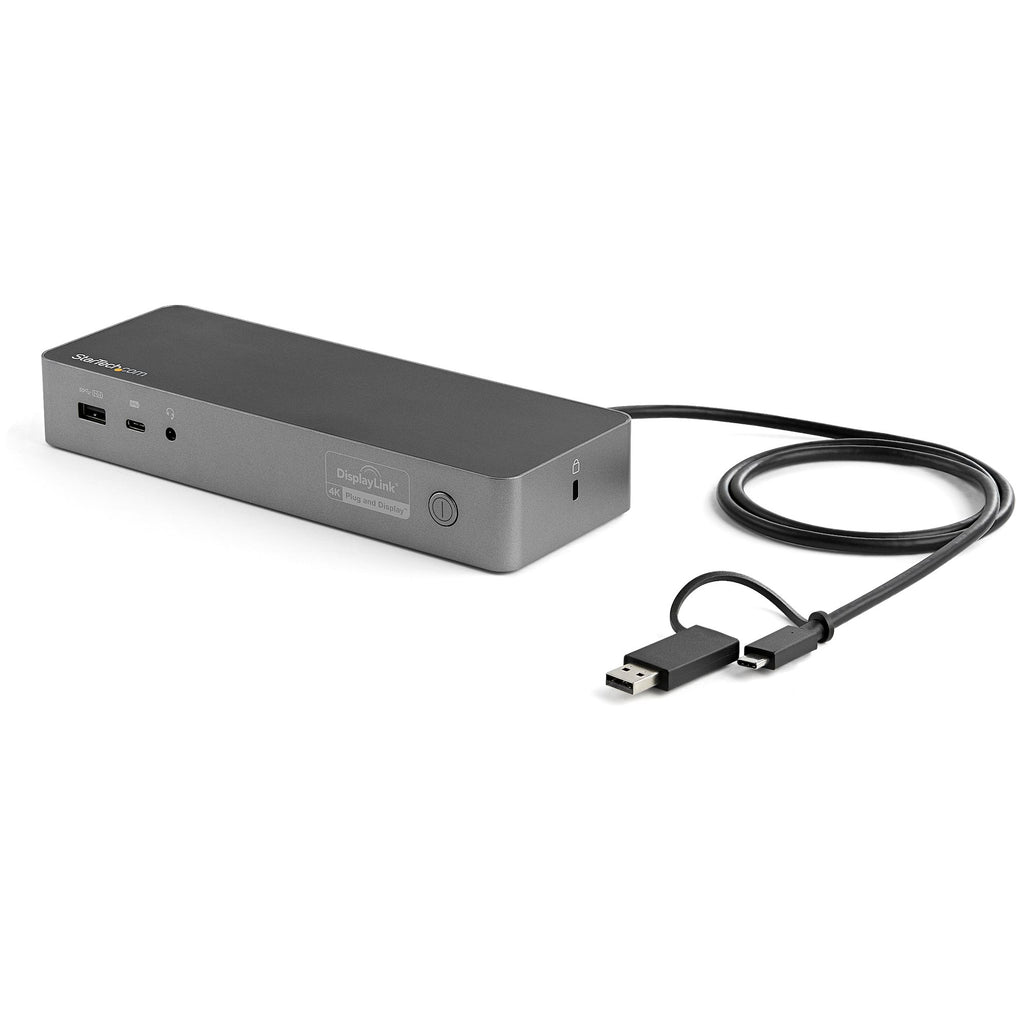

The Uniquely Universal Host Cable
The USB-C dock comes with a universal host cable that is designed with an attached USB-C to USB-A adapter to accommodate USB-A laptops. The cable also features an extended length of 1 meter (3.3 ft.) to support a wide variety of workstation setups.

100W Power Delivery
For high performance laptops that require more charging power, the dock powers and charges your laptop as you work with 100W PD for faster charging, using the 150W power adapter - all through a single cable.

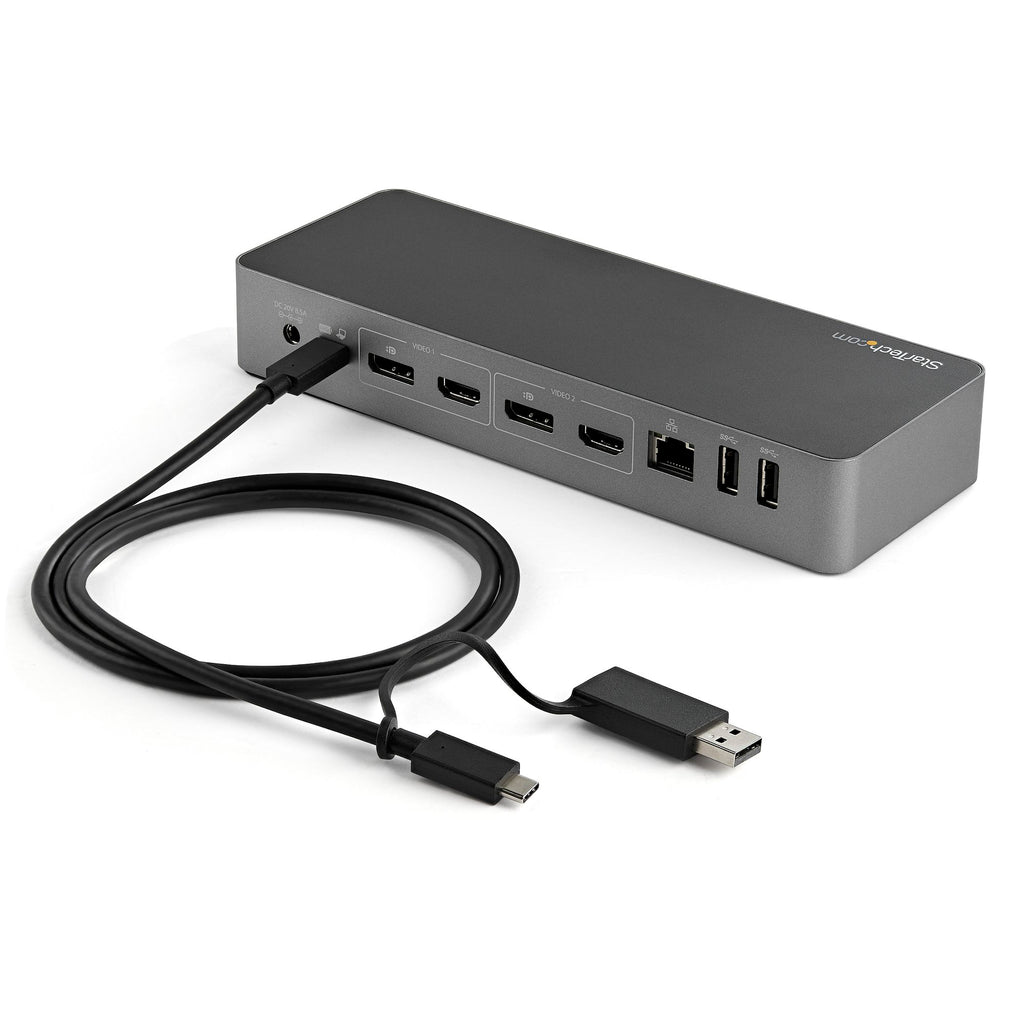

Flexible Monitor Connections
This is a dual 4K60Hz video docking station with support for both Ultra HD DisplayPort and/or HDMI monitors that lets you configure your video connections to best suit your needs.

- Dual 4K DisplayPort | Up to 4096 x 2160p @ 60Hz
- Dual 4K HDMI | Up to 4096 x 2160p @ 60Hz
- Single 4K DisplayPort + Single 4K HDMI | Up to 4096 x 2160p @ 60Hz
- Single 5K DisplayPort* | Up to 5120 × 2880

*Requires monitor support for 5K using two DP ports

Easy and Convenient Setup
For fast setup right out of the box, the combo cable (USB-C with attached USB-A adapter) lets you connect any laptop. The dock has mounting holes for workstation mounting (bracket not included).

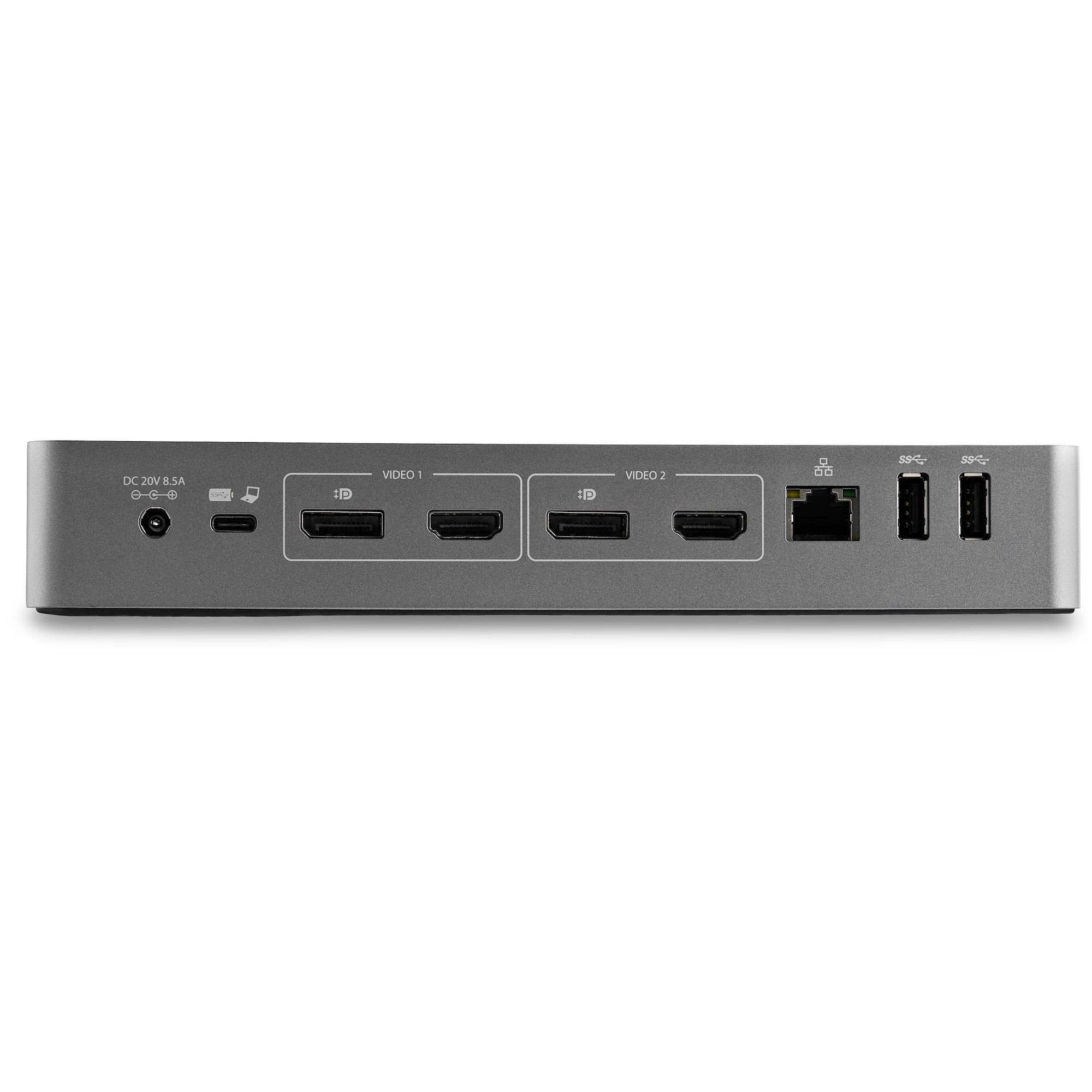

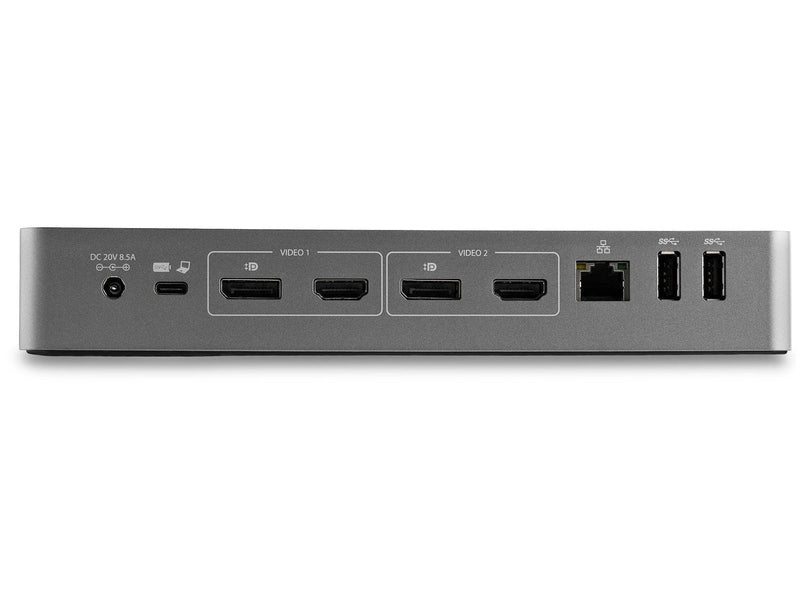

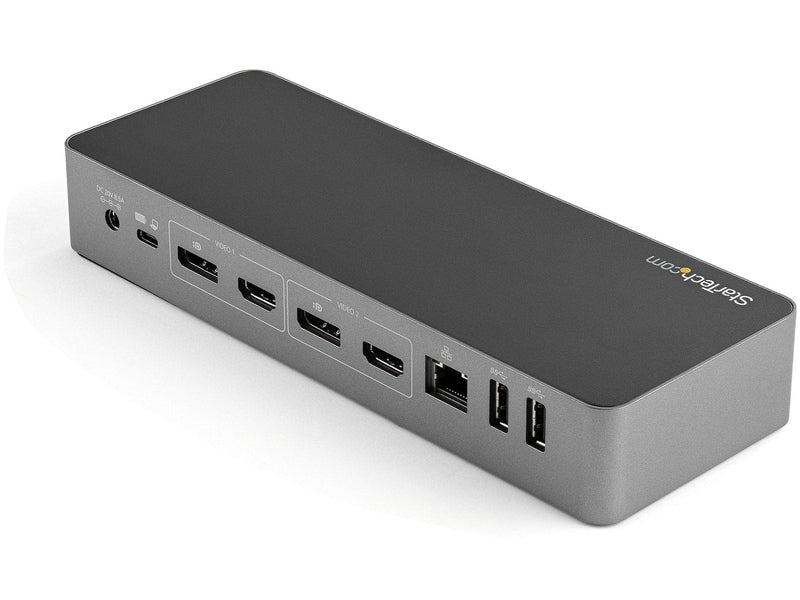

The Connections You Need
Connect your devices with four USB 3.1 ports: 1x USB-C and 3x USB-A. Fast-charge your USB-C or USB-A smartphone. The dock provides a GbE port (PXE Boot support & Wake-on-LAN) and 3.5 mm 4-position headset audio jack. It also includes a security lock slot (K-slot) to protect against theft.

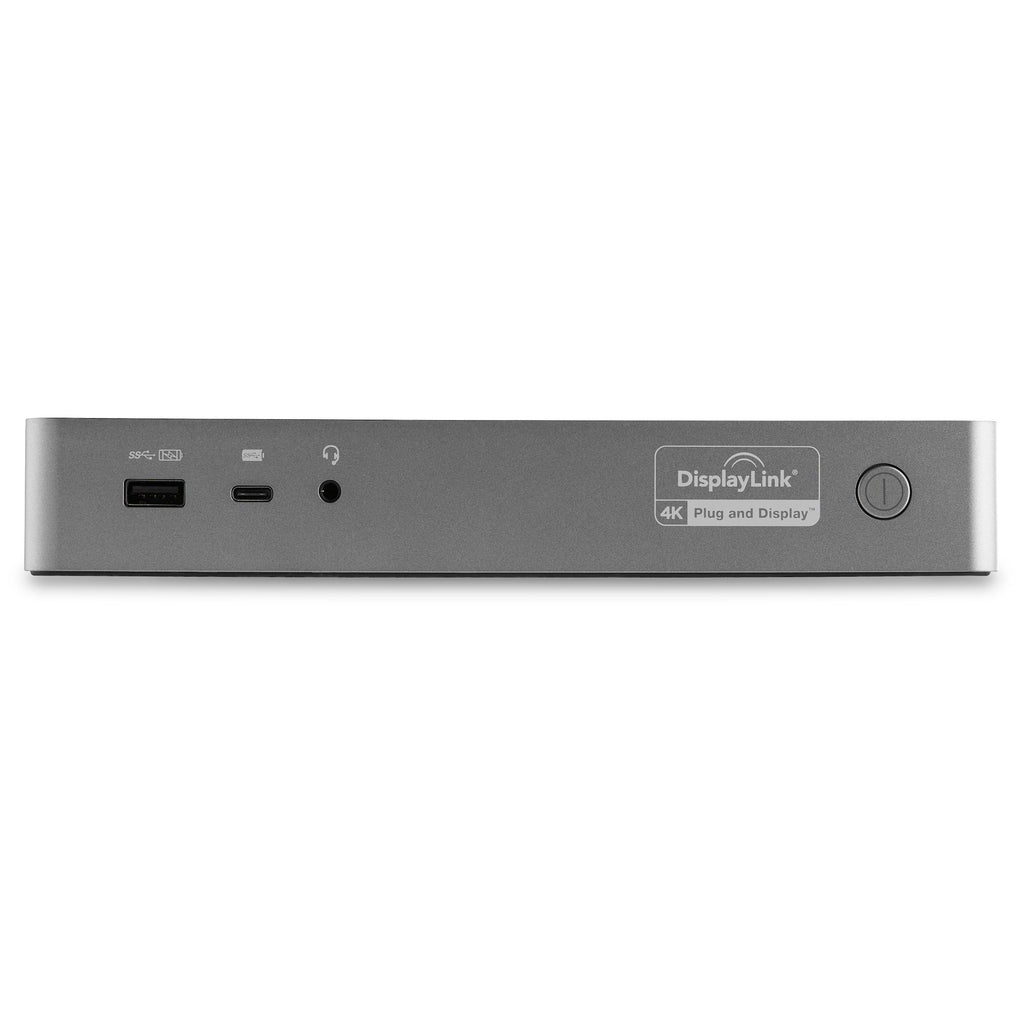

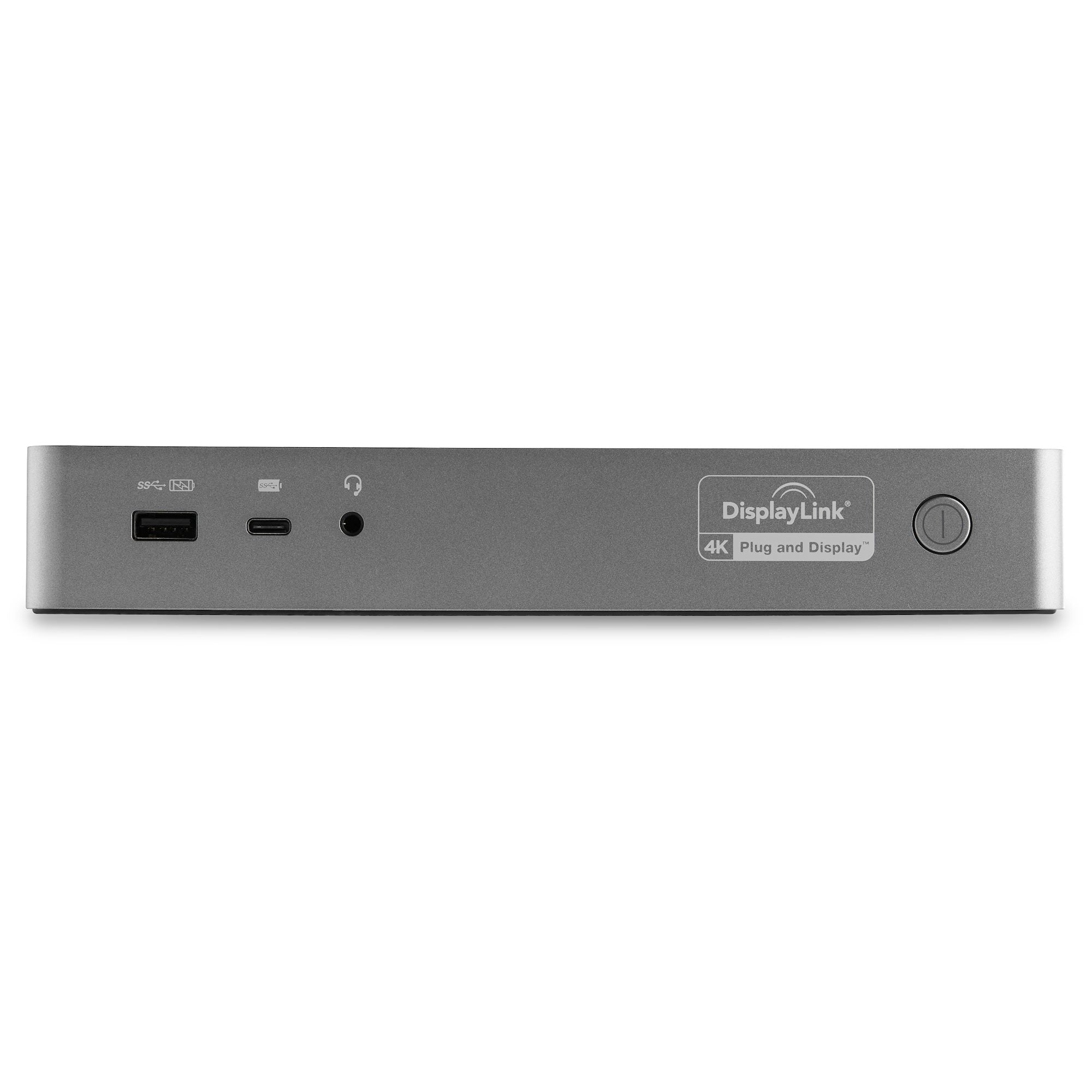

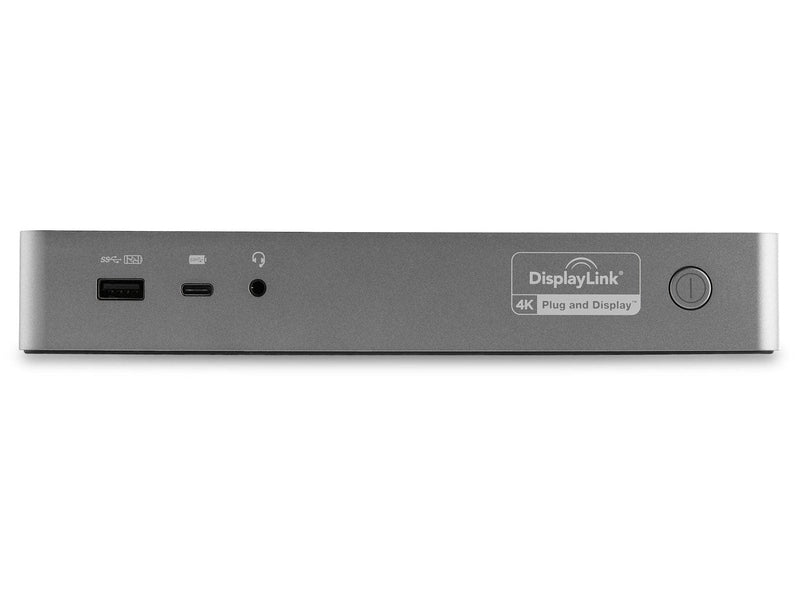

DK30C2DPPD FrontDK30C2DPPD Front
For more installation flexibility, you can use StarTech.com mounting brackets (SSPMSUDWM & SSPMSVESA) that are specifically designed for our docks and hubs, to mount your dock to a desk, wall, or other surfaces to give you the customized setup you need.

Enhance Productivity and Device Management with the StarTech.com Connectivity Tools Application
Developed to improve performance and security, StarTech.com Connectivity Tools is the only software suite on the market that works with a wide range of IT connectivity accessories. The software suite includes:

- Advanced Windows Layout Utility: To setup and save custom windows layouts.
- Mac Address Pass-Through Utility: To improve network security.
- USB Event Monitoring Utility: To track and log connected USB devices
- Wi-Fi Auto Switch Utility: Enabling users to quickly access faster network speeds via wired LAN.

Docking Station Specifications
Connector(s)
Connector Type(s) 2 - DisplayPort (20 pin)
2 - HDMI (19 pin)
1 - USB Type-C (Fast-Charge, 24 pin) USB 3.2
1 - USB 3.2 Type-A (9 pin, Fast-Charge)
2 - USB Type-A (9 pin, 5 Gbps)
1 - Ethernet Gigabit
1 - 3.5 mm Mini-Jack (4 Position)
Environmental
Operating Temperature 0°C to 50°C (32°F to 122°F)
Storage Temperature -20°C to 70°C (-4°F to 158°F)
Humidity 0~95% RH
Hardware
4K Support Yes
Fast-Charge Port(s) Yes
Displays Supported 2
Interface USB 3.2 Gen 1 (5Gbps)
Bus Type USB-C, USB 3.2 Gen 1 (5Gbps)
Compatible Lock Slot Kensington Standard Slot (K-Slot)
Industry Standards USB Power Delivery Specification Rev. 3.0
USB Battery Charging Specification Rev. 1.2
DisplayPort 1.2
IEEE 802.3, IEEE 802.3u, IEEE 802.3ab
USB 3.0 - Backward compatible with USB 2.0 and 1.1
Chipset ID DisplayLink - DL6950
Genesys Logic - GL3523
Fresco Logic - FL7102
Fresco Logic - FL7201
VIA Labs - VL162
RealTek - RTL8153
Texas Instruments - TS3A225E
Packaging Information
Shipping (Package) Weight 3.1 lb [1.4 kg]
Package Quantity 1
Package Length 6.3 in [16.1 cm]
Package Width 10.9 in [27.8 cm]
Package Height 4.3 in [10.8 cm]
Performance
Maximum Data Transfer Rate 5 Gbps (USB 3.0), 2 Gbps (Ethernet; Full-Duplex)
Maximum Digital Resolutions 2x HDMI - 4096 x 2160p @60Hz
2x DisplayPort - 4096 x 2160p @60Hz
1x HDMI + 1x DisplayPort - 4096 x 2160p @60Hz
1x 5K DisplayPort using 2 DP video ports - 5120 x 2880 @60Hz
Lower resolutions also supported: 3840 x 2160p, 2560 x 1600p, 2560 x 1440p
Type and Rate USB 3.0 - 5 Gbit/s
UASP Support Yes
Compatible Networks 10/100/1000 Mbps
PXE Yes
Full Duplex Support Yes
Physical Characteristics
Color Black & Space Gray
Material Plastic
Product Length 8.7 in [22.0 cm]
Product Width 3.1 in [8.0 cm]
Product Height 1.2 in [3.0 cm]
Weight of Product 9.9 oz [280.0 g]
Power
Power Source AC Adapter Included
Power Delivery 100W
Input Voltage 100 - 240 AC
Input Current 2.5 A
Output Voltage 19.5V DC
Output Current 7.7 A
Center Tip Polarity Positive
Plug Type N
Power Consumption (In Watts) 150 W
Software
OS Compatibility Windows® 7, 8, 8.1, 10, 11, 11 ARM
macOS 10.11–15.0
Ubuntu 18.04, 20.04
Chrome OS™ v55+
Special Notes / Requirements
System and Cable Requirements USB-C enabled computer with available USB Type-C port, or USB 3.0 enabled computer with available USB Type-A port
Note Not all USB-C ports support full functionality—verify USB Power Delivery support
4K resolution supported on all 4 video ports; 4K-capable DisplayPort or HDMI display required
USB 2.0 host port or cable may limit performance (USB 3.0 host cable included)
5K resolution supported via dual DisplayPort connection to a single 5K display
What's in the Box
Included in Package 1 - Docking Station
1 - 3.3ft (1m) USB-C Cable (with Attached USB-C to USB-A Adapter)
1 - Universal Power Adapter (NA/JP, ANZ)
1 - Quick-Start Guide
