Overview
Universal Laptop Docking Station, Hybrid USB-C & USB-A Dock, Dual 4K DP & HDMI, 60W PD, Mac / Windows / Chrome OS, 4x USB 5Gbps Hub, GbE
Dual 4K60 | DisplayPort and/or HDMI | USB-IF Certified | 3x USB-A | 1x USB-C | Mac, Windows® & Chrome OS™ | Lock Slot
Create a dual-4K 60Hz workstation with this certified universal laptop docking station for USB-C and USB-A laptops. The USB-C dock features 60W Power Delivery 3.0, dual HDMI and/or DisplayPort monitors, fast-charge, and both USB-C and USB-A peripheral ports.

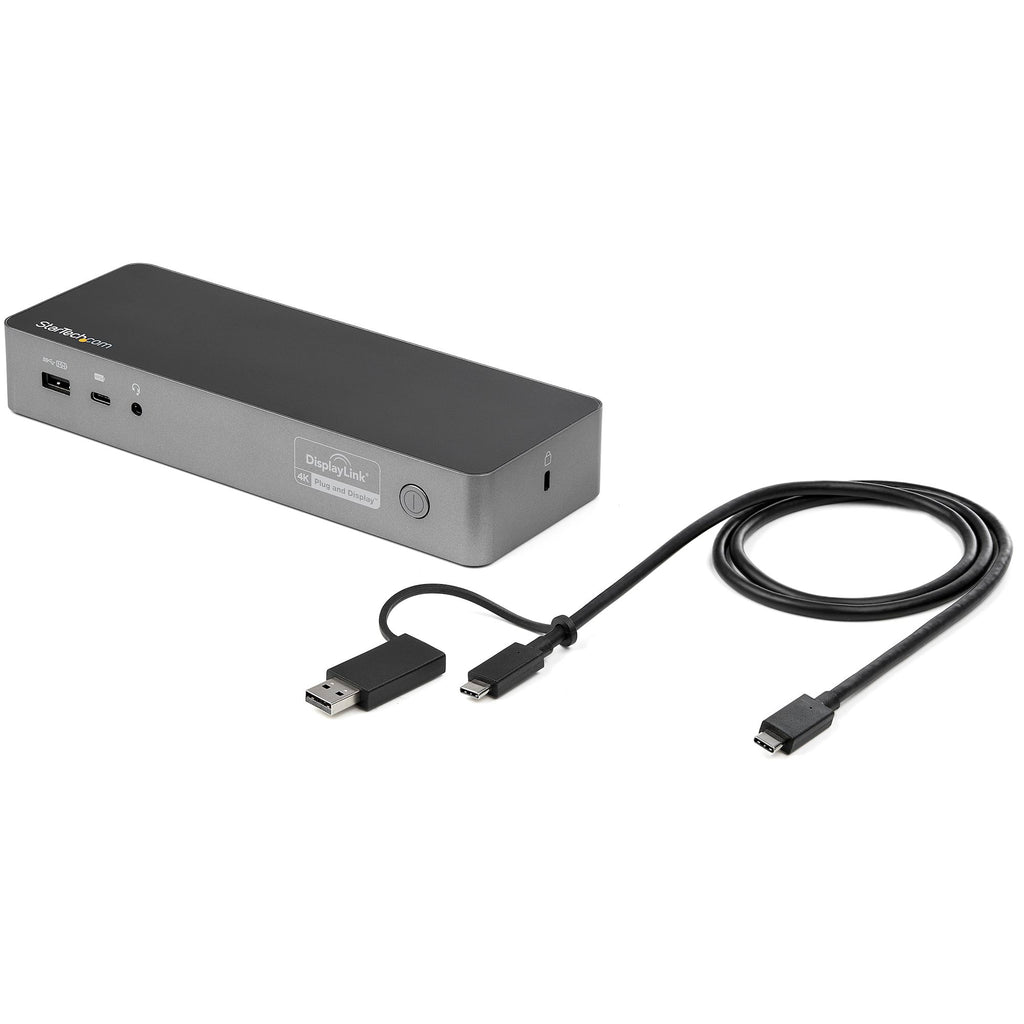

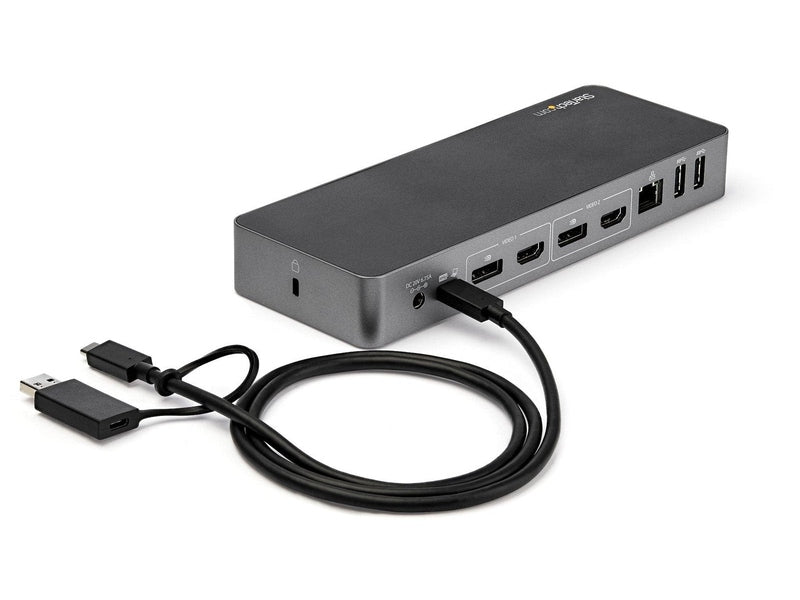

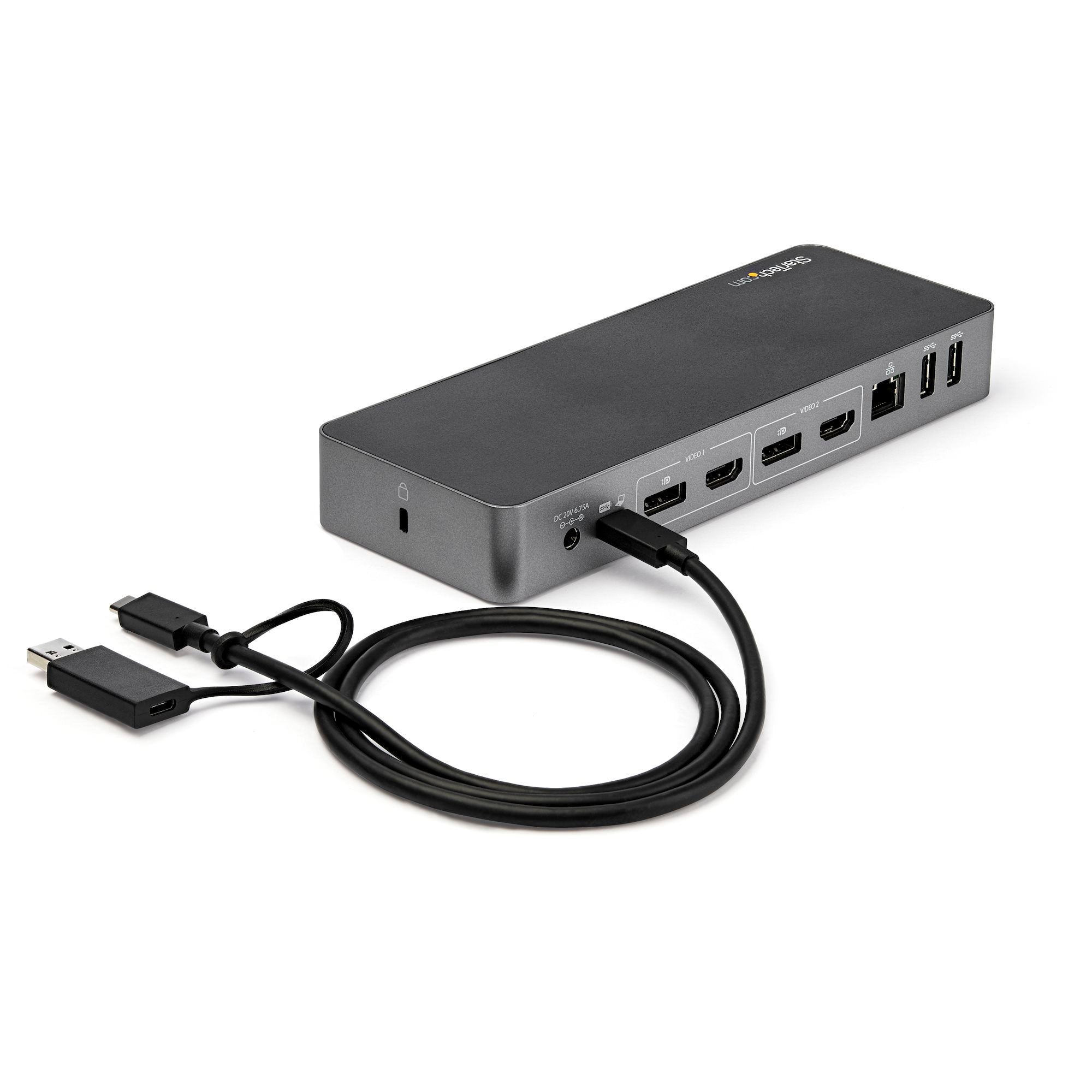

The Uniquely Universal Host Cable
The USB-C dock comes with a universal host cable that is designed with an attached USB-C to USB-A adapter to accommodate USB-A laptops. The cable also features an extended length of 1 meter (3.3 ft.) to support a wide variety of workstation setups.


Flexible Monitor Connections
This is a dual 4K60Hz video docking station with support for both Ultra HD DisplayPort and/or HDMI monitors that lets you configure your video connections to best suit your needs.
- Dual 4K DisplayPort | Up to 4096 x 2160p @ 60Hz
- Dual 4K HDMI | Up to 4096 x 2160p @ 60Hz
- Single 4K DisplayPort + Single 4K HDMI | Up to 4096 x 2160p @ 60Hz
- Single 5K DisplayPort* | Up to 5120 × 2880
*Requires monitor support for 5K using two DP ports
Certified for Universal Compatibility & Reliability
This docking station is fully certified to meet top industry standards for USB-IF (USB 3.1 Gen 1, USB Type-C and Power Delivery), VESA DisplayPort and DisplayLink (video connections) certification to guarantee the highest quality, reliability, and compatibility.
60W Power Delivery
Using a single cable, the dock powers and charges your laptop as you work with 60W PD for faster charging, using the 135W power adapter.
Easy and Convenient Setup
For fast setup right out of the box, the combo cable (USB-C with attached USB-A adapter) lets you connect any laptop. The dock has mounting holes for workstation mounting (bracket not included).

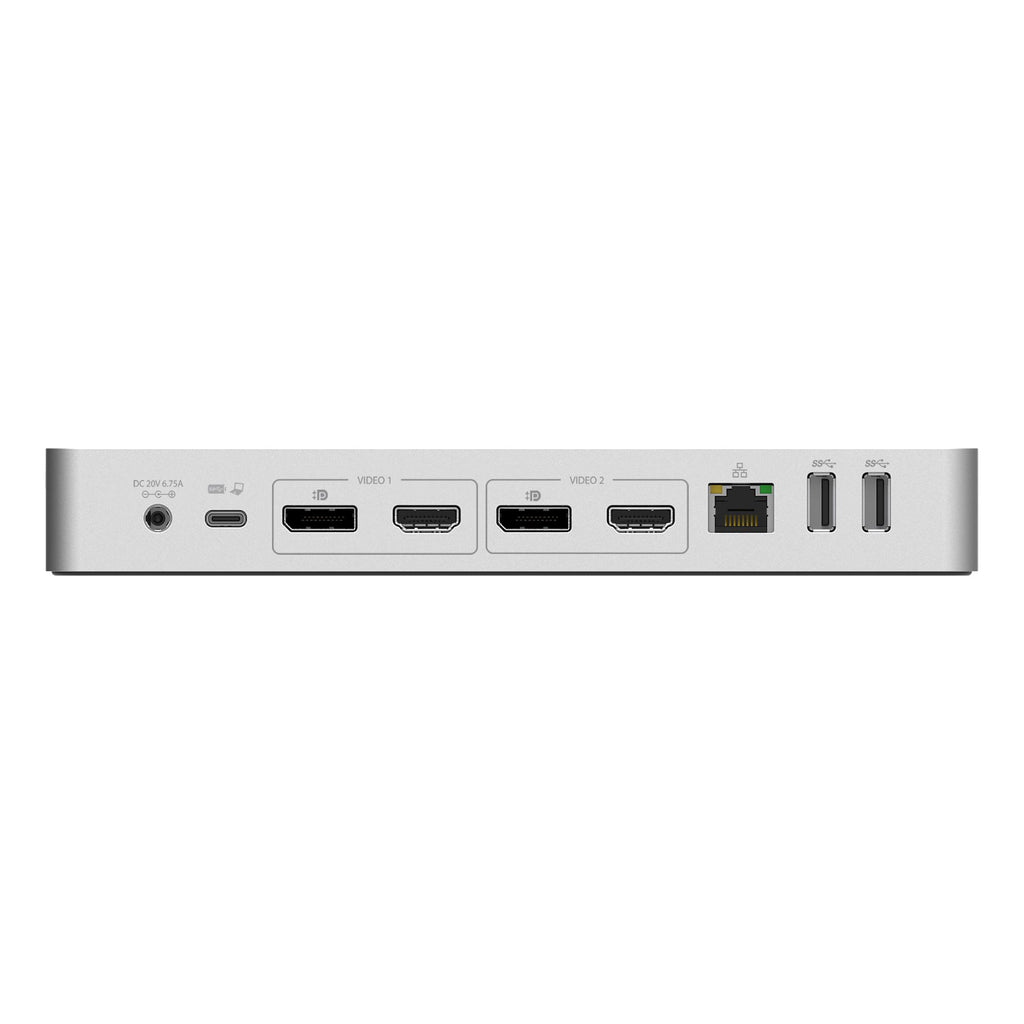

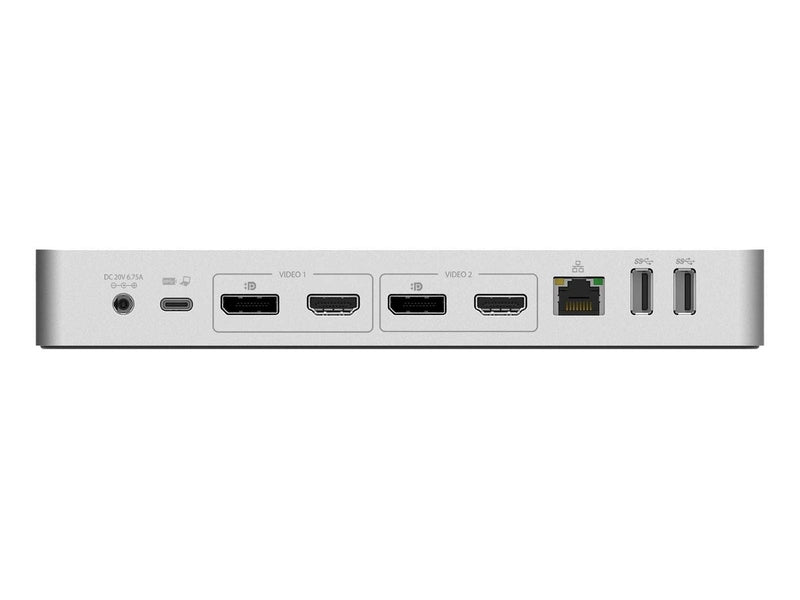

The Connections You Need

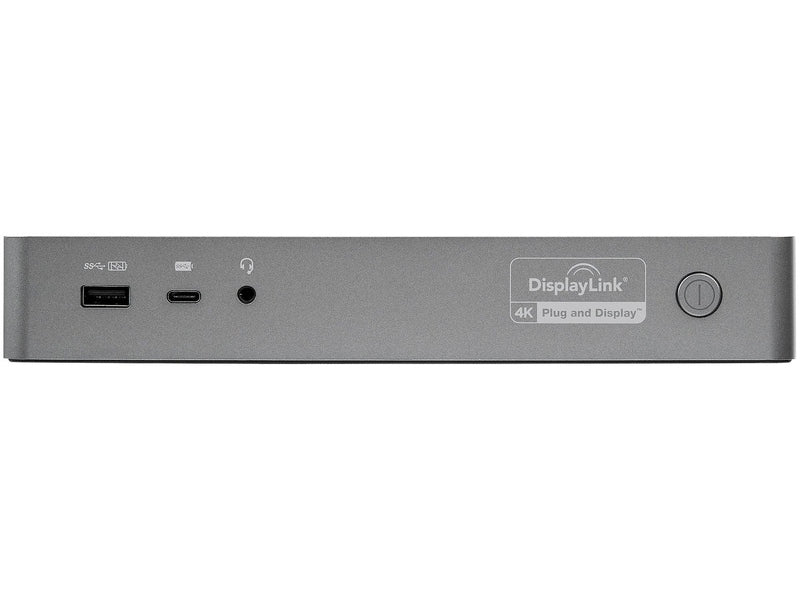

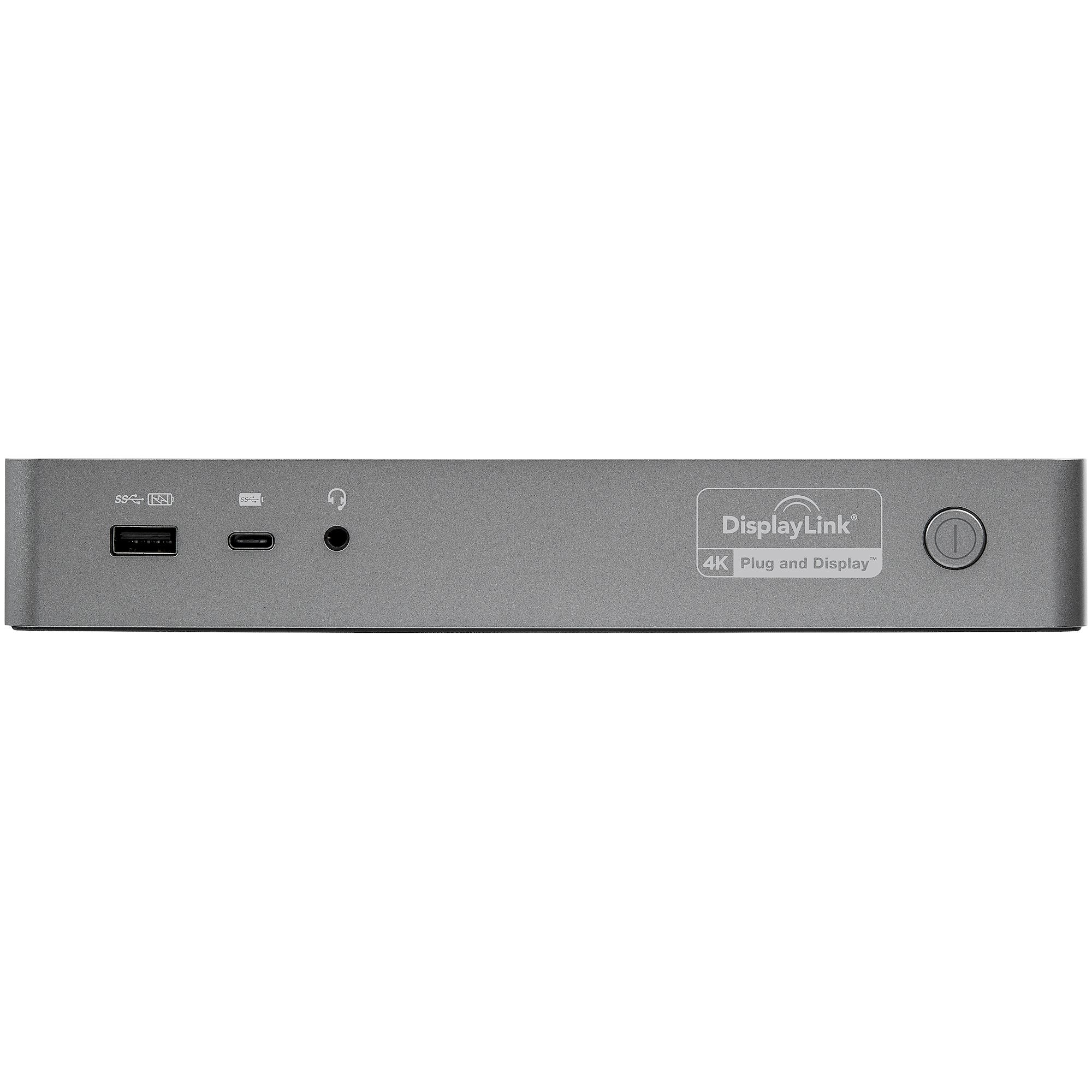

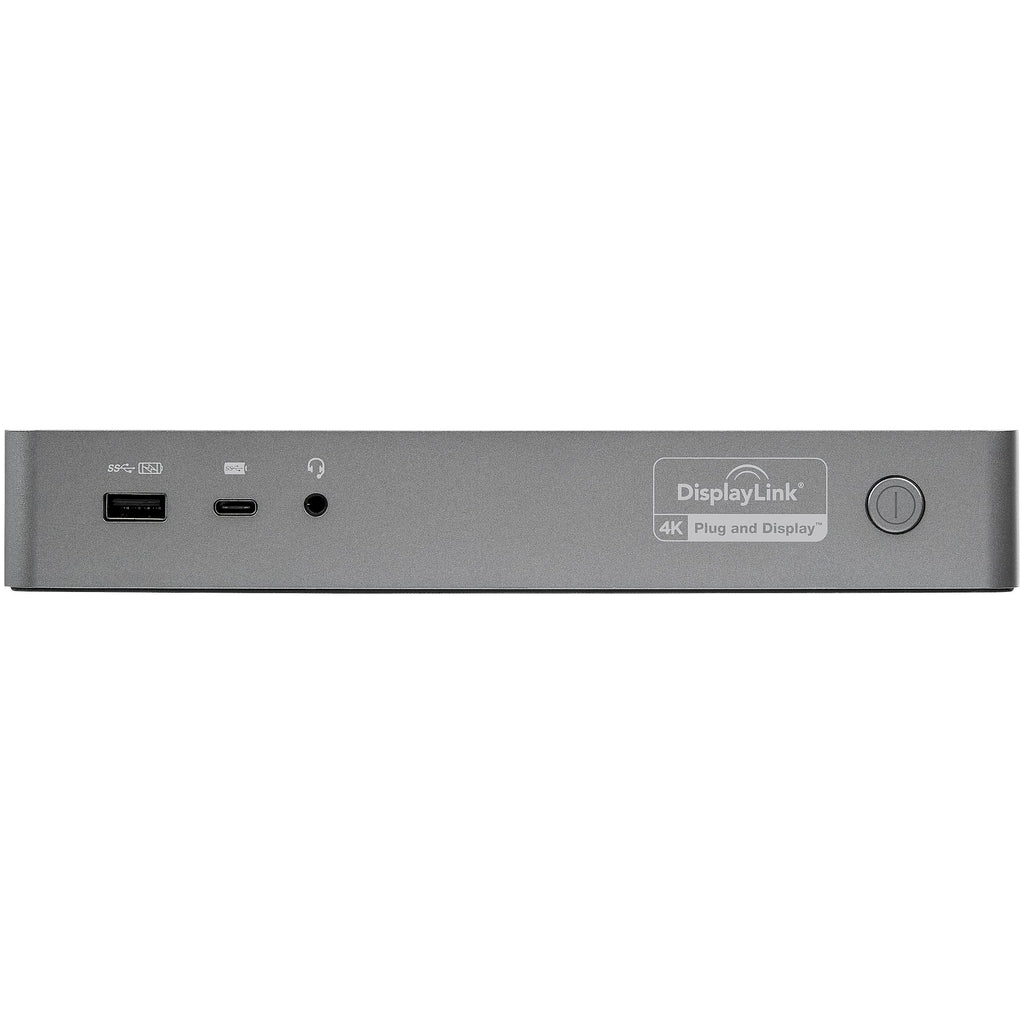

Connect your devices with four USB 3.1 ports: 1x USB-C and 3x USB-A. Fast-charge your USB-C or USB-A smartphone. The dock provides a GbE port (PXE Boot support & Wake-on-LAN) and 3.5 mm 4-position headset audio jack. It also includes a security lock slot (K-slot) to protect against theft.
For more installation flexibility, you can use StarTech.com mounting brackets (SSPMSUDWM& SSPMSVESA) that are specifically designed for our docks and hubs, to mount your dock to a desk, wall, or other surfaces to give you the customized setup you need.
Enhance Productivity and Device Management with the StarTech.com Connectivity Tools Application
Developed to improve performance and security, StarTech.com Connectivity Tools is the only software suite on the market that works with a wide range of IT connectivity accessories. The software suite includes:
- Advanced Windows Layout Utility: To setup and save custom windows layouts.
- Mac Address Pass-Through Utility: To improve network security.
- USB Event Monitoring Utility: To track and log connected USB devices
- Wi-Fi Auto Switch Utility: Enabling users to quickly access faster network speeds via wired LAN.
Universal Laptop Docking Station, Hybrid USB-C & USB-A Dock, Dual 4K DP & HDMI, 60W PD, Mac / Windows / Chrome OS, 4x USB 5Gbps Hub, GbE
Dual 4K60 | DisplayPort and/or HDMI | USB-IF Certified | 3x USB-A | 1x USB-C | Mac, Windows® & Chrome OS™ | Lock Slot
Create a dual-4K 60Hz workstation with this certified universal laptop docking station for USB-C and USB-A laptops. The USB-C dock features 60W Power Delivery 3.0, dual HDMI and/or DisplayPort monitors, fast-charge, and both USB-C and USB-A peripheral ports.
The Uniquely Universal Host Cable
The USB-C dock comes with a universal host cable that is designed with an attached USB-C to USB-A adapter to accommodate USB-A laptops. The cable also features an extended length of 1 meter (3.3 ft.) to support a wide variety of workstation setups.


Flexible Monitor Connections
This is a dual 4K60Hz video docking station with support for both Ultra HD DisplayPort and/or HDMI monitors that lets you configure your video connections to best suit your needs.
- Dual 4K DisplayPort | Up to 4096 x 2160p @ 60Hz
- Dual 4K HDMI | Up to 4096 x 2160p @ 60Hz
- Single 4K DisplayPort + Single 4K HDMI | Up to 4096 x 2160p @ 60Hz
- Single 5K DisplayPort* | Up to 5120 × 2880
*Requires monitor support for 5K using two DP ports
Certified for Universal Compatibility & Reliability
This docking station is fully certified to meet top industry standards for USB-IF (USB 3.1 Gen 1, USB Type-C and Power Delivery), VESA DisplayPort and DisplayLink (video connections) certification to guarantee the highest quality, reliability, and compatibility.
60W Power Delivery
Using a single cable, the dock powers and charges your laptop as you work with 60W PD for faster charging, using the 135W power adapter.
Easy and Convenient Setup
For fast setup right out of the box, the combo cable (USB-C with attached USB-A adapter) lets you connect any laptop. The dock has mounting holes for workstation mounting (bracket not included).
The Connections You Need
Connect your devices with four USB 3.1 ports: 1x USB-C and 3x USB-A. Fast-charge your USB-C or USB-A smartphone. The dock provides a GbE port (PXE Boot support & Wake-on-LAN) and 3.5 mm 4-position headset audio jack. It also includes a security lock slot (K-slot) to protect against theft.
For more installation flexibility, you can use StarTech.com mounting brackets (SSPMSUDWM& SSPMSVESA) that are specifically designed for our docks and hubs, to mount your dock to a desk, wall, or other surfaces to give you the customized setup you need.
Enhance Productivity and Device Management with the StarTech.com Connectivity Tools Application
Developed to improve performance and security, StarTech.com Connectivity Tools is the only software suite on the market that works with a wide range of IT connectivity accessories. The software suite includes:
- Advanced Windows Layout Utility: To setup and save custom windows layouts.
- Mac Address Pass-Through Utility: To improve network security.
- USB Event Monitoring Utility: To track and log connected USB devices
- Wi-Fi Auto Switch Utility: Enabling users to quickly access faster network speeds via wired LAN.
Docking Station Specifications | |
---|---|
Connector(s) | |

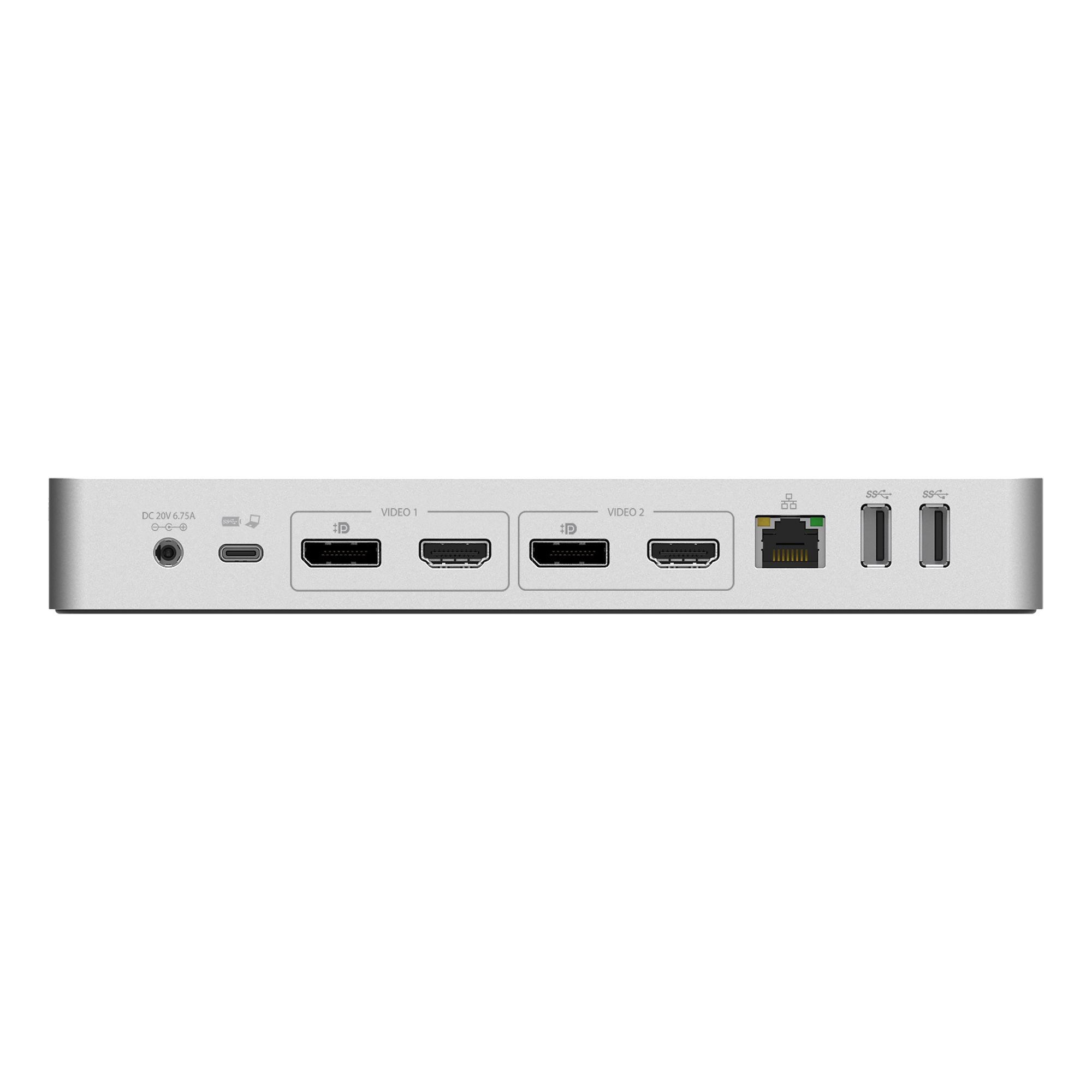

Connector Type(s) | 2 - DisplayPort (20 pin) 2 - HDMI (19 pin) 1 - USB Type-C (Fast-Charge, 24 pin) USB 3.2 1 - USB 3.2 Type-A (9 pin, Fast-Charge) 2 - USB Type-A (9 pin, 5 Gbps) 1 - Ethernet Gigabit 1 - 3.5 mm Mini-Jack (4 Position) |
Environmental | |
Operating Temperature | 0°C to 50°C (32°F to 122°F) |
Storage Temperature | -20°C to 70°C (-4°F to 158°F) |
Humidity | 0~95% RH |
Hardware | |
4K Support | Yes |
Fast-Charge Port(s) | Yes |
Displays Supported | 2 |
Interface | USB 3.2 Gen 1 (5Gbps) |
Bus Type | USB-C, USB 3.2 Gen 1 (5Gbps) |
Compatible Lock Slot | Kensington Standard Slot (K-Slot) |
Industry Standards | USB Power Delivery Specification Rev. 3.0 USB Battery Charging Specification Rev. 1.2 DisplayPort 1.2 IEEE 802.3, IEEE 802.3u, IEEE 802.3ab USB 3.0 - Backward compatible with USB 2.0 and 1.1 |
Chipset ID | DisplayLink - DL6950 Genesys Logic - GL3523 Fresco Logic - FL7102 Fresco Logic - FL7201 VIA Labs - VL162 RealTek - RTL8153 Texas Instruments - TS3A225E |
Packaging Information | |
Shipping (Package) Weight | 3.3 lb [1.5 kg] |
Package Quantity | 1 |
Package Length | 7.2 in [18.4 cm] |
Package Width | 10.9 in [27.8 cm] |
Package Height | 5.0 in [12.7 cm] |
Performance | |
Wake On Lan | Yes |
Maximum Data Transfer Rate | 5 Gbps (USB 3.0), 2 Gbps (Ethernet; Full-Duplex) |
Maximum Digital Resolutions | 2x HDMI - 4096 x 2160p @60Hz 2x DisplayPort - 4096 x 2160p @60Hz 1x HDMI + 1x DisplayPort - 4096 x 2160p @60Hz 1x 5K DisplayPort using 2 DP video ports - 5120 x 2880 @60Hz Lower resolutions also supported: 3840 x 2160p, 2560 x 1600p, 2560 x 1440p |
Type and Rate | USB 3.0 - 5 Gbit/s |
UASP Support | Yes |
Compatible Networks | 10/100/1000 Mbps |
PXE | Yes |
Full Duplex Support | Yes |
Physical Characteristics | |
Color | Black & Space Gray |
Material | Plastic |
Product Length | 8.7 in [22.0 cm] |
Product Width | 3.1 in [8.0 cm] |
Product Height | 1.4 in [3.6 cm] |
Weight of Product | 18.7 oz [530 g] |
Power | |
Power Source | AC Adapter Included |
Power Delivery | 60W |
Input Voltage | 100 - 240 AC |
Input Current | 2.5 A |
Output Voltage | 20V DC |
Output Current | 6.75 A |
Center Tip Polarity | Positive |
Plug Type | N |
Power Consumption (In Watts) | 135 W |
Software | |
OS Compatibility | Windows® 7, 8, 8.1, 10, 11, 11 ARM macOS 10.11–15.0 Ubuntu 18.04, 20.04, 22.04, 24.04 Chrome OS™ v55+ |
Special Notes / Requirements | |
System and Cable Requirements | USB-C enabled computer with available USB Type-C port, or USB 3.0 enabled computer with available USB Type-A port |
Note | Not all USB-C ports support full functionality—verify USB Power Delivery support 4K resolution supported on all 4 video ports; 4K-capable DisplayPort or HDMI display required USB 2.0 host port or cable may limit performance (USB 3.0 host cable included) USB 3.0 = USB 3.1 Gen 1 (5Gbps) 5K resolution supported via dual DisplayPort connection to a single 5K display Dock connects via USB Type-C or USB Type-A port DisplayLink supports multiple external displays on Apple M1-based Macs (driver required) |
What's in the Box | |
Included in Package | 1 - Docking Station 1 - USB-C Cable (with Attached USB-C to USB-A Adapter) 1 - Universal Power Adapter (NA/JP, ANZ) 1 - Quick-Start Guide |
