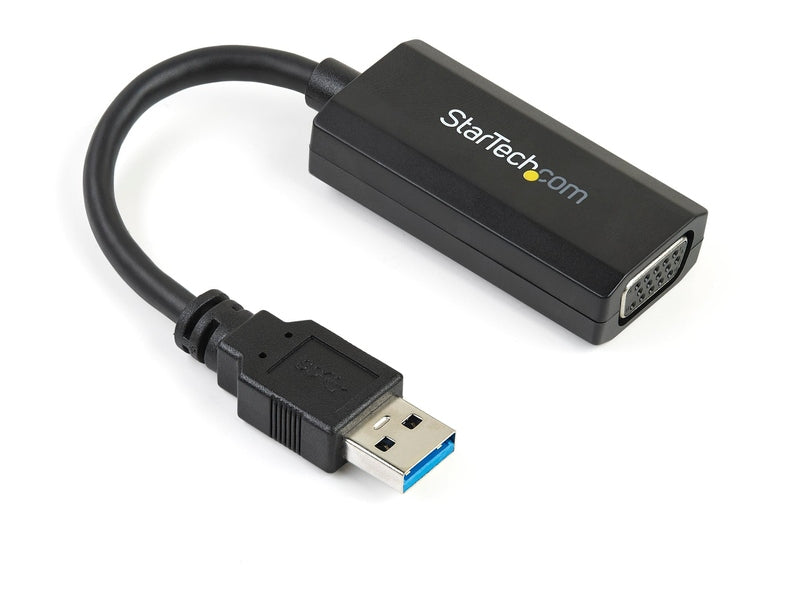

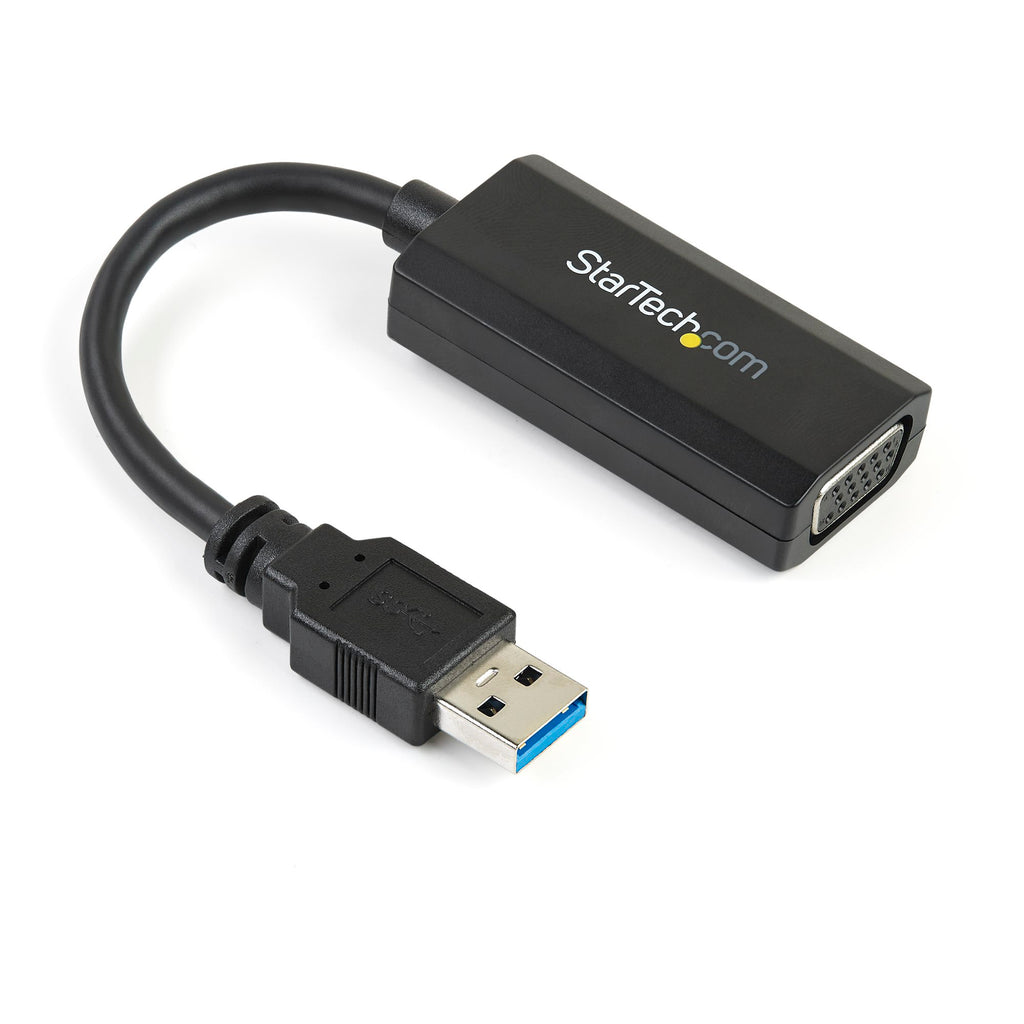

USB 3.0 to VGA Adapter - On-Board Driver Installation - 1920x1200
USB 3.0 External Video & Graphics Card | Multi-Monitor | USB-Powered | Supports Windows®
This USB 3.0 to VGA video adapter works as an external video card, enabling the USB port on your computer to output video to a VGA display at 1920 x 1200 resolution. The adapter also features on-board driver installation, which means the adapter will work when you connect it, even without a software disc or Internet connection.
Save time and hassle with on-board driver installation
For the ultimate in hassle-free installation, this USB video adapter features on-board drivers which prompts for installation as soon as you connect the adapter to your Ultrabook™ or laptop computer. This means you can maximize portability by never requiring an installation disc or Internet connection to install the device.
Increase your productivity by connecting an additional display
Adding a second or third display to your computer can vastly increase your productivity by giving the freedom to access more applications at the same time. This video adapter is intended to support all of your business applications including web browsing, e-mail. spreadsheets and presentations. You can also leave your system video card available for more demanding applications such as gaming or CAD design, while you use the USB monitor for reference material.
USB 3.0 performance for business applications
Using the high-bandwidth USB 3.0 interface, this adapter enables smoother scrolling through documents, higher refresh rates and an overall enhanced performance over USB 2.0. The adapter is optimized for use with USB 3.0, but for added compatibility this adapter is also backward compatible with USB 2.0 computer systems supporting an 800 x 600 resolution at 60Hz.
USB 3.0 to VGA Adapter - On-Board Driver Installation - 1920x1200
USB 3.0 External Video & Graphics Card | Multi-Monitor | USB-Powered | Supports Windows®
This USB 3.0 to VGA video adapter works as an external video card, enabling the USB port on your computer to output video to a VGA display at 1920 x 1200 resolution. The adapter also features on-board driver installation, which means the adapter will work when you connect it, even without a software disc or Internet connection.
Save time and hassle with on-board driver installation
For the ultimate in hassle-free installation, this USB video adapter features on-board drivers which prompts for installation as soon as you connect the adapter to your Ultrabook™ or laptop computer. This means you can maximize portability by never requiring an installation disc or Internet connection to install the device.
Increase your productivity by connecting an additional display
Adding a second or third display to your computer can vastly increase your productivity by giving the freedom to access more applications at the same time. This video adapter is intended to support all of your business applications including web browsing, e-mail. spreadsheets and presentations. You can also leave your system video card available for more demanding applications such as gaming or CAD design, while you use the USB monitor for reference material.
USB 3.0 performance for business applications
Using the high-bandwidth USB 3.0 interface, this adapter enables smoother scrolling through documents, higher refresh rates and an overall enhanced performance over USB 2.0. The adapter is optimized for use with USB 3.0, but for added compatibility this adapter is also backward compatible with USB 2.0 computer systems supporting an 800 x 600 resolution at 60Hz.
| USB 3.0 to VGA Adapter Specifications | |
|---|---|
| Connector(s) | |

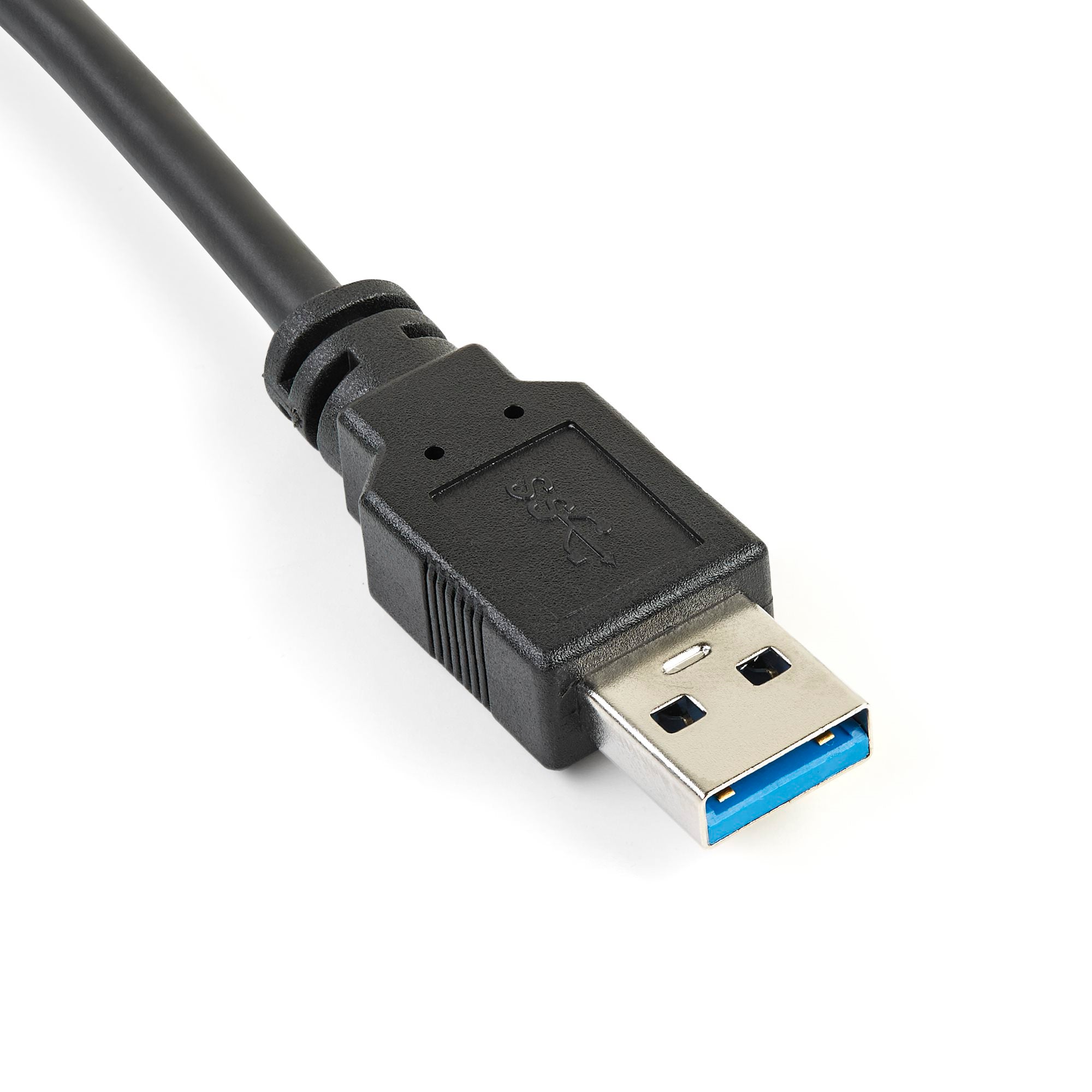

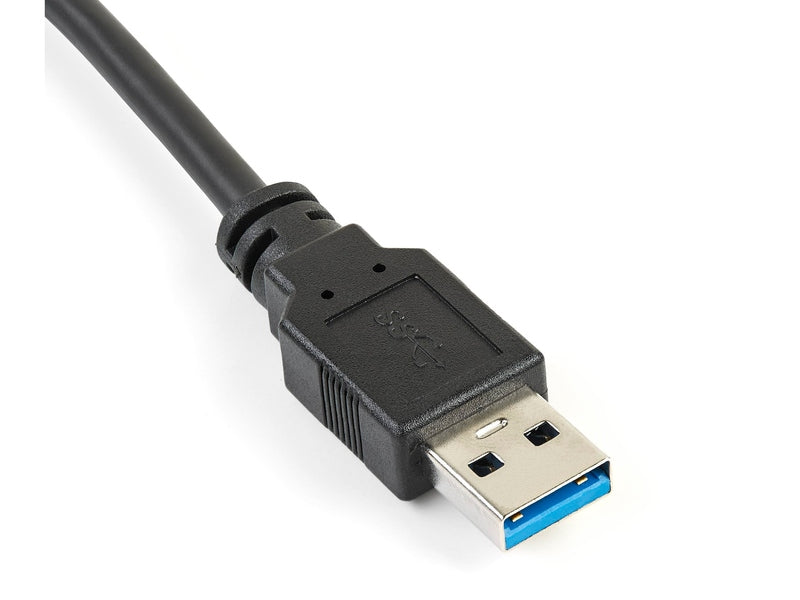

| Connector A | 1 × USB Type-A (9 pin, 5 Gbps) |

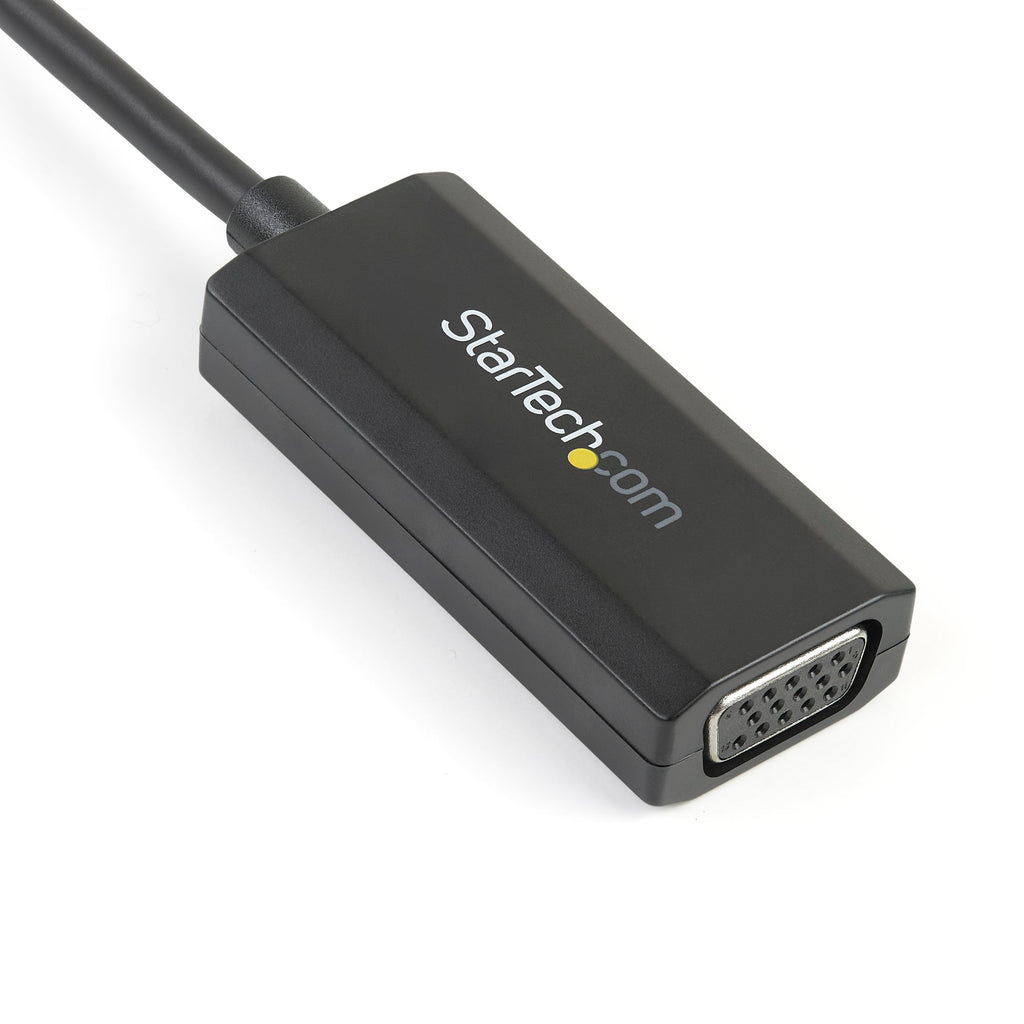

| Connector B | 1 × VGA (15 pin, High Density D-Sub) |
| Environmental | |
| Operating Temperature | 0°C to 70°C (32°F to 158°F) |
| Storage Temperature | -10°C to 55°C (14°F to 131°F) |
| Humidity | 40% – 50% RH |
| Hardware | |
| AV Input | USB 3.2 Gen 1 (5Gbps) |
| AV Output | VGA |
| USB Pass-Through | No |
| Memory | 8MB |
| Industry Standards | SuperSpeed USB 3.0, USB 2.0 |
| Chipset ID | Fresco FL2000DX |
| Packaging Information | |
| Package Height | 0.6 in [1.6 cm] |
| Package Length | 8.7 in [22.0 cm] |
| Package Width | 5.1 in [13.0 cm] |
| Package Weight | 1.1 oz [32.0 g] |
| Package Quantity | 1 |
| Performance | |
| Maximum Analog Resolutions | USB 3.0: 1920×1200 USB 2.0: 800×600 |
| Supported Resolutions |
Widescreen (16/32 bit): 1920×1200, 1920×1080, 1680×1050, 1600×900, 1440×900, 1360×768, 1280×800, 1280×768, 1280×720 Standard (16/32 bit): 1600×1200, 1400×1050, 1280×1024, 1280×960, 1152×864, 1024×768, 800×600 |
| Wide Screen Supported | Yes |
| MTBF | 1,138,683 hours |
| General Specifications | |
| Recommended System Requirements | Quad Core 2.4GHz processor (i5 recommended), 4GB RAM |
| Chipset Compatibility Note | Do not mix with DisplayLink® or Trigger-based adapters |
| Physical Characteristics | |
| Color | Black |
| Material | Plastic |
| Cable Length | 5.5 in [139.7 mm] |
| Product Length | 7.7 in [19.5 cm] |
| Product Width | 1.0 in [2.5 cm] |
| Product Height | 0.5 in [1.2 cm] |
| Product Weight | 0.9 oz [26 g] |
| Software | |
| OS Compatibility | Windows® Vista, 7, 8, 8.1, 10, 11 Windows Server® 2008 R2, 2012, 2012 R2, 2016, 2019, 2022 Microsoft WHQL Certified |
| Special Notes / Requirements | |
| System and Cable Requirements | Quad Core 2.4GHz processor (i5 recommended), 4GB RAM |
| Note | Maximum of 6 USB video adapters per system. Avoid mixing chipset families. Not intended for gaming or graphically intensive applications. |
| What's in the Box | |
| Included Items | 1 × USB 3.0 to VGA Adapter 1 × Quick Install Guide |
