FlashStation FS3410
Economical, high-performance data management solution for SMBs
Harness all-flash storage to speed up business workflows
Storage
Supports 24 x 2.5” SATA SSDs
Throughput
Over 356,500/129,400 iSCSI 4K random read/write IOPS2
Memory
16 GB DDR4 ECC RDIMM, up to 128 GB
Expandability
Optional 25/40GbE through PCIe 3.0 expansion
Powerful flash storage server
Combine all-flash performance with Synology systems’ ease of use and reliability. The FS3410 is designed to tackle scenarios that require high throughput and low latency.
Built for high reliability
The FS3410 is built to keep mission-critical data and services always accessible, enabling businesses to continue to perform even when disaster strikes.
Powerful networking options
The FS3410 supports a wide range of networking interfaces, protocols, and configurations, whether you need fast sequential transfer, support for simultaneous connections, or high network redundancy.
Built-in fast connectivity

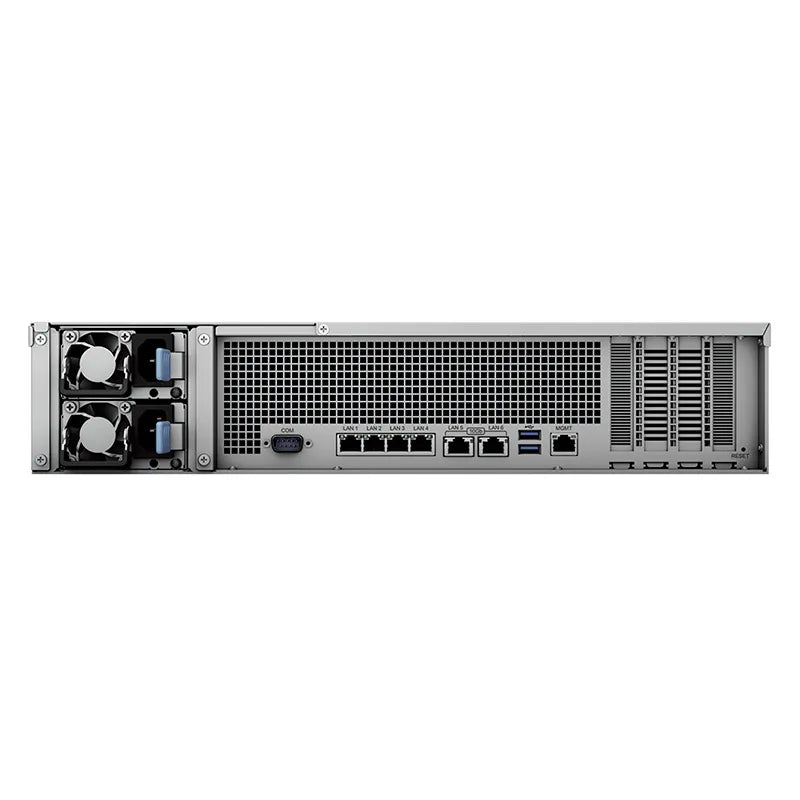

Two 10GbE RJ-45 ports and four Gigabit Ethernet ports allow for rapid transfer speeds right out of the box.
Support for 10/25/40GbE
Add up to 2 x 10/25/40GbE network interface cards using the 2 x PCIe 3.0 slots to enable lightning fast networking in minutes.3
Failover and network balancing
Bond multiple network interfaces with Link Aggregation to enable automatic network failover and load balancing.
Versatile data storage
The FS3410 fits perfectly in file server, block storage, or light application server roles that require high availability, reliability, and leading-edge storage technology.
VM storage & protection
Extremely fast IOPS performance combined with support for common virtualization platforms, iSCSI SAN service management, and extensive VM protection solutions make the FS3410 ideal for supporting and protecting VMs.
Complete SAN VM storage solution
Efficient and reliable SAN VM storage
SAN management is a breeze thanks to SAN Manager, which provides LUN management, global monitoring, iSCSI configuration and disk space optimization from a single, intuitive interface.
Deploy and facilitate storage operations in various virtualization environments with full certification for VMware® vSphere™, Microsoft® Hyper-V®, Citrix® XenServer™, and a Kubernetes CSI driver for integrated volume management.
Synology High Availability provides automatic minute-level failover of stored VMs by pairing up two FS3410 units to create a high-availability cluster.
Maximize space efficiency
VM and container storage on all-flash arrays can take advantage of volume-wide data deduplication, which removes identical data to optimize storage use.
VM backup and protection
Reliable VM backups at no extra cost
Back up unlimited VMware vSphere and Microsoft Hyper-V virtual machines from physical servers using Active Backup for Business. When unexpected interruptions occur or in upgrade testing environments quickly migrate them to Virtual Machine Manager (VMM).5
Block-level LUN snapshots and backups
Leverage Snapshot Replication for point-in-time snapshots of LUNs and shared folders with an RPO as low as 5 minutes. Replications can be managed in vCenter Site Recovery Manager and can be directly recovered via VMware vCenter Server for a simplified recovery process.
Use Hyper Backup for full data LUN and shared folder backups to a local or remote Synology system.
High-performance file serving & syncing
Leverage FS3410’s blistering speeds to provide low-latency access to massive files. Enhance the collaborative process with powerful and user friendly cross-site syncing capabilities.
Lightning-fast access to large files
Built to handle demanding workflows
Fast network capability paired with all-flash performance means that the FS3410 is capable of taking on data and network-intensive workloads with multiple users accessing large files via SMB or NFS such as video post-production, BIM, and large-scale CAD projects.
Speedy and efficient collaboration
Secure site-to-site file and folder syncing
Make sure branches have quick access to data teams use to collaborate by syncing folders one or two way using Synology Drive ShareSync.
Efficient cross-site syncing through the cloud
Using Synology Hybrid Share, store large sets of data on the cloud and leverage the powerful bandwidth of our data centers to stream requested files to local NAS deployed at branch offices, no matter their size.6
Frequently used files are kept on the local NAS to provide access at LAN speeds, with the option to pin them manually to prevent removal from the cache.
Business application platform
Host cost-efficient business solutions, either through containers, virtual machines, or Synology DiskStation Manager (DSM)’s own solutions, including a powerful free backup suite, a versatile mail server, and a surveillance VMS with transparent licensing.
Enabling effective collaboration
Synology Drive
Host your own private cloud on the safety of your NAS with 100% data ownership and no subscription fees.
Synology Office
Collaborate in real time on documents, spreadsheets, and slides for greater synergy and productivity.
Synology MailPlus
Set up a private and secure mail server that can be merged with existing IT infrastructure and platforms.
Containerization and virtualization-ready
Docker
Docker on Synology DSM provides a virtualization environment that allows you to implement lightweight containers running thousands of applications.
Synology Virtual Machine Manager
Synology Virtual Machine Manager (VMM) is a hypervisor for Windows® and Linux® VMs or Virtual DSM, a virtualized version of DSM.
Get more with DiskStation Manager
Take advantage of a host of native productivity, management, and security solutions available in the web-based Synology DSM operating system.
Data Protection
Keep your business safe from data loss and minimize service downtime.
User Management
Manage user accounts and devices throughout your business with powerful directory services.
Security
Shield your Synology NAS from the most sophisticated threats with industry-leading security solutions.
File Management
Manage, sync, and share files from multiple devices through a centralized platform.
System Administration
Manage the health of your deployments and centrally administer updates with ease.
Public Cloud Integration
Back up and synchronize data easily between public cloud accounts and your NAS.
FlashStation FS3410
Economical, high-performance data management solution for SMBs
Harness all-flash storage to speed up business workflows
Storage
Supports 24 x 2.5” SATA SSDs
Throughput
Over 356,500/129,400 iSCSI 4K random read/write IOPS2
Memory
16 GB DDR4 ECC RDIMM, up to 128 GB
Expandability
Optional 25/40GbE through PCIe 3.0 expansion
Powerful flash storage server
Combine all-flash performance with Synology systems’ ease of use and reliability. The FS3410 is designed to tackle scenarios that require high throughput and low latency.
Built for high reliability
The FS3410 is built to keep mission-critical data and services always accessible, enabling businesses to continue to perform even when disaster strikes.
Powerful networking options
The FS3410 supports a wide range of networking interfaces, protocols, and configurations, whether you need fast sequential transfer, support for simultaneous connections, or high network redundancy.
Built-in fast connectivity
Two 10GbE RJ-45 ports and four Gigabit Ethernet ports allow for rapid transfer speeds right out of the box.
Support for 10/25/40GbE
Add up to 2 x 10/25/40GbE network interface cards using the 2 x PCIe 3.0 slots to enable lightning fast networking in minutes.3
Failover and network balancing
Bond multiple network interfaces with Link Aggregation to enable automatic network failover and load balancing.
Versatile data storage
The FS3410 fits perfectly in file server, block storage, or light application server roles that require high availability, reliability, and leading-edge storage technology.
VM storage & protection
Extremely fast IOPS performance combined with support for common virtualization platforms, iSCSI SAN service management, and extensive VM protection solutions make the FS3410 ideal for supporting and protecting VMs.
Complete SAN VM storage solution
Efficient and reliable SAN VM storage
SAN management is a breeze thanks to SAN Manager, which provides LUN management, global monitoring, iSCSI configuration and disk space optimization from a single, intuitive interface.
Deploy and facilitate storage operations in various virtualization environments with full certification for VMware® vSphere™, Microsoft® Hyper-V®, Citrix® XenServer™, and a Kubernetes CSI driver for integrated volume management.
Synology High Availability provides automatic minute-level failover of stored VMs by pairing up two FS3410 units to create a high-availability cluster.
Maximize space efficiency
VM and container storage on all-flash arrays can take advantage of volume-wide data deduplication, which removes identical data to optimize storage use.
VM backup and protection
Reliable VM backups at no extra cost
Back up unlimited VMware vSphere and Microsoft Hyper-V virtual machines from physical servers using Active Backup for Business. When unexpected interruptions occur or in upgrade testing environments quickly migrate them to Virtual Machine Manager (VMM).5
Block-level LUN snapshots and backups
Leverage Snapshot Replication for point-in-time snapshots of LUNs and shared folders with an RPO as low as 5 minutes. Replications can be managed in vCenter Site Recovery Manager and can be directly recovered via VMware vCenter Server for a simplified recovery process.
Use Hyper Backup for full data LUN and shared folder backups to a local or remote Synology system.
High-performance file serving & syncing
Leverage FS3410’s blistering speeds to provide low-latency access to massive files. Enhance the collaborative process with powerful and user friendly cross-site syncing capabilities.
Lightning-fast access to large files
Built to handle demanding workflows
Fast network capability paired with all-flash performance means that the FS3410 is capable of taking on data and network-intensive workloads with multiple users accessing large files via SMB or NFS such as video post-production, BIM, and large-scale CAD projects.
Speedy and efficient collaboration
Secure site-to-site file and folder syncing
Make sure branches have quick access to data teams use to collaborate by syncing folders one or two way using Synology Drive ShareSync.
Efficient cross-site syncing through the cloud
Using Synology Hybrid Share, store large sets of data on the cloud and leverage the powerful bandwidth of our data centers to stream requested files to local NAS deployed at branch offices, no matter their size.6
Frequently used files are kept on the local NAS to provide access at LAN speeds, with the option to pin them manually to prevent removal from the cache.
Business application platform
Host cost-efficient business solutions, either through containers, virtual machines, or Synology DiskStation Manager (DSM)’s own solutions, including a powerful free backup suite, a versatile mail server, and a surveillance VMS with transparent licensing.
Enabling effective collaboration
Synology Drive
Host your own private cloud on the safety of your NAS with 100% data ownership and no subscription fees.
Synology Office
Collaborate in real time on documents, spreadsheets, and slides for greater synergy and productivity.
Synology MailPlus
Set up a private and secure mail server that can be merged with existing IT infrastructure and platforms.
Containerization and virtualization-ready
Docker
Docker on Synology DSM provides a virtualization environment that allows you to implement lightweight containers running thousands of applications.
Synology Virtual Machine Manager
Synology Virtual Machine Manager (VMM) is a hypervisor for Windows® and Linux® VMs or Virtual DSM, a virtualized version of DSM.
Get more with DiskStation Manager
Take advantage of a host of native productivity, management, and security solutions available in the web-based Synology DSM operating system.
Data Protection
Keep your business safe from data loss and minimize service downtime.
User Management
Manage user accounts and devices throughout your business with powerful directory services.
Security
Shield your Synology NAS from the most sophisticated threats with industry-leading security solutions.
File Management
Manage, sync, and share files from multiple devices through a centralized platform.
System Administration
Manage the health of your deployments and centrally administer updates with ease.
Public Cloud Integration
Back up and synchronize data easily between public cloud accounts and your NAS.
| Model | FS3410 |
| CPU | Intel Xeon D-1541, 8-core 2.1 GHz |
| Memory | 16 GB DDR4 ECC RDIMM (expandable up to 128 GB) |
| Drive Bays | 24 × 2.5" SATA SSD |
| Max Raw Capacity | Up to 432 TB (with supported SSDs) |
| Network Ports | 2 × 10GbE RJ-45, 4 × 1GbE RJ-45 |
| PCIe Expansion | 2 × PCIe Gen 3 x8 slots |
| USB Ports | 2 × USB 3.2 Gen 1 |
| Expansion Ports | 2 × Mini-SAS HD (for FX2421 expansion) |
| RAID Support | RAID 0, 1, 5, 6, 10, F1, JBOD |
| File System | Btrfs, EXT4 |
| Operating System | Synology DiskStation Manager (DSM) |
| Performance | Up to 356,500 read / 129,400 write iSCSI 4K random IOPS |
| Virtualization Support | VMware, Microsoft Hyper-V, Citrix, OpenStack |
| Dimensions (H × W × D) | 88 × 430.5 × 692 mm (2U rackmount) |
| Weight | 13.8 kg (without drives) |
| Power Supply | 2 × 550W redundant PSU |
| Power Consumption | 113.84 W (access) |
| Noise Level | 51.6 dB(A) |
| Operating Temperature | 5°C to 35°C |
| Certifications | FCC, CE, BSMI, VCCI, RCM, UKCA |
| Warranty | 5 years |
