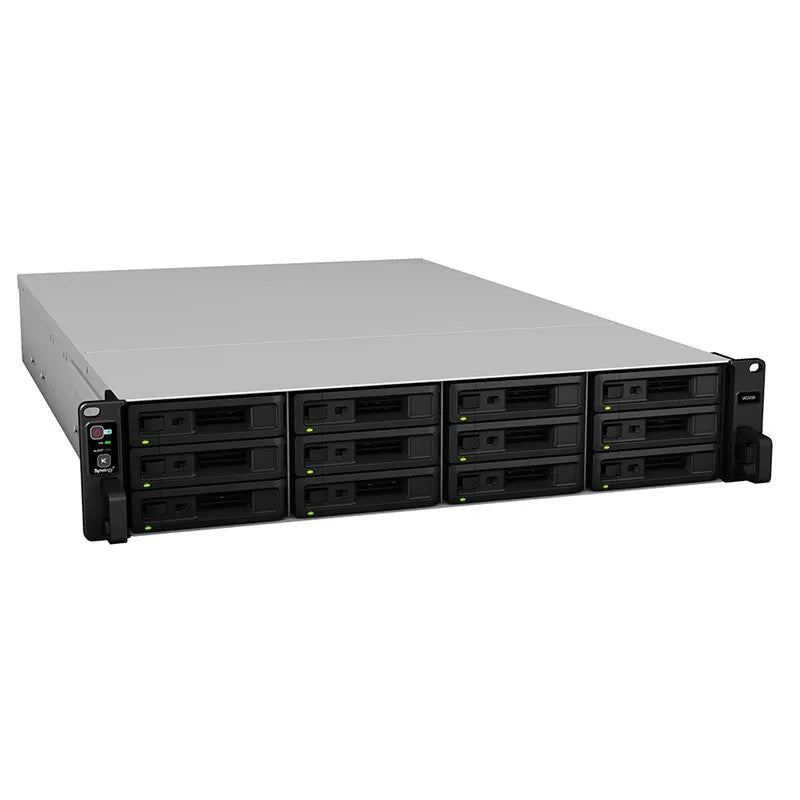

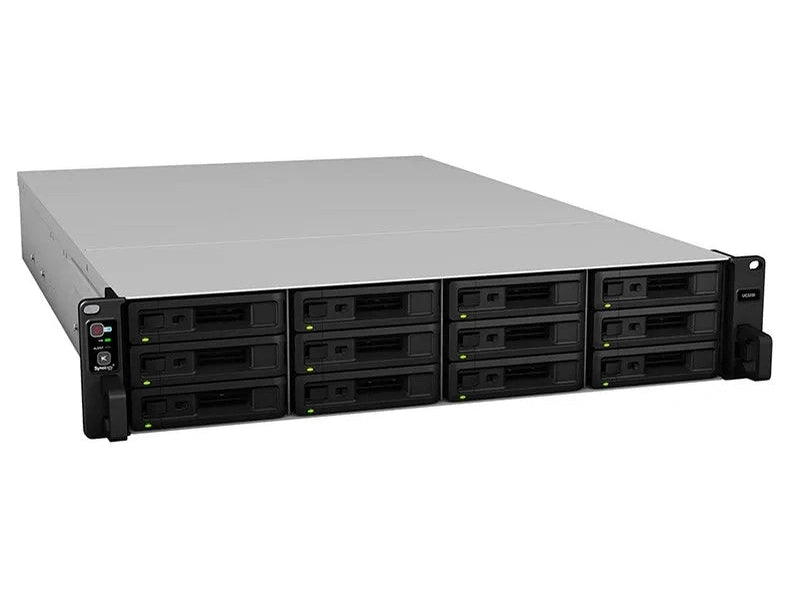

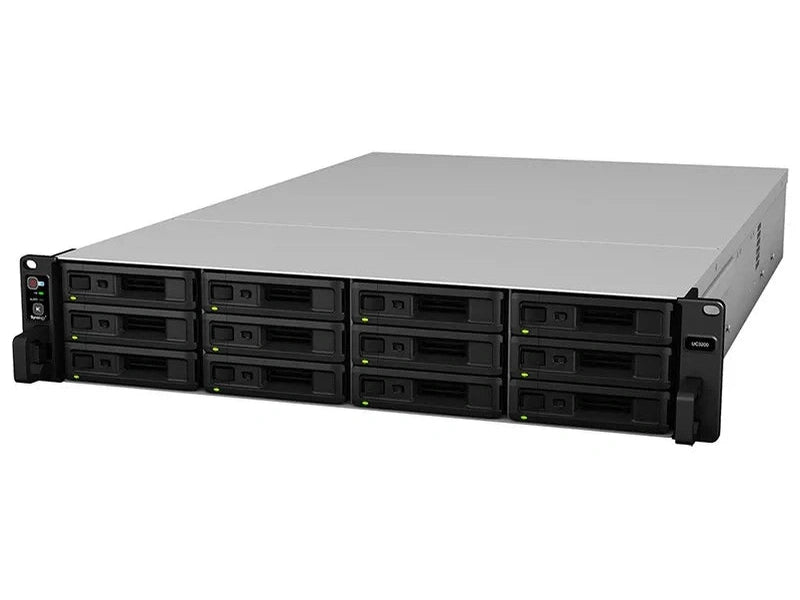

Synology UC3200 Unified Controller (Rail Kit Optional)

SynologySKU: UC3200

Availability:

❌ Back Order - Contact Us for ETA

Price:
Sale price$12,597.00
Contact Us for ETA

Estimate shipping

Description

Overview

UC3200
Active-active SAN storage for mission-critical environments

Reliable, high availability SAN
Two independent controllers in the Synology UC3200 SAN work simultaneously to ensure interruption-free iSCSI and FC services.

Easily scalable
High-performance SAS drives slots and support for up to 576 TB, fully expanded, ensures the UC3200 is ready for any project. For mission-critical and sensitive data, native support for SEDs provides hardware-level encryption for all data.

Performance
A quad-core Intel® Xeon® processor powers each controller for enhanced reliability and performance of up to 140,000 4K random write IOPs.

Scalable memory
Each controller board features four DDR4 ECC UDIMM slots for expandability and improved system performance.

Cooling
Modularized fans with redundancy regulate system temperatures and are easy to service and replace.

Independent system architecture
The management operating system, DSM UC, is stored on a separate SATA DOM drive on each controller.

Non-Transparent Bridge (NTB)
System memory is synchronized between controllers using a high-speed interface to maximize the protection of in-flight data.

Works with mainstream virtualization systems
Optimized for virtualization environments.
- Integrated with VMware vSphere® 6.5, Microsoft Hyper-V®, and VAAI to offload storage operations and optimize computational efficiency.
- Windows Offloaded Data Transfer (ODX) is supported to speed up data transfer and migration rates.
- Turn Synology UC3200 into a block-based storage component with the support of OpenStack® Cinder.
- Compliance with the ALUA industry standard allows hosts to identify optimized paths to increase data transfer performance and efficiency.

Engineered for iSCSI/FC SAN
DSM UC, an operating system designed to ease the learning curve, allows you to manage the two controllers from one single portal. The built-in monitor applications display the status at a glance and send prompt notifications when important events occur, so that IT administrators can stay alert to potential problems and respond in the shortest time possible.

A unified interface for intuitive management
Cutting-edge LUN features
Advanced LUN functionality significantly improves VM performance and offers lightning-fast snapshot creation, recovery, and cloning, as well as VMware VAAI and Windows ODX support.

Intuitive management
A streamlined management interface makes connection and permission management exceptionally easy, even in large-scale SAN environments.

For large and small deployments
Support for iSCSI as well as Fibre Channel means that Synology storage systems integrate as easily in smaller setups as in enterprise environments.

Disaster-proof your critical data
Leverage application-aware snapshot protection and instant recovery of virtual machines on LUNs in case of disaster. Snapshot Replication (enabled by the Btrfs file system) offers schedulable and near-instantaneous data protection, while UC3200 supports up to 4,096 system-wide snapshots of local volumes or off-site servers.

Synology UC3200 Specifications
Model UC3200
Architecture Dual-controller, active-active SAN
CPU (per controller) Intel Xeon D-1521, 4-core 2.4 GHz
Memory (per controller) 8 GB DDR4 ECC UDIMM (expandable up to 64 GB)
System Memory Total 16 GB (expandable to 128 GB)
Drive Bays 12 × 3.5"/2.5" SAS HDD/SSD (expandable to 36 bays with 2× RX1217sas)
Max Raw Capacity Up to 576 TB (with expansion)
Storage Interface SAS 12Gb/s
Network Ports (per controller) 4 × 1GbE RJ-45, 2 × 10GbE RJ-45
PCIe Expansion (per controller) 1 × PCIe Gen3 x8 slot
USB Ports (per controller) 2 × USB 3.2 Gen 1
Expansion Ports 2 × Mini-SAS HD (for RX1217sas)
RAID Support RAID 0, 1, 5, 6, 10, 50, 60
File System ext4 (SAN Manager)
Operating System Synology SAN Manager
Performance Over 140,000 4K random write IOPS
High Availability Built-in dual-controller failover
Dimensions (H × W × D) 88 × 430.5 × 692 mm (2U rackmount)
Weight 13.9 kg (without drives)
Power Supply 2 × 500W redundant PSU
Power Consumption 164.1 W (access), 103.9 W (idle)
Noise Level 51.6 dB(A)
Operating Temperature 5°C to 35°C
Certifications FCC, CE, BSMI, VCCI, RCM, UKCA
Warranty 5 years
