TP-Link SG2210XMP-M2 Omada 8-Port 2.5Gbps PoE+ 160W Smart Switch with 2-Port 10GE SFP+

TP-LinkSKU: SG2210XMP-M2

Availability:

✅ In Stock at Supplier (ETA: Usually in 1-3 Business Days)

Price:
Sale price$499.00

Customer Reviews

Be the first to write a review
0%
(0)
0%
(0)
0%
(0)
0%
(0)
0%
(0)

Payment & Security

Apple Pay Google Pay Mastercard PayPal Shop Pay Visa

Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.

Estimate shipping

Description

Omada 8-Port 2.5GBASE-T and 2-Port 10GE SFP+ Smart Switch with 8-Port PoE+ [SG2210XMP-M2]

  • 8× 2.5 Gbps 802.3at/af-compliant PoE+ ports
  • 2× 10G SFP+ Slots
  • 160 W total PoE budget with up to 30 W PoE output per port*
  • Centralized cloud management via web or the Omada app
  • Supports standalone management
  • Static Routing
  • Fanless design for quiet operation
  • Desktop/Wall-Mounting



    What This Product Does

    SG2210XMP-M2 is a 2.5G multi-gigabit switch with eight 2.5G PoE+ ports and two 10G uplink ports, ideal for connecting multi-gigabit WiFi 7/6 access points. Up to 160 W PoE budget, fanless design with compact and durable metal casing, and desktop/wall-mounting design make it suited for different environments. High-performance static routing, advanced security features, a selection of Layer 2 management options, and integration into the Omada SDN (Software-Defined Networking) meet the demand of reliable business networking.

    2.5G PoE+ Ports and 10G Uplink

    Eight IEEE 802.3at/af-compliant PoE ports supply up to 160 W total power to 802.3at and 802.3af devices.* Set up wireless access points, surveillance cameras, IP phones, and other PoE devices quickly and easily without the hassle and cost of installing power cabling. Two 10 Gbps SFP+ slots deliver non-blocking performance and minimal latency, ensuring rapid, dependable connections to servers and other switches.

    Secure Networking

    Security features include IP-MAC-Port Binding and VLAN Binding, Port Security, Storm Control, and DHCP Snooping to defend against a range of network threats. An integrated list of common DoS attacks is available, making it easier than ever to prevent them.

    In addition, the Access Control Lists (ACL) feature restricts access to sensitive network resources by denying packets based on source and destination MAC addresses, IP addresses, TCP/UDP ports, or VLAN IDs. Users' network access can be controlled via 802.1X authentication, which works with a RADIUS/TACACS+ server to grant access only when valid user credentials are provided.

    Advanced QoS

    Leveraging IP, MAC, TCP, and UDP identifiers, our QoS feature ensures seamless voice and video transmission—even when bandwidth is in short supply.

    Abundant L2 and L2+ Feature

    SG2210XMP-M2 supports a complete lineup of L2 features, including Static Routing, DHCP Server, DHCP Relay, 802.1Q VLAN, Port Mirroring, STP/RSTP/MSTP, Link Aggregation Control Protocol, and 802.3x Flow Control. Advanced IGMP Snooping ensures the switch intelligently forwards multicast streams to only the appropriate subscribers, cutting out unnecessary traffic, while IGMP throttling and filtering restrict each subscriber on a port level to prevent unauthorized multicast access. Static Routing, an L2+ feature, is a simple way of segmenting the network and internally routing traffic through the switch for improved efficiency.

    Omada SDN Integration

    Integration into the Omada SDN system brings centralized cloud management and a series of management features, such as Zero-Touch Provisioning (ZTP)** and Abnormal Event Warnings. Omada's Software Defined Networking (SDN) platform integrates network devices, including access points, switches, and routers, providing 100% centralized cloud management.

    Apart from the ability to be centrally managed via Omada SDN controllers, SG2210XMP-M2 simplifies management via an intuitive web-based Graphical User Interface (GUI) or an industry-standard Command Line Interface (CLI). For both management methods, traffic is protected through SSL or SSH encryption. SNMP (v1/v2c/v3) and RMON support enable the switch to be polled for valuable status information and to send traps for abnormal events.


    Specifications

    HARDWARE FEATURES
    Interface • 8× 100/1000/2500 Mbps RJ45 PoE+ Ports
    • 2× 10G SFP+ Slots
    Fan Quantity Fanless
    Physical Security Lock
    Power Supply 53.5VDC/3.37A Power Adapter
    PoE Ports (RJ45) • Standard: 802.3at/af compliant
    • PoE+ Ports: 8 Ports
    • PoE Power Budget: 160 W*
    Dimensions ( W x D x H ) 8.9 × 5.2 × 1.4 in (226 × 131 × 35 mm)
    Mounting Desktop/Wall-Mounting
    Max Power Consumption 180.1 W (110V/60Hz) (with 160 W PD connected)
    Max Heat Dissipation 614.58 BTU/hr (110V/60Hz) (with 160 W PD connected)
    PERFORMANCE
    Switching Capacity 80 Gbps
    Packet Forwarding Rate 59.52 Mpps
    MAC Address Table 16 K
    Packet Buffer Memory 12 Mbit
    Jumbo Frame 9 KB
    SOFTWARE FEATURES
    Quality of Service • 802.1p CoS/DSCP priority
    • 8 priority queues
    • Priority Schedule Mode
    - SP (Strict Priority)
    - WRR (Weighted Round Robin)
    • Queue Weight Config
    • Bandwidth Control
    - Port/Flow based Rating Limit
    • Smoother Performance
    • Storm Control
    - Multiple Control Modes(kbps/ratio)
    - Broadcast/Multicast/Unknown-Unicast Control
    L2 and L2+ Features • 32 IP Interfaces: Support IPv4/IPv6 Interface
    • Static Routing: 32 IPv4/IPv6 Static Routes
    • DHCP Server
    • DHCP Relay
    - DHCP Interface Relay
    - DHCP VLAN Relay
    • DHCP L2 Relay
    • Static ARP
    • Proxy ARP
    • Gratuitous ARP
    • Link Aggregation
    • Spanning Tree Protocol
    • Loopback Detection
    • 802.3x Flow Control
    • Mirroring
    • Device Link Detect Protocol (DLDP)
    • 802.1ab LLDP/ LLDP-MED
    L2 Multicast • 511 IPv4, IPv6 shared multicast groups
    • IGMP Snooping
    • Multicast VLAN Registration (MVR)
    • Multicast Filtering
    • Limited IP Multicast (256 profiles and 16 entries per profile)
    Advanced Features • Automatic Device Discovery
    • Batch Configuration
    • Batch Firmware Upgrading
    • Intelligent Network Monitoring
    • Abnormal Event Warnings
    • Unified Configuration
    • Reboot Schedule
    VLAN • VLAN Group
    - Max 4K VLAN Groups
    • 802.1Q Tagged VLAN
    • MAC VLAN: 12 Entries
    • Protocol VLAN
    • GVRP
    • Voice VLAN
    Access Control List • Support up to 230 entries
    • Time-based ACL
    • MAC ACL
    • IP ACL
    • IPv6 ACL
    • Combined ACL
    • Rule Operation: Permit/Deny
    • Policy Action
    - Mirroring
    - Redirect
    - Rate Limit
    - QoS Remark
    • ACL Rules Binding
    - Port Binding
    - VLAN Binding
    Security • IP-MAC-Port Binding
    • AAA
    • 802.1X
    - Port based authentication
    - MAC (Host) based authentication
    - Authentication Method includes PAP/EAP-MD5
    - MAB
    - Guest VLAN
    - Support Radius authentication and accountability
    • IP/IPv6-MAC Binding
    - 512 Binding Entries
    - DHCP Snooping
    - DHCPv6 Snooping
    - ARP Inspection
    - ND Detection
    - ND Snooping
    • IP Source Guard
    - 253 Entries
    - Source IP+Source MAC
    • IPv6 Source Guard
    - 183 Entries
    - Source IPv6 Address+Source MAC
    • DoS Defend
    • DHCP Filter
    • Static/Dynamic/Permanent Port Security
    - Up to 64 MAC addresses per port
    • Broadcast/Multicast/Unicast Storm Control
    • Port Isolation
    • Secure web management through HTTPS with SSLv3/TLS 1.2
    • Secure Command Line Interface (CLI) management with SSHv1/SSHv2
    • IP/Port/MAC based access control
    IPv6 • IPv6 Static Routing and ACL
    • IPv6 Dual IPv4/IPv6
    • IPv6 Interface
    • Multicast Listener Discovery (MLD) Snooping
    • IPv6 neighbor discovery (ND)
    • Path maximum transmission unit (MTU) discovery
    • Internet Control Message Protocol (ICMP) version 6
    • TCPv6/UDPv6
    • IPv6 applications
    - DHCPv6 Client
    - Ping6
    - Tracert6
    - Telnet(v6)
    - IPv6 SNMP
    - IPv6 SSH
    - IPv6 SSL
    - Http/Https
    - IPv6 TFTP
    MIBs • MIB II (RFC1213)
    • Interface MIB (RFC2233)
    • Ethernet Interface MIB (RFC1643)
    • Bridge MIB (RFC1493)
    • P/Q-Bridge MIB (RFC2674)
    • RMON MIB (RFC2819)
    • RMON2 MIB (RFC2021)
    • Radius Accounting Client MIB (RFC2620)
    • Radius Authentication Client MIB (RFC2618)
    • Remote Ping, Traceroute MIB (RFC2925)
    • Support TP-Link private MIB
    MANAGEMENT
    Omada App Yes. Requiring the use of Omada Hardware Controller, Omada Cloud-Based Controller, or Omada Software Controller.
    Centralized Management • Omada Cloud-Based Controller
    • Omada Hardware Controller
    • Omada Software Controller
    Cloud Access Yes. Requiring the use of Omada Hardware Controller, Omada Cloud-Based Controller, or Omada Software Controller.
    Zero-Touch Provisioning Yes. Requiring the use of Omada Cloud-Based Controller.
    Management Features • Web-based GUI
    • Command Line Interface (CLI) through telnet
    • SNMPv1/v2c/v3
    • SNMP Trap/Inform
    • RMON (1,2,3,9 groups)
    • SDM Template
    • DHCP/BOOTP Client
    • Dual Image, Dual Configuration
    • CPU Monitoring
    • Cable Diagnostics
    • EEE
    • SNTP
    • System Log
    OTHERS
    Certification CE, FCC, RoHS

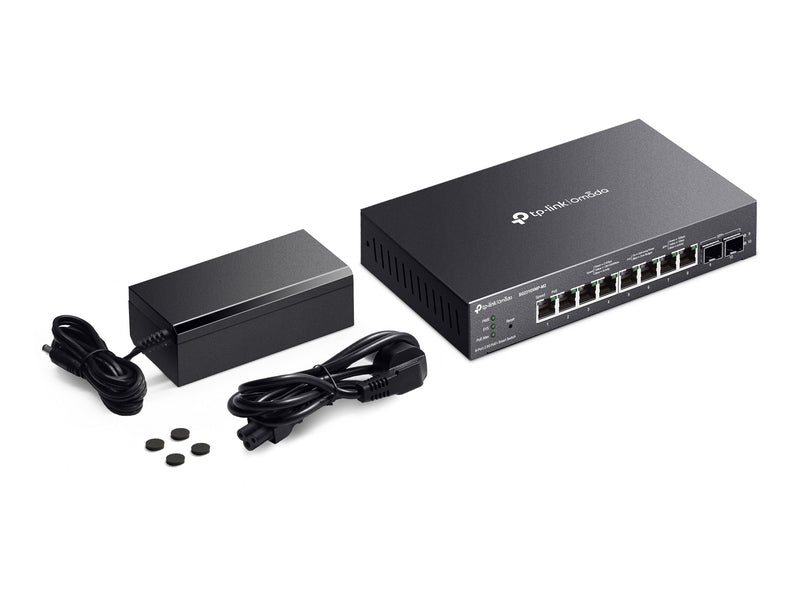

    Package Contents • SG2210XHP-M2 Switch
    • Power Adapter
    • Quick Installation Guide
    • Rubber Feet
    System Requirements Microsoft® Windows® 98SE, NT, 2000, XP, Vista™ or Windows 7/8/10/11, MAC® OS, NetWare®, UNIX® or Linux.
    Environment • Operating Temperature: 0–40 ℃ (32–104 ℉);
    • Storage Temperature: -40–70 ℃ (-40–158 ℉)
    • Operating Humidity: 10–90% RH non-condensing
    • Storage Humidity: 5–90% RH non-condensing
