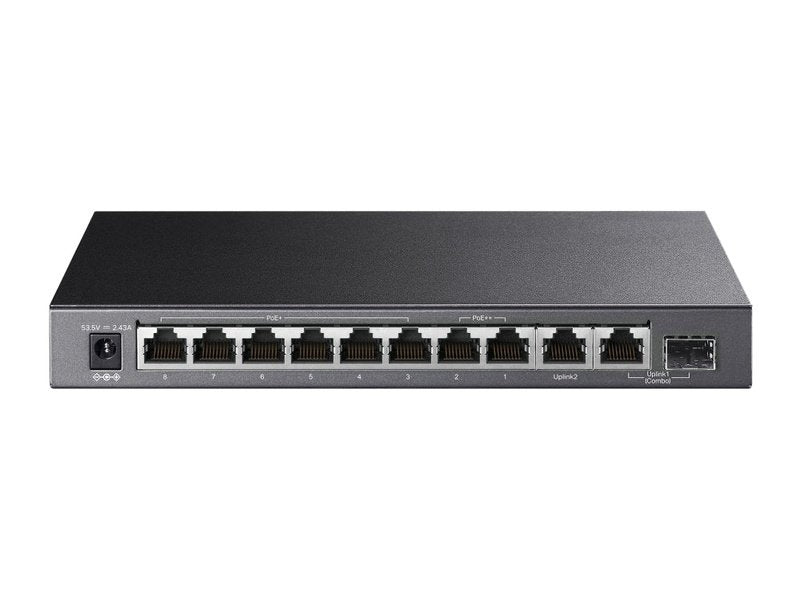

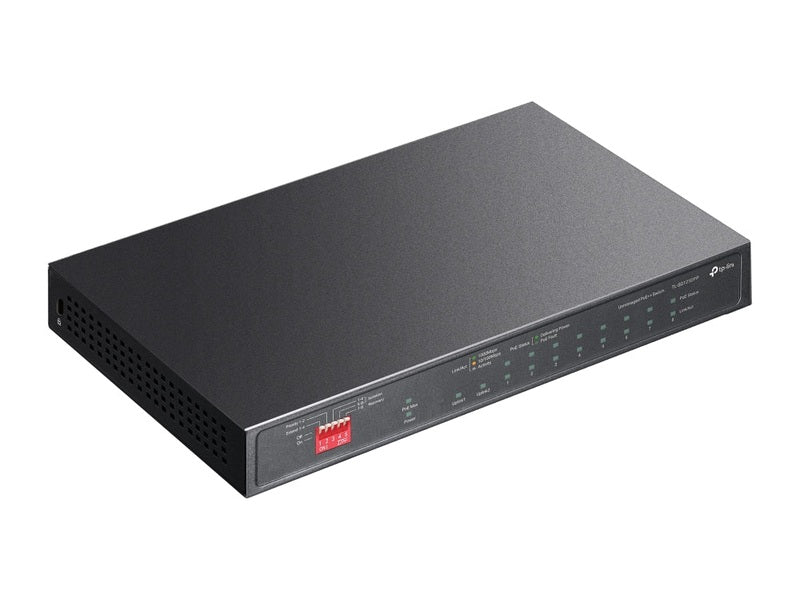

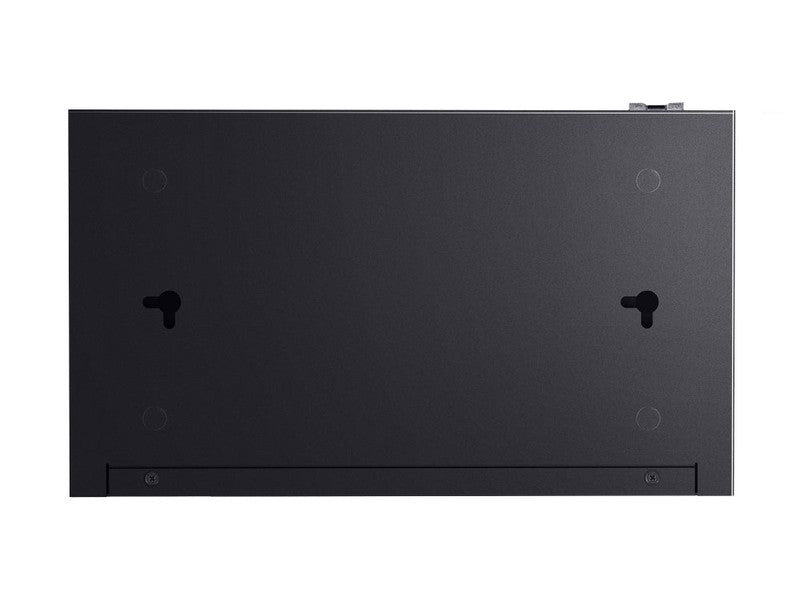

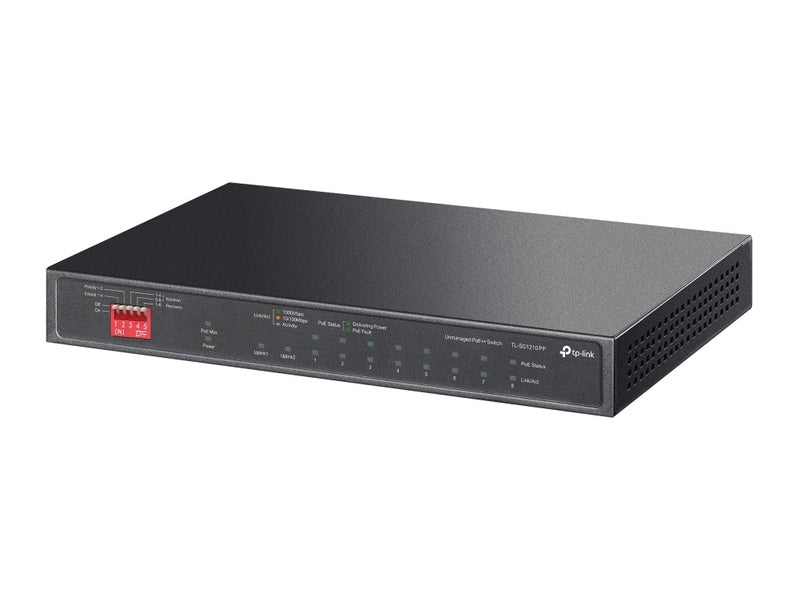

TP-Link TL-SG1210PP 10-Port Gigabit Desktop Switch with 6-Port PoE+ and 2-Port PoE++

TP-LinkSKU: TL-SG1210PP

  • Ports: 9× Gigabit RJ45 ports and 1× Gigabit Combo SFP/RJ45 port
  • PoE Configuration: 2× PoE++ ports and 6× PoE+ ports
  • PoE Standards: IEEE 802.3af/at/bt compliant
  • PoE Budget: 123W total, up to 60W per PoE++ port and 30W per PoE+ port
  • QoS: 802.1p/DSCP support for latency-sensitive applications
  • Extend Mode: Up to 250m data and power transmission
  • PoE Auto Recovery: Automatic reboot of dropped or unresponsive powered devices
  • Isolation Mode: One-click client traffic separation for enhanced security
  • Priority Mode: Ports 1–2 prioritized for critical video surveillance traffic
  • Deployment: Plug and Play with no configuration required

Availability:

🚚 In Stock at Supplier (ETA: Usually in 1-3 Business Days)

Pickup available at PC LAN Store

1-3 Business Days

Price:
Sale price$189.00
1

Estimate shipping

Description

TP-Link TL-SG1210PP 10-Port Gigabit Desktop Switch with 6-Port PoE+ and 2-Port PoE++

Extend Mode

Up to 250m Transmissions

With extend mode, the PoE transmission distance reaches up to 250m** —perfect for IP Camera deployment in large areas.

Priority Mode

One-click Port Priority

Priority mode guarantees the quality of sensitive applications like video and voice in critical business areas by prioritizing the data of ports.

Isolation Mode

Traffic Separation for Security

Isolation Mode easily divides traffic for ports to avoid snooping/tampering and isolates broadcast storm for higher security.

Recovery Mode

PoE Auto Recovery

Recovery mode helps automatically detect and reboot PD devices, such as cameras and APs, when they fall offline or go unresponsive—all without needing manual monitoring and restarts.

Specification

HARDWARE FEATURES
Interface • 9× 10/100/1000Mbps RJ45 Ports, 1× 1000Mbps Combo SFP/RJ45 Port
• AUTO Negotiation
• AUTO MDI/MDIX
Network Media • 10BASE-T: UTP category 3, 4, 5 cable (maximum 100m)
• EIA/TIA-568 100Ω STP (maximum 100m)
• 100BASE-TX: UTP category 5, 5e cable (maximum 100m)
• EIA/TIA-568 100Ω STP (maximum 100m)
• 1000BASE-T: UTP category 5, 5e, 6 or above cable (maximum 100m)
• EIA/TIA-568 100Ω STP (maximum 100m)
Fan Quantity Fanless
External Power Supply External Power Adapter (Output: 53.5 VDC / 2.43 A)
Packet Forwarding Rate 14.88 Mpps
PoE Ports (RJ45) • Port 1-2 compliance with 802.3af/at/bt; Ports 3-8 compliance with 802.3af/at
• Power Supply: 123 W
Mac Address Table 4K
Switching Capacity 20 Gbps
Dimensions ( W x D x H ) 8.2 x 5.0 x 1.0 in (209 x 126 x 26 mm)
Max Power Consumption • 8.7 W (220/50 Hz. no PD connected)
• 144.1 W (220/50 Hz. with 123 W PD connected)
Max Heat Dissipation • 29.67 BTU/h (220/50 Hz. no PD connected)
• 491.38 BTU/h (220/50 Hz. with 123 W PD connected)
SOFTWARE FEATURES
Advanced Features • Compatible With IEEE 802.3af/at/bt Compliant PDs
• Mac Address Auto-Learning And Auto-Aging
• IEEE 802.3x Flow Control
• 802.1p/DSCP QoS
• IGMP Snooping
• Extend Mode Button (Ports 1–4, Up to 250 m PoE power supply and data transmission)
• PoE Auto Recovery (Ports 1-8)
• Isolation Mode (Ports 1-4/5-8)
• Priority Mode (Ports 1-2)
Transfer Method Store-And-Forward
OTHERS
Certification FCC, CE, RoHS

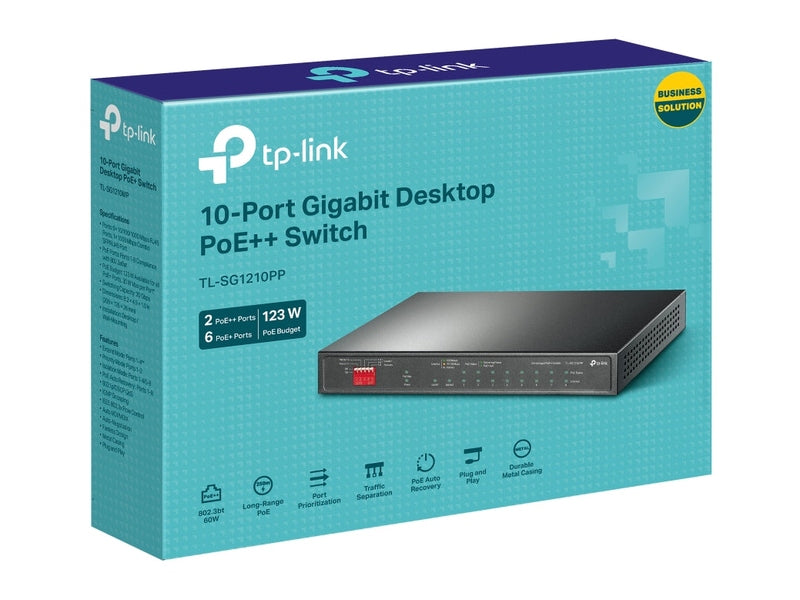

Package Contents • TL-SG1210PP
• Power Adapter
• Installation Guide
Environment • Operating Temperature: 0–40 ℃ (32–104 ℉);
• Storage Temperature: -40–70 ℃ (-40–158 ℉)
• Operating Humidity: 10–90% RH non-condensing
• Storage Humidity: 5–90% RH non-condensing
