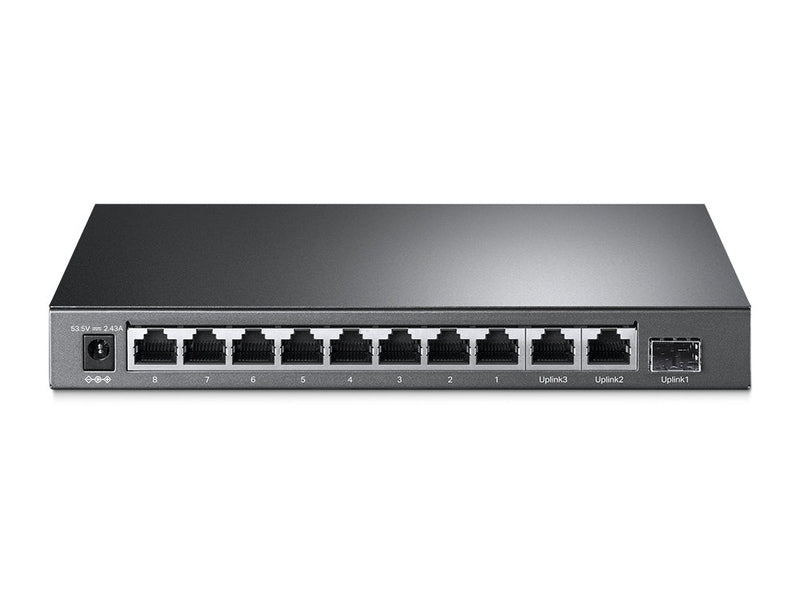

TP-Link TL-SL1311MP 8-Port Unmanaged Gigabit Switch PoE+(8) 124W SFP(1)

TP-LinkSKU: TL-SL1311MP

  • Ports: 8× 10/100Mbps PoE+ RJ45 ports, 2× Gigabit RJ45 ports, 1× Gigabit SFP port
  • PoE Budget: 124W total, up to 30W per PoE port
  • PoE Standard: IEEE 802.3af/at
  • Features: Extend Mode up to 250m, Isolation Mode, PoE Auto Recovery
  • Design: Fanless, plug and play

Availability:

🚚 In Stock at Supplier (ETA: Usually in 1-3 Business Days)

Pickup available at PC LAN Store

1-3 Business Days

Price:
Sale price$145.00
1

Estimate shipping

Description

TP-Link TL-SL1311MP 8-Port Unmanaged Gigabit Switch PoE+(8) 124W SFP(1)

Specifications

HARDWARE FEATURES
Interface • 8× 10/100 Mbps 802.3af/at PoE+ Ports, 2× Gigabit RJ45 Ports, 1× Gigabit SFP Port
• AUTO Negotiation
• AUTO MDI/MDIX
Network Media • 10BASE-T: UTP category 3, 4, 5 cable (maximum 100m)
• EIA/TIA-568 100Ω STP (maximum 100m)
• 100BASE-TX: UTP category 5, 5e cable (maximum 100m)
• EIA/TIA-568 100Ω STP (maximum 100m)
Fan Quantity Fanless
Physical Security Lock Yes
External Power Supply External Power Adapter (Output: 53.5VDC / 2.43A)
Packet Forwarding Rate 5.6544 Mpps
PoE Ports (RJ45) • Standard: 802.3 af/at compliant
• PoE Ports: Ports 1–8
• Power Supply: 124 W
Mac Address Table 2K
Jumbo Frame 16 KB
Switching Capacity 7.6 Gbps
Dimensions ( W x D x H ) 8.2 × 4.9 × 1.0 in (209 × 126 × 26 mm)
Max Power Consumption • 5.95 W (220/50 Hz. no PD connected)
• 140.92 W (220/50 Hz. with 124 W PD connected)
Max Heat Dissipation • 20.29 BTU/h (no PD connected)
• 480.54 BTU/h (220/50 Hz. with 124 W PD connected)
SOFTWARE FEATURES
Transmission Method Store-And-Forward
Advanced Functions • Compatible With IEEE 802.3af/at Compliant PDs
• Extend Mode Button (Ports 1–4 and Ports 1–8, Up to 250 m PoE power supply and data transmission)
• Isolation Mode Button (Ports 1–8)
• PoE Auto Recovery Button (Ports 1–8)
• Mac Address Auto-Learning and Auto-Aging
• IEEE802.3x Flow Control For Full-Duplex Mode And Backpressure for Half-Duplex Mode
OTHERS
Certification FCC, CE, RoHS
Package Contents • TL-SL1311MP
• Power Adapter
• Installation Guide
Environment • Operating Temperature: 0–40 ℃ (32–104 ℉)
• Storage Temperature: -40–70 ℃ (-40–158 ℉)
• Operating Humidity: 10–90% RH non-condensing
• Storage Humidity: 5–90% RH non-condensing
