Overview
Archer AX55
AX3000 Dual Band Gigabit Wi-Fi 6 Router
- Next-Gen Gigabit Wi-Fi 6 Speed—2402 Mbps on 5 GHz and 574 Mbps on 2.4 GHz band ensure smoother streaming and faster downloads.
- Connect More Devices—OFDMA technology increases capacity by 4 times to enable simultaneous transmission to more devices.
- Ultra-Low Latency—Enables more responsive gaming and video chatting.
- Expanded Wi-Fi Coverage—Four high-gain external antennas and Beamforming technology combine to extend strong, reliable Wi-Fi throughout your home.
- TP-Link HomeShield - Enhanced security defends against the latest cyber threats.
- Improved Battery Life—Target Wake Time helps your devices to communicate more while consuming less power.
- Compatible with Alexa—Control your router via voice commands and make your life smarter and easier with Amazon Alexa.
- Supports OneMesh™ to form seamless whole-home coverage, preventing drops and lag when moving between signals.

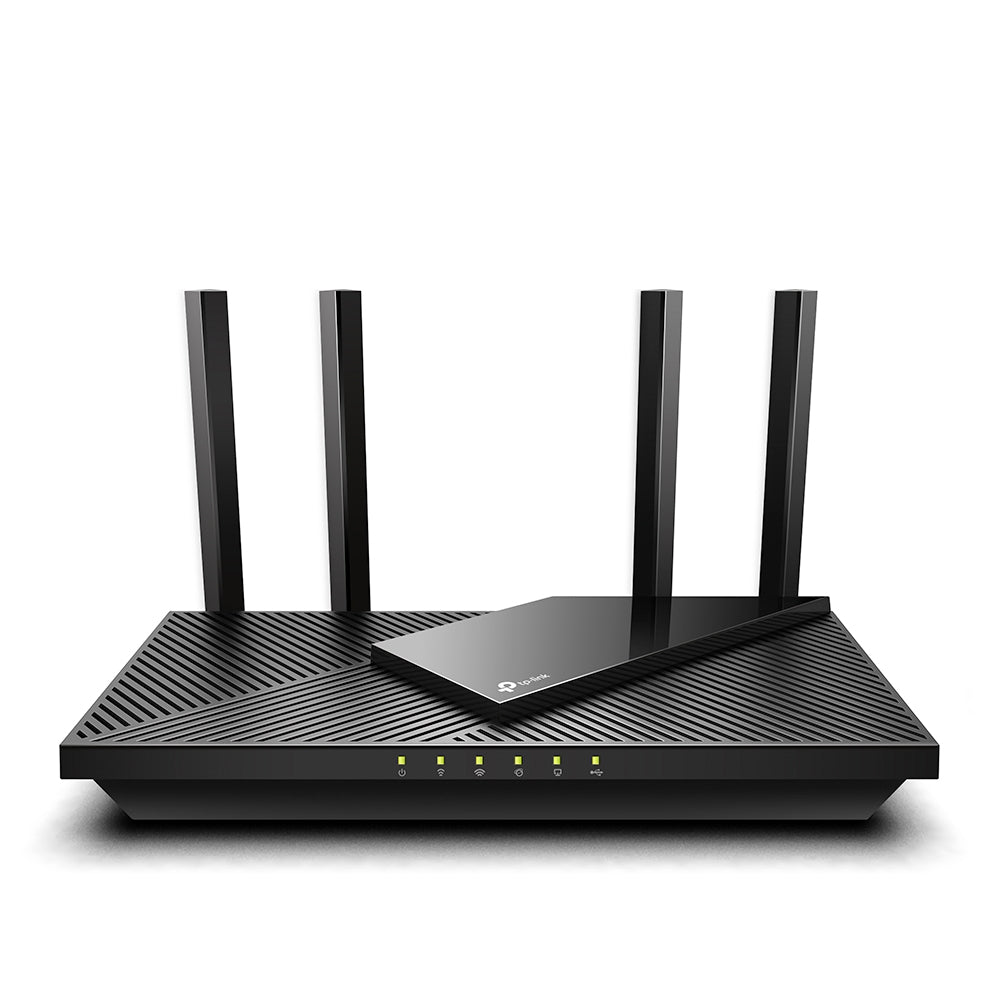

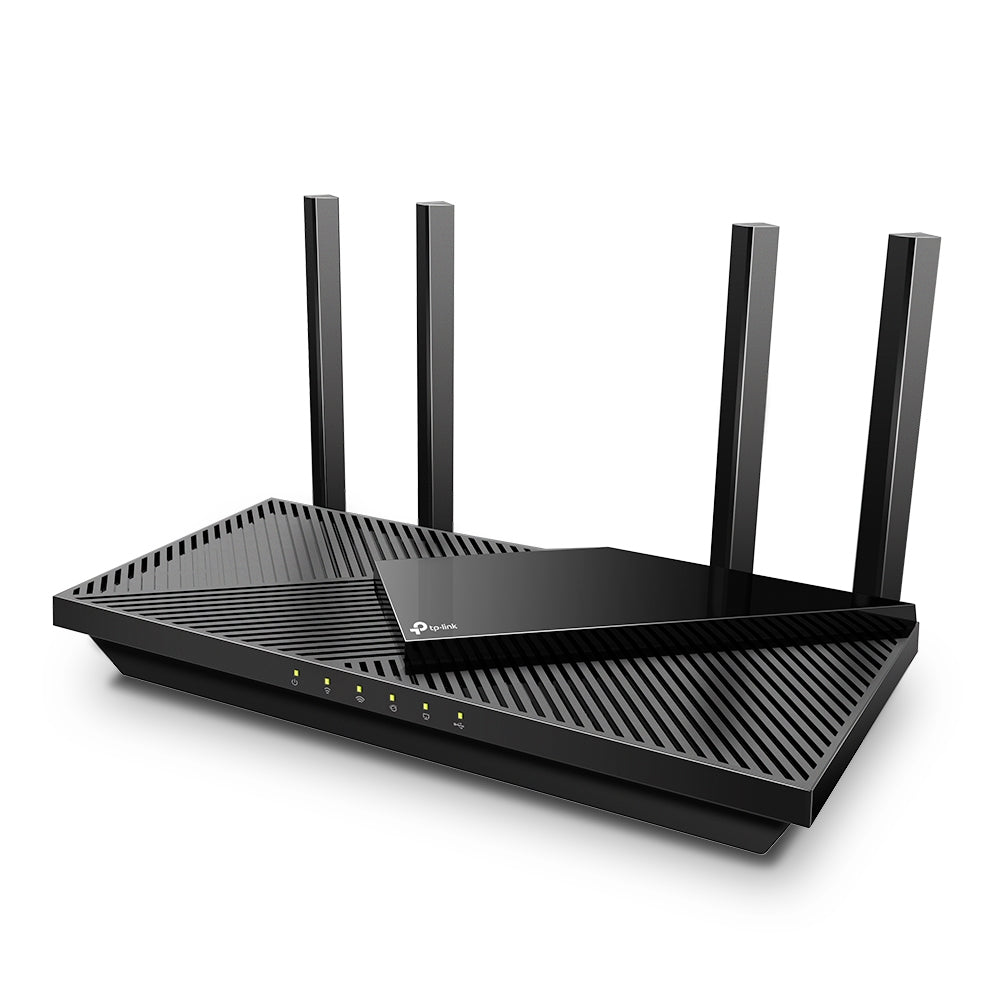

Archer AX55
AX3000 Dual Band Gigabit Wi-Fi 6 Router
- Next-Gen Gigabit Wi-Fi 6 Speed—2402 Mbps on 5 GHz and 574 Mbps on 2.4 GHz band ensure smoother streaming and faster downloads.
- Connect More Devices—OFDMA technology increases capacity by 4 times to enable simultaneous transmission to more devices.
- Ultra-Low Latency—Enables more responsive gaming and video chatting.
- Expanded Wi-Fi Coverage—Four high-gain external antennas and Beamforming technology combine to extend strong, reliable Wi-Fi throughout your home.
- TP-Link HomeShield - Enhanced security defends against the latest cyber threats.
- Improved Battery Life—Target Wake Time helps your devices to communicate more while consuming less power.
- Compatible with Alexa—Control your router via voice commands and make your life smarter and easier with Amazon Alexa.
- Supports OneMesh™ to form seamless whole-home coverage, preventing drops and lag when moving between signals.
| TP-Link Archer AX55 AX3000 Wi-Fi 6 Router Specifications | |
|---|---|
| Wireless | |
| Standards and Protocols | Wi-Fi 6 (802.11ax) IEEE 802.11ax/ac/n/a (5 GHz), IEEE 802.11ax/n/b/g (2.4 GHz) |
| WiFi Speeds | AX3000 • 5 GHz: 2402 Mbps (HE160) • 2.4 GHz: 574 Mbps |
| WiFi Range | 3 Bedroom Houses 4× Fixed High-Performance Antennas Beamforming High-Power FEM |
| WiFi Capacity | High Dual-Band OFDMA Airtime Fairness DFS 4 Streams |
| Working Modes | Router Mode, Access Point Mode |
| Security | |
| Network Security | HomeShield Security • Real-Time IoT Protection • Malicious Site Blocker • Intrusion Prevention System • DDoS Attack Prevention • Home Network Scanner |
| Guest Network | 1× 5 GHz, 1× 2.4 GHz |
| VPN Server | OpenVPN, PPTP |
| VPN Client | OpenVPN, PPTP, L2TP |
| WiFi Encryption | WPA/WPA2-Personal, WPA2/WPA3-Personal, WPA/WPA2-Enterprise |
| Hardware | |
| Processor | Dual-Core CPU |

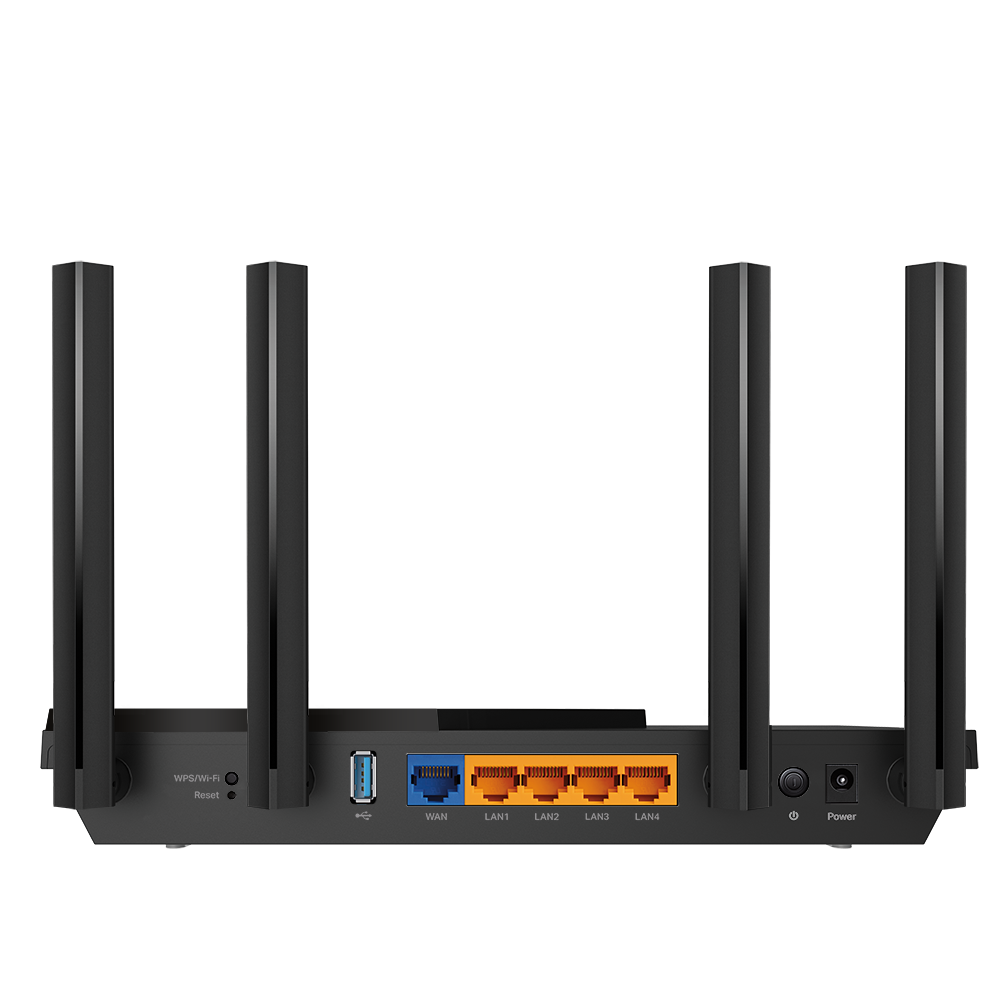

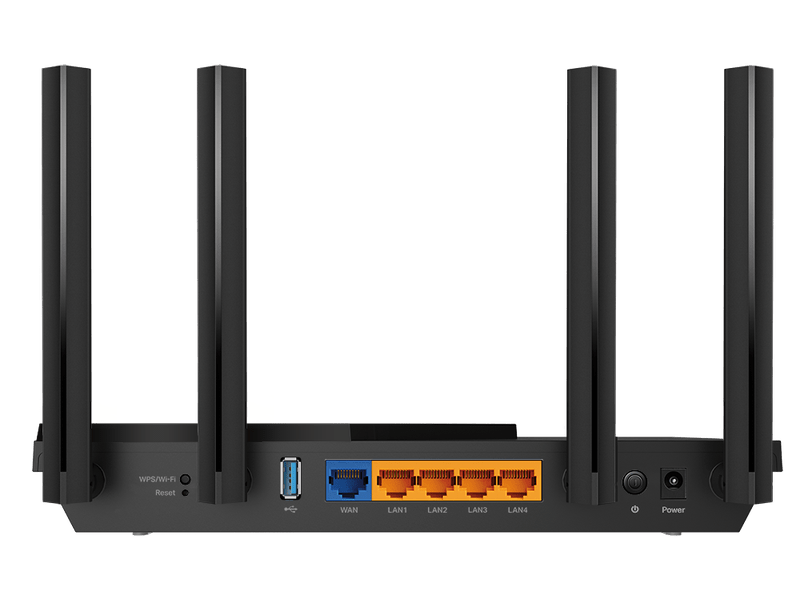

| Ethernet Ports | 1× Gigabit WAN, 4× Gigabit LAN |
| USB Support | 1× USB 3.0 Port |
| Buttons | Wi-Fi/WPS, Power, Reset |
| Power | 12 V ⎓ 2 A |
| Software | |
| Protocols | IPv4, IPv6 |
| Service Kits | HomeShield |
| OneMesh™ | Supported |
| EasyMesh | Compatible |
| Parental Controls | • Custom Profiles • Content Filter Library • Family Time, Bedtime, Off Time • Time Rewards • Online Time Ranking • Pause Internet • Weekly/Monthly Reports |
| WAN Types | Dynamic IP, Static IP, PPPoE, PPTP, L2TP |
| Quality of Service | QoS by Device |
| Cloud Service | Auto Firmware Upgrade, OTA Upgrade, TP-Link ID, DDNS |
| NAT Forwarding | Virtual Servers, Port Forwarding, Port Triggering, DMZ, UPnP |
| IPTV | IGMP Proxy, IGMP Snooping, Bridge, Tag VLAN |
| DHCP | Address Reservation, Client List, Server |
| DDNS | TP-Link, NO-IP, DynDNS |
| Management Features | Tether App, Webpage |
| Other | |
| System Requirements | • JavaScript-enabled browser: IE 11+, Firefox 12+, Chrome 20+, Safari 4+ • Cable or DSL Modem (if needed) • ISP Subscription (for internet access) |
| Certifications | FCC, CE, RoHS |
| Environment | • Operating Temperature: 0–40°C (32–104°F) • Operating Humidity: 10%–90% RH (non-condensing) |
| Test Data | |
| WiFi Transmission Power |
CE: • <20 dBm (2.4 GHz) • <23 dBm (5.15–5.35 GHz) • <30 dBm (5.47–5.725 GHz) FCC: • <30 dBm (2.4 GHz & 5.15–5.825 GHz) |
| WiFi Reception Sensitivity |
2.4 GHz: • 11ac VHT20 MCS0: −96 dBm • 11ac VHT20 MCS8: −74 dBm • 11ax HE20 MCS11: −66 dBm • 11ax HE40 MCS11: −63 dBm 5 GHz: • 11ac VHT160 MCS9: −63 dBm • 11ax HE160 MCS11: −58 dBm |
| Physical | |
| Dimensions (W × D × H) | 261.1 × 134.5 × 41.0 mm (10.2 × 5.3 × 1.5 in) |
| Package Contents | • Archer AX55 Wi-Fi Router • Power Adapter • RJ45 Ethernet Cable • Quick Installation Guide |
