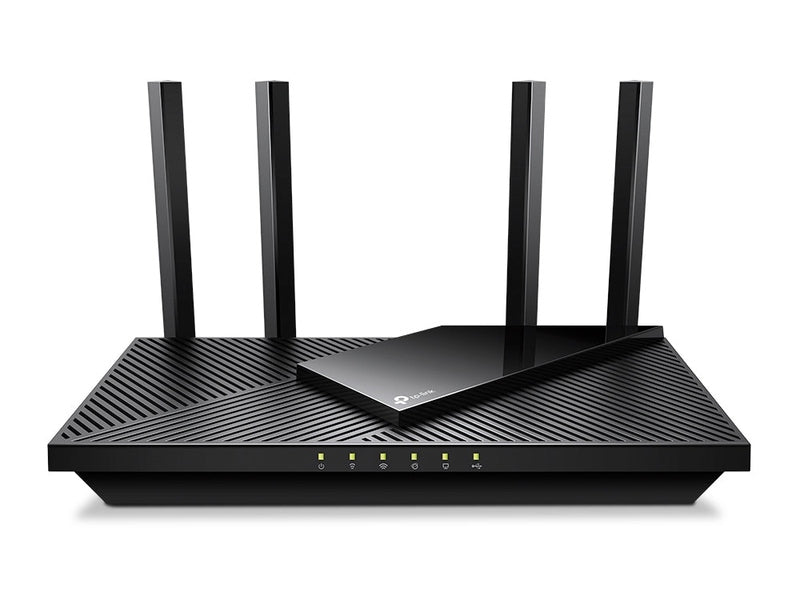

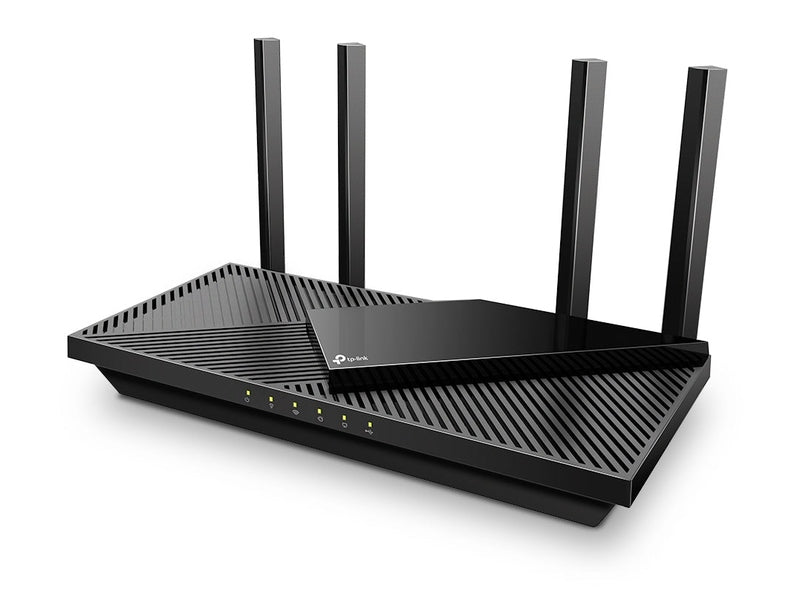

Archer AX55 Pro
AX3000 Multi-Gigabit Wi-Fi 6 Router with 2.5G Port
- Faster Dual-Band AX3000 Wi-Fi: Up to 3.0 Gbps (2402 Mbps + 574 Mbps) Wi-Fi for faster browsing, streaming and downloading, all at the same time.
- 2.5G Multi-Gigabit Port: 1× 2.5 Gbps WAN/LAN port + 1× 1 Gbps WAN/LAN port + 3× Gigabit LAN ports + 1× USB 3.0 port ensure max flexibility and boosted throughput.
- Maximised Coverage: Four high-gain antennas equipped with Beamforming ensure vast coverage.
- Connect More Devices: OFDMA technology increases capacity by 4 times to enable simultaneous transmission to more devices.‡
- VPN Client Supported: Allow devices in your home network to access remote VPN servers without needing to install VPN software on every device.
- TP-Link HomeShield: Enhanced security defends against the latest cyber threats.△
- TP-Link OneMesh Supported: Flexibly Create Whole Home Wi-Fi with Archer AX55 Pro by adding a OneMesh supported Range Extender.
- Compatible with Alexa: Control your router via voice commands and make your life smarter and easier with Amazon Alexa.
Archer AX55 Pro
AX3000 Multi-Gigabit Wi-Fi 6 Router with 2.5G Port
- Faster Dual-Band AX3000 Wi-Fi: Up to 3.0 Gbps (2402 Mbps + 574 Mbps) Wi-Fi for faster browsing, streaming and downloading, all at the same time.
- 2.5G Multi-Gigabit Port: 1× 2.5 Gbps WAN/LAN port + 1× 1 Gbps WAN/LAN port + 3× Gigabit LAN ports + 1× USB 3.0 port ensure max flexibility and boosted throughput.
- Maximised Coverage: Four high-gain antennas equipped with Beamforming ensure vast coverage.
- Connect More Devices: OFDMA technology increases capacity by 4 times to enable simultaneous transmission to more devices.‡
- VPN Client Supported: Allow devices in your home network to access remote VPN servers without needing to install VPN software on every device.
- TP-Link HomeShield: Enhanced security defends against the latest cyber threats.△
- TP-Link OneMesh Supported: Flexibly Create Whole Home Wi-Fi with Archer AX55 Pro by adding a OneMesh supported Range Extender.
- Compatible with Alexa: Control your router via voice commands and make your life smarter and easier with Amazon Alexa.
| TP-Link Archer AX55 Pro Specifications | |
|---|---|
| Wireless | |
| Standards and Protocols | Wi-Fi 6 • IEEE 802.11ax/ac/n/a (5 GHz) • IEEE 802.11ax/n/b/g (2.4 GHz) |
| WiFi Speeds | AX3000 • 5 GHz: 2402 Mbps (802.11ax, HE160) • 2.4 GHz: 574 Mbps (802.11ax) |
| WiFi Range | 3 Bedroom Houses • 4× Fixed High-Performance Antennas • Beamforming • High-Power FEM |
| WiFi Capacity | High • Dual-Band • OFDMA • Airtime Fairness • DFS • 4 Streams |
| Working Modes | Router Mode, Access Point Mode |
| Security | |
| Network Security | SPI Firewall Access Control IP & MAC Binding Application Layer Gateway |
| HomeShield Security | Real-Time IoT Protection Malicious Site Blocker Intrusion Prevention System DDoS Attack Prevention Home Network Scanner |
| Guest Network | • 1× 5 GHz • 1× 2.4 GHz |
| VPN Server | OpenVPN, PPTP, L2TP |
| VPN Client | OpenVPN, PPTP, L2TP |
| WiFi Encryption | WPA3*, WPA2, WPA, WPA/WPA2-Enterprise (802.1x) |
| Hardware | |
| Ethernet Ports | • 1× 2.5 Gbps WAN/LAN • 1× Gigabit WAN/LAN • 3× Gigabit LAN |
| USB Support | 1× USB 3.0 Partition Formats: NTFS, exFAT, HFS+, FAT32 Functions: Apple Time Machine, FTP Server, Media Server, Samba Server |
| Buttons | Wi-Fi/WPS, Power On/Off, Reset |
| Power | • 12 V / 2 A (US) • 12 V / 1.5 A (EU) |
| Software | |
| Protocols | IPv4, IPv6 |
| Service Kits | HomeShield |
| OneMesh™ | Supported |
| EasyMesh | Supported |
| Parental Controls | HomeShield Parental Controls • Custom Profiles • Content Filter Library • Family Time, Bedtime, Off Time • Time Rewards • Online Time Ranking • Pause Internet • Weekly/Monthly Reports |
| WAN Types | Dynamic IP, Static IP, PPPoE, PPTP, L2TP |
| Quality of Service | QoS by Device |
| Cloud Service | Auto & OTA Firmware Upgrade, TP-Link ID, DDNS |
| NAT Forwarding | Port Forwarding, Triggering, DMZ, UPnP |
| IPTV | IGMP Proxy, Snooping, Bridge, Tag VLAN |
| DHCP | Reservation, Client List, Server |
| DDNS | TP-Link, NO-IP, DynDNS |
| Management Features | Tether App, Webpage |
| Other | |
| System Requirements | IE 11+, Firefox 12+, Chrome 20+, Safari 4+ JavaScript-enabled browser Cable/DSL modem ISP subscription |
| Certifications | FCC, CE, RoHS |
| Environment | Operating Temp: 0–40°C (32–104°F) Operating Humidity: 10–90% non-condensing |
| Test Data | |
| WiFi Transmission Power | • CE: <20dBm (2.4GHz), <23dBm (5.15–5.35GHz), <30dBm (5.47–5.725GHz) • FCC: <30dBm (2.4GHz), <30dBm (5.15–5.25GHz & 5.725–5.850GHz), <24dBm (5.25–5.725GHz) |
| WiFi Reception Sensitivity | • 2.4 GHz: MCS0 −97dBm to MCS11 −63dBm • 5 GHz: MCS0 −97dBm to MCS11 −58dBm (HE160) |
| Physical | |
| Dimensions (W × D × H) | 261.1 × 134.5 × 41.0 mm (10.2 × 5.3 × 1.5 in) |
| Package Content | • Archer AX55 Pro Router • Power Adapter • RJ45 Ethernet Cable • Quick Installation Guide |
