Description
Overview
Archer AXE75
AXE5400 Tri-Band Gigabit Wi-Fi 6E Router
- AXE5400 Tri-Band – AXE5400 Tri-Band Wi-Fi delivers Wi-Fi speeds up to 5400 Mbps.
- Cutting-Edge Processing – Armed with a 1.7 GHz Quad-Core CPU.
- SuperSpeed USB 3.0 – Up to 10× faster transfer speeds than USB 2.0.
- Wi-Fi 6E Unleashed – The brand new 6 GHz band brings more bandwidth, faster speeds, and near-zero latency.
- HomeShield – Customise your home network with enhanced security and control.
- OneMesh™ – Creates a Mesh network by connecting to a TP-Link OneMesh Extender for seamless whole-home coverage.
- Connect More Devices—OFDMA technology increases capacity by 4 times to enable simultaneous transmission to more devices.
- Ultra-Low Latency—Enables more responsive gaming and video chatting.
- Compatible with Alexa—Control your router via voice commands and make your life smarter and easier with Amazon Alexa.
Archer AXE75
AXE5400 Tri-Band Gigabit Wi-Fi 6E Router
- AXE5400 Tri-Band – AXE5400 Tri-Band Wi-Fi delivers Wi-Fi speeds up to 5400 Mbps.
- Cutting-Edge Processing – Armed with a 1.7 GHz Quad-Core CPU.
- SuperSpeed USB 3.0 – Up to 10× faster transfer speeds than USB 2.0.
- Wi-Fi 6E Unleashed – The brand new 6 GHz band brings more bandwidth, faster speeds, and near-zero latency.
- HomeShield – Customise your home network with enhanced security and control.
- OneMesh™ – Creates a Mesh network by connecting to a TP-Link OneMesh Extender for seamless whole-home coverage.
- Connect More Devices—OFDMA technology increases capacity by 4 times to enable simultaneous transmission to more devices.
- Ultra-Low Latency—Enables more responsive gaming and video chatting.
- Compatible with Alexa—Control your router via voice commands and make your life smarter and easier with Amazon Alexa.
TP-Link Archer AXE75 AXE5400 Wi-Fi 6E Router Specifications | |
---|---|
Wireless | |
Standards and Protocols | • IEEE 802.11ax (6 GHz) • IEEE 802.11ax/ac/n/a (5 GHz) • IEEE 802.11ax/n/b/g (2.4 GHz) |
WiFi Speeds | AXE5400 • 6 GHz: 2402 Mbps • 5 GHz: 2402 Mbps • 2.4 GHz: 574 Mbps |
WiFi Range | • 2–3 Bedroom Houses • 6× Fixed High-Performance Antennas • Beamforming • High-Power FEM |
WiFi Capacity | • Very High • Tri-Band • OFDMA • Airtime Fairness • DFS • 6 Streams |
Working Modes | Router Mode, Access Point Mode |
Security | |
Network Security | SPI Firewall, Access Control, IP & MAC Binding, Application Layer Gateway |
HomeShield Security | • Real-Time IoT Protection • Malicious Site Blocker • Intrusion Prevention System • DDoS Attack Prevention • Home Network Scanner |
Guest Network | 6 GHz, 5 GHz, 2.4 GHz |
VPN Server | OpenVPN, PPTP, L2TP |
VPN Client | OpenVPN, PPTP, L2TP |
WiFi Encryption | WPA, WPA2, WPA3, WPA/WPA2-Enterprise (802.1x) |
Hardware | |
Processor | 1.7 GHz Quad-Core CPU |

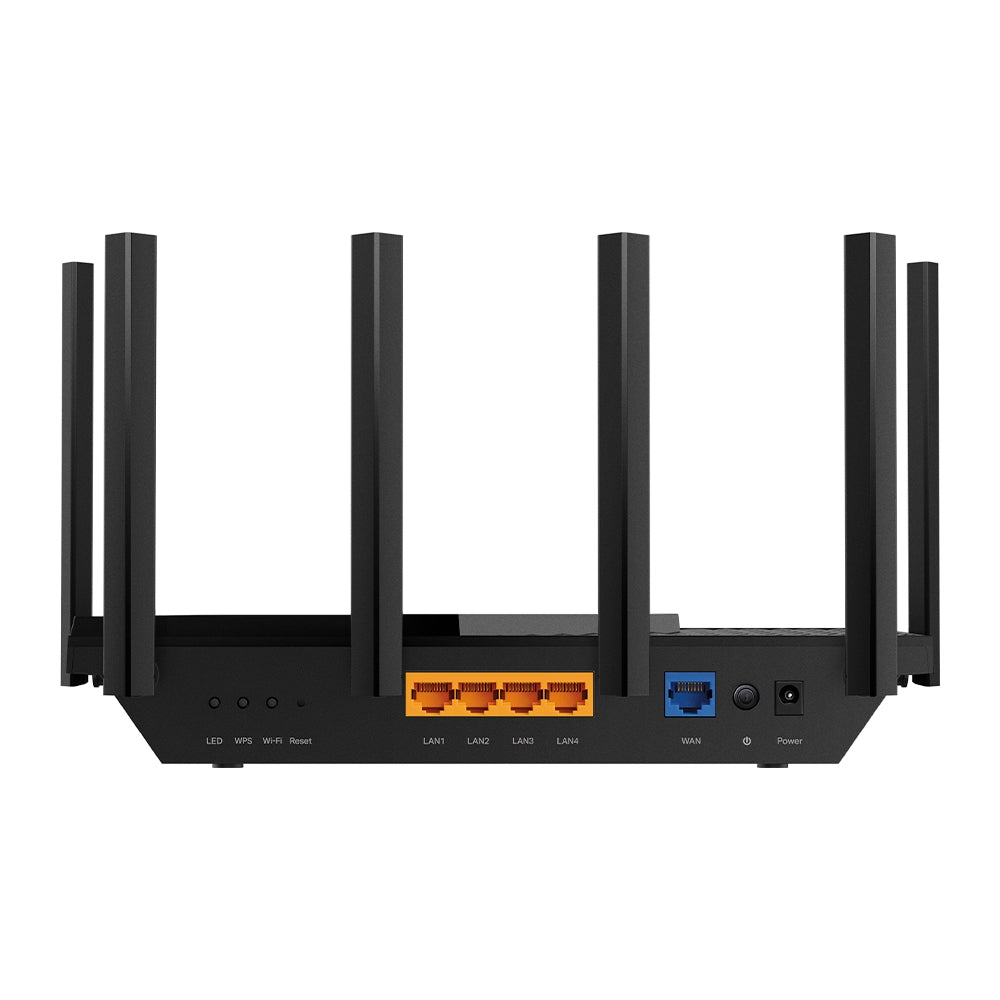

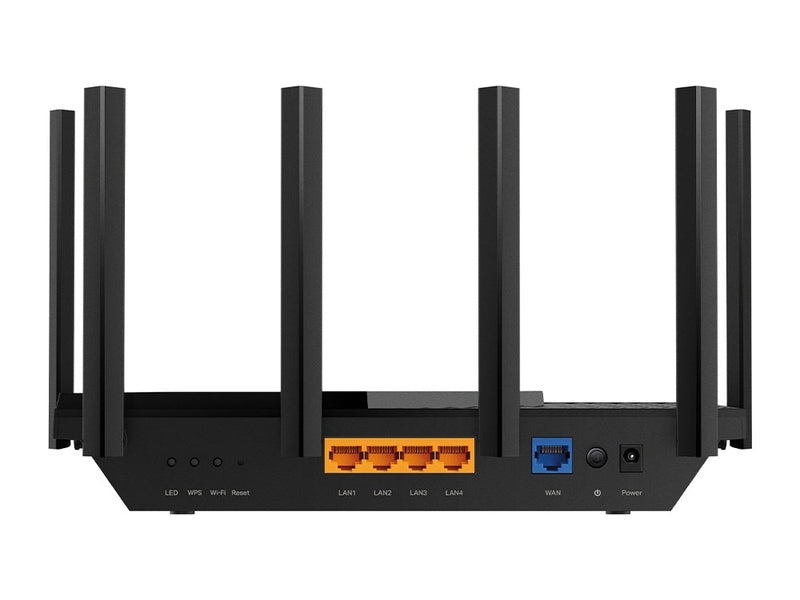

Ethernet Ports | 1× Gigabit WAN, 4× Gigabit LAN |
USB Support | • 1× USB 3.0 • Partition Formats: NTFS, exFAT, HFS+, FAT32 • Functions: Apple Time Machine, FTP Server, Media Server, Samba Server |
Buttons | Wi-Fi, Power, LED, WPS, Reset |
Power | 12 V ⎓ 2.5 A |
Software | |
Protocols | IPv4, IPv6 |
Service Kits | HomeShield |
OneMesh™ | Supported |
EasyMesh | Compatible |
Parental Controls | • Custom Profiles • Content Filter Library • Family Time, Bedtime, Off Time • Time Rewards • Online Time Ranking • Pause Internet • Weekly/Monthly Reports |
WAN Types | Dynamic IP, Static IP, PPPoE, PPTP, L2TP |
Quality of Service | QoS by Device |
Cloud Service | Auto Firmware Upgrade, TP-Link ID, DDNS |
NAT Forwarding | Port Forwarding, Port Triggering, DMZ, UPnP, Virtual Server |
IPTV | IGMP Proxy, IGMP Snooping, Bridge, Tag VLAN |
DHCP | Address Reservation, Client List, Server |
DDNS | TP-Link, NO-IP, DynDNS |
Management Features | Tether App, Webpage |
Network Services Enabled by Default | |
Web Server | Manage via HTTP/HTTPS – Port: 80/443, Protocol: TCP |
DNS | DNS Service – Port: 53, Protocol: TCP & UDP |
DHCP Server | IP Address Assignment – Port: 67, Protocol: UDP |
App Management | • Port: 20001, Protocol: TCP • Port: 30001, Protocol: TCP • Port: 20002, Protocol: UDP |
System Requirements | |
Browser Compatibility | IE 11+, Firefox 12+, Chrome 20+, Safari 4+, or other JavaScript-enabled browsers |
Connectivity | Cable or DSL Modem (if needed), ISP Subscription (for internet access) |
Certifications & Environment | |
Certifications | FCC, RoHS |
Operating Temperature | 0℃ ~ 40℃ (32℉ ~ 104℉) |
Operating Humidity | 10% ~ 90% RH (non-condensing) |
Test Data | |
WiFi Transmission Power | • FCC: ≤29 dBm (2.4 GHz), ≤28 dBm (5 GHz), ≤22 dBm (6 GHz) • CE: ≤17 dBm (2.4 GHz), ≤27 dBm (5 GHz), ≤20 dBm (6 GHz) |
WiFi Reception Sensitivity |
2.4 GHz: HE20 MCS0: −95 dBm, HE20 MCS11: −64 dBm HE40 MCS0: −92 dBm, HE40 MCS11: −62 dBm 5 GHz: HE20 MCS0: −94 dBm, HE20 MCS11: −63 dBm HE40 MCS0: −91 dBm, HE40 MCS11: −60 dBm HE80 MCS0: −88 dBm, HE80 MCS11: −57 dBm HE160 MCS0: −85 dBm, HE160 MCS11: −54 dBm 6 GHz: HE20 MCS0: −93 dBm, HE20 MCS11: −62 dBm HE40 MCS0: −90 dBm, HE40 MCS11: −59 dBm HE80 MCS0: −87 dBm, HE80 MCS11: −56 dBm HE160 MCS0: −84 dBm, HE160 MCS11: −53 dBm |
Physical | |
Dimensions (W × D × H) | 272.5 × 147.2 × 49.2 mm (10.7 × 5.8 × 1.9 in) |
Package Contents | • Archer AXE75 Wi-Fi Router • Power Adapter • RJ45 Ethernet Cable • Quick Installation Guide |
