Description
Overview

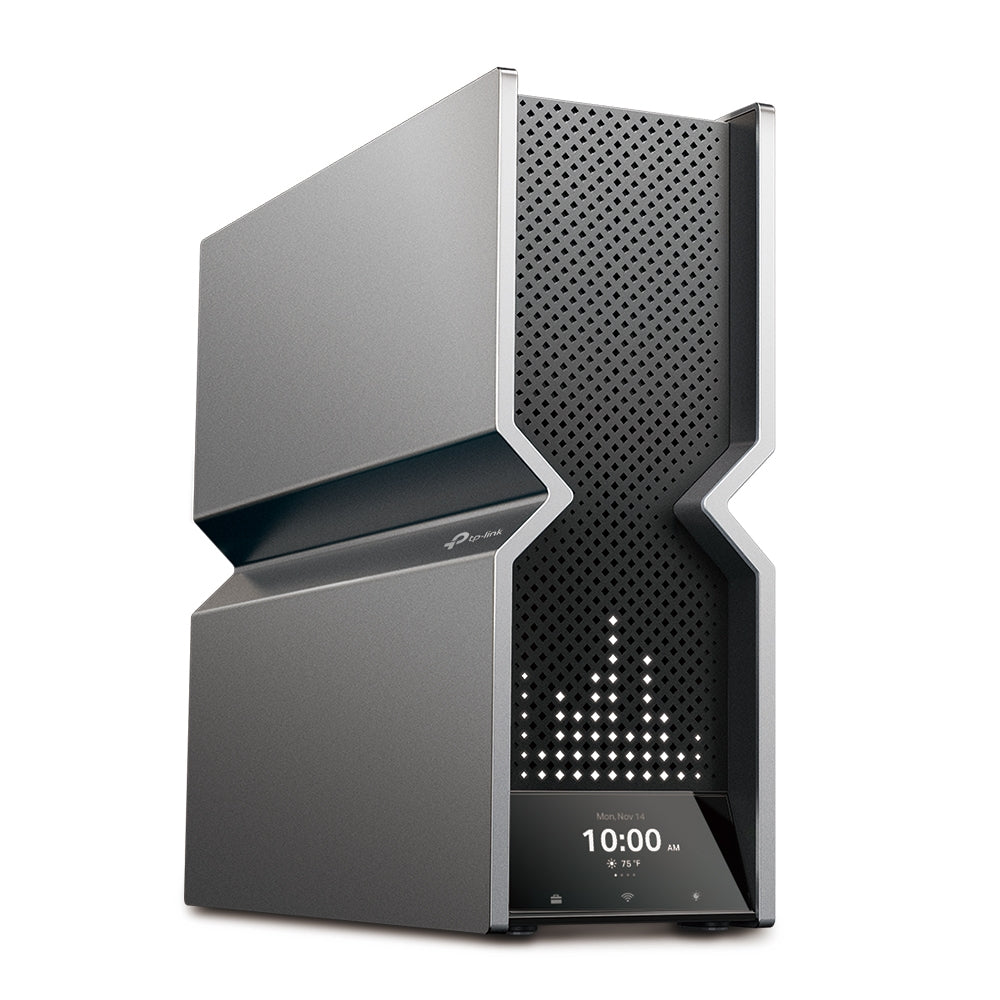

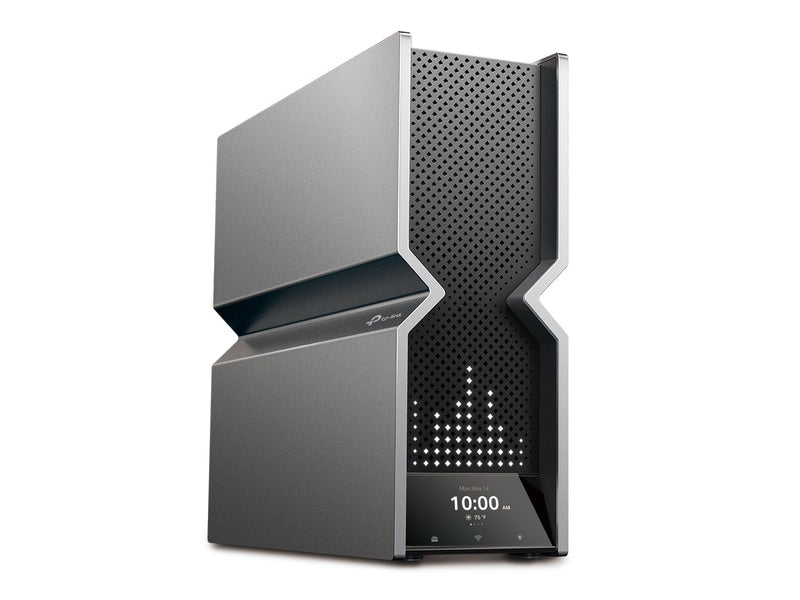

Archer BE900
BE24000 Quad-Band Wi-Fi 7 Router
- Redefining Wi-Fi Routers: With powerful Wi-Fi 7 performance, lightning-fast wired connections, brand-new design, and easy-to-use touchscreen and LED screen.
- Lightning-Fast 24.4 Gbps Quad-Band Wi-Fi 7: Enables your devices to run at full speed. Enjoy fluent 4K/8K streaming, immersive AR/VR gaming, and unbelievably fast downloads.†‡
- Dual 10G Ports: 1× 10 Gbps Ethernet/Fiber Combo WAN/LAN port + 1× 10 Gbps WAN/LAN port + 4× 2.5 Gbps ports + 1× 1 Gbps port + 2× USB ports ensure max flexibility and boosted throughput.§
- Maximised Coverage: Proprietary Wi-Fi optimization and 12× optimally positioned antennas along with Beamforming deliver more capacity, stronger and more reliable connections, and less interference.
- EasyMesh-Compatible: Works with EasyMesh routers and range extenders to form seamless whole home Mesh Wi-Fi, preventing drops and lag when moving between signals.*****
- TP-Link HomeShield: Enhanced security defends against the latest cyber threats.*
- Easy and Fun to Use: Conveniently manage everything with the Tether app and touchscreen. Visually display the time, weather, and playful graphics with the LED screen.
*The 160MHz bandwidth may be unavailable in the 5 GHz band in some regions/countries due to regulatory restrictions.
Archer BE900
BE24000 Quad-Band Wi-Fi 7 Router
- Redefining Wi-Fi Routers: With powerful Wi-Fi 7 performance, lightning-fast wired connections, brand-new design, and easy-to-use touchscreen and LED screen.
- Lightning-Fast 24.4 Gbps Quad-Band Wi-Fi 7: Enables your devices to run at full speed. Enjoy fluent 4K/8K streaming, immersive AR/VR gaming, and unbelievably fast downloads.†‡
- Dual 10G Ports: 1× 10 Gbps Ethernet/Fiber Combo WAN/LAN port + 1× 10 Gbps WAN/LAN port + 4× 2.5 Gbps ports + 1× 1 Gbps port + 2× USB ports ensure max flexibility and boosted throughput.§
- Maximised Coverage: Proprietary Wi-Fi optimization and 12× optimally positioned antennas along with Beamforming deliver more capacity, stronger and more reliable connections, and less interference.
- EasyMesh-Compatible: Works with EasyMesh routers and range extenders to form seamless whole home Mesh Wi-Fi, preventing drops and lag when moving between signals.*****
- TP-Link HomeShield: Enhanced security defends against the latest cyber threats.*
- Easy and Fun to Use: Conveniently manage everything with the Tether app and touchscreen. Visually display the time, weather, and playful graphics with the LED screen.
*The 160MHz bandwidth may be unavailable in the 5 GHz band in some regions/countries due to regulatory restrictions.
TP-Link Archer BE900 BE24000 Wi-Fi 7 Router Specifications | |
---|---|
Wireless | |
WiFi Speeds | BE24000 • 6 GHz: 11520 Mbps • 5 GHz-1: 5760 Mbps • 5 GHz-2: 5760 Mbps • 2.4 GHz: 1376 Mbps *160 MHz bandwidth may be unavailable in the 5 GHz band in some regions due to regulations. |
WiFi Range | • 4 Bedroom Houses • 12× Optimally Positioned Antennas • Beamforming • High-Power FEM |
WiFi Capacity | • Very High • Quad-Band • 4×4 MU-MIMO • OFDMA • Airtime Fairness • DFS • 16 Streams |
Working Modes | Router Mode, Access Point Mode |
Advanced Features | • 320 MHz Channel • 4K-QAM • EasyMesh-Compatible • Alexa & Google Assistant Support • IoT Network |
Security | |
Network Security | • SPI Firewall • Access Control • IP & MAC Binding • Application Layer Gateway |
HomeShield Security | • Real-Time IoT Protection • Malicious Site Blocker • Intrusion Prevention System • DDoS Attack Prevention • Home Network Scanner |
Guest Network | 6 GHz, 5 GHz-1, 5 GHz-2, 2.4 GHz |
VPN Server | OpenVPN, PPTP, L2TP, WireGuard |
VPN Client | OpenVPN, PPTP, L2TP, WireGuard |
WiFi Encryption | WPA, WPA2, WPA3, WPA/WPA2-Enterprise (802.1x) |
Hardware | |

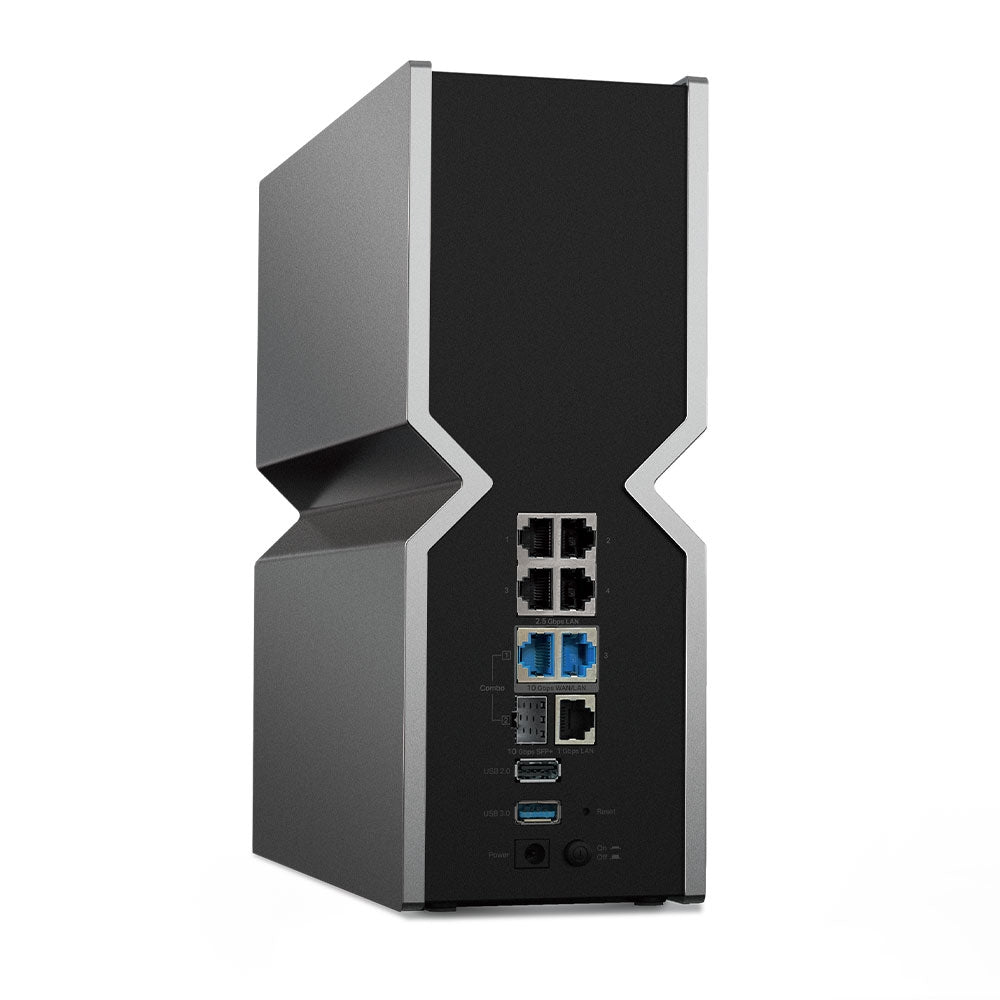

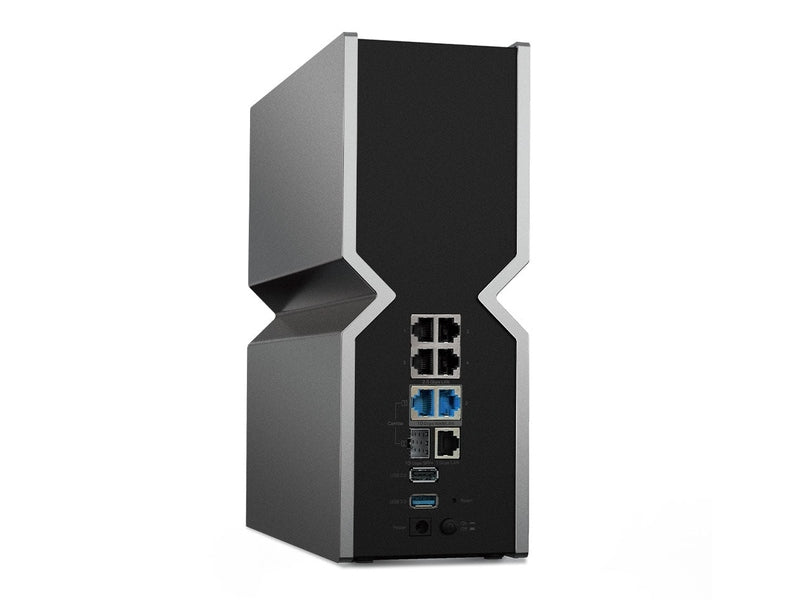

Ethernet Ports | • 1× 10 Gbps WAN/LAN • 1× 10 Gbps SFP+/RJ45 Combo WAN/LAN • 4× 2.5 Gbps LAN • 1× 1 Gbps LAN |
USB Support | • 1× USB 3.0, 1× USB 2.0 • Partition Formats: NTFS, exFAT, HFS+, FAT32 • Functions: FTP Server, Media Server, Samba Server |
Buttons | Power, Wi-Fi, LED, WPS (Touchscreen), Reset |
Power | 15 V ⎓ 5 A |
Touchscreen | Yes |
LED Screen | Yes |
Software | |
Protocols | IPv4, IPv6 |
Service Kit | HomeShield |
EasyMesh | Compatible |
Parental Controls | • Custom Profiles • Content Filter Library • Family Time, Bedtime, Off Time • Time Rewards • Online Time Ranking • Pause Internet • Weekly/Monthly Reports |
WAN Type | Dynamic IP, Static IP, PPPoE, PPTP, L2TP |
Quality of Service | QoS by Device |
Cloud Service | Auto Firmware Upgrade, TP-Link ID, DDNS |
NAT Forwarding | Port Forwarding, Port Triggering, DMZ, UPnP |
IPTV | IGMP Proxy, IGMP Snooping, Bridge, Tag VLAN |
DHCP | Address Reservation, Client List, Server |
DDNS | TP-Link, NO-IP, DynDNS |
Management Features | Tether App, Webpage |
Other | |
System Requirements | • JavaScript-enabled browser: IE 11+, Firefox 12+, Chrome 20+, Safari 4+ • Cable or DSL Modem (if needed) • ISP Subscription (for internet access) |
Certifications | CE, FCC, RoHS |
Environment | • Operating Temperature: 0–40°C (32–104°F) • Operating Humidity: 10%–90% RH (non-condensing) |
Physical | |
Dimensions (W × D × H) | 96 × 302 × 262.5 mm (3.8 × 11.9 × 10.3 in) |
Package Contents | • Archer BE900 Router • Power Adapter • RJ45 Ethernet Cable • Quick Installation Guide |
