Overview

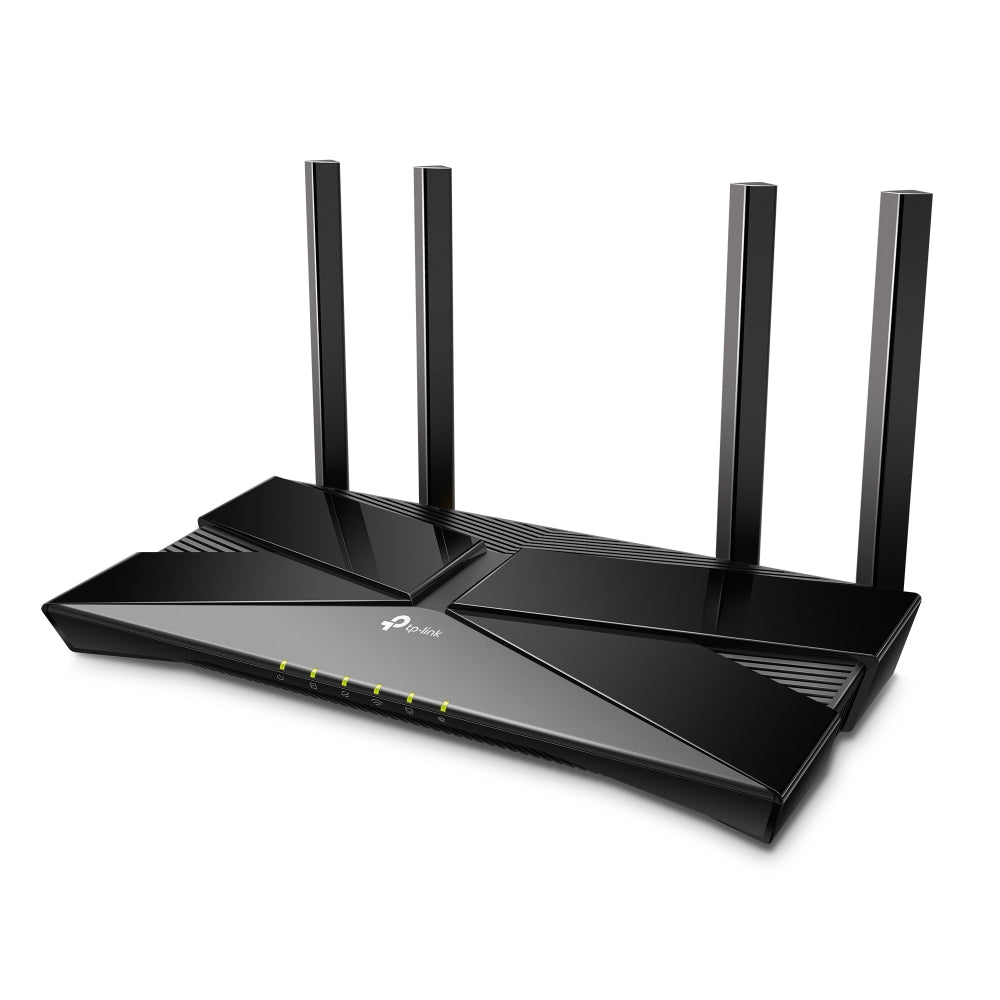

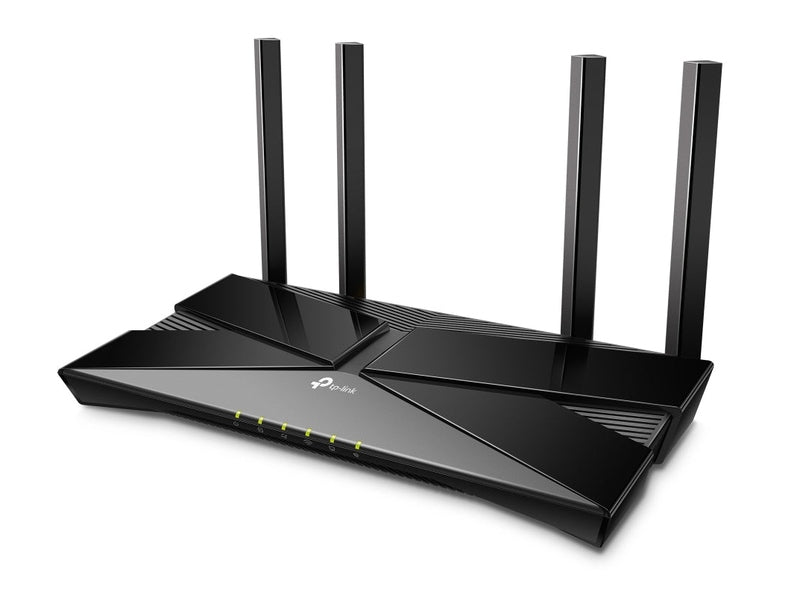

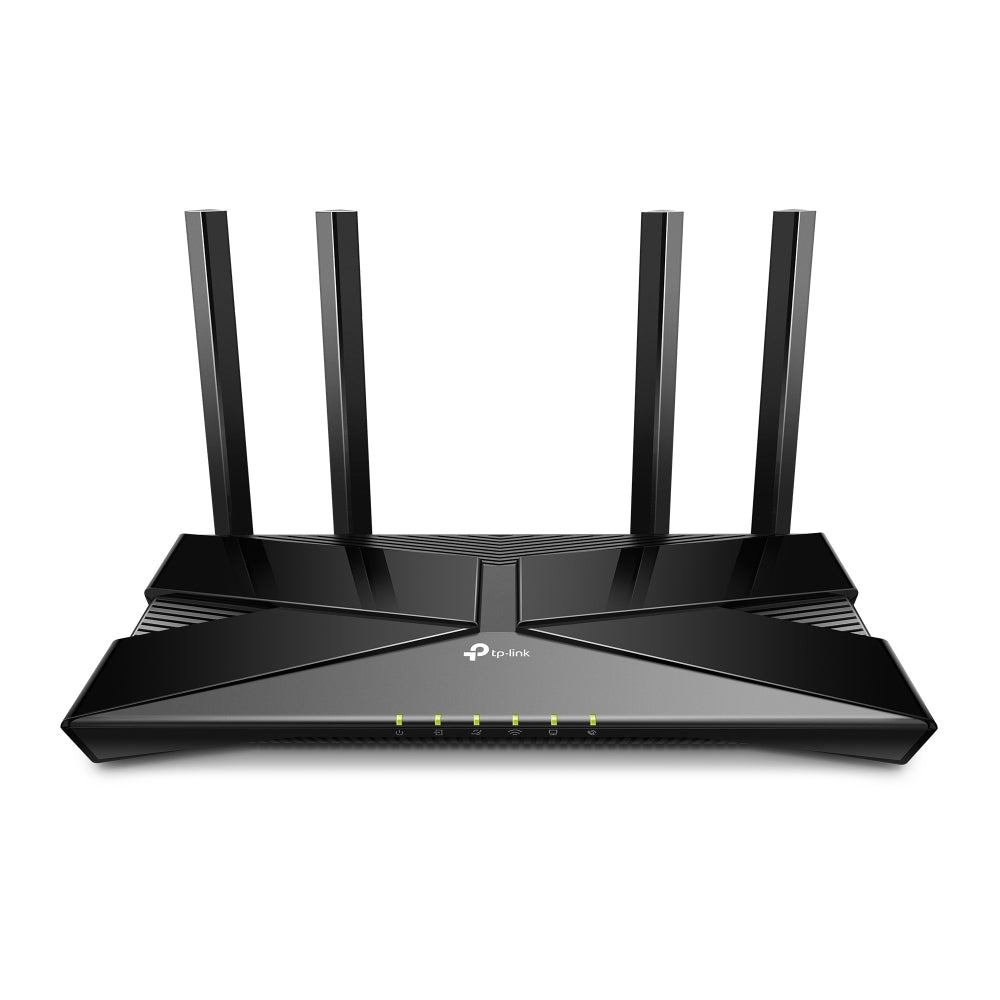

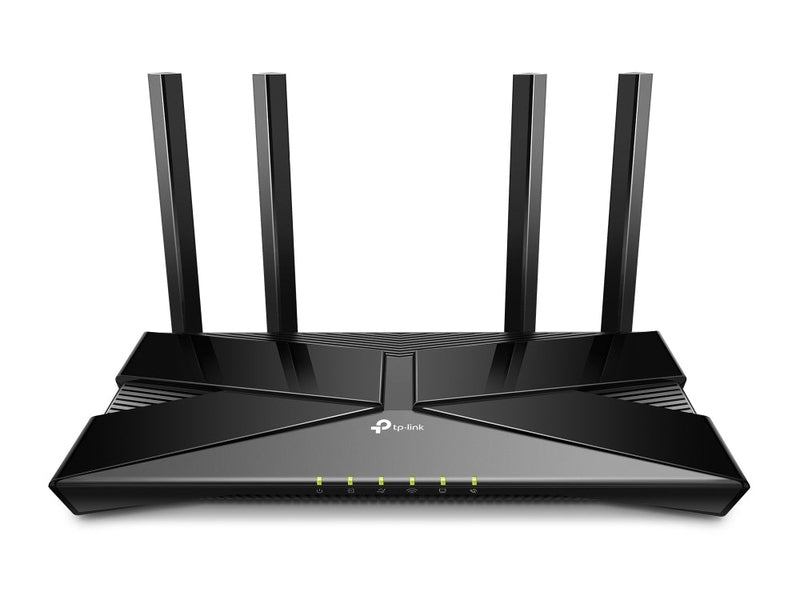

Archer VX1800v
AX1800 Dual-Band Wi-Fi 6 VDSL/ADSL Modem Router
- Super VDSL – The Latest Super VDSL (VDSL2 Profile 35b) tech delivers internet speeds of up to 350Mbps, while G.vector and RNC technology ensure advanced data transmission stability
- Next-Gen Gigabit Wi-Fi 6 Speed - 1201 Mbps on 5 GHz and 574 Mbps on 2.4 GHz band ensure smoother streaming and faster downloads.
- 2×2 MU-MIMO – Simultaneously transfers data to multiple devices for 4x faster performance
- VoIP Support - Support multiple VoIP accounts and various call features to surpass traditional landlines.
- TP-Link Tether App – Easily access and manage your network, including remote control and automatic updates, using any iOS or Android mobile device
- Versatile Connectivity - Fully compatible with VDSL2/ADSL2+/ADSL2/ADSL standards, support Fiber and Cable connection through Ethernet port, as well as 3G/4G internet services through USB port.
Archer VX1800v
AX1800 Dual-Band Wi-Fi 6 VDSL/ADSL Modem Router
- Super VDSL – The Latest Super VDSL (VDSL2 Profile 35b) tech delivers internet speeds of up to 350Mbps, while G.vector and RNC technology ensure advanced data transmission stability
- Next-Gen Gigabit Wi-Fi 6 Speed - 1201 Mbps on 5 GHz and 574 Mbps on 2.4 GHz band ensure smoother streaming and faster downloads.
- 2×2 MU-MIMO – Simultaneously transfers data to multiple devices for 4x faster performance
- VoIP Support - Support multiple VoIP accounts and various call features to surpass traditional landlines.
- TP-Link Tether App – Easily access and manage your network, including remote control and automatic updates, using any iOS or Android mobile device
- Versatile Connectivity - Fully compatible with VDSL2/ADSL2+/ADSL2/ADSL standards, support Fiber and Cable connection through Ethernet port, as well as 3G/4G internet services through USB port.
| TP-Link Archer VX1800v Wi-Fi 6 VDSL/ADSL Modem Router Specifications | |
|---|---|
| Hardware Features | |

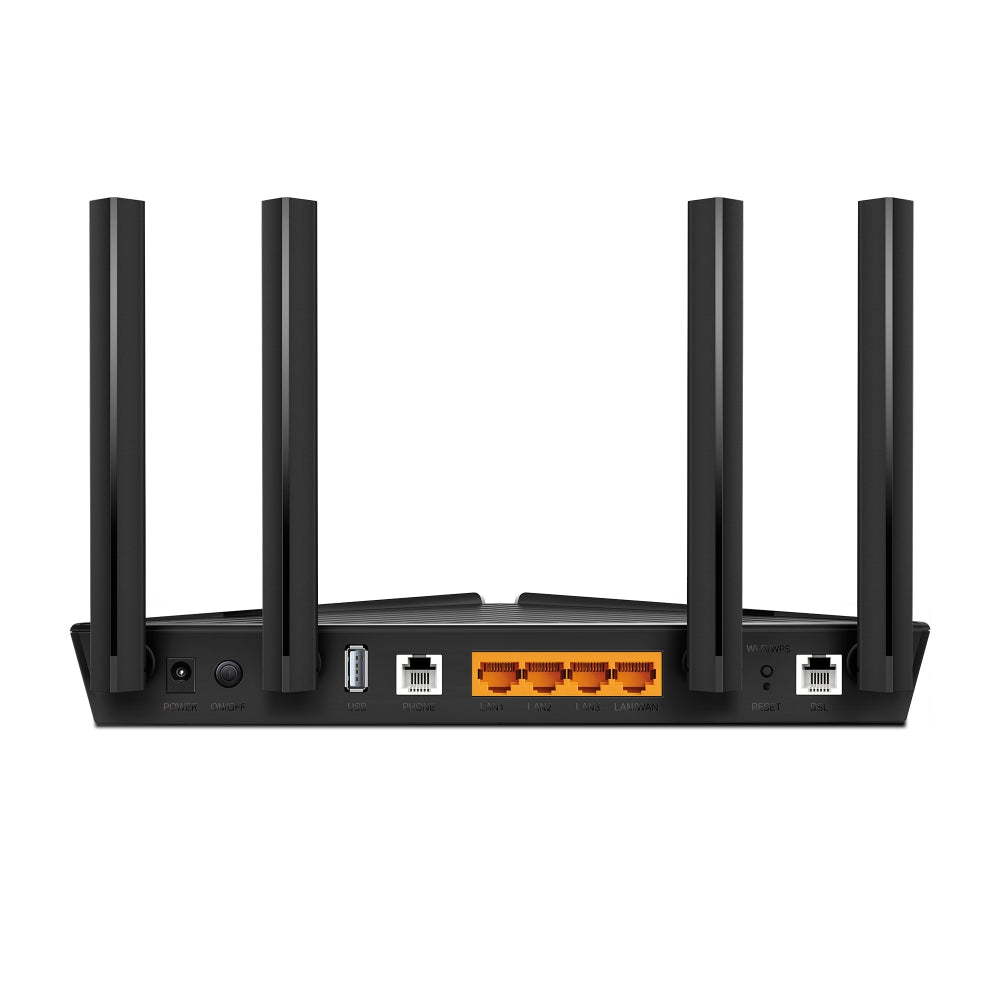

| Interface | 1× Gigabit WAN/LAN, 3× Gigabit LAN, 1× USB 2.0, 2× RJ11 (1× DSL + 1× FXS) |
| External Power Supply | 12V / 1.5A |
| IEEE Standards | IEEE 802.3, 802.3u, 802.3ab |
| VDSL2 Standards | G.993.2, G.993.5 (G.vector), G.998.4 (G.INP) |
| ADSL Standards | ANSI T1.413 Issue 2, G.992.1 (G.DMT), G.992.2 (G.Lite), G.994.1 (G.hs), G.995.11 |
| ADSL2 Standards | G.992.3 (G.DMT.bis), G.992.4 (G.lite.bis) |
| ADSL2+ Standards | G.992.5 (Annex A/B/L/M) |
| Dimensions (W × D × H) | 260.2 × 135.0 × 41.6 mm |
| Antenna | 4× External Antennas |
| Wireless Features | |
| Wireless Standards | IEEE 802.11ax/ac/n/a (5 GHz), IEEE 802.11ax/n/b/g (2.4 GHz) |
| Wireless Speeds | 1201 Mbps (5 GHz), 574 Mbps (2.4 GHz) |
| Frequency | 2.4 GHz and 5 GHz |
| Wireless Functions | Enable/Disable Wireless Radio, WMM |
| Wireless Security | WPA2-PSK, WPA3-Personal, WPA2-Enterprise, WPA/WPA2-Enterprise |
| Transmission Power | CE: <20 dBm (2.4 GHz), <23 dBm (5.15–5.25 GHz) |
| Wireless Schedule | Supports 2.4 GHz and 5 GHz Wireless Schedule |
| VoIP Features | |
| VoIP Standards | SIP (RFC3261), RTP (RFC1889/3550), G.711A/u, G.722, G.729AB, G.726 |
| Integrated Answering Machine | Internal storage or USB-based voice message storage |
| Advanced Telephone Functions | Call Forwarding, Transfer, Callback on Busy, Blocking, Anonymous Call Block, Speed Dial, Emergency Number |
| Software Features | |
| Advanced Features | IPTV, Parental Controls, NAT, Port Mapping, Static Routing, RIP v1/v2, DNS Relay, DDNS, IGMP v1/v2/v3 |
| Security | NAT Firewall, SPI Firewall, Access Control, Service Filtering, DoS Protection, IP & MAC Binding |
| Operating Modes | VDSL/ADSL Modem Router, 3/4G Router, Wireless Router |
| Management Features | Access Control, Local & Remote Management |
| DHCP | Server, Client List, Address Reservation |
| Port Forwarding | Port Forwarding, Triggering, UPnP, DMZ |
| Dynamic DNS | DynDNS, NO-IP, TP-Link |
| VPN | OpenVPN, PPTP, IPSec VPN (up to 10 tunnels) |
| Protocols | IPv4, IPv6 |
| ATM/PPP Protocols | ATM UNI3.1/4.0, PPPoA, PPPoE, IPoA, Bridge (RFC1483), up to 8 PVCs |
| USB Sharing | Samba, FTP Server, Media Server, 3G/4G Modem, SFTP, Web Storage |
| Guest Network | 2.4 GHz and 5 GHz |
| Others | |
| Certification | CE, RoHS |
| Package Contents | • Archer VX1800v Modem Router • External Splitter • RJ11 DSL Cable • RJ45 Ethernet Cable • Power Adapter • Quick Installation Guide |
| System Requirements | • JavaScript-enabled browser: IE 11+, Firefox 12+, Chrome 20+, Safari 4+ • Cable or DSL Modem (if needed) • ISP Subscription (for internet access) |
| Environment | • Operating Temperature: 0–40°C (32–104°F) • Storage Temperature: −40–60°C (−40–140°F) • Operating Humidity: 10%–90% RH (non-condensing) • Storage Humidity: 5%–90% RH (non-condensing) |
