Description
Overview

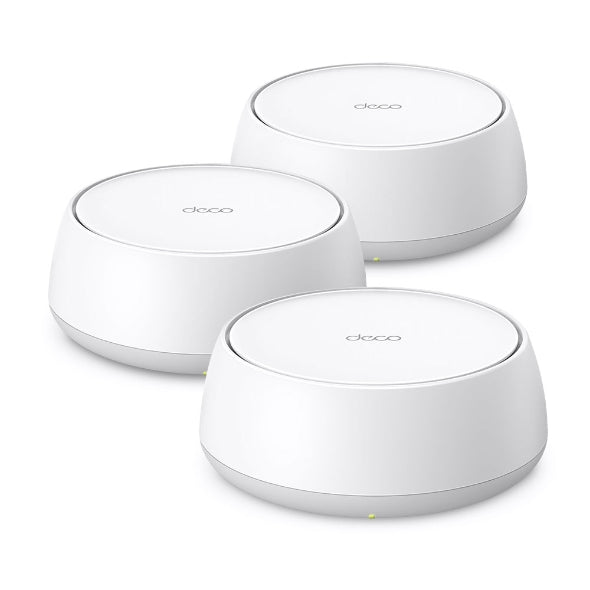

Deco BE22
BE3600 Whole Home Mesh Wi-Fi 7 System
- 3.6 Gbps Dual-Band Wi-Fi – 2882 Mbps (5 GHz) + 688 Mbps (2.4 GHz).†
- Gigabit Wired Connections – 2× 1.0 Gbps ports ensure max flexibility and boosted throughput.§
- Wireless and Wired Combined Backhaul – Connects a wireless and wired backhaul with each unit simultaneously to improve overall throughput and reduce latency.
- Multi-Link Operation (MLO) – Simultaneously send and receive data across different bands and channels to increase throughput, reduce latency, and improve reliability.△
- Seamless AI-Driven Roaming – Forms a unified network with built-in AI-Roaming creating the ideal Wi-Fi solution for your home.
- TP-Link HomeShield – Provides comprehensive network protection, robust parental controls, and real-time IoT security.*
- Universal Compatibility – Backward compatible with all Wi-Fi generations and works with any internet service provider (ISP) and modem.☆
Deco BE22
BE3600 Whole Home Mesh Wi-Fi 7 System
- 3.6 Gbps Dual-Band Wi-Fi – 2882 Mbps (5 GHz) + 688 Mbps (2.4 GHz).†
- Gigabit Wired Connections – 2× 1.0 Gbps ports ensure max flexibility and boosted throughput.§
- Wireless and Wired Combined Backhaul – Connects a wireless and wired backhaul with each unit simultaneously to improve overall throughput and reduce latency.
- Multi-Link Operation (MLO) – Simultaneously send and receive data across different bands and channels to increase throughput, reduce latency, and improve reliability.△
- Seamless AI-Driven Roaming – Forms a unified network with built-in AI-Roaming creating the ideal Wi-Fi solution for your home.
- TP-Link HomeShield – Provides comprehensive network protection, robust parental controls, and real-time IoT security.*
- Universal Compatibility – Backward compatible with all Wi-Fi generations and works with any internet service provider (ISP) and modem.☆
TP-Link Deco BE22 BE3600 Wi-Fi 7 Mesh System Specifications | |
---|---|
Wireless | |
Standards and Protocols | Wi-Fi 7 IEEE 802.11be/ax/ac/n/a (5 GHz) IEEE 802.11be/ax/n/b/g (2.4 GHz) |
WiFi Speeds | BE3600 • 5 GHz: 2882 Mbps • 2.4 GHz: 688 Mbps |
WiFi Range | • Broader Whole Home Coverage • TP-Link Mesh Technology • Optional Ethernet Backhaul • AI-Driven Mesh Optimization |
Antennas | 4× Internal High-Performance Antennas |
WiFi Capacity | Very High Dual-Band OFDMA 4 Streams |
Working Modes | Router Mode, Access Point Mode |
Advanced Features | Multi-Link Operation (MLO), 160 MHz Channel, 4K-QAM, Multi-RUs, Alexa & Google Assistant Support |
Security | |
Network Security | SPI Firewall, Access Control |
HomeShield Security | Real-Time IoT Protection, Malicious Site Blocker, Intrusion Prevention, DDoS Protection, Network Scanner |
Guest Network | 1× 5 GHz, 1× 2.4 GHz |
Additional Controls | Effective Time, Bandwidth Control |
VPN Server | OpenVPN, PPTP, L2TP/IPSec |
VPN Client | OpenVPN, PPTP, L2TP/IPSec |
WiFi Encryption | WPA, WPA2, WPA3 (Personal) |
Hardware | |

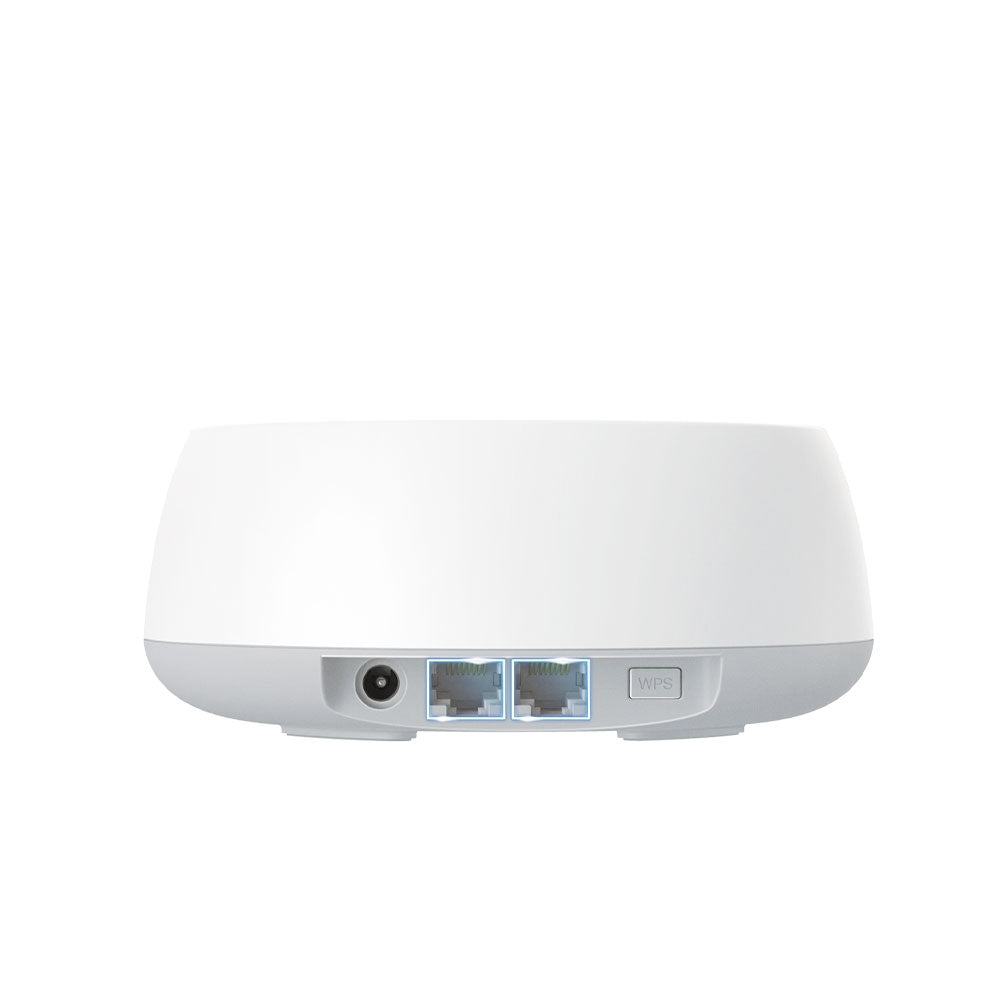

Ethernet Ports | 2× 1 Gbps per Deco Unit Supports WAN/LAN Auto-Sensing |
Buttons | 1× Reset, 1× WPS |
Software | |
Advanced Features | Reboot Schedule, Tapo/Kasa Onboarding, IoT Isolation, Static Routing, Node/Band Preference |
Protocols | IPv4, IPv6 |
Service Kits | HomeShield |
Parental Controls | Youtube Restriction, SafeSearch, Custom Profiles Content Filter Library, Family Time, Bedtime, Off Time Time Rewards, Online Time Ranking, Pause Internet Weekly/Monthly Reports |
WAN Types | Dynamic IP, Static IP, PPPoE, PPTP, L2TP |
Quality of Service | HomeShield QoS, QoS by Device |
Cloud Service | OTA Firmware Upgrade, TP-Link ID, DDNS |
NAT Forwarding | Port Forwarding, UPnP |
IPTV | IGMP Proxy, IGMP Snooping, Bridge, Tag VLAN |
DHCP | Address Reservation, Client List, Server |
DDNS | TP-Link |
Management Features | Deco App |
Network Services Enabled by Default | |
Web Server | HTTP/HTTPS (Port 80/443, TCP) |
DNS | Port 53, TCP & UDP |
DHCP Server | Port 67, UDP |
App Management | • Port 22 (TCP) • Port 20001 (TCP) • Port 30001 (TCP) • Port 20002 (UDP) |
Physical | |
Dimensions (W × D × H) | 150 × 150 × 62 mm (5.91 × 5.91 × 2.44 in) |
Package Contents |
3-Pack: • 3× Deco BE22 Units • 1× RJ45 Ethernet Cable • 3× Power Adapters • Quick Installation Guide 2-Pack: • 2× Deco BE22 Units • 1× RJ45 Ethernet Cable • 2× Power Adapters • Quick Installation Guide 1-Pack: • 1× Deco BE22 Unit • 1× RJ45 Ethernet Cable • 1× Power Adapter • Quick Installation Guide |
Others | |
Certifications | CE, FCC, RoHS |
Environment | • Operating Temperature: 0–40°C (32–104°F) • Storage Temperature: −40–60°C (−40–140°F) • Operating Humidity: 10%–90% RH • Storage Humidity: 5%–90% RH |
