Description
Overview

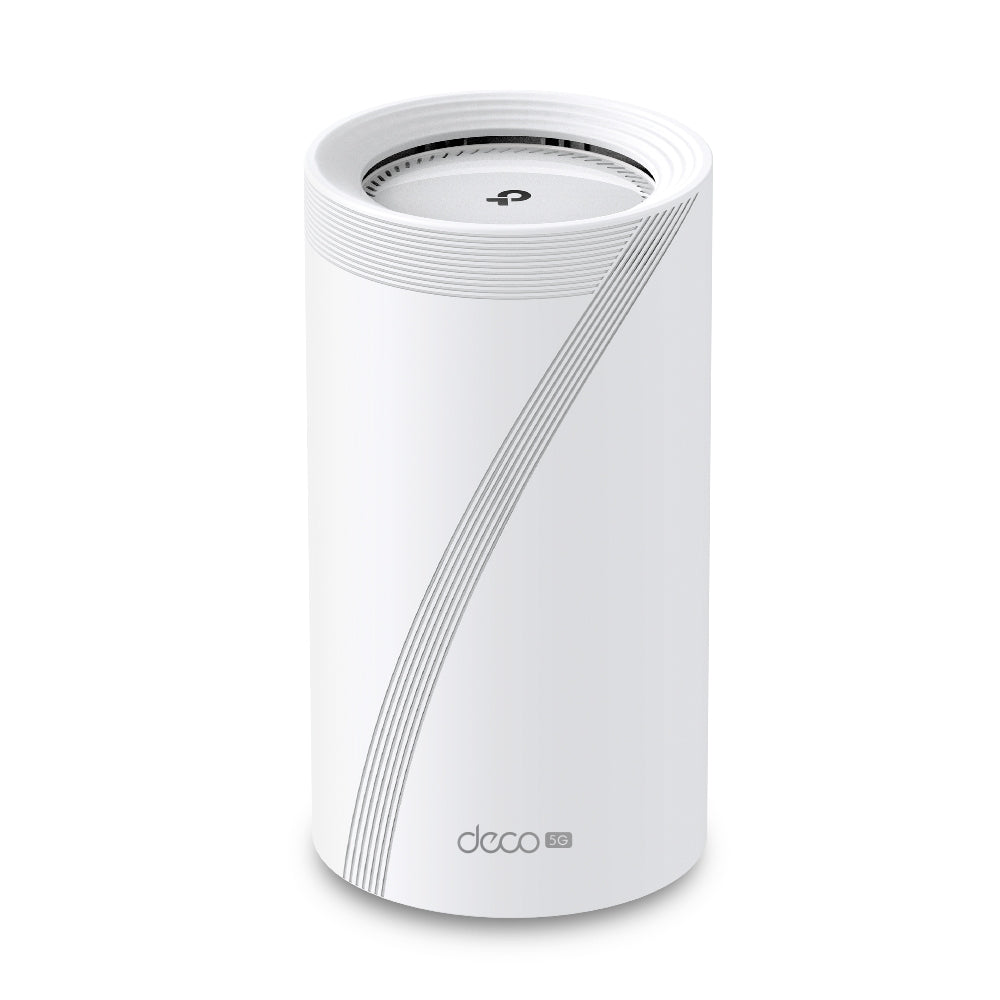

Deco BE65-5G
5G BE9300 Tri-Band Whole Home Mesh Wi-Fi 7 System
- 9214 Mbps Tri-Band Wi-Fi – 5760 Mbps (6 GHz) + 2880 Mbps (5 GHz) + 574 Mbps (2.4 GHz).†
- Ultra-Fast 5G Broadband Connection – Supports Sub-6 GHz 5G technology boosts download speeds up to 3.4 Gbps and brings responsive network connections with only 1 ms latency **
- Plug and Play, Enjoy 5G Network Everywhere – Simple, just plug in one SIM card and get the high-speed internet for your holiday home, farm, or suburban warehouse.
- 2.5 Gbps Wired Connections – 3× 2.5 Gbps ports ensure max flexibility and boosted throughput.§
- Wireless and Wired Combined Backhaul – Connects a wireless and wired backhaul with each unit simultaneously to improve overall throughput and reduce latency.
- Multi-Link Operation (MLO) – Simultaneously send and receive data across different bands and channels to increase throughput, reduce latency, and improve reliability.△
- 320 MHz Channels – Double the bandwidth and enables many more simultaneous transmissions at the fastest possible speeds.△
- Works on the 6 GHz Band – Minimizes congestion with greenfield spectrum, delivering robust high-speed connections.△
- TP-Link HomeShield – Provides comprehensive network protection, robust parental controls, and real-time IoT security.*
- Universal Compatibility – Backward compatible with all Wi-Fi generations and works with any internet service provider (ISP) and modem.☆
Deco BE65-5G
5G BE9300 Tri-Band Whole Home Mesh Wi-Fi 7 System
- 9214 Mbps Tri-Band Wi-Fi – 5760 Mbps (6 GHz) + 2880 Mbps (5 GHz) + 574 Mbps (2.4 GHz).†
- Ultra-Fast 5G Broadband Connection – Supports Sub-6 GHz 5G technology boosts download speeds up to 3.4 Gbps and brings responsive network connections with only 1 ms latency **
- Plug and Play, Enjoy 5G Network Everywhere – Simple, just plug in one SIM card and get the high-speed internet for your holiday home, farm, or suburban warehouse.
- 2.5 Gbps Wired Connections – 3× 2.5 Gbps ports ensure max flexibility and boosted throughput.§
- Wireless and Wired Combined Backhaul – Connects a wireless and wired backhaul with each unit simultaneously to improve overall throughput and reduce latency.
- Multi-Link Operation (MLO) – Simultaneously send and receive data across different bands and channels to increase throughput, reduce latency, and improve reliability.△
- 320 MHz Channels – Double the bandwidth and enables many more simultaneous transmissions at the fastest possible speeds.△
- Works on the 6 GHz Band – Minimizes congestion with greenfield spectrum, delivering robust high-speed connections.△
- TP-Link HomeShield – Provides comprehensive network protection, robust parental controls, and real-time IoT security.*
- Universal Compatibility – Backward compatible with all Wi-Fi generations and works with any internet service provider (ISP) and modem.☆
SPECIFICATIONS |
|
---|---|
WIRELESS |
|
Standards and Protocols |
Wi-Fi 7 IEEE 802.11be/ax 6 GHz IEEE 802.11be/ax/ac/n/a 5 GHz IEEE 802.11ax/n/b/g 2.4 GHz |
WiFi Speeds |
BE9300 6 GHz: 5765 Mbps (802.11be) 5 GHz: 2882 Mbps (802.11be) 2.4 GHz: 574 Mbps (802.11ax) |
WiFi Range |
Broader Whole Home Coverage TP-Link Mesh Technology Optional Ethernet backhaul work together to link Deco units to provide seamless coverage AI-Driven Mesh Intelligently learns the network environment to provide ideal Wi-Fi unique to your home Tri-Band The greenfield 6 GHz band brings more bandwidth and faster speeds |
WiFi Capacity |
Very High Tri-Band Distribute devices to different bands for optimal performance 2×2 MU-MIMO Simultaneously communicates with multiple MU-MIMO clients OFDMA Simultaneously communicates with multiple WiFi 7 clients 6 Streams More than enough bandwidth for connected devices |
Working Modes | Router Mode Access Point Mode |
Advanced Features | • Multi-Link Operation (MLO) • 320 MHz Channel • 4K-QAM • Multi-RUs • Works with Alexa and Google Assistant • IoT Network |
SECURITY |
|
Network Security | SPI Firewall Access Control HomeShield Security Real-Time IoT Protection Malicious Site Blocker Intrusion Prevention System DDoS Attack Prevention Home Network Scanner |
Guest Network | 1× 6 GHz Guest Network 1× 5 GHz Guest Network 1× 2.4 GHz Guest Network |
WiFi Encryption | WPA-Personal WPA2-Personal WPA3-Personal |
HARDWARE |
|

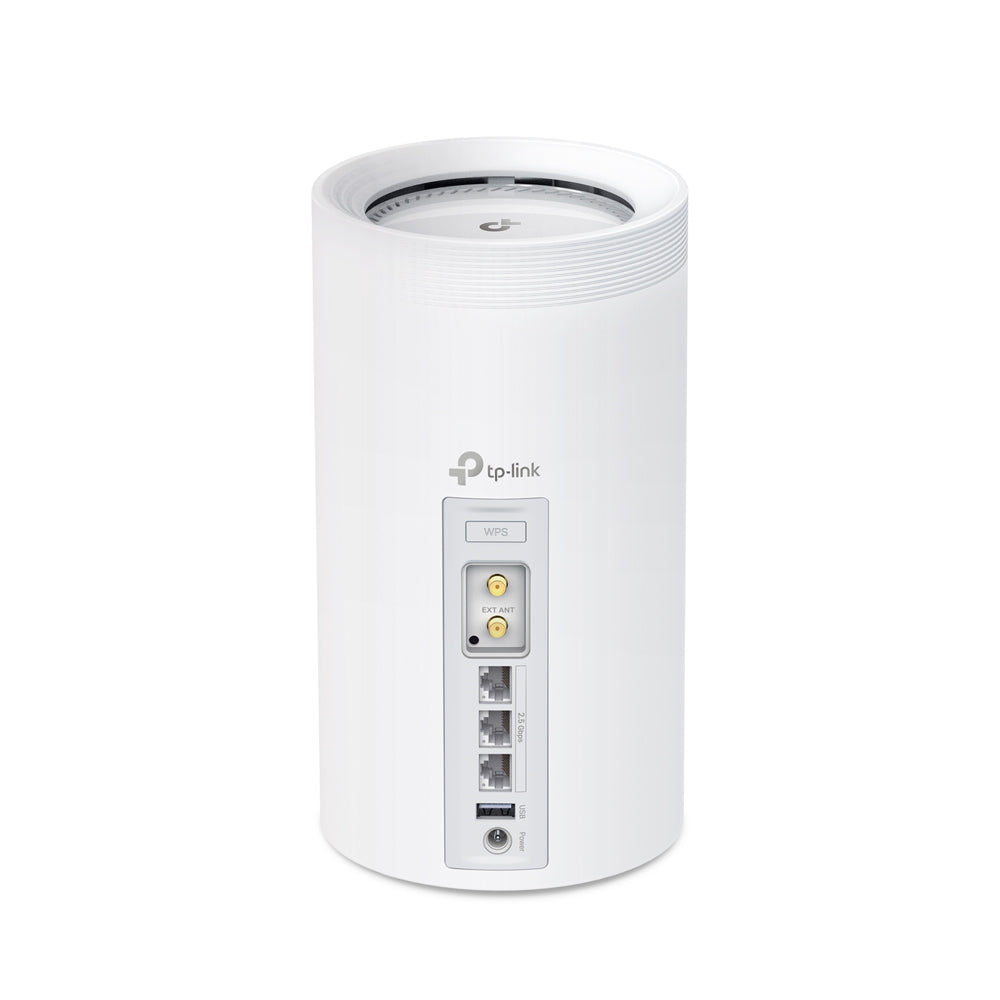

Ethernet Ports | 3× 2.5 Gbps *Per Deco Unit Supports WAN/LAN auto-sensing |
USB Support | 1× USB Port |
Buttons | 1× Reset Button 1× WPS |
Ports and Connections | 2× 5G/4G/3G External SMA-F Antenna Ports Compatibility 5G:n1/n3/n5/n7/n8/n20/n28/n38/n40/n41/n75/n76/n77/n78 4G:B1/B3/B5/B7/B8/B20/B28/B32/B38/B40/B41/B42/B43 3G:B1/B5/B8 |
SOFTWARE |
|
Protocols | IPv4 IPv6 |
Service Kits | HomeShield Learn More> |
Parental Controls |
HomeShield Parental Controls Custom Profiles Professional Content Filter Library Family Time Bedtime Off Time Time Rewards Family Online Time Ranking Pause the Internet Weekly and Monthly Reports |
WAN Types | Dynamic IP Static IP PPPoE PPTP L2TP |
Quality of Service |
HomeShield QoS QoS by Device |
Cloud Service | OTA Firmware Upgrade TP-Link ID DDNS |
NAT Forwarding | Port Forwarding UPnP |
IPTV | IGMP Proxy IGMP Snooping Bridge Tag VLAN |
DHCP | Address Reservation DHCP Client List Server |
DDNS | TP-Link |
Management Features | Deco App |
OTHER |
|
Network Services Enabled by Default |
Web Server Manage and configure device through web (HTTP/HTTPS) • Port: 80/443 Protocol: TCP DNS DNS • Port: 53 Protocol: TCP & UDP DHCP Server IP address assignment (DHCP) • Port: 67 Protocol: UDP App management Manage and configure device through app • Port: 22 Protocol: TCP • Port: 20001 Protocol: TCP • Port: 30001 Protocol: TCP • Port: 20002 Protocol: UDP |
PHYSICAL |
|
Dimensions (W×D×H) | 5.04 × 5.04 × 9.29 in (128 × 128 × 236 mm) |
Package Content |
1-pack 1 Deco BE65-5G Router 1 RJ45 Ethernet Cable 1 Power Adapter Quick Installation Guide |
OTHERS |
|
Certification | CE, RoHS |
Environment | Operating Temperature: 0°C~40°C (32 °F~104 °F) Storage Temperature: -40°C~60°C (-40 °F~140 °F) Operating Humidity: 10%~90% RH Storage Humidity: 5%~90% RH |
