Description
Overview

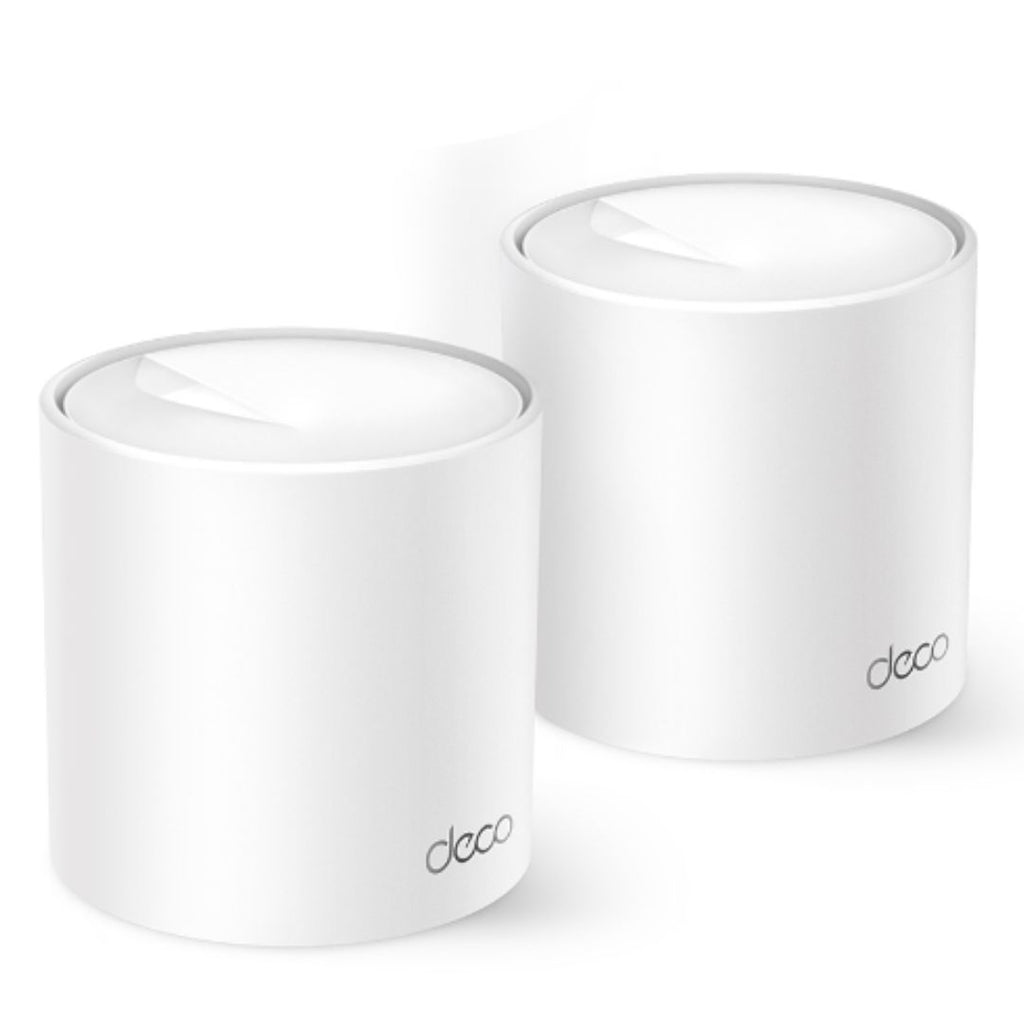

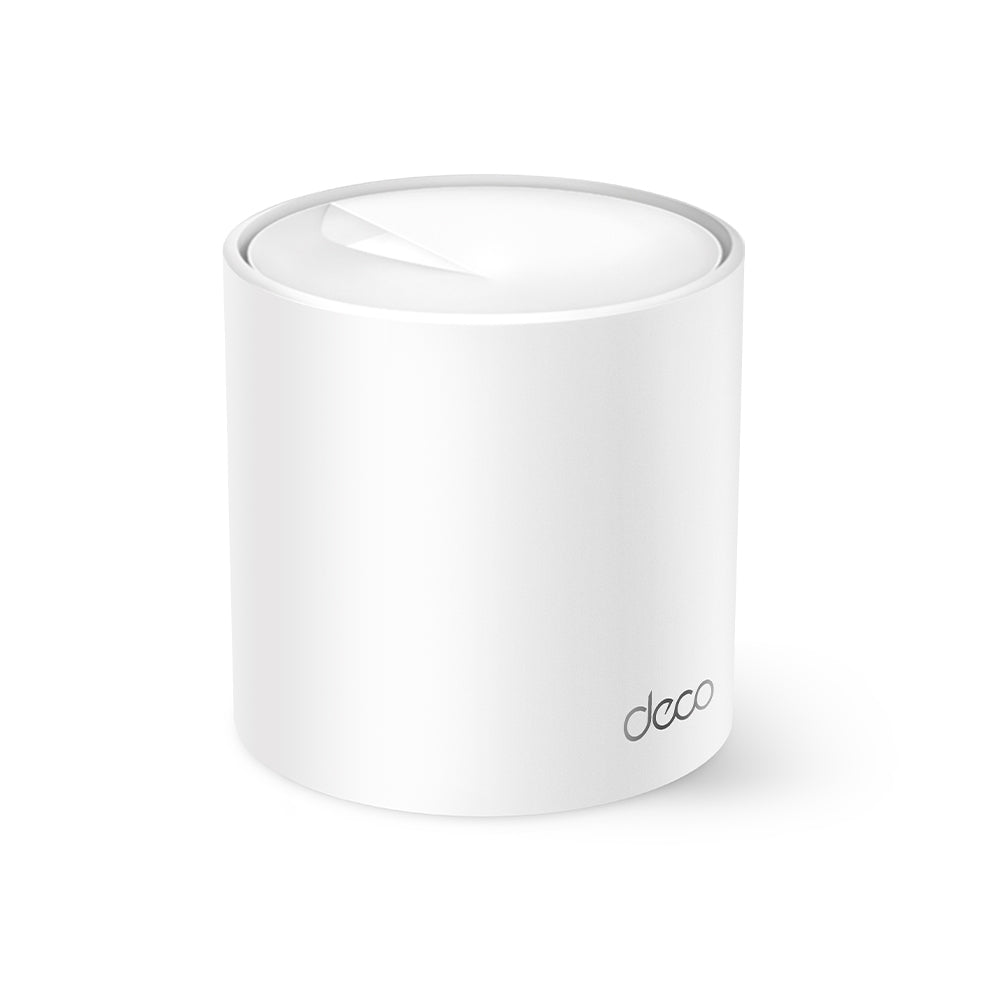

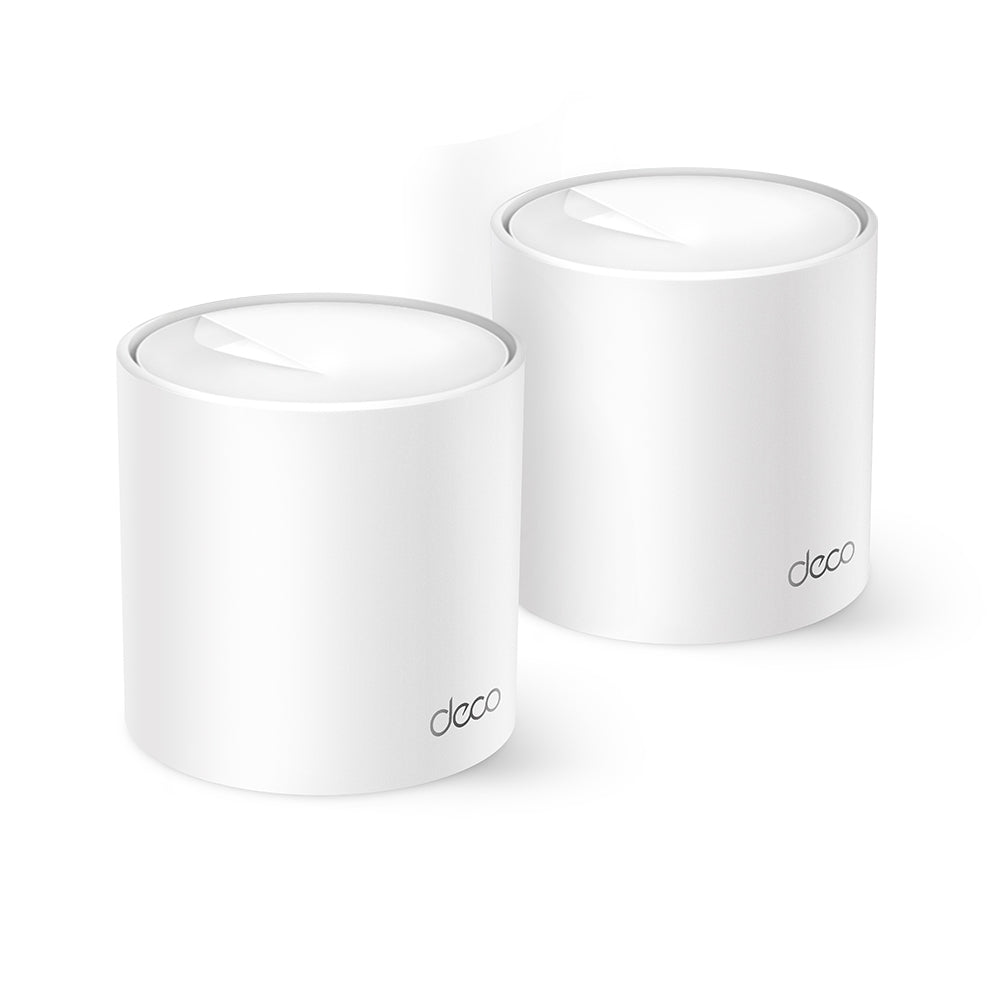

Deco X1500
AX1500 Whole Home Mesh Wi-Fi 6 System
- Faster Connections: Wi-Fi 6 speeds up to 1,500 Mbps—1,201 Mbps on 5 GHz and 300 Mbps on 2.4 GHz.†
- Connect More Devices: OFDMA and MU-MIMO technology quadruple capacity to enable simultaneous transmission to more devices.△
- Boosted Seamless Coverage: Achieve seamless whole home coverage with a clearer and stronger whole home Wi-Fi signal generated by Wi-Fi 6.‡
- Ultra-Low Latency: Greater reduction in latency enables more responsive gaming and video chatting.
- One Unified Network: Multiple units form a whole-home network that auto-selects the best connection as you move around your home.
- Robust Parental Controls – Limit online time and block inappropriate websites according to unique profiles you create for each family member.*
- Setup Made Easier Than Ever: The Deco app walks you through setup step-by-step.
Deco X1500
AX1500 Whole Home Mesh Wi-Fi 6 System
- Faster Connections: Wi-Fi 6 speeds up to 1,500 Mbps—1,201 Mbps on 5 GHz and 300 Mbps on 2.4 GHz.†
- Connect More Devices: OFDMA and MU-MIMO technology quadruple capacity to enable simultaneous transmission to more devices.△
- Boosted Seamless Coverage: Achieve seamless whole home coverage with a clearer and stronger whole home Wi-Fi signal generated by Wi-Fi 6.‡
- Ultra-Low Latency: Greater reduction in latency enables more responsive gaming and video chatting.
- One Unified Network: Multiple units form a whole-home network that auto-selects the best connection as you move around your home.
- Robust Parental Controls – Limit online time and block inappropriate websites according to unique profiles you create for each family member.*
- Setup Made Easier Than Ever: The Deco app walks you through setup step-by-step.
TP-Link Deco X1500 AX1500 Mesh Wi-Fi 6 System Specifications | |
---|---|
Wireless | |
Standards and Protocols | Wi-Fi 6 IEEE 802.11ax/ac/n/a (5 GHz), IEEE 802.11n/b/g (2.4 GHz) |
WiFi Speeds | AX1500 • 5 GHz: 1201 Mbps • 2.4 GHz: 300 Mbps |
WiFi Range | • 1–2 Bedroom Houses (1-pack) • 2–4 Bedroom Houses (2-pack) • 3–5 Bedroom Houses (3-pack) • TP-Link Mesh Technology with optional Ethernet backhaul |
Antenna | 2× Internal Antennas |
Beamforming | Supported |
WiFi Capacity | High Dual-Band 2×2 MU-MIMO OFDMA 4 Streams |
Working Modes | Router Mode, Access Point Mode |
Security | |
Network Security | SPI Firewall, Access Control |
Guest Network | 1× 5 GHz, 1× 2.4 GHz |
WiFi Encryption | WPA-Personal, WPA2-Personal, WPA3-Personal |
Hardware | |
Ethernet Ports | 2× Gigabit Ports per Deco Unit Supports WAN/LAN auto-sensing |
Buttons | Reset Button |
Software | |
Protocols | IPv4, IPv6 |
Parental Controls | • Custom Profiles • Content Filter Library • Family Time, Bedtime, Off Time • Time Rewards • Online Time Ranking • Pause Internet • Weekly/Monthly Reports |
WAN Types | Dynamic IP, Static IP, PPPoE, PPTP, L2TP |
Quality of Service | QoS by Device |
Cloud Service | OTA Firmware Upgrade, TP-Link ID, DDNS |
NAT Forwarding | Port Forwarding, UPnP |
IPTV | IGMP Proxy, IGMP Snooping, Bridge, Tag VLAN |
DHCP | Address Reservation, Client List, Server |
DDNS | TP-Link |
Management Features | Deco App |
Network Services Enabled by Default | |
Web Server | HTTP/HTTPS (Port 80/443, TCP) |
DNS | Port 53, TCP & UDP |
DHCP Server | Port 67, UDP |
App Management | • Port 22 (TCP) • Port 20001 (TCP) • Port 30001 (TCP) • Port 20002 (UDP) |
Test Data | |
WiFi Transmission Power |
CE: • <20 dBm (2.4 GHz) • <30 dBm (5 GHz) FCC: • <30 dBm (2.4 GHz & 5 GHz) |
Physical | |
Dimensions (W × D × H) | 110 × 110 × 114 mm (4.33 × 4.33 × 4.49 in) |
Package Contents |
3-Pack: • 3× Deco X1500 Units • 1× RJ45 Ethernet Cable • 3× Power Adapters • Quick Installation Guide 2-Pack: • 2× Deco X1500 Units • 1× RJ45 Ethernet Cable • 2× Power Adapters • Quick Installation Guide 1-Pack: • 1× Deco X1500 Unit • 1× RJ45 Ethernet Cable • 1× Power Adapter • Quick Installation Guide |
Others | |
System Requirements | Android 5.0 or later, iOS 9.0 or later *Minimum requirements may change with app updates |
Certifications | CE, FCC, RoHS, JPA, JRF, VCCI, NCC, BSMI |
Environment | • Operating Temperature: 0–40°C (32–104°F) • Storage Temperature: −40–60°C (−40–140°F) • Operating Humidity: 10%–90% RH (non-condensing) • Storage Humidity: 5%–90% RH (non-condensing) |
