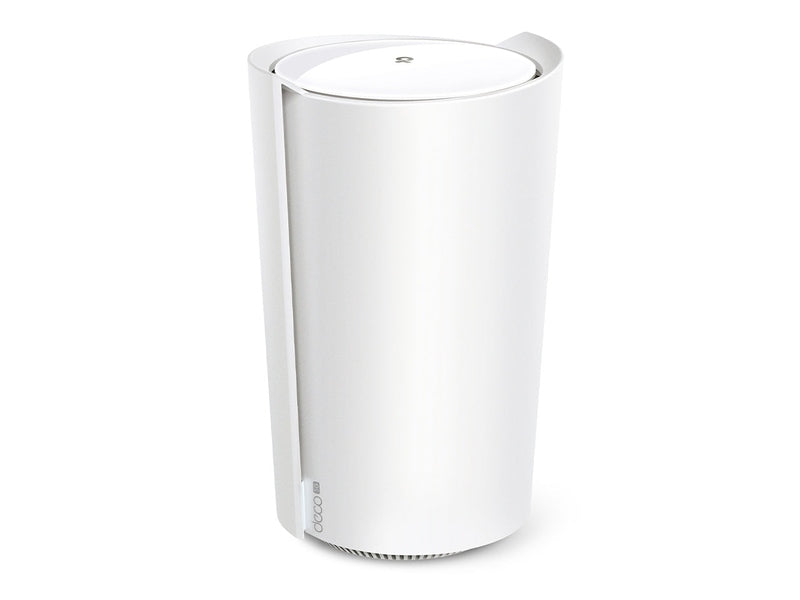

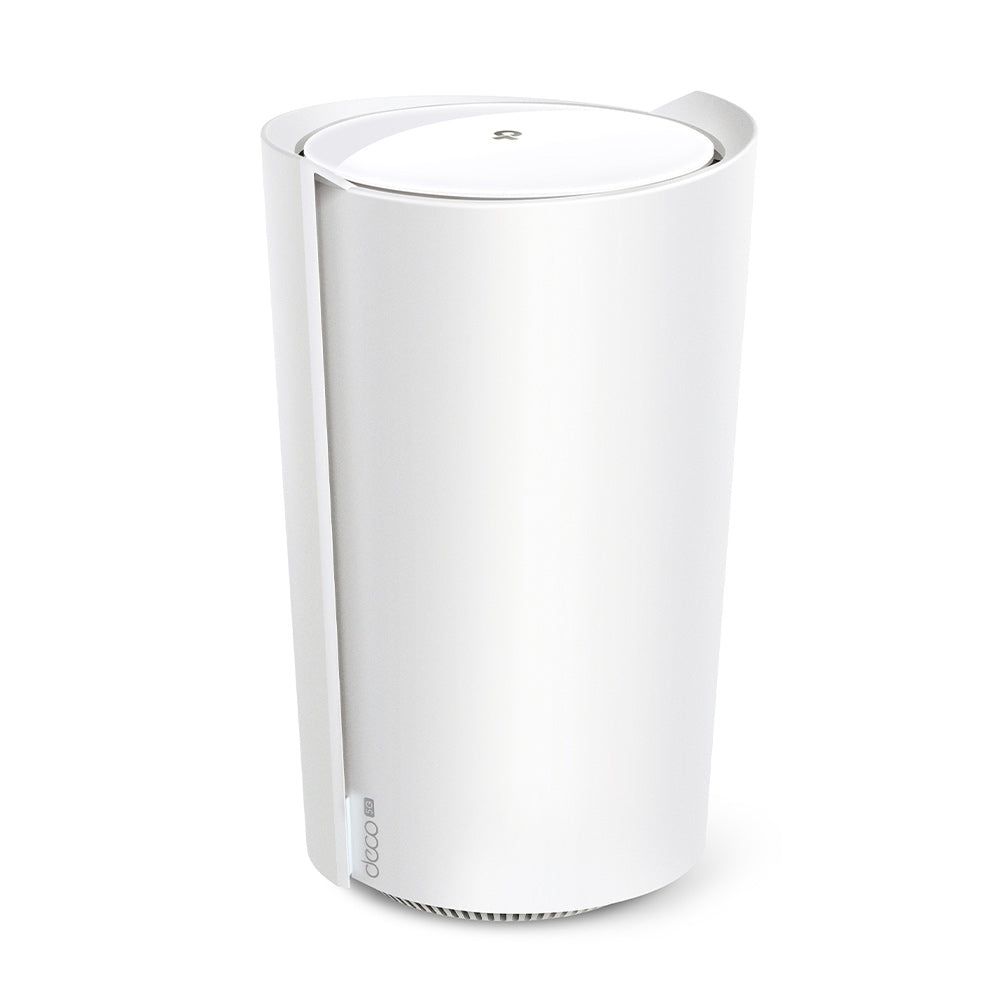

TP-Link Deco X80 5G AX6000 Whole Home Mesh Wi-Fi 6 Gateway(1-pack)

TP-LinkSKU: Deco X80-5G(1-pack)

TP-Link Deco X80-5G(1-pack) 5G AX6000 Whole Home Wi-Fi 6 Gateway, 4804Mbps at 5 GHz + 1148Mbps at 2.4 GHz, 5G 5Gbps/900Mbps, 4G+ Cat20 2Gbps/200Mbps

Availability:

✅ In Stock at Supplier (ETA: Usually in 1-3 Business Days)

Price:
Sale price$748.00

Estimate shipping

Description

Overview

Deco X80-5G
5G Whole Home Wi-Fi 6 Gateway
- Ultra-Fast Broadband Connection: Supports Sub-6 GHz 5G technology and boosts download speeds up to 5.0 Gbps§
- Ultra-Low Latency: 5G brings responsive network connections with only 1 ms latency§
- AX6000 Dual-Band Wi-Fi 6 Speed: 4804 Mbps (5 GHz) + 1148 Mbps (2.4 GHz)†
- 2.5 Gigabit Wired Connections: 1× 2.5 Gbps port + 1× Gigabit port**
- Mesh Network: Deco mesh technology ensures strong Wi-Fi signals everywhere‡
- Flexible Network Access: 4G, 5G, Fixed-Line Internet Access
- Plug & Play: Enjoy Deco 5G right after inserting a SIM card
- VoLTE Support: Home phone over VoLTE
- Simplified Setup: Easily set up and manage your network with the TP-Link Deco app
- TP-Link HomeShield: Provides comprehensive network protection, robust parental controls, and real-time loT security*

SPECIFICATIONS

WIRELESS

Standards and Protocols Wi-Fi 6
IEEE 802.11ax/ac/n/a 5 GHz
IEEE 802.11ax/n/b/g 2.4 GHz
WiFi Speeds AX6000
5 GHz: 4804 Mbps (802.11ax)
2.4 GHz: 1148 Mbps (802.11ax)
WiFi Range 1-3 Bedroom Houses (1-pack)
TP-Link Mesh Technology
Optional Ethernet backhaul work together to link Deco units to provide seamless coverage

8× LTE/5G internal antennas + 8× Wi-Fi internal antennas
+ 2× external antenna interface

Multiple antennas form a signal-boosting array to cover more directions and large areas
WiFi Capacity High
Dual-Band
Distribute devices to different bands for optimal performance

MU-MIMO
Simultaneously communicates with multiple MU-MIMO clients

OFDMA
Simultaneously communicates with multiple WiFi 6 clients

12 Streams
More than enough bandwidth for connected devices
Working Modes 5G/4G Router, Router, Access Point

SECURITY

Network Security SPI Firewall
Access Control

HomeShield Security
Real-Time IoT Protection
Malicious Site Blocker
Intrusion Prevention System
DDoS Attack Prevention
Home Network Scanner
Guest Network 1× 5 GHz Guest Network
1× 2.4 GHz Guest Network
WiFi Encryption WPA-Personal
WPA2-Personal
WPA3-Personal

HARDWARE

Ethernet Ports 1×2.5 Gigabit port + 1×1 Gigabit port (WAN/LAN
auto-sensing)
Ports and Connections 2× 5G External Antenna Ports
1× Phone Port

Compatibility
5G: N1/N3/N5/N7/N8/N20/N28/N38/N40/N41/N77/N78/N79
4G FDD-LTE: B1/B3/B5/B7/B8/B18/B19/B20/B26/B28
4G TDD-LTE: B34/B38/B39/B40/B41/B42/B43

SOFTWARE

Protocols IPv4
IPv6
Service Kit HomeShield
Learn More>
WAN Types Dynamic IP
Static IP
PPPoE
L2TP
PPTP
Quality of Service HomeShield QoS
QoS by Device
Cloud Service OTA Firmware Upgrade
TP-Link ID
DDNS
NAT Forwarding Port Forwarding
UPnP
IPTV IGMP Proxy
IGMP Snooping
Bridge
Tag VLAN
DHCP Address Reservation
DHCP Client List
Server
DDNS TP-Link
Management Features Deco App

OTHER

Network Services Enabled by Default Web Server
Manage and configure device through web (HTTP/HTTPS)
• Port: 80/443   Protocol: TCP

DNS
DNS
• Port: 53   Protocol: TCP & UDP

DHCP Server
IP address assignment (DHCP)
• Port: 67   Protocol: UDP

App management
Manage and configure device through app
• Port: 22   Protocol: TCP
• Port: 20001   Protocol: TCP
• Port: 30001   Protocol: TCP
• Port: 20002   Protocol: UDP

TEST DATA

WiFi Transmission Power CE:
≤20 dBm (2.4 GHz),
≤23 dBm (5 GHz)

PHYSICAL

Dimensions (W×D×H) 8.3 × 5.1 × 4.8 in
(210.5 × 130 × 123mm)

OTHERS

Certification RoHS, CE, RCM
Package Content 1-pack
1 Deco X80-5G unit
1 RJ45 Ethernet Cable
1 RJ11 Telephony Cable
1 Power Adapter
Quick Installation Guide
Environment Operating Temperature: 0°C~40°C (32°F~104°F)
Storage Temperature: -40°C~60°C (-40°F~140°F)
Operating Humidity: 10%~90%RH
Storage Humidity: 5%~90%RH
