Description
Overview

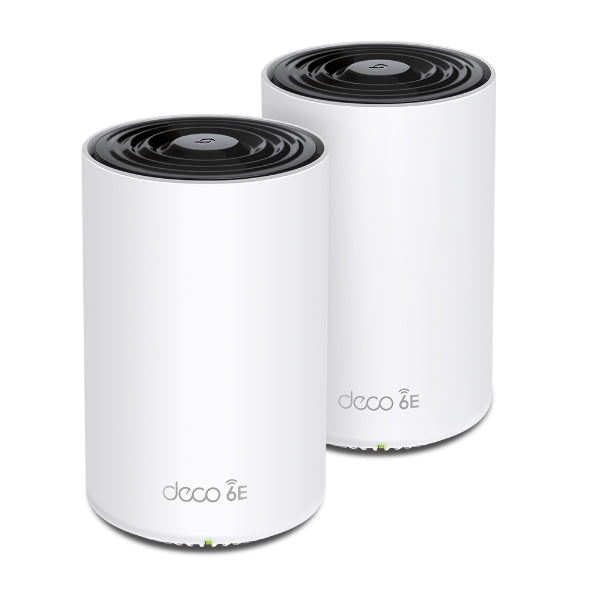

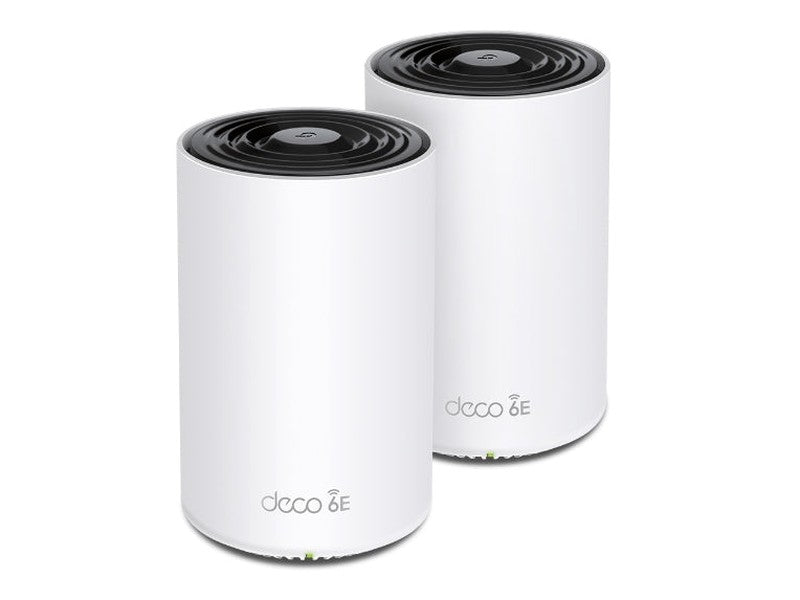

AXE5400 Tri-Band Mesh Wi-Fi 6E System
- Whole Home WiFi 6E – Cover up to 500 m² with next-gen seamless WiFi and make dead zones and buffering a thing of the past†‡
- True Tri-Band Speed – All three WiFi bands work together to unleash your network’s total speeds of up to 5,400 Mbps for 200 devices†
- AI-Driven Mesh – Unites your home under one name and password while delivering the best connections as you move from room to room*
- TP-Link HomeShield – Keeps your home network safe with cutting-edge features for network and IoT protection§
- Setup Made Easier Than Ever – The Deco app walks you through setup step-by-step
- Universal Compatibility – Backward compatible with all WiFi generations and works with any internet service provider (ISP) and modem
AXE5400 Tri-Band Mesh Wi-Fi 6E System
- Whole Home WiFi 6E – Cover up to 500 m² with next-gen seamless WiFi and make dead zones and buffering a thing of the past†‡
- True Tri-Band Speed – All three WiFi bands work together to unleash your network’s total speeds of up to 5,400 Mbps for 200 devices†
- AI-Driven Mesh – Unites your home under one name and password while delivering the best connections as you move from room to room*
- TP-Link HomeShield – Keeps your home network safe with cutting-edge features for network and IoT protection§
- Setup Made Easier Than Ever – The Deco app walks you through setup step-by-step
- Universal Compatibility – Backward compatible with all WiFi generations and works with any internet service provider (ISP) and modem
TP-Link Deco XE75 Pro Specifications | |
---|---|
Wireless | |
Standards and Protocols | Wi-Fi 6E IEEE 802.11ax (6 GHz) IEEE 802.11ax/ac/n/a (5 GHz) IEEE 802.11ax/n/b/g (2.4 GHz) |
WiFi Speeds | AXE5400 • 6 GHz: 2402 Mbps • 5 GHz: 2402 Mbps • 2.4 GHz: 574 Mbps |
WiFi Range | • 4–7+ Bedroom Houses (3-pack) • 3–5 Bedroom Houses (2-pack) • 1–3 Bedroom Houses (1-pack) TP-Link Mesh Technology Optional Ethernet Backhaul AI-Driven Mesh Optimization 4× Internal High-Gain Antennas Beamforming |
WiFi Capacity | Very High Tri-Band 2×2 MU-MIMO OFDMA 6 Streams |
Working Modes | Router Mode, Access Point Mode |
Security | |
Network Security | SPI Firewall, Access Control |
HomeShield Security | Real-Time IoT Protection Malicious Site Blocker Intrusion Prevention System DDoS Attack Prevention Home Network Scanner |
Guest Network | 1× 6 GHz, 1× 5 GHz, 1× 2.4 GHz |
VPN Server | OpenVPN, PPTP, L2TP/IPSec |
VPN Client | OpenVPN, PPTP, L2TP/IPSec |
WiFi Encryption | WPA, WPA2, WPA3 (Personal) |
Hardware | |
Ethernet Ports | • 1× 2.5 Gbps WAN/LAN Port • 2× Gigabit WAN/LAN Ports *Per Deco Unit, supports auto-sensing |
Buttons | Reset Button |
Software | |
Protocols | IPv4, IPv6 |
Service Kits | HomeShield |
Parental Controls | Custom Profiles Content Filter Library Family Time, Bedtime, Off Time Time Rewards Online Time Ranking Pause Internet Weekly/Monthly Reports |
WAN Types | Dynamic IP, Static IP, PPPoE, PPTP, L2TP |
Quality of Service | HomeShield QoS, QoS by Device |
Cloud Service | OTA Firmware Upgrade, TP-Link ID, DDNS |
NAT Forwarding | Port Forwarding, UPnP |
IPTV | IGMP Proxy, Snooping, Bridge, Tag VLAN |
DHCP | Reservation, Client List, Server |
DDNS | TP-Link |
Management Features | Deco App |
Network Services Enabled by Default | |
Web Server | Port 80/443 (TCP) |
DNS | Port 53 (TCP & UDP) |
DHCP Server | Port 67 (UDP) |
App Management | Port 22, 20001, 30001 (TCP) Port 20002 (UDP) |
Test Data | |
WiFi Transmission Power | CE: <20 dBm (2.4 GHz), <23 dBm (5 GHz), <23 dBm (6 GHz) FCC: <30 dBm (2.4 GHz), <30 dBm (5 GHz), <30 dBm (6 GHz) |
Physical | |
Dimensions (W × D × H) | 105 × 105 × 169 mm (4.1 × 4.1 × 6.7 in) |
Package Content |
Deco XE75 Pro (3-pack) • 3 Deco units • 1 RJ45 Ethernet cable • 3 Power adapters • Quick Installation Guide Deco XE75 Pro (2-pack) • 2 Deco units • 1 RJ45 Ethernet cable • 2 Power adapters • Quick Installation Guide Deco XE75 Pro (1-pack) • 1 Deco unit • 1 RJ45 Ethernet cable • 1 Power adapter • Quick Installation Guide |
Others | |
Certifications | CE, FCC, RoHS |
Environment | Operating Temp: 0°C~40°C (32°F~104°F) Storage Temp: −40°C~60°C (−40°F~140°F) Operating Humidity: 10%~90% RH Storage Humidity: 5%~90% RH |
