TP-Link Omada Fusion G+ Gateway (Fusion G+)

TP-Link Omada Fusion G+ Gateway (Fusion G+)

The TP-Link Omada Fusion G+ Gateway Router delivers multi-gigabit security and multi-WAN flexibility in a compact 130 mm chassis, featuring a built-in 2.51-inch colour touchscreen for instant on-device monitoring. This desktop-friendly gateway combines high-performance hardware with the Omada ecosystem to secure and manage up to 300 connected clients.

Enterprise-grade network control in a space-saving desktop footprint

Measuring just 130 by 95 by 30 millimetres and weighing 351 grams, this gateway fits easily onto any desktop or shelf without cluttering your workspace. Its compact design does not compromise on processing power, utilising a high-performance quad-core CPU and 2 GB of DDR4 memory to handle intensive routing, security, and VPN workloads. This hardware foundation ensures the router maintains stable throughput even when managing up to 30 recommended devices and executing demanding security policies across your entire local network.

Multi-gigabit 2.5G WAN speeds and flexible multi-WAN load balancing

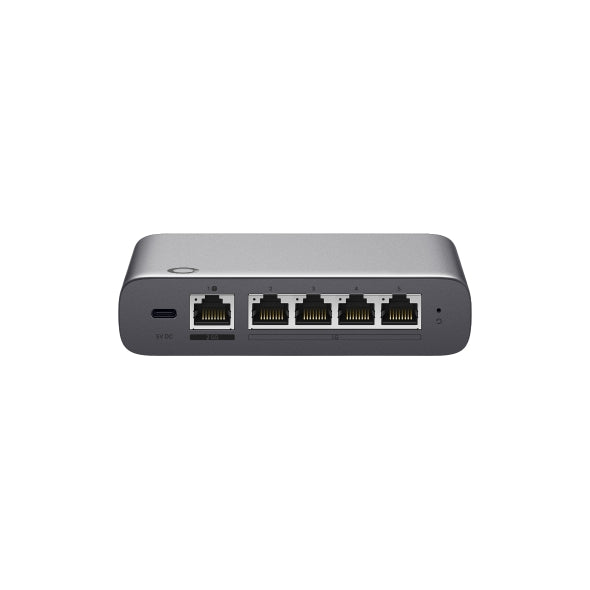

Equipped with a dedicated 2.5G RJ45 WAN port, the router accommodates high-speed internet connections to prevent bandwidth bottlenecks. For added reliability and bandwidth aggregation, four Gigabit RJ45 LAN/WAN ports can be configured to support up to four simultaneous WAN connections. This multi-WAN capability allows businesses to configure link backup or load balancing, distributing traffic across multiple internet service providers to maintain continuous online operations if a primary connection fails.

Real-time status tracking via the integrated 2.51-inch colour touchscreen

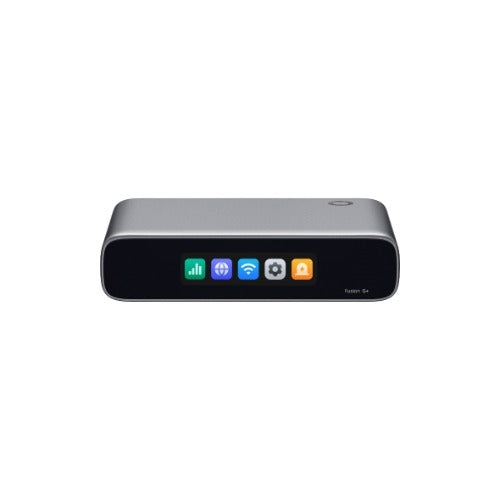

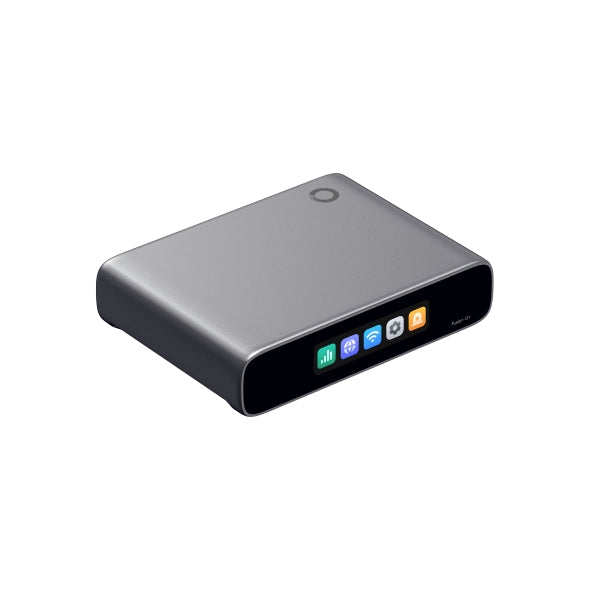

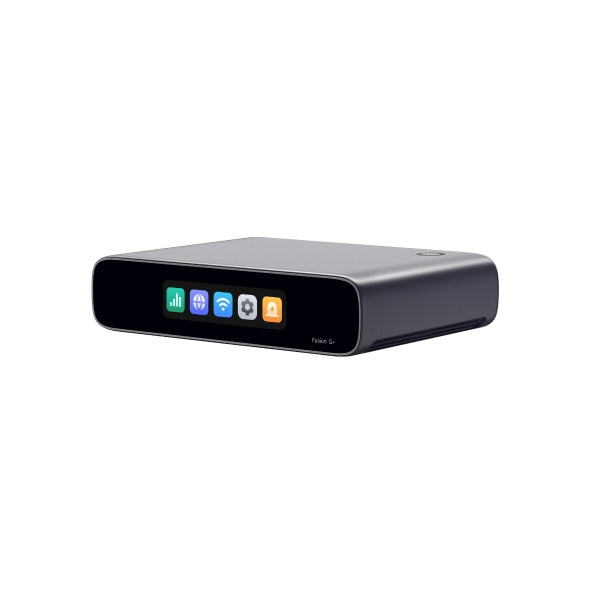

A key distinguishing feature is the 2.51-inch colour LCM touchscreen mounted directly on the front panel. This display provides network administrators with immediate visibility into system status, CPU usage, memory load, and real-time traffic statistics without needing to log into a web browser. For initial deployment, built-in Bluetooth capability allows for quick setup and configuration through a mobile device, streamlining the installation process for remote offices or branch deployments.

Advanced threat protection and high-throughput VPN tunnels

To protect your network from external threats, the router features integrated Intrusion Detection and Prevention Systems (IDS/IPS) capable of delivering up to 2,183 Mbps of throughput. It supports a wide range of VPN protocols, including WireGuard, OpenVPN, IPsec, SSL, L2TP, and PPTP, ensuring secure remote access for off-site employees. The hardware handles up to 20 IPsec VPN tunnels simultaneously, achieving a site-to-site VPN throughput of 1,023 Mbps, while Omada LightLink VPN supports up to 253 clients for simplified secure mesh networking.

Centralised Omada management for up to 300 connected clients

Built to integrate into the Omada software-defined networking (SDN) platform, the router supports Full Mesh SD-WAN mode for automated, secure connections between distributed sites. The system is engineered to handle up to 150,000 concurrent sessions and a rate of 7,800 new sessions per second, making it highly capable of supporting dense client environments. Static IP NAT throughput reaches a symmetrical 947 Mbps for both upload and download, ensuring wire-speed performance for local resources.

Versatile physical deployment backed by a five-year warranty

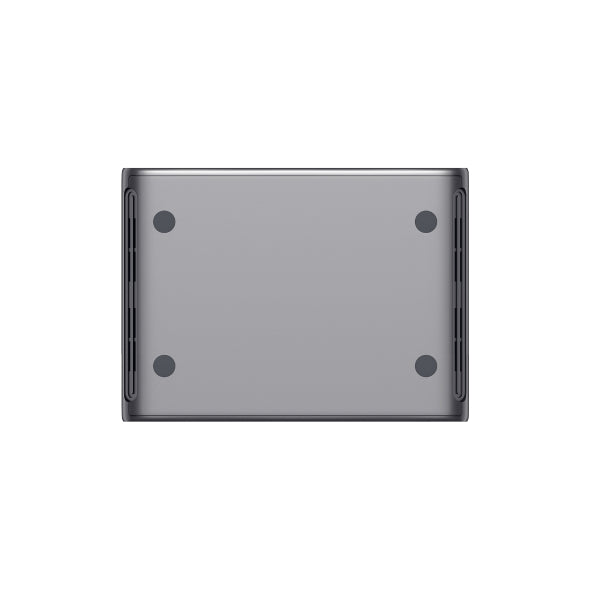

Powered via a standard USB-C power adapter (5 V DC, 3 A output), the router offers flexible installation options to suit different environments. It can be placed directly on a flat surface, wall-mounted using a magnetic plate (sold separately), or integrated into a server rack using a rackmount kit (sold separately). TP-Link backs this enterprise gateway with a comprehensive five-year warranty, providing long-term peace of mind for business operations.

Key Features

• Management & operation: License Free Cloud Management for Easy and Secure Remote Access
• Management & operation: Simplified Setup with App-Guided Onboarding via Bluetooth and One-Tap Bulk Device Adoption
• Key feature: Enterprise Grade Performance: Quad-Core CPU
• Connectivity: Up to 4 WAN Load Balancing with Auto Failover
• Performance: 2.1 Gbps-Class IDS/IPS Throughput*
• Key feature: Quick Troubleshooting via Touchscreen
• Key feature: Reducing On-Site Visits
• Key feature: Secure Remote Network Access in One Click Away with Omada LightLink VPN
• Management & operation: Advanced Software Capabilities: App Based ACL
• Management & operation: Auto QoS

Deployment & Compatibility

Confirm service compatibility, WAN connection type and coverage requirements before purchasing. Mobile broadband models require a suitable SIM and compatible network bands; wireless performance varies with the environment. This listing is for the Fusion G+ model; check manufacturer hardware revisions and compatibility requirements where applicable.

Technical Specifications

Wireless and networking speed figures are theoretical link ratings where stated; actual performance depends on the connected devices, operating conditions and network configuration.
