Description

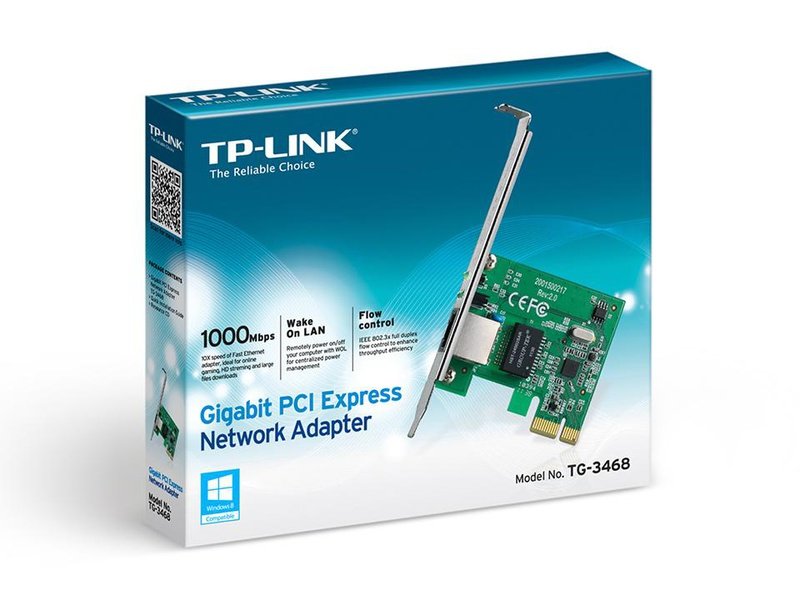

Gigabit PCI Express Network Adapter [TG-3468]
- 10/100/1000Mbps PCIe Adapter
- 32-bit PCIe interface, saving the finite chassis space
- Wake-on-LAN, convenient to manage over LAN
Specifications
HARDWARE FEATURES | |
---|---|
Standards and Protocols | IEEE802.3, IEEE802.3u, IEEE802.3ab, IEEE802.3x |
Interface | PCI Express, 1 × 10/100/1000 Mbps RJ45 Port, Auto-Negotiation, Auto MDI/MDIX |
Network Media | 10BASE-T: UTP category 3, 4, 5 cable (maximum 100m) EIA/TIA-568 100Ω STP (maximum 100m) 100BASE-TX: UTP category 5, 5e cable (maximum 100m) EIA/TIA-568 100Ω STP (maximum 100m) 1000Base-T: UTP category 5, 5e cable (maximum 100m) |
LED | Status |
Wireless Standards | IEEE802.3, IEEE802.3u, IEEE802.3ab, IEEE802.3x |
Data Rates | 10/100/1000Mbps for Half-Duplex mode, 20/200/2000Mbps for Full-Duplex mode |
Dimensions | 3.1 × 4.8 × 0.8 in (78.5 × 120.8 × 21.5mm) |
Flow Control | IEEE 802.3x Flow Control (Full-Duplex) |
OTHERS | |
---|---|
Certification | FCC, CE, RoHS, BSMI, VCCI |
Package Contents | Gigabit PCI Express Network Adapter TG-3468 Quick Installation Guide Resource CD Low-profile Bracket |
System Requirements | Windows 10/8.1/8/7 |
Environment | Operating Temperature: 0℃~40℃ (32℉ ~104℉) Storage Temperature: -40℃~70℃ (-40℉ ~158℉) Operating Humidity: 10%~90% non-condensing Storage Humidity: 5%~90% non-condensing |
