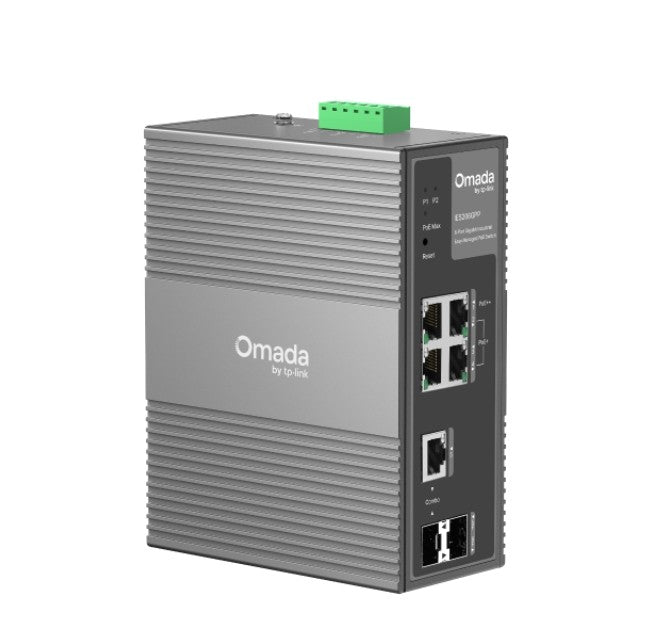

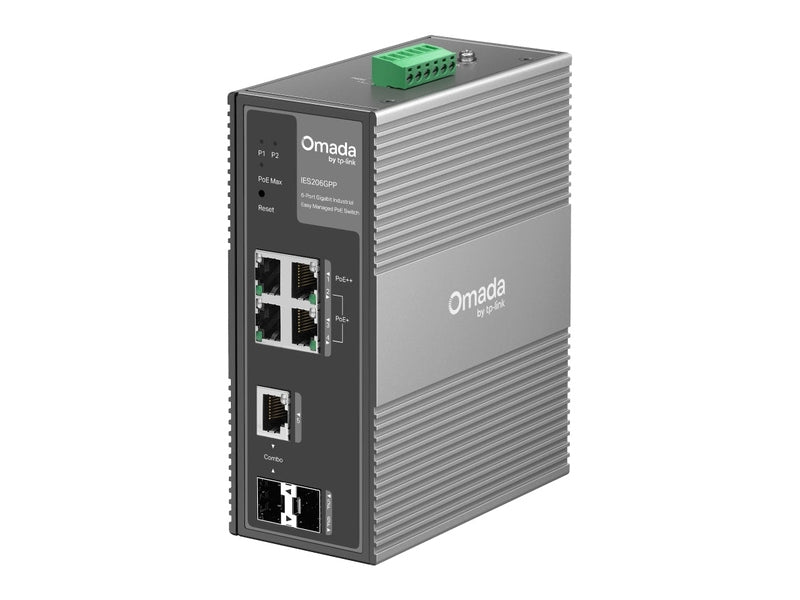

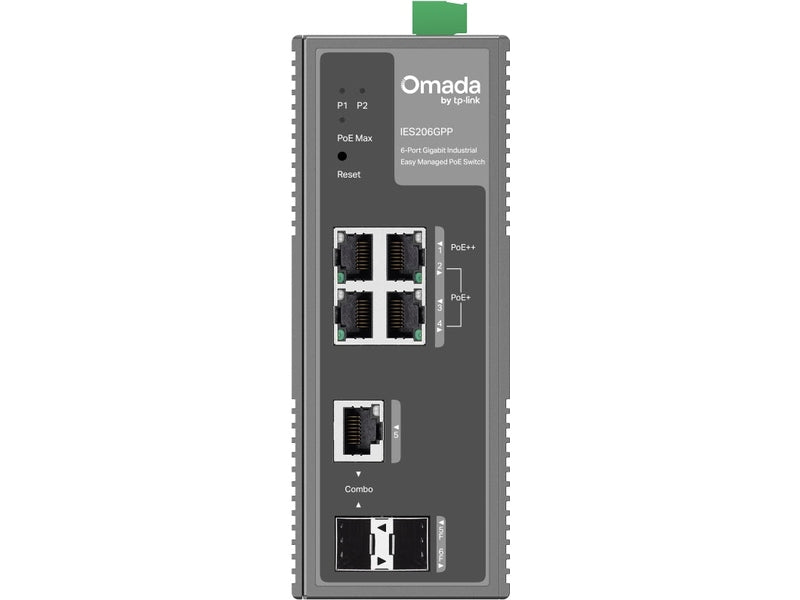

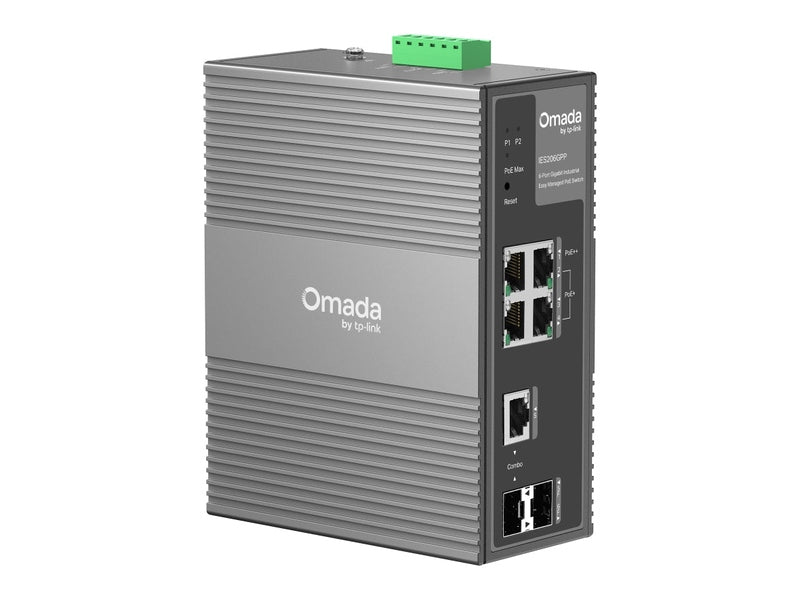

TP-Link IES206GPP Omada 6-Port Gigabit Industrial Easy Managed Switch with 3-Port PoE+ and 1-Port PoE++

TP-LinkSKU: IES206GPP

TP-Link IES206GPP Omada 6-Port Gigabit Industrial Easy Managed Switch with 3-Port PoE+ and 1-Port PoE++

Availability:

✅ In Stock at Supplier (ETA: Usually in 1-3 Business Days)

Price:
Sale price$419.00

Estimate shipping

Description

Overview

IES206GPP
Omada 6-Port Gigabit Industrial Easy Managed Switch with 3-Port PoE+ and 1-Port PoE++
- 4× Gigabit RJ45 Ports (1× PoE++, 3× PoE+)
- 1× Gigabit Combo RJ45/SFP Slot, 1× Gigabit SFP Slot
- 120W Power Budget* with up to 60W for PoE++ Port
- Professional Industrial-Grade Design: -40~75°C Operating Temperature, 6kV Lighting Protection, and 1+1 Redundant Power Input
- Abundant Features: Up to 820ft (250m) PoE,** VLAN, QoS, and STP/RSTP
- Centralised Cloud Management via the Web or Omada App†
- Durable IP40 Aluminum Casing and DIN-rail / Wall-mount Design

HARDWARE FEATURES
Interface • 1× 10/100/1000 Mbps PoE++ RJ45 Ports
• 3× 10/100/1000 Mbps PoE+ RJ45 Ports
• 1× Gigabit SFP/RJ45 Combo Slot
• 1× Gigabit SFP Slot
• Auto-Negotiation/Auto MDI/MDIX
Fan Quantity Fanless
Installation • DIN-rail mounting
• Wall mounting
Physical Security Lock

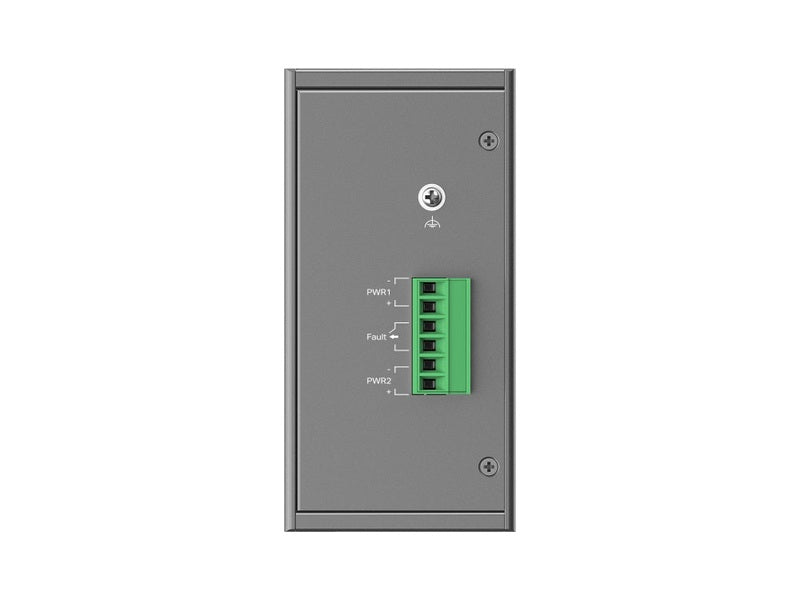

Power Supply 12-57V 1+1 Redundant DC Power Input
PoE Ports (RJ45) • Standard: 802.3af/at/bt compliant
• PoE++ Ports (802.3af/at/bt PoE): 1 Port, up to 60W per port
• PoE+ Ports (802.3af/at PoE): 3 Ports, up to 30W per port
• PoE Budget:
- 60W (Input: 12V / 7.0A - 21V / 3.5A))
- 120W (Input: 21V / 6.5A - 57V / 2.3A)
Dimensions ( W x D x H ) 6.1 × 4.7 × 2.4 in (155 × 120 × 60 mm)
Surge Protection • ±6 kV in common mode for Ethernet ports
• ±4 kV in common mode for DC power input ports
PERFORMANCE
Switching Capacity 12 Gbps
Packet Forwarding Rate 8.93 Mpps
MAC Address Table 8K
Packet Buffer Memory 4 Mbit
Jumbo Frame 15 KB
SOFTWARE FEATURES
Quality of Service • 802.1p DSCP Priority
• 8 Priority Queues
• Priority Schedule Mode
- WRR (Weighted Round Robin)
• Queue Weight Config
• Bandwidth Control
- Port-Based Rate Limit
• Storm Control
- Multiple Control Modes (kbps/pps)
- Broadcast/Multicast/Unknown-Unicast Control
L2 Features • Link Aggregation
- Static Link Aggregation
- Up to 2 aggregation groups and up to 4 ports per group
• Loopback Detection
• Flow Control
- 802.3x Flow Control
• Mirroring
- Port Mirroring
- One-to-One
- Many-to-One
- Ingress/Egress/Both
• Port Statistics
- Port Mirror Status
- Traffic Statistics
• 802.1ab LLDP
• Spanning Tree
- STP (802.1d)
- RSTP (802.1w)
L2 Multicast • IGMP Snooping
- IGMP v1/v2/v3 Snooping
- Fast Leave
VLAN • MTU VLAN
• Port-Based VLAN
• 802.1Q Tag VLAN
- Max 32 VLAN Groups
- 4K VID
Transmission Method Store-And-Forward
MANAGEMENT FEATURES
Omada App Yes. Requires the use of Omada Hardware Controller, Omada Cloud-Based Controller, or Omada Software Controller.
Centralized Management • Omada Cloud-Based Controller
• Omada Hardware Controller
• Omada Software Controller
Cloud Access Yes. Requires the use of Omada Hardware Controller, Omada Cloud-Based Controller, or Omada Software Controller.
Zero-Touch Provisioning Yes. Requires the use of Omada Cloud-Based Controller
Management Features • Web-based GUI
• DHCP Client
• Cable Diagnostics
• Digital Diagnostic Monitoring (DDM)
• Automatic Device Discovery
• Batch Configuration
• Batch Firmware Upgrading
• Unified Configuration
OTHERS
Certification FCC, CE, RoHS
Package Content • IES206GPP
• DIN-Rail Mounting Bracket
• Wall-Mounting Plates
• Installation Guide
Environment • Operating Temperature: -40℃~75℃ (-40℉~167℉)
• Storage Temperature: -40℃~85℃ (-40℉~185℉)
• Operating Humidity: 5%~95% non-condensing
• Storage Humidity: 5%~95% non-condensing
