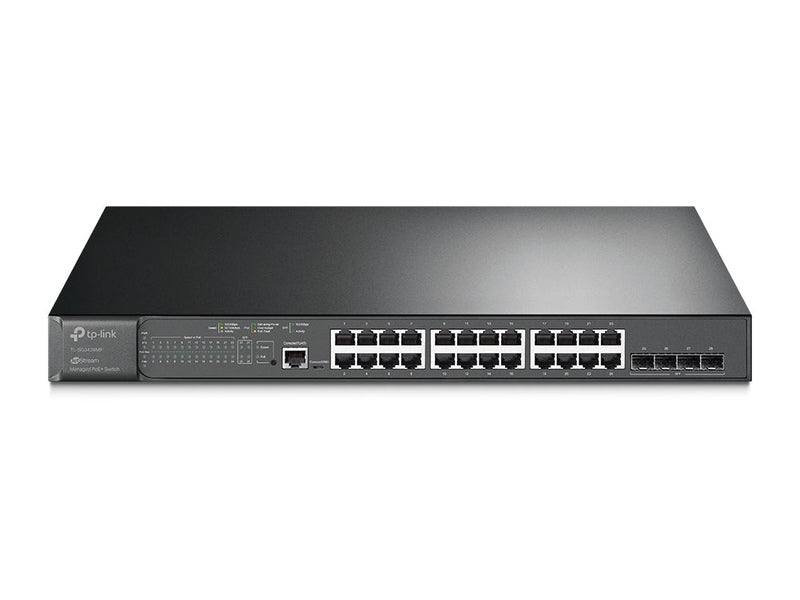

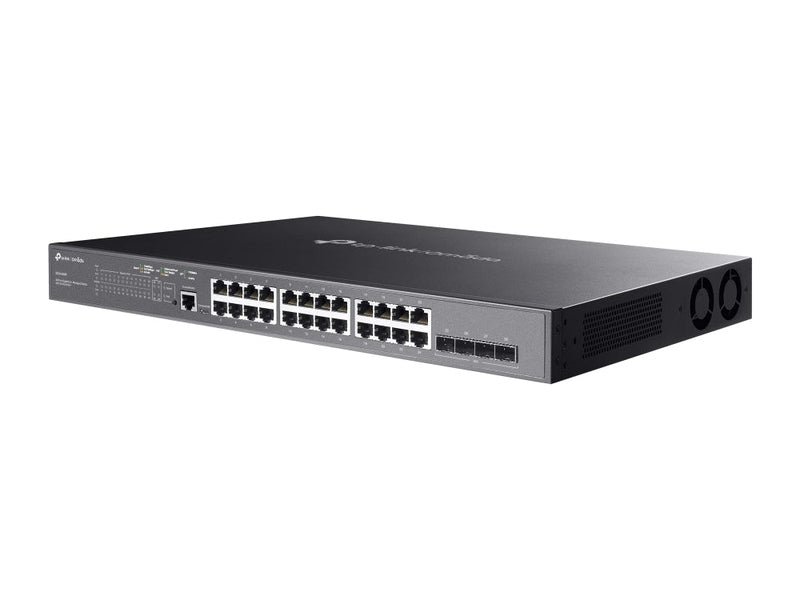

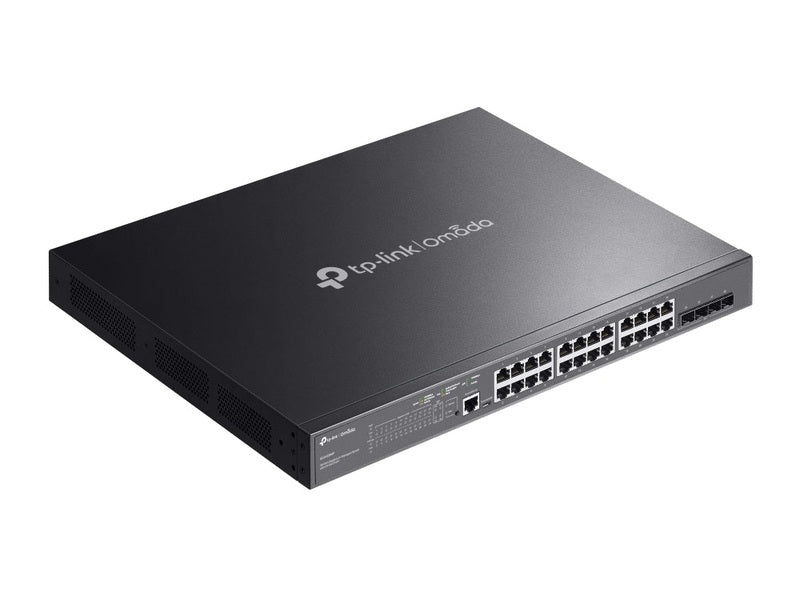

TP-Link SG3428MP Omada 28-Port Managed Gigabit L2+ Switch PoE+(24) SFP(4)

TP-LinkSKU: SG3428MP

  • Ports: 24× Gigabit PoE+ RJ45 ports, 4× Gigabit SFP slots
  • PoE Budget: 384W total, IEEE 802.3af/at PoE+ compliant
  • Management: Omada SDN with Zero-Touch Provisioning (ZTP), Cloud Management, Intelligent Monitoring
  • Routing: Static Routing
  • Security: IP-MAC-Port Binding, ACL, Port Security, DoS Defend, Storm Control, DHCP Snooping, 802.1X, Radius Authentication
  • Traffic Optimization: L2/L3/L4 QoS, IGMP Snooping
  • Standalone Management: Web, CLI (Console, Telnet, SSH), SNMP, RMON, Dual Image

Availability:

🚚 In Stock at Supplier (ETA: Usually in 1-3 Business Days)

Pickup available at PC LAN Store

1-3 Business Days

Price:
Sale price$723.00
1

Estimate shipping

Description

TP-Link SG3428MP Omada 28-Port Managed Gigabit L2+ Switch PoE+(24) SFP(4)

    Specifications
    HARDWARE FEATURES
    Interface • 24× 10/100/1000Mbps RJ45 Ports
    • 4× Gigabit SFP Slots
    • 1× RJ45 Console Port
    • 1× Micro-USB Console Port
    Fan Quantity 2
    Power Supply 100-240 V AC~50/60 Hz
    PoE Ports (RJ45) • Standard: 802.3at/af compliant
    • PoE+ Ports: 24 Ports, up to 30 W per port
    • Power Budget: 384 W*
    Dimensions ( W x D x H ) 17.3 × 13.0 × 1.7 in (440 × 330 × 44 mm)
    Mounting Rack Mountable
    Max Power Consumption • V1: 463.8 W (110 V/60 Hz) (with 384 W PD connected); 31.0 W (110 V/60 Hz) (no PD connected)
    • V2: 465.8 W (110 V/60 Hz) (with 384 W PD connected); 34.4 W (110 V/60 Hz) (no PD connected)
    • V3: 442.1 W (220 V/50 Hz) (with 384 W PD connected)
    • V4: 460.8 W (110 V/60 Hz) (with 384 W PD connected)
    • V5: 456.4 W (110 V/60 Hz) (with 384 W PD connected)
    Max Heat Dissipation • V1: 1582.49 BTU/h (110 V/60 Hz) (with 384 W PD connected); 105.78 BTU/h (110 V/60 Hz) (no PD connected)
    • V2: 1589.31 BTU/hr (110 V/60 Hz) (with 384 W PD connected); 117.38 BTU/hr (110 V/60 Hz) (no PD connected)
    • V3: 1508.67 BTU/hr (220 V/50 Hz) (with 384 W PD connected)
    • V4: 1572.48 BTU/hr (110 V/60 Hz) (with 384 W PD connected)
    • V5: 1557.47 BTU/hr (110 V/60 Hz) (with 384 W PD connected)
    PERFORMANCE
    Switching Capacity 56 Gbps
    Packet Forwarding Rate 41.66 Mpps
    MAC Address Table • V1: 8K
    • V2 and above: 16K
    Packet Buffer Memory 4.1 Mbit
    Jumbo Frame 9 KB
    SOFTWARE FEATURES
    Quality of Service • 8 priority queues
    • 802.1p CoS/DSCP priority
    • Queue scheduling
    - SP (Strict Priority)
    - WRR (Weighted Round Robin)
    - SP+WRR
    • Bandwidth Control
    - Port/Flow based Rating Limiting
    • Smoother Performance
    • Action for Flows
    - Mirror (to supported interface)
    - Redirect (to supported interface)
    - Rate Limit
    - QoS Remark
    L3 Features • 16 IPv4/IPv6 Interfaces
    • Static Routing
    - 48 static routes
    • Static ARP
    - 128 static entries
    • 316 ARP Entries (512 ARP Entries for TL-SG3428 V2.0 & TL-SG3428MP V2.0)
    • Proxy ARP
    • Gratuitous ARP
    • DHCP Server
    • DHCP Relay
    - DHCP interface relay
    - DHCP VLAN relay
    • DHCP L2 Relay
    L2 and L2+ Features • Link Aggregation
    - Static link aggregation
    - 802.3ad LACP
    - Up to 8 aggregation groups and up to 8 ports per group
    • Spanning Tree Protocol
    - 802.1d STP
    - 802.1w RSTP
    - 802.1s MSTP
    - STP Security: TC Protect, BPDU Filter, BPDU Protect, Root Protect, Loop Protect
    • Loopback Detection
    - Port-based
    - VLAN based
    • Flow Control
    - 802.3x Flow Control
    - HOL Blocking Prevention
    • Mirroring
    - Port Mirroring
    - CPU Mirroring
    - One-to-One
    - Many-to-One
    - Tx/Rx/Both
    L2 Multicast • Supports 511 (IPv4, IPv6) IGMP groups
    • IGMP Snooping
    - IGMP v1/v2/v3 Snooping
    - Fast Leave
    - IGMP Snooping Querier
    - IGMP Authentication
    • IGMP Authentication
    • MVR
    • MLD Snooping
    - MLD v1/v2 Snooping
    - Fast Leave
    - MLD Snooping Querier
    - Static Group Config
    - Limited IP Multicast
    • Multicast Filtering: 256 profiles and 16 entries per profile
    Advanced Features • Automatic Device Discovery
    • Batch Configuration
    • Batch Firmware Upgrading
    • Intelligent Network Monitoring
    • Abnormal Event Warnings
    • Unified Configuration
    • Reboot Schedule
    VLAN • VLAN Group
    - Max 4K VLAN Groups
    • 802.1Q Tagged VLAN
    • MAC VLAN: 30 Entries (12 Entries for TL-SG3428MP V1.0)
    • Protocol VLAN: Protocol Template 16, Protocol
    VLAN 16
    • Private VLAN
    • GVRP
    • VLAN VPN (QinQ)
    - Port-Based QinQ
    - Selective QinQ
    • Voice VLAN
    Access Control List • Time-based ACL
    • MAC ACL
    - Source MAC
    - Destination MAC
    - VLAN ID
    - User Priority
    - Ether Type
    • IP ACL
    -Source IP
    - Destination IP
    - Fragment
    - IP Protocol
    - TCP Flag
    - TCP/UDP Port
    - DSCP/IP TOS
    - User Priority
    • Combined ACL
    • Packet Content ACL
    • IPv6 ACL
    • Policy
    - Mirroring
    - Redirect
    - Rate Limit
    - QoS Remark
    • ACL apply to Port/VLAN
    Security • IP-MAC-Port Binding
    - DHCP Snooping
    - ARP Inspection
    - IPv4 Source Guard
    • IPv6-MAC-Port Binding
    - DHCPv6 Snooping
    - ND Detection
    - IPv6 Source Guard
    • DoS Defend
    • Static/Dynamic Port Security
    - Up to 64 MAC addresses per port
    • Broadcast/Multicast/Unicast Storm Control
    - kbps/ratio/pps control mode
    • IP/Port/MAC based access control
    • 802.1X
    - Port based authentication
    - Mac based authentication
    - VLAN Assignment
    - MAB
    - Guest VLAN
    - Support Radius authentication and accountability
    • AAA (including TACACS+)
    • Port Isolation
    • Secure web management through HTTPS with SSLv3/TLS 1.2
    • Secure Command Line Interface (CLI) management with SSHv1/SSHv2
    IPv6 • IPv6 Dual IPv4/IPv6
    • Multicast Listener Discovery (MLD) Snooping
    • IPv6 ACL
    • IPv6 Interface
    • Static IPv6 Routing
    • IPv6 neighbor discovery (ND)
    • Path maximum transmission unit (MTU) discovery
    • Internet Control Message Protocol (ICMP) version 6
    • TCPv6/UDPv6
    • IPv6 applications
    - DHCPv6 Client
    - Ping6
    - Tracert6
    - Telnet (v6)
    - IPv6 SNMP
    - IPv6 SSH
    - IPv6 SSL
    - Http/Https
    - IPv6 TFTP
    MIBs • MIB II (RFC1213)
    • Bridge MIB (RFC1493)
    • P/Q-Bridge MIB (RFC2674)
    • Radius Accounting Client MIB (RFC2620)
    • Radius Authentication Client MIB (RFC2618)
    • Remote Ping, Traceroute MIB (RFC2925)
    • Support TP-Link private MIBs
    • RMON MIB(RFC1757, rmon 1,2,3,9)
    MANAGEMENT
    Omada App Yes, through
    • Omada Cloud-Based Controller (Not Supported by TL-SG2210P v4)
    • OC300
    • OC200
    • Omada Software Controller
    Centralized Management • Omada Cloud-Based Controller (Not Supported by TL-SG2210P v4)
    • Omada Hardware Controller OC300
    • Omada Hardware Controller OC200
    • Omada Software Controller
    Cloud Access Yes, through
    • Omada Cloud-Based Controller (Not Supported by TL-SG2210P v4)
    • OC300
    • OC200
    • Omada Software Controller
    Zero-Touch Provisioning Yes. Requiring the use of Omada Cloud-Based Controller (Supported by TL-SG2210P v3.2, v5 and above, while is not supported by TL-SG2210P v4)
    Management Features • Web-based GUI
    • Command Line Interface (CLI) through console port, telnet
    • SNMPv1/v2c/v3
    - Trap/Inform
    - RMON (1, 2, 3, 9 groups)
    • SDM Template
    • DHCP/BOOTP Client
    • 802.1ab LLDP/LLDP-MED
    • DHCP AutoInstall
    • Dual Image, Dual Configuration
    • CPU Monitoring
    • Cable Diagnostics
    • EEE
    • Password Recovery
    • SNTP
    • System Log
    OTHERS
    Certification CE, FCC, RoHS
    Package Contents • TL-SG3428MP Switch
    • Power Cord
    • Quick Installation Guide
    • Rackmount Kit
    • Rubber Feet
    System Requirements Microsoft® Windows® 98SE, NT, 2000, XP, Vista™ or Windows 7/8/10/11, MAC® OS, NetWare®, UNIX® or Linux.
    Environment • Operating Temperature: 0–45 ℃ (32–113 ℉);
    • Storage Temperature: -40–70 ℃ (-40–158 ℉)
    • Operating Humidity: 10–90% RH non-condensing
    • Storage Humidity: 5–90% RH non-condensing
