Model Omada 5MP Turret is a TP-Link security camera. This camera is intended for monitoring a defined indoor or outdoor area. Image resolution, lens choice, viewing position, night-vision technology and connectivity are the most important considerations for deployment. Key model detail: camera resolution — 5 MP.

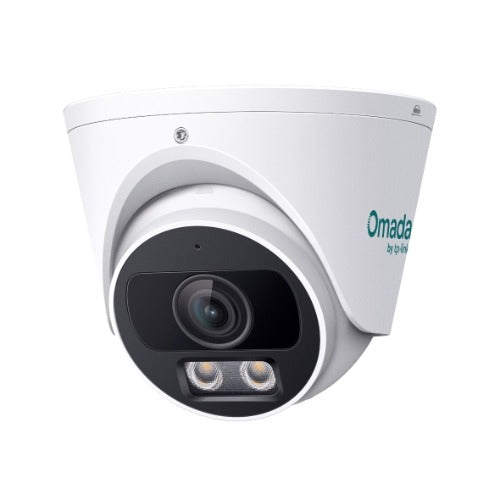

The TP-Link Omada 5MP Turret PoE Security Camera captures high-detail video at 2880 x 1620 resolution up to 30 frames per second inside a durable, weather-sealed metal housing. Built with a 1/2.65" Progressive Scan CMOS sensor and an F1.6 aperture lens, this camera delivers clear footage across broad outdoor and indoor coverage areas.

Clear 5MP image capture with F1.6 low-light sensitivity

The 4 mm fixed focal lens provides a wide 92.0° horizontal, 48.0° vertical, and 110.0° diagonal field of view, making it suitable for monitoring broad entrances, parking areas, or hallways. Operating with an F1.6 aperture and a minimum illumination rating of 0.005 Lux, the camera gathers light in dim environments before switching to supplemental illumination. Video streams can be compressed using H.265+ and H.264+ codecs, reducing bandwidth consumption and storage requirements on network video recorders without sacrificing picture quality.

Dual-mode night illumination up to 30 metres

To maintain clear surveillance in total darkness at 0 Lux, the camera integrates two distinct lighting systems rated for distances up to 30 metres:

• 850 nm Infrared LEDs: Provide discrete night vision via an auto-switching IR cut filter for monochrome recording.
• White LEDs: Supply bright supplemental lighting to illuminate target areas and capture colour visual details at night.

IP67 and IK08 metal housing for extreme environments

Constructed with a metal enclosure, the camera is engineered to endure harsh weather conditions and physical impacts. It carries an IP67 rating against dust and water ingress alongside IK08-rated vandal resistance to withstand physical impact. Designed for continuous outdoor operation, the camera functions within an operating temperature range of -30°C to 60°C and copes with non-condensing relative humidity up to 95%.

Single-cable PoE setup with built-in AI analytics

Deployment is simplified via standard 802.3af/at Power over Ethernet (PoE), drawing up to 8.7W over a single 10/100 Mbps RJ45 Ethernet cable for both power and data transmission. Alternative direct power can be supplied using a 12V DC power input consuming up to 7.4W. For heightened situational awareness, an integrated microphone captures ambient audio alongside video recordings. Onboard AI analytics process video streams in real time, featuring discrete detection modes for persons, vehicles, and pets to streamline clip reviews and filter unnecessary activity alerts.

Technical Specifications
