TP-Link Omada 8MP Turret - Omada 8MP Turret PoE Security Camera (Omada Camera) (Omada 8MP Turret)

TP-Link Omada 8MP Turret - Omada 8MP Turret PoE Security Camera (Omada Camera) (Omada 8MP Turret)

Model Omada 8MP Turret is a TP-Link security camera. This camera is intended for monitoring a defined indoor or outdoor area. Image resolution, lens choice, viewing position, night-vision technology and connectivity are the most important considerations for deployment. Key model detail: camera resolution — 8 MP.

The TP-Link Omada 8MP Turret Security Camera captures detailed 4K Ultra HD video at 3840 x 2160 resolution through a bright F1.6 aperture lens. Built with dual illumination modes and active defense light strobes, this camera provides continuous day-and-night monitoring for commercial and residential installations.

4K Ultra HD clarity backed by 120 dB True WDR

The 1/2.7" Progressive Scan CMOS sensor records video at 3840 x 2160 pixels, providing four times the resolution of standard 1080p security cameras. A fixed 4 mm lens offers an 88.0° horizontal, 46.0° vertical, and 105.4° diagonal field of view, making it suitable for monitoring wide entryways, driveways, or building perimeters. To combat challenging lighting conditions such as direct sunlight or deep shadows, integrated 120 dB Wide Dynamic Range (WDR) balances exposure across every frame. This preserves crucial forensic details in high-contrast environments without overexposing light areas or losing shadowed details.

Full-colour night vision and active threat deterrence

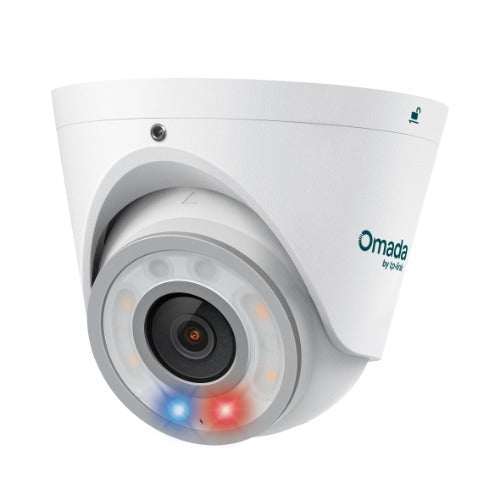

Equipped with 4 infrared LEDs and 4 white LEDs, the camera offers both stealthy IR illumination and bright full-colour night vision up to 30 metres (98 feet). The 0.005 Lux rating ensures sensitivity in low light, while the built-in white LEDs activate automatically or on schedule to capture vivid colour video in pitch-black conditions. For proactive security, an active defense system triggers red and blue flashing lights alongside a loud siren when motion or intrusion events are identified. Integrated two-way audio with a built-in microphone and speaker allows operators to communicate directly with visitors or warn off trespassers in real time.

AI smart detection and targeted identification distances

Onboard artificial intelligence filters video feeds to accurately identify humans, vehicles, and pets, significantly reducing false triggers caused by wind, rain, or falling leaves. Precise optics provide defined DORI (Detect, Observe, Recognize, Identify) performance benchmarks across standard surveillance distances:

• Detection distance: Identifies potential activity up to 107 metres away.
• Observation distance: Provides clear situational awareness at 44 metres.
• Recognition distance: Distinguishes individuals or vehicle types at 21 metres.
• Identification distance: Delivers sharp details suitable for positive identification at 11 metres.

IK08 vandal-proof metal housing built for extreme weather

Engineered for demanding outdoor deployments, the all-metal turret casing carries an IP67 weatherproof rating to prevent dust ingress and withstand heavy rain. It also features an IK08 impact resistance rating, protecting internal hardware against physical vandalism or mechanical impacts. With an operating temperature tolerance spanning -30°C to 60°C (-22°F to 140°F), the unit maintains stable operation through extreme winter freezes and high summer temperatures. The flexible 3-axis gimbal allows precise manual alignment with 360° pan, 85° tilt, and 360° rotation.

Flexible PoE deployment and expandable local storage

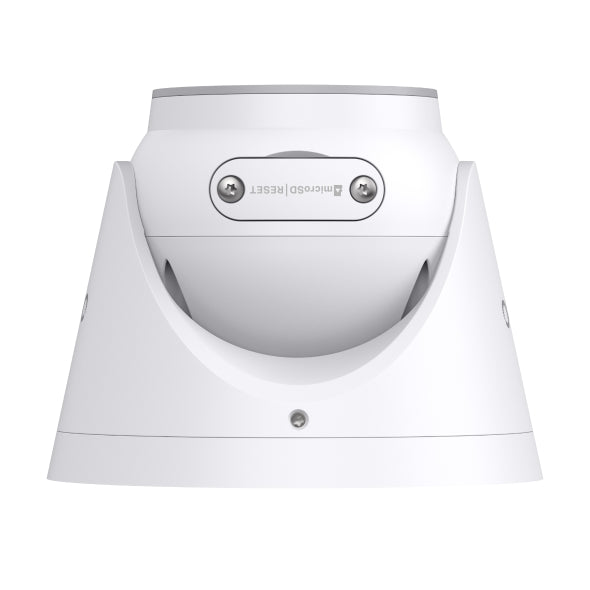

Power and network connectivity are combined through a single 10/100M Ethernet port supporting standard IEEE 802.3af/at Power over Ethernet (PoE) up to 12.5W. Alternatively, the camera can be powered using a 12V DC power supply (max 12W). To secure video footage locally without relying solely on network streams, an onboard MicroSD card slot supports local memory expansion up to 512 GB. Video streams are efficiently encoded using H.265+ compression, reducing bandwidth consumption and saving valuable storage space while preserving image quality.

Technical Specifications
