Description

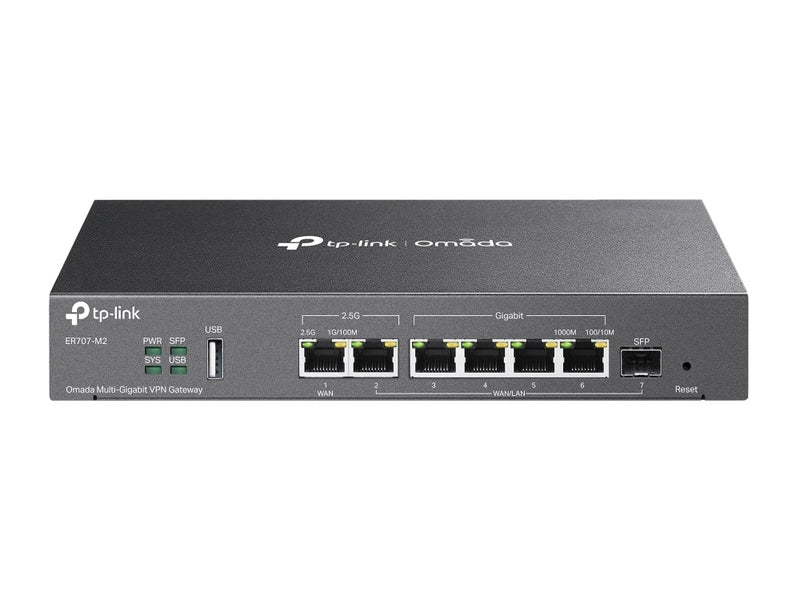

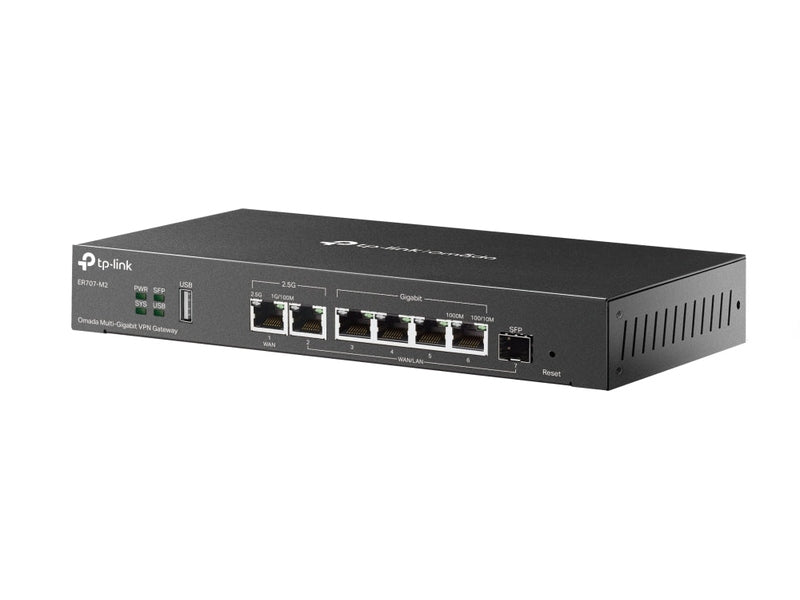

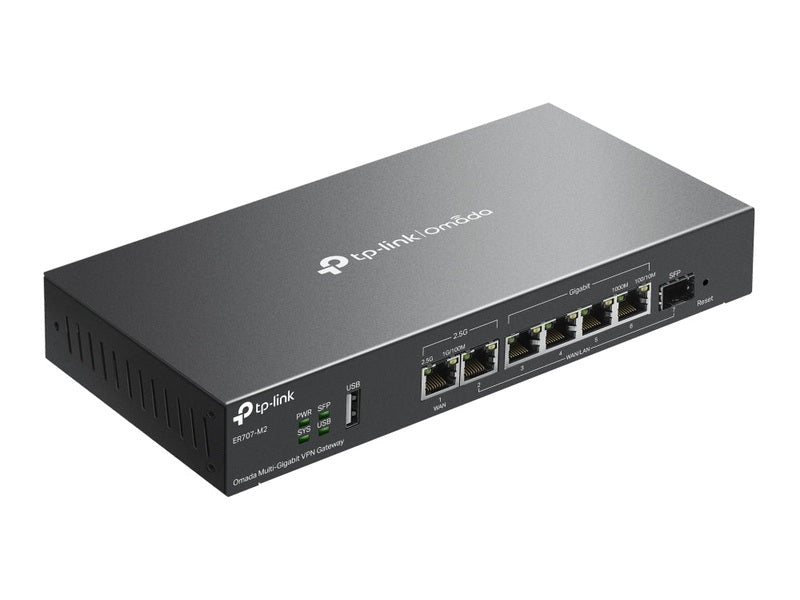

Omada Multi-Gigabit VPN Gateway
- 2× 2.5 Gbps RJ45 ports (1× WAN, 1× WAN/LAN)
- 5× Gigabit WAN/LAN ports (1× SFP, 4× RJ45)
- Load Balancing on up to 6 WAN ports‡ increases the utilisation rate of multi-line broadband
- 1× USB port (Supports USB storage, and LTE backup with LTE dongle)
- High-security SSL/ IPSec / GRE§ / WireGuard / PPTP / L2TP VPN & OpenVPN
- Centralised cloud management via the web or the Omada app*
- DoS/DDoS protection, IP/MAC/URL filtering, DPI, and IPS/IDS for enhanced security
- Rackmount, Desktop, or Wall Mount
Specifications
| SECURITY | |
|---|---|
| Access Control | Source/Destination IP Based Access Control |
| Filtering |
• WEB Group Filtering§ • URL Filtering • Web Security§ |
| ARP Inspection |
• Sending GARP Packets§ • ARP Scanning§ • IP-MAC Binding§ |
| Attack Defense |
• TCP/UDP/ICMP Flood Defense • Block TCP Scan (Stealth FIN/Xmas/Null) • Block Ping from WAN |
| HARDWARE FEATURES | |
|---|---|
| Standards and Protocols |
• IEEE 802.3, IEEE802.3u, IEEE802.3ab, IEEE802.3z, IEEE 802.3x,
IEEE 802.1q, IEEE802.3bz • TCP/IP, DHCP, ICMP, NAT, PPPoE, NTP, HTTP, HTTPS, DNS, IPSec, PPTP, L2TP, OpenVPN, SNMP, WireGuard VPN |
| Interface |
• 1× 2.5G RJ45 WAN Port • 1× 2.5G RJ45 WAN/LAN Port • 1× Gigabit SFP WAN/LAN Port • 4× Gigabit RJ45 WAN/LAN Ports • 1× USB 2.0 Port (Supports USB storage, and LTE backup with LTE dongle) |
| Network Media |
• 10BASE-T: UTP category 3, 4, 5 cable (Max 100 m) EIA/TIA-568
100Ω STP (Max 100 m) • 100BASE-TX: UTP category 5, 5e cable (Max 100 m) EIA/TIA-568 100Ω STP (Max 100 m) • 1000BASE-T: UTP category 5, 5e, 6 cable (Max 100 m) • 2500BASE-T: UTP category 5, 5e, 6 cable (Max 100 m) |
| Fan Quantity | Fanless |
| Button | Reset Button |

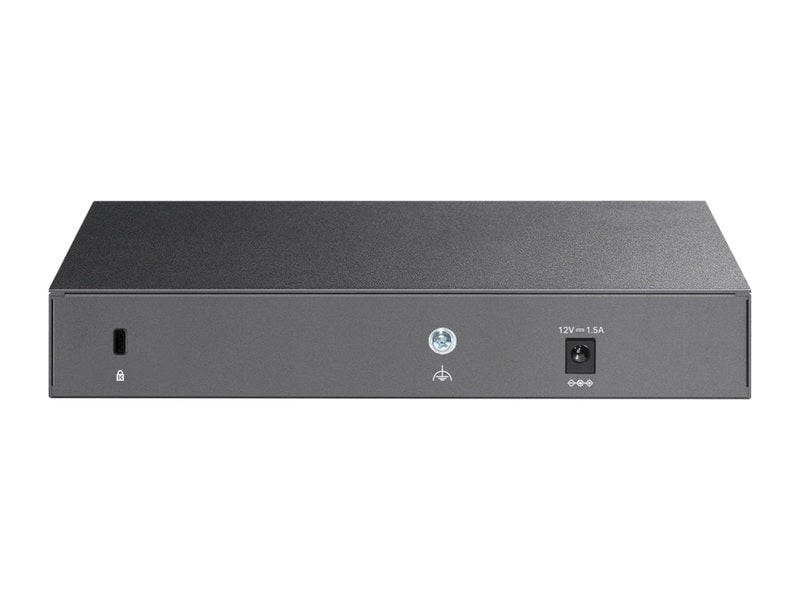

| Power Supply | 12V/1.5A Adapter |
| PoE Budget | - |
| Flash | 128MB NAND |
| DRAM | 1 GB DDR4 |
| LED | PWR, SYS, SFP, USB, WAN (Speed, Link/Act), LAN (Speed, Link/Act) |
| Dimensions ( W x D x H ) |
8.9 × 5.2 × 1.4 in (226 × 131 × 35 mm) |
| Protection | 4 kV surge protection |
| Enclosure | Steel |
| Mounting | Rackmout, Desktop, or Wall Mount |
| Max Power Consumption |
14.2 W (with USB2.0 connected) 7.1 W (without USB2.0 connected) |
| PERFORMANCE | |
|---|---|
| IPS Throughput |
TCP: 208 Mbps; UDP: 161 Mbps |
| DPI Throughput |
TCP: 1823 Mbps; UDP: 1272 Mbps |
| WireGuard VPN Throughput | 343Mbps |
| Concurrent Session | 500,000 |
| New Sessions /Second | 6,000 |
| NAT (Static IP) | 2365.17 Mbps / 2364.45 Mbps |
| NAT(DHCP) | 2364.45 Mbps / 2366.04 Mbps |
| NAT(PPPoE) | 2347.14 Mbps / 2348.29 Mbps |
| NAT (L2TP) | 1308.86 Mbps / 974.10 Mbps |
| NAT (PPTP) | 1236.27 Mbps / 1280.99 Mbps |
| IPsec VPN Throughput |
• ESP-SHA1-AES256: 673.3 Mbps • ESP-SHA256-AES256: 650.2 Mbps • ESP-SHA384-AES256: 629.3 Mbps • ESP-SHA512-AES256: 633.8 Mbps |
| L2TP VPN Throughput |
• Unencrypted: 1243.7 Mbps • Encrypted: 561.0 Mbps |
| SSL VPN Throughput | 132.24 Mbps |
| 66 Byte Packet forwarding rate | 1832.69 Mbps / 1741.84 Mbps |
| 1,518 Byte Packet forwarding rate | 2461.18 Mbps / 2457.32 Mbps |
| BASIC FUNCTIONS | |
|---|---|
| WAN Connection Type |
• IPv4_Static IP • IPv4_Dynamic IP • IPv4_PPPOE • IPv4_L2TP • IPv4_PPTP • IPv6_PPP • IPv6_DHCPv6 • IPv6_Static IP • IPv6_6in4 • IPv6_Pass-Through • Mobile Broadband: 4G/3G modem for backup via USB port |
| MAC Clone | Modify WAN/LAN MAC Address† |
| DHCP |
• DHCP Server • DHCPv6 PD Server (only in Standalone Mode) • DHCP Options Customization • DHCP Address Reservation • Multi-IP Interfaces* • Multi-Net DHCP* |
| IPv6 | StaticIP / SLAAC / DHCPv6 / PPPoE / 6to4Tunnel / PassThrough / Non-Address mode |
| VLAN | 802.1Q VLAN |
| IPTV | IGMP v2/v3 Proxy, Custom Mode, Bridge Mode |
| ADVANCED FUNCTIONS | |
|---|---|
| Advanced Routing |
• Static Routing • Policy Routing • RIP (only in Standalone Mode) • OSPF (only in Standalone Mode) |
| Bandwidth Control |
• IP/Port-based Bandwidth Control • Guarantee & Limited Bandwidth |
| Load Balance |
• Intelligent Load Balance • Application Optimized Routing • Link Backup (Timing§, Failover) • Online Detection |
| NAT |
• One-to-One NAT§ • Multi-Net NAT • Port Forwarding • Port Triggering§ • NAT-DMZ • FTP/H.323/SIP/IPSec/PPTP ALG • UPnP |
| Session Limit | IP-based Session Limit |
| VPN | |
|---|---|
| IPsec VPN |
• 100 IPSec VPN Tunnels • LAN-to-LAN, Client-to-LAN • Main, Aggressive Negotiation Mode • DES, 3DES, SHA1, AES128, AES192, AES256 Encryption Algorithm • IKEv1/v2 • MD5, SHA1, SHA2-384 and SHA2-512 Authentication Algorithm • NAT Traversal (NAT-T) • Dead Peer Detection (DPD) • Perfect Forward Secrecy (PFS) |
| PPTP VPN |
• PPTP VPN Server • PPTP VPN Clients (12) • 60 Tunnels (Shared with L2TP) • PPTP with MPPE Encryption |
| L2TP VPN |
• L2TP VPN Server • L2TP VPN Clients (12) • 60 Tunnels (Shared with PPTP) • L2TP over IPSec |
| OpenVPN |
• OpenVPN Server • OpenVPN Clients (6) • 66 OpenVPN Tunnels* |
| WireGuard VPN | • 20 Tunnels |
| AUTHENTICATION | |
|---|---|
| Web Authentication |
• No Authentication • Simple Password* • Hotspot (Local User/Voucher*/SMS*/Radius*) • External Radius Server • External Portal Server* • LDAP |
| MANAGEMENT | |
|---|---|
| Omada App | Yes. Requires the use of Omada Hardware Controller, Omada Cloud-Based Controller, or Omada Software Controller. |
| Centralized Management |
• Omada Cloud-Based Controller • Omada Hardware Controller • Omada Software Controller |
| Cloud Access | Yes. Requires the use of Omada Hardware Controller, Omada Cloud-Based Controller, or Omada Software Controller. |
| Service | Dynamic DNS (Dyndns, No-IP, Peanuthull, Comexe) |
| Maintenance |
• Web Management Interface • Remote Management • Export & Import Configuration • SNMP v1/v2c/v3* • Diagnostics (Ping & Traceroute)§ • NTP Synchronize§ • Port Mirroring • CLI (only in Standalone Mode) • Syslog Support |
| Zero-Touch Provisioning | Yes. Requires the use of Omada Cloud-Based Controller. |
| Management Features |
• Automatic Device Discovery* • Batch Configuration* • Batch Firmware Upgrading* • Intelligent Network Monitoring* • Abnormal Event Warnings* • Unified Configuration* • Reboot Schedule* |
| OTHERS | |
|---|---|
| Certification | CE, FCC, RoHS |
| Package Contents |
• ER707-M2 • Power Adapter • Quick Installation Guide • Rackmount Kit |
| System Requirements | Microsoft Windows 98SE, NT, 2000, XP, Vista™ or Windows 7/8/8.1/10, MAC OS, NetWare, UNIX or Linux |
| Environment |
• Operating Temperature: 0–40 ℃ (32–104 ℉); • Storage Temperature: -40–70 ℃ (-40–158 ℉) • Operating Humidity: 10–90% RH non-condensing • Storage Humidity: 5–90% non-condensing |
