Model Omada NVR16-8P-2T is a TP-Link network video recorder. A network video recorder provides a central way to view and manage video from compatible IP cameras. Camera-channel count, recording resolution, PoE configuration and drive support need to match the planned system.

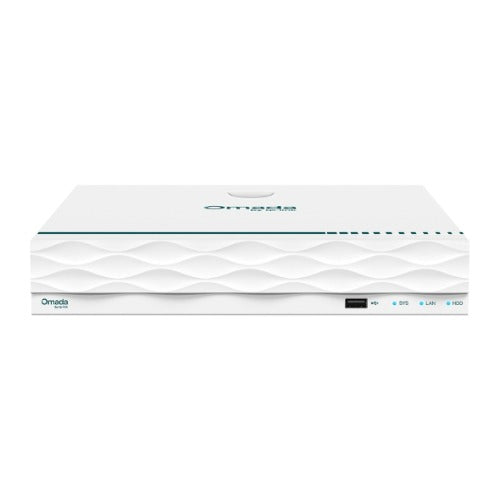

The TP-Link Omada NVR16-8P-2T combines a 16-channel network video recorder with 8 integrated PoE+ ports and a pre-installed 2TB hard drive, delivering plug-and-play power and centralized video storage in a compact 260 x 230 x 45 mm chassis. Operating at a power consumption of 7.81 W with the internal disk installed, it provides a stable foundation for small business and commercial surveillance setups.

Power up to eight IP cameras directly with a 115W total PoE+ budget

Deploying surveillance hardware is simplified with eight onboard RJ-45 10/100 Mbps PoE+ ports that conform to IEEE 802.3at and 802.3af standards. The recorder supplies up to 30 W of power per port across a total PoE power budget of 115 W, allowing connected cameras to receive power and transmit data over a single Ethernet cable without external power supplies.

160 Mbps bandwidth for fluid 16-channel recording and playback

Engineered to handle up to 16 video channels simultaneously, the NVR provides 160 Mbps incoming bandwidth and 160 Mbps outgoing bandwidth to process high-resolution security streams without frame drops. Synchronous 16-channel playback allows operators to review all active camera feeds at the same time. Open ONVIF protocol support ensures smooth integration with compliant third-party IP cameras alongside TP-Link hardware.

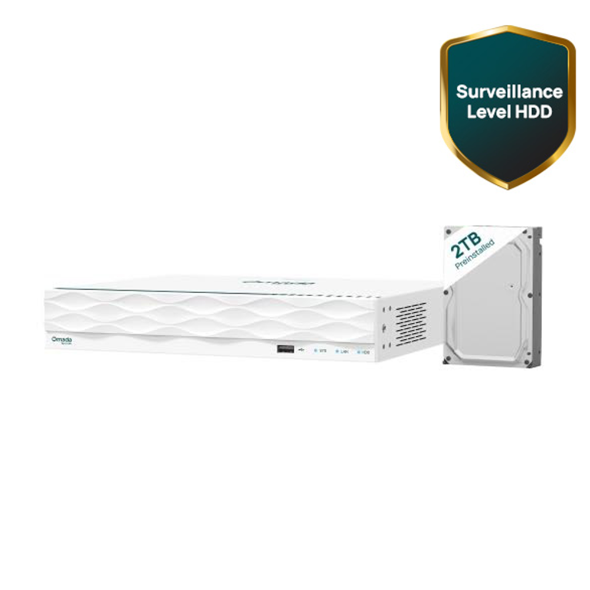

Pre-installed 2TB storage backed by efficient H.265+ compression

The unit comes equipped with a pre-installed 2 TB SATA hard drive for local recording right out of the box. For extended footage retention, the internal SATA interface supports storage capacities up to 16 TB. Integrated H.265+, H.265, H.264+, and H.264 video encoding options optimize storage utilization, with H.265+ compression significantly reducing file sizes while maintaining clear video detail.

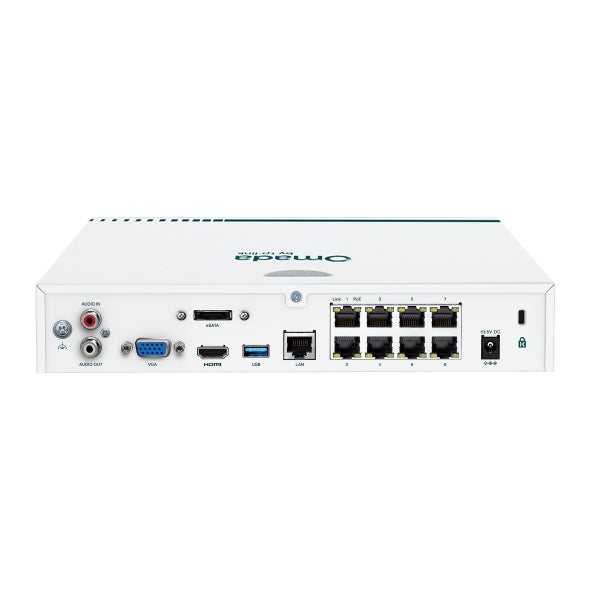

4K HDMI output and versatile system connectivity

Monitoring local camera feeds in real time is supported through dual video outputs, featuring an HDMI port capable of displaying streams up to 4K resolution (3840x2160 at 30Hz) and a VGA output supporting up to 1920x1080 at 60Hz. System networking connects via a single Gigabit 10/100/1000 Mbps self-adaptive RJ-45 Ethernet port.

• Audio Line I/O: Dedicated 1x RCA audio input and 1x RCA audio output facilitate audio recording and monitoring setup.
• Peripherals & Backups: Dual USB 2.0 ports provide quick connections for navigation mice and local video exports.
• Operating Environment: Rated for operating temperatures between -10 °C and 55 °C with 10% to 90% non-condensing relative humidity.
• Power Consumption: Efficient 53.5V DC operation consuming 4.17 W without disk and 7.81 W with disk active.

Technical Specifications

Review the recording, power, network and accessory requirements for the exact hardware version. A hard drive, memory card, external power supply or other optional accessory is not included unless explicitly stated in the product listing.
