Description
Overview

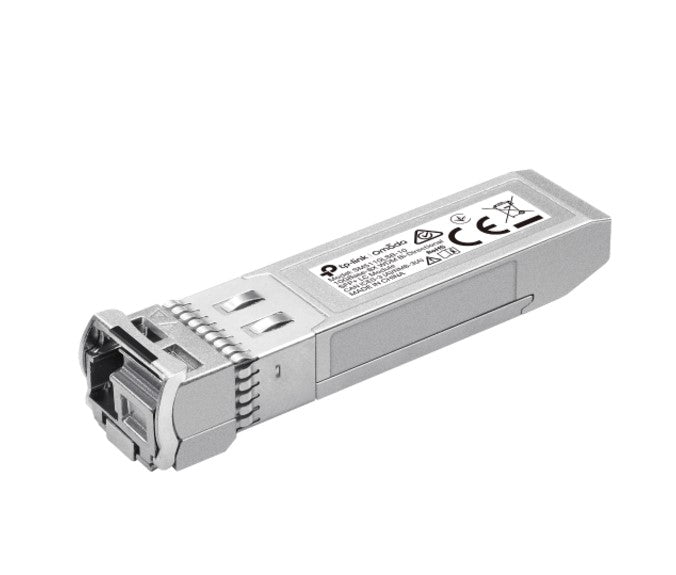

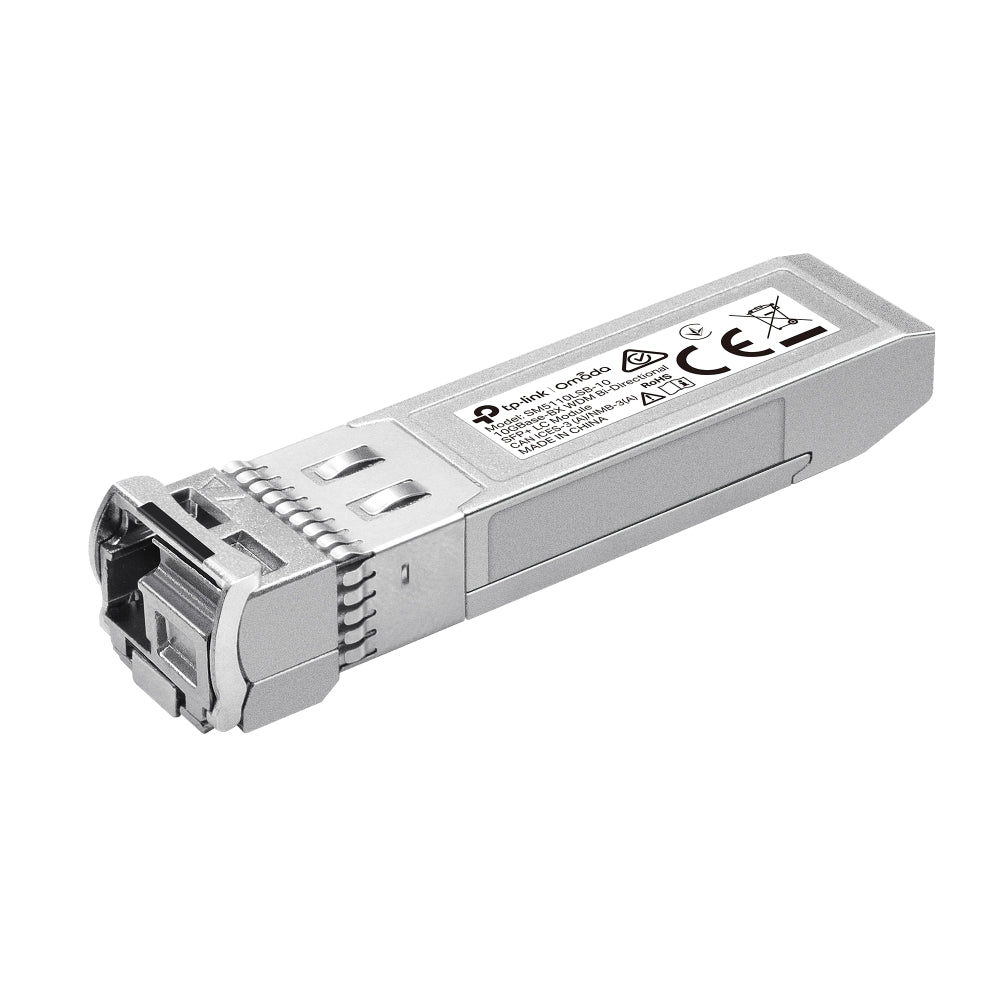

Omada 10GBase-BX WDM Bi-Directional SFP+ LC Module
- Supports WDM Bi-Directional technology, using a single strand of fiber, cost saving
- Single mode SFP+ LC Transceiver
- Hot-Pluggable with maximum flexibility
- Supports Digital Diagnostic Monitoring (DDM)
- Compatible with 10G Small Form Pluggable Multi-Source Agreement (SFP+)
- Compatible with switches with 10G ports like SG3428X and SG3452X
What This Product Does
The SM5110LSB-10 is designed to extend transmission distance up to 10km with a maximum rate of 10Gbps. It is a single-mode SFP+ transceiver that supports bi-directional data transmission, which is cost-saving.
*Note: Use SM5110LSA-10 & SM5110LSB-10 together for fast and reliable connectivity.
Omada 10GBase-BX WDM Bi-Directional SFP+ LC Module
- Supports WDM Bi-Directional technology, using a single strand of fiber, cost saving
- Single mode SFP+ LC Transceiver
- Hot-Pluggable with maximum flexibility
- Supports Digital Diagnostic Monitoring (DDM)
- Compatible with 10G Small Form Pluggable Multi-Source Agreement (SFP+)
- Compatible with switches with 10G ports like SG3428X and SG3452X
What This Product Does
The SM5110LSB-10 is designed to extend transmission distance up to 10km with a maximum rate of 10Gbps. It is a single-mode SFP+ transceiver that supports bi-directional data transmission, which is cost-saving.
*Note: Use SM5110LSA-10 & SM5110LSB-10 together for fast and reliable connectivity.
SM5110LSB-10 SFP+ Transceiver Specifications | |
---|---|
Transceiver | |
Standards and Protocols | • IEEE 802.3ae • SFF 8431, SFF 8432, SFF-8472 |
Wave Length | TX: 1270 nm RX: 1330 nm |
Power Supply | 3.3 V |
Fiber Type | 9 μm / 125 μm Single-Mode |
Max. Cable Length | 10 km |
Data Rate | 10.3125 Gbps |
Connector | LC/UPC |
Regulatory Compliance | CE, FCC, RoHS |
Environment | |
Operating Temperature | 0°C to 70°C (32°F to 158°F) |
Storage Temperature | −40°C to 85°C (−40°F to 185°F) |
Operating Humidity | 10% to 90% RH (non-condensing) |
Storage Humidity | 5% to 90% RH (non-condensing) |
Hardware Features | |
DDM | Yes |
Hot Swappable | Yes |
Dimensions (W × D × H) | 57 × 14 × 12 mm (2.24 × 0.55 × 0.47 in) |
Package Content | |
Included Items | • SM5110LSB-10 Transceiver • Installation Guide |
