Description
Overview

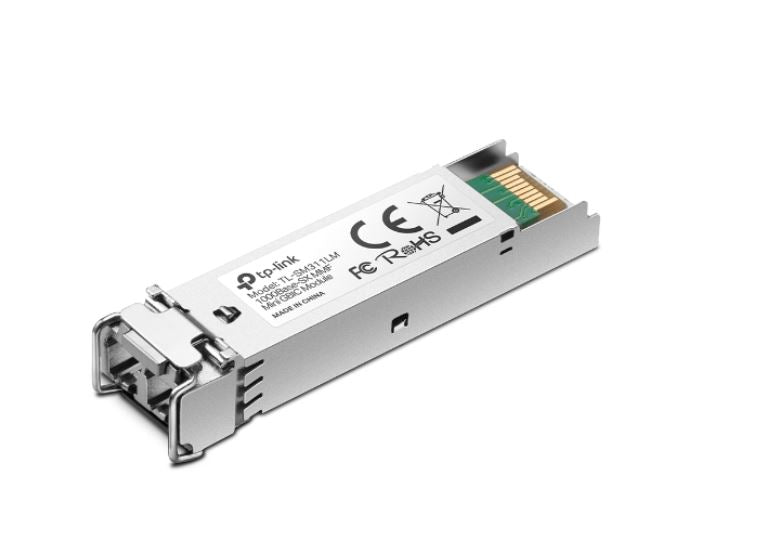

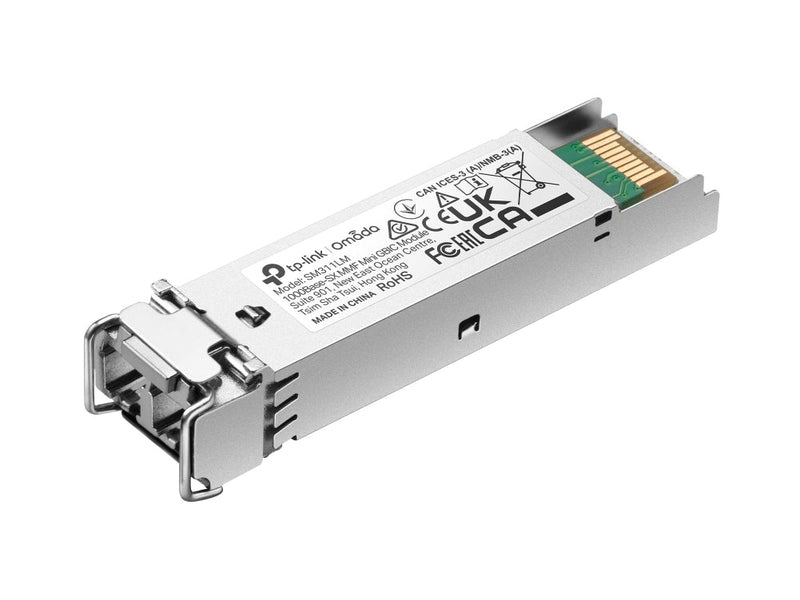

Omada 1000-Base-SX MMF Mini GBIC Module
- Multi-mode MiniGBIC module
- Supports Digital Diagnostic Monitoring (DDM)
- Compatible with Small Form Pluggable Multi-Source Agreement (SFP-MSA)
- Hot-Pluggable with maximum flexibility
- Commercial Product Operating Temperature Range: 0-70°C
What This Product Does
The SM311LM (TL-SM311LM) Fiber Module Cards are introduced for extending transfer distance. Attached to our managed/smart switches, they can extend the distance to several kilometers even tens of kilometers which can basically satisfy the distance requirement of LAN. Users can choose whether and which items to use the fiber modules according to the demand in order to lower cost.
Omada 1000-Base-SX MMF Mini GBIC Module
- Multi-mode MiniGBIC module
- Supports Digital Diagnostic Monitoring (DDM)
- Compatible with Small Form Pluggable Multi-Source Agreement (SFP-MSA)
- Hot-Pluggable with maximum flexibility
- Commercial Product Operating Temperature Range: 0-70°C
What This Product Does
The SM311LM (TL-SM311LM) Fiber Module Cards are introduced for extending transfer distance. Attached to our managed/smart switches, they can extend the distance to several kilometers even tens of kilometers which can basically satisfy the distance requirement of LAN. Users can choose whether and which items to use the fiber modules according to the demand in order to lower cost.
SM311LM SFP Transceiver Specifications | |
---|---|
Media Converter & Module | |
Standards and Protocols | IEEE 802.3z, CSMA/CD, TCP/IP |
Wave Length | 850 nm |
Dimensions (W × D × H) | 55.4 × 13.7 × 12.9 mm (2.2 × 0.5 × 0.5 in) |
Power Supply | 4.0 V |
Safety & Emission | FCC, CE |
Cable | Multi-mode Fiber |
Fiber Type | 50/125 μm or 62.5/125 μm Multi-mode |
Max. Cable Length | 275 m or 550 m |
Data Rate | 1.25 Gbps |
Port Type | LC/UPC |
Hardware Features | |
DDM | Yes |
SFP-MSA | Yes |
Hot Swappable | Yes |
Environment | |
Operating Temperature | 0°C to 70°C (32°F to 158°F) |
Storage Temperature | −40°C to 80°C (−40°F to 176°F) |
Operating Humidity | 10% to 90% RH (non-condensing) |
Storage Humidity | 5% to 90% RH (non-condensing) |
Package Content | |
Included Items | • SM311LM Transceiver • Installation Guide |
