Description
Overview

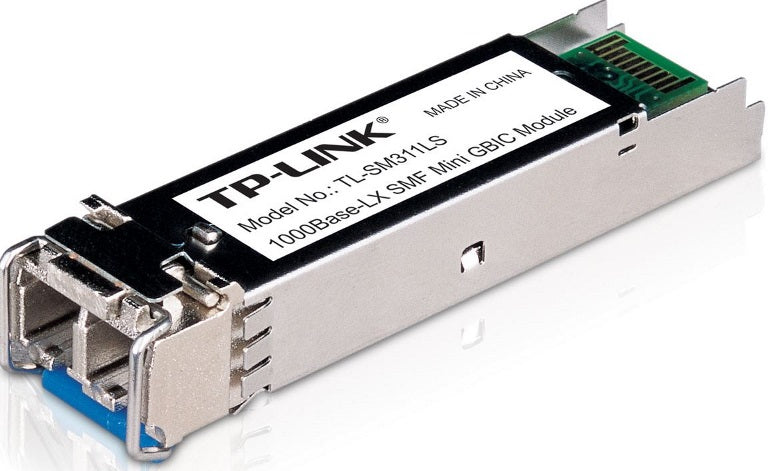

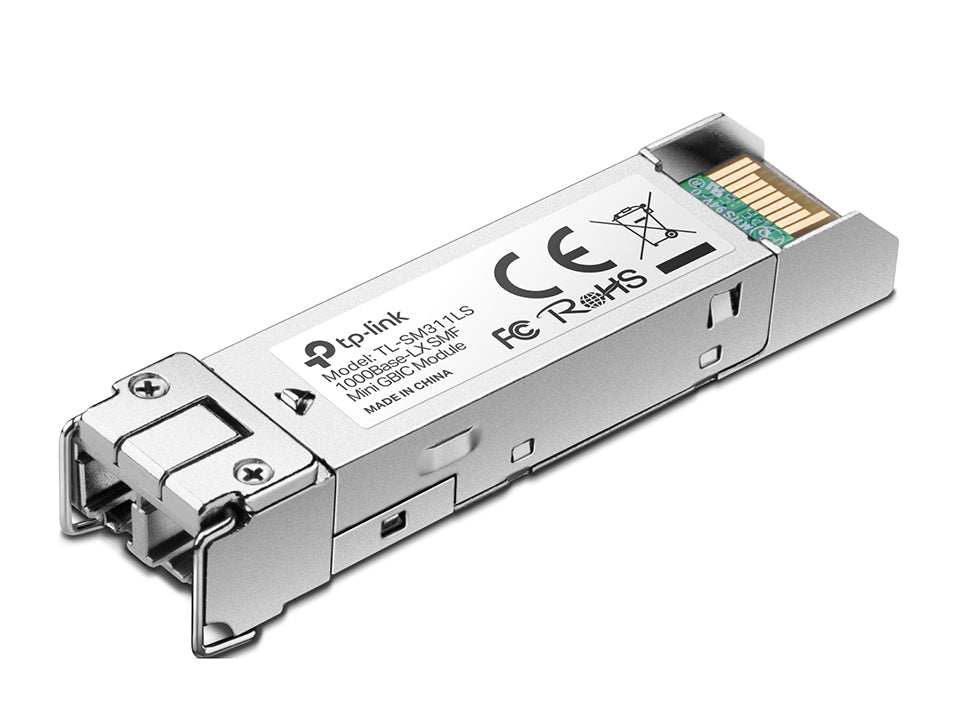

MiniGBIC Module
- Up to 20 km transmission distance in 9/125 μm SMF (Single-Mode Fibre)
- Compatible with all SFP ports on TP-Link products including JetStream switches, and media converter MC220L.
- Work with MC210CS with a single-mode fibre connection
MiniGBIC Module
- Up to 20 km transmission distance in 9/125 μm SMF (Single-Mode Fibre)
- Compatible with all SFP ports on TP-Link products including JetStream switches, and media converter MC220L.
- Work with MC210CS with a single-mode fibre connection
| TL-SM311LS SFP Transceiver Specifications | |
|---|---|
| Hardware Features | |
| DDM | Yes |
| SFP-MSA | Yes |
| Hot Swappable | Yes |
| Media Converter & Module | |
| Standards and Protocols | IEEE 802.3z, CSMA/CD, TCP/IP |
| Wave Length | 1310 nm |
| Dimensions (W × D × H) | 55.4 × 14.6 × 12.9 mm (2.2 × 0.6 × 0.5 in) |
| Power Supply | 3.3 V |
| Safety & Emission | FCC, CE |
| Cable | Single-mode Fiber |
| Fiber Type | 9/125 μm Single-mode |
| Max. Cable Length | 20 km |
| Data Rate | 1.25 Gbps |
| Port Type | LC/UPC |
| Environment | |
| Operating Temperature | 0°C to 70°C (32°F to 158°F) |
| Storage Temperature | −40°C to 80°C (−40°F to 176°F) |
| Operating Humidity | 10% to 90% RH (non-condensing) |
| Storage Humidity | 5% to 90% RH (non-condensing) |
| Package Content | |
| Included Items | • SFP Module TL-SM311LS • Installation Guide |
