Overview

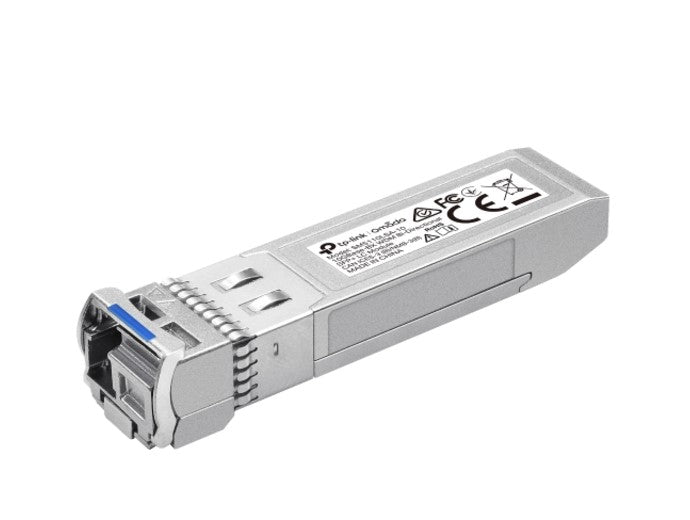

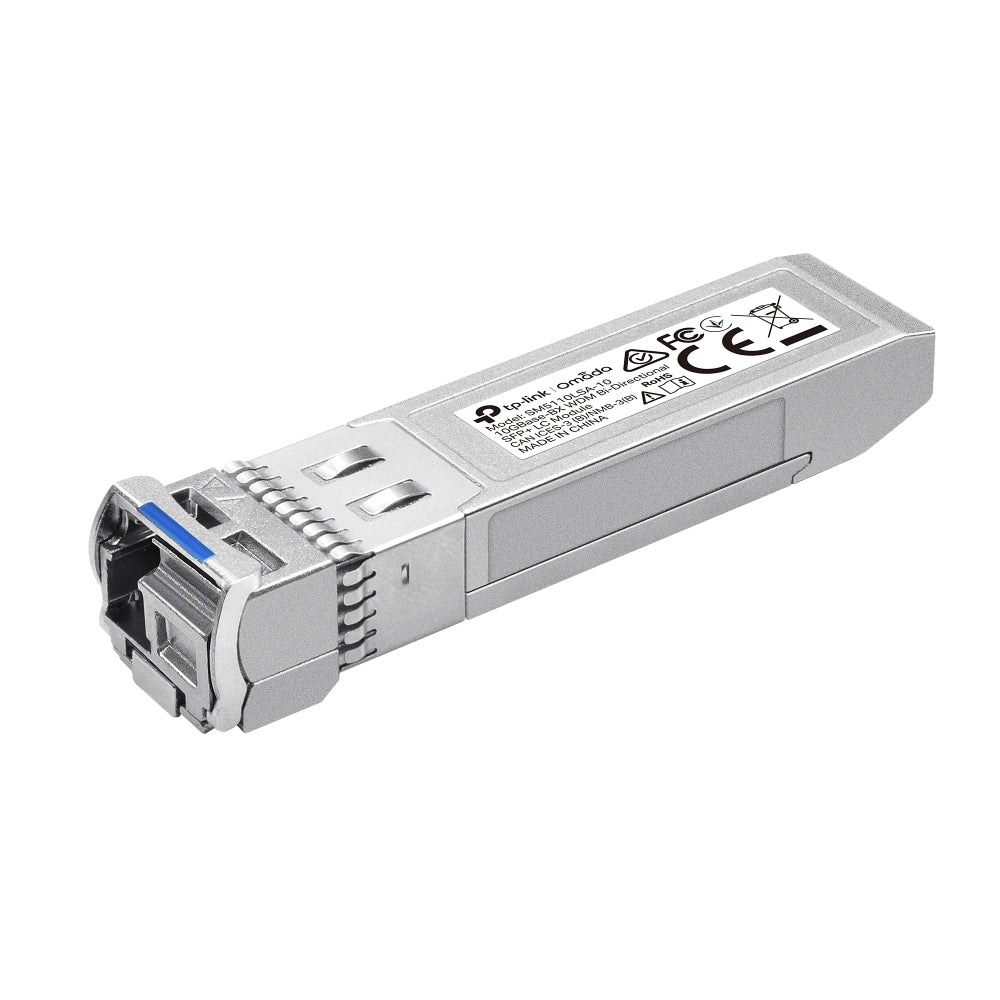

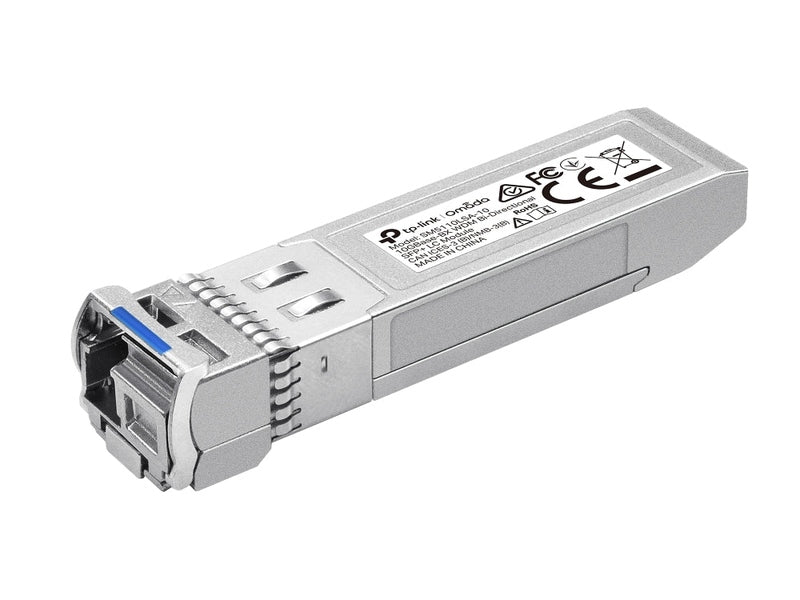

SM5110LSA-10
Omada 10GBase-BX WDM Bi-Directional SFP+ LC Module
- Supports WDM Bi-Directional technology, using a single strand of fiber, cost saving
- Single mode SFP+ LC Transceiver
- Hot-Pluggable with maximum flexibility
- Supports Digital Diagnostic Monitoring (DDM)
- Compatible with 10G Small Form Pluggable Multi-Source Agreement (SFP+)
- Compatible with switches with 10G ports like SG3428X and SG3452X
What This Product Does
The SM5110LSA-10 is designed to extend transmission distance up to 10km with a maximum rate of 10Gbps. It is a single-mode SFP+ transceiver that supports bi-directional data transmission, which is cost-saving.
*Note: Use SM5110LSA-10 & SM5110LSB-10 together for fast and reliable connectivity.
SM5110LSA-10
Omada 10GBase-BX WDM Bi-Directional SFP+ LC Module
- Supports WDM Bi-Directional technology, using a single strand of fiber, cost saving
- Single mode SFP+ LC Transceiver
- Hot-Pluggable with maximum flexibility
- Supports Digital Diagnostic Monitoring (DDM)
- Compatible with 10G Small Form Pluggable Multi-Source Agreement (SFP+)
- Compatible with switches with 10G ports like SG3428X and SG3452X
What This Product Does
The SM5110LSA-10 is designed to extend transmission distance up to 10km with a maximum rate of 10Gbps. It is a single-mode SFP+ transceiver that supports bi-directional data transmission, which is cost-saving.
*Note: Use SM5110LSA-10 & SM5110LSB-10 together for fast and reliable connectivity.
| SM5110LSA-10 SFP+ Transceiver Specifications | |
|---|---|
| Transceiver | |
| Standards and Protocols | • IEEE 802.3ae • SFF 8431, SFF 8432, SFF-8472 |
| Wave Length | TX: 1330 nm RX: 1270 nm |
| Power Supply | 3.3 V |
| Fiber Type | 9 μm / 125 μm Single-Mode |
| Max. Cable Length | 10 km |
| Data Rate | 10.3125 Gbps |
| Connector | LC/UPC |
| Regulatory Compliance | CE, FCC, RoHS |
| Environment | |
| Operating Temperature | 0°C to 70°C (32°F to 158°F) |
| Storage Temperature | −40°C to 85°C (−40°F to 185°F) |
| Operating Humidity | 10% to 90% RH (non-condensing) |
| Storage Humidity | 5% to 90% RH (non-condensing) |
| Hardware Features | |
| DDM | Yes |
| Hot Swappable | Yes |
| Dimensions (W × D × H) | 57 × 14 × 12 mm (2.24 × 0.55 × 0.47 in) |
| Package Content | |
| Included Items | • SM5110LSA-10 Transceiver • Installation Guide |
