Overview

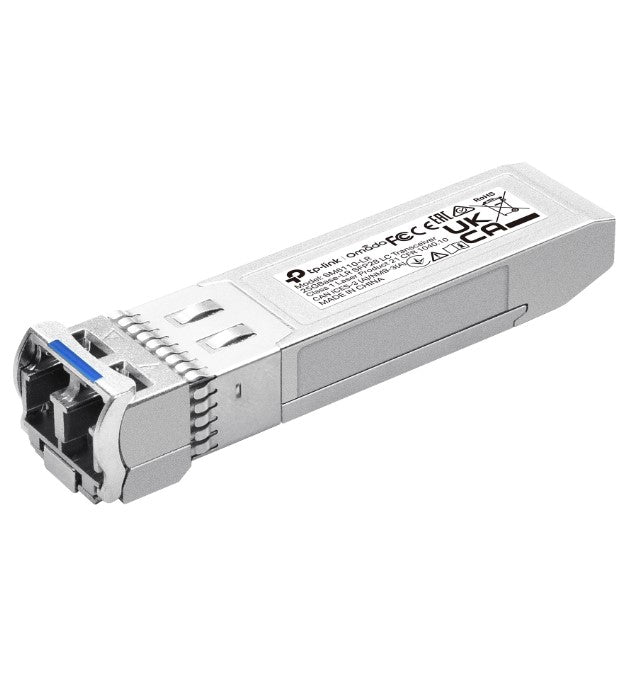

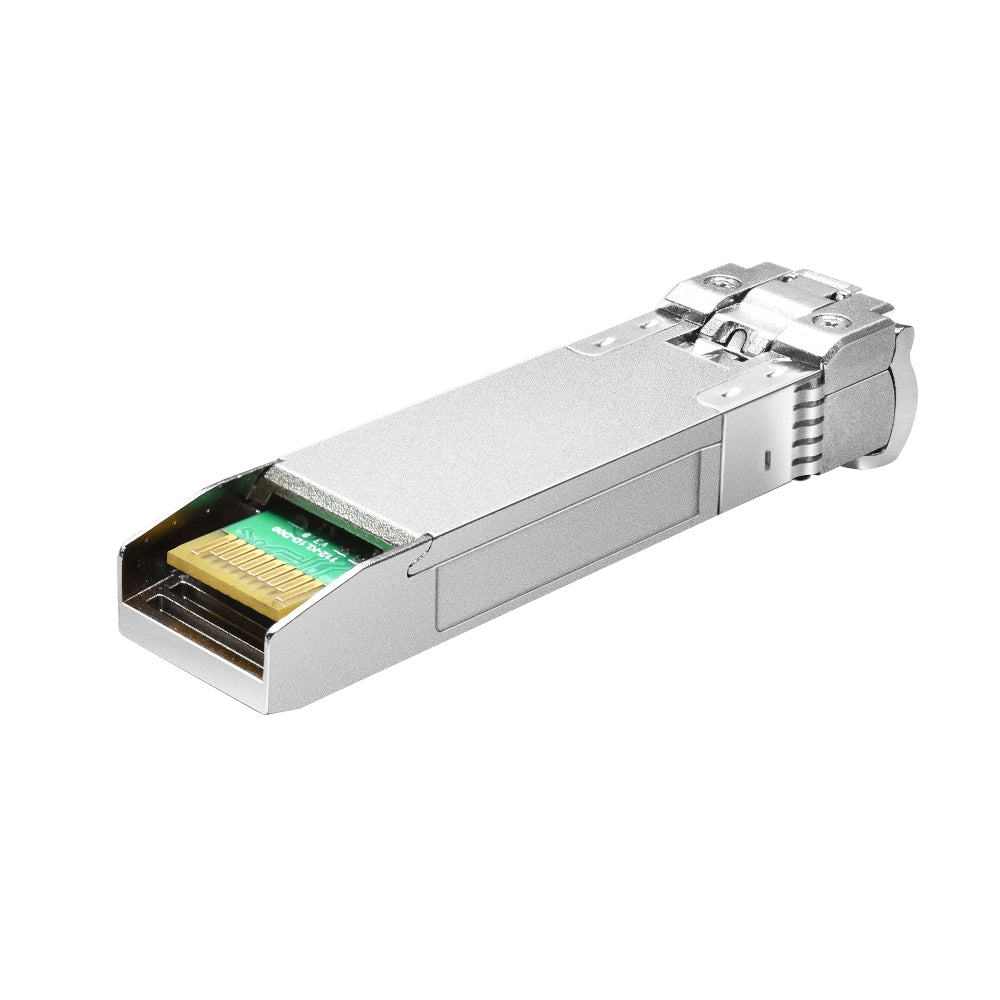

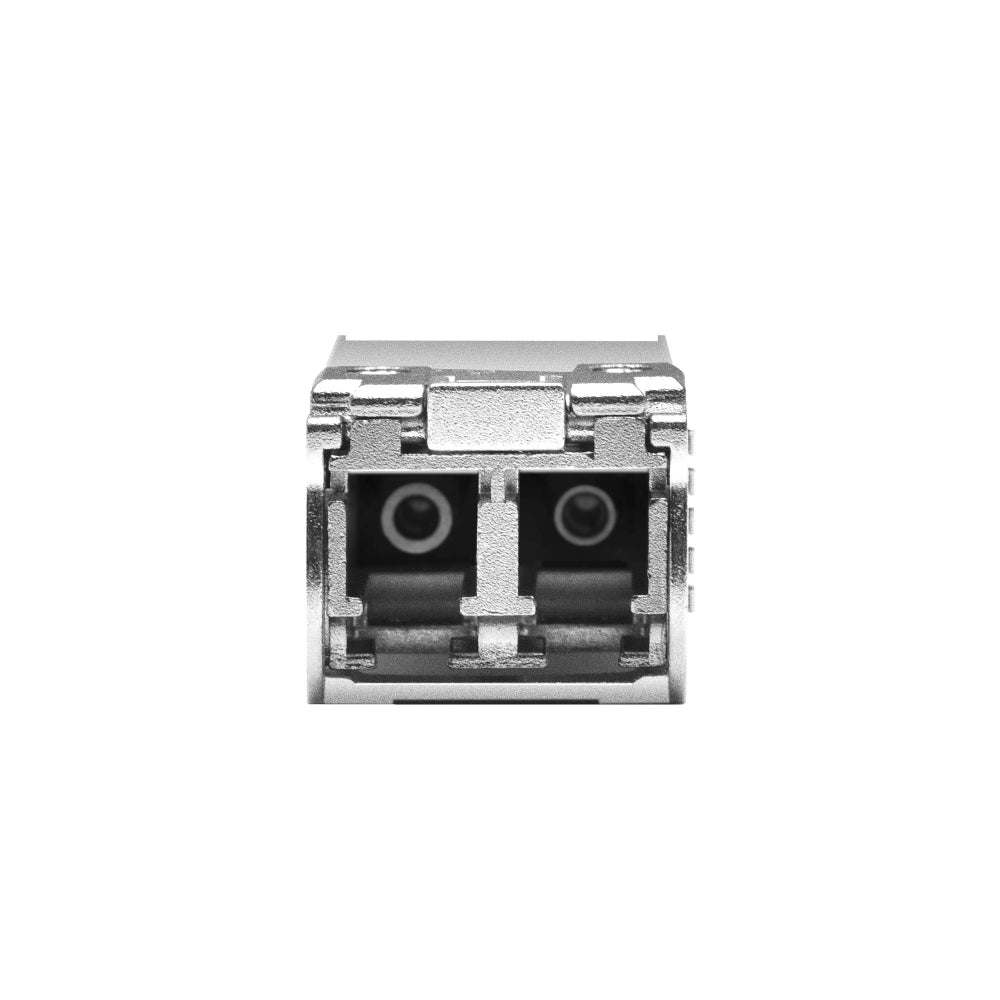

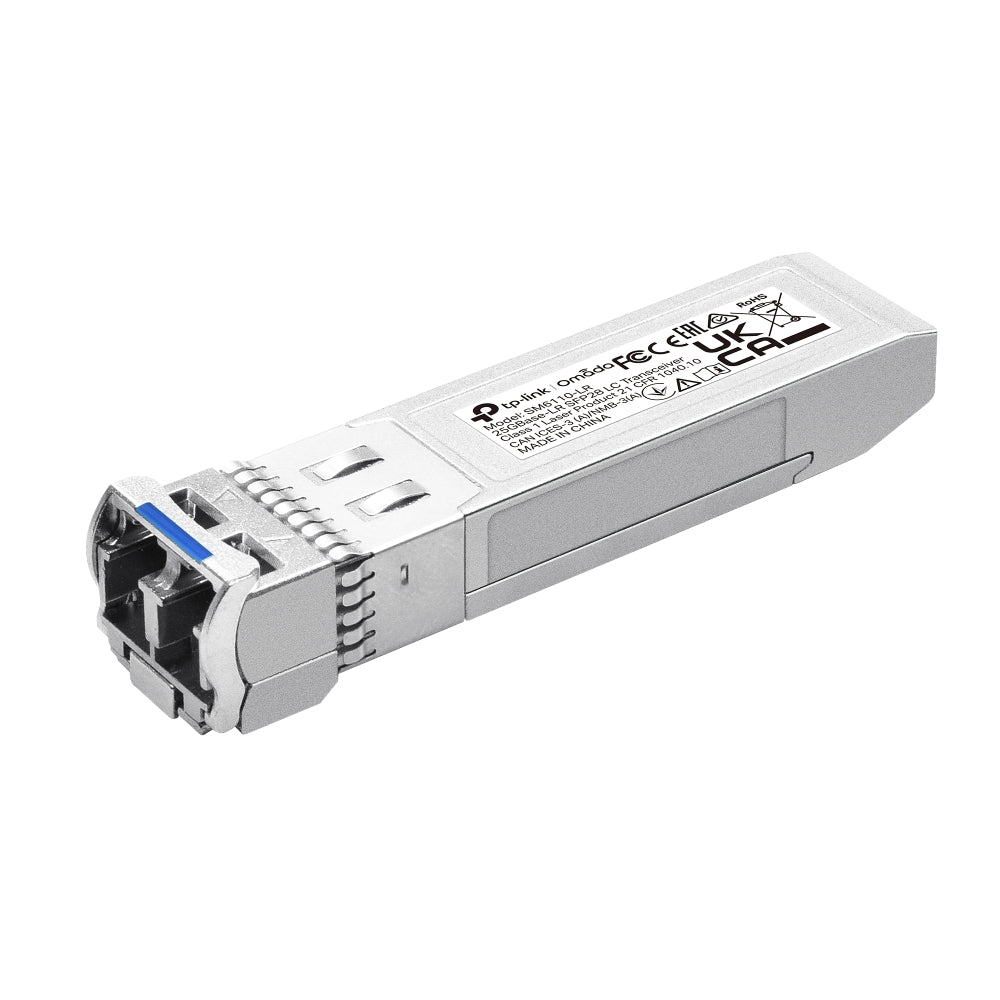

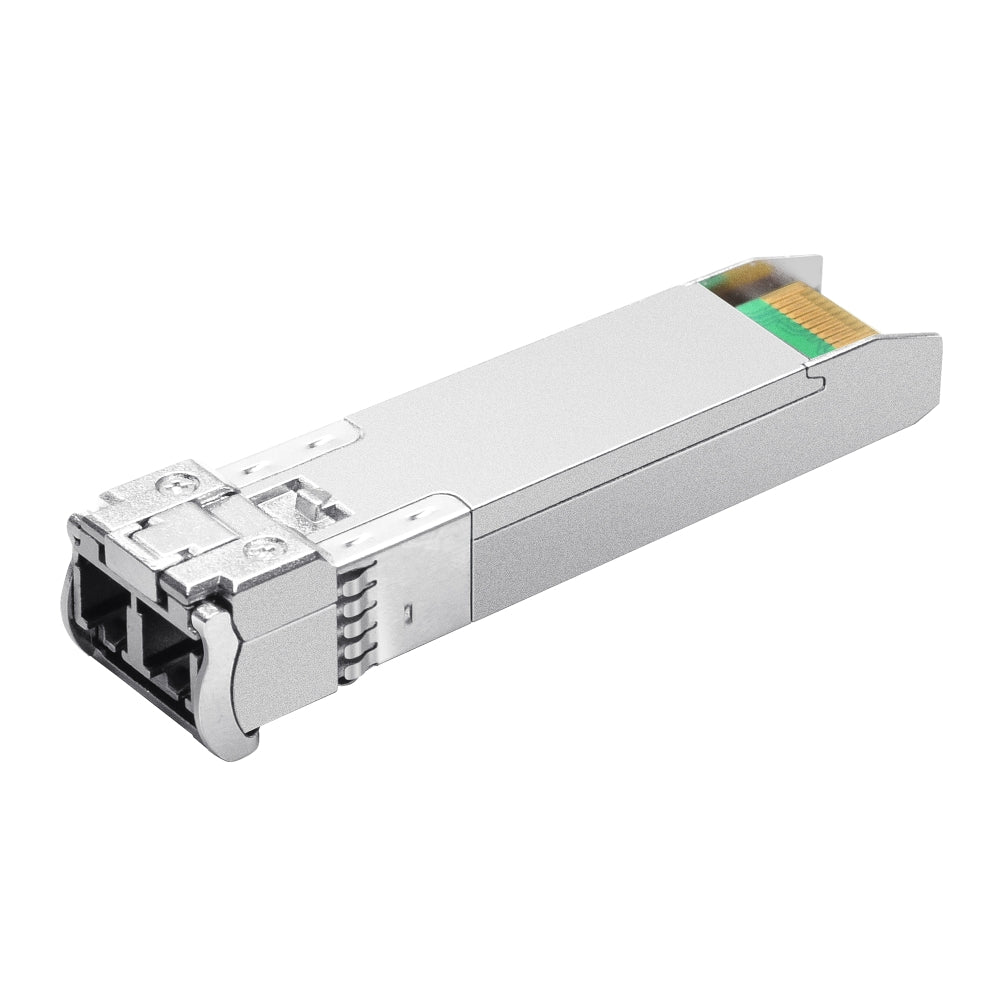

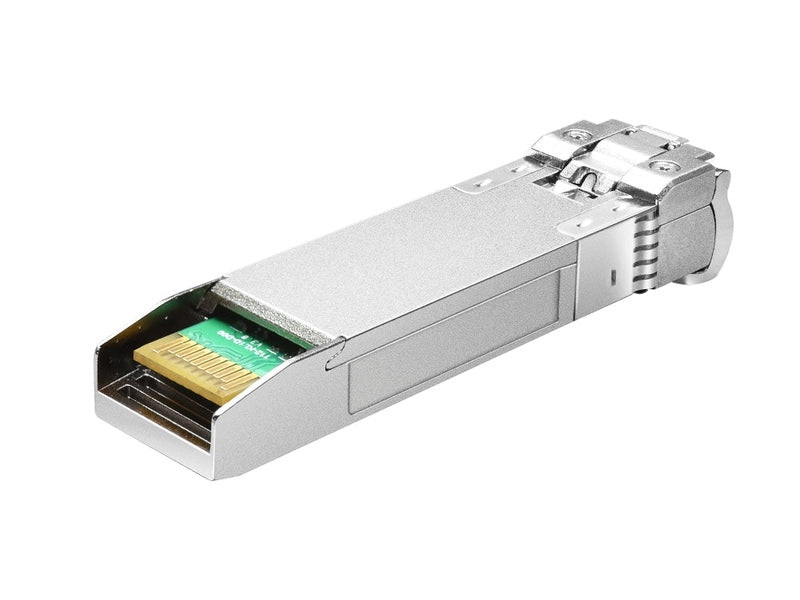

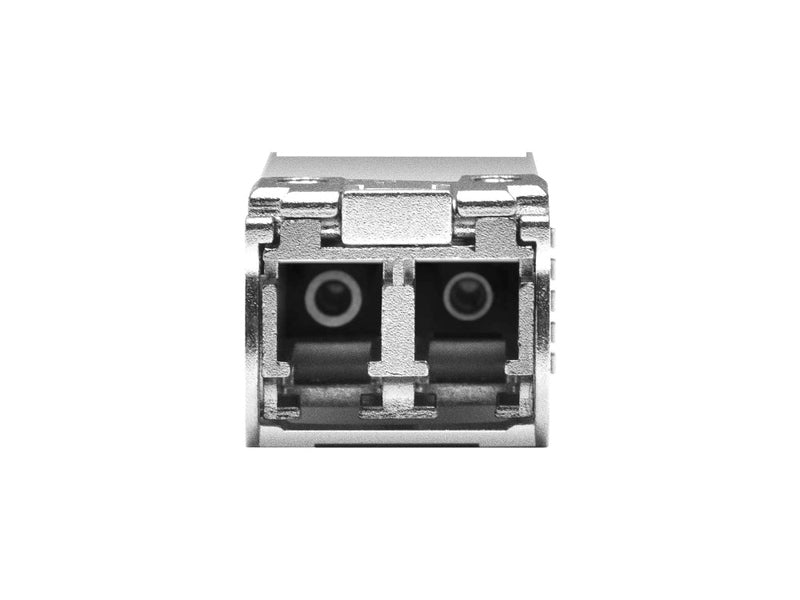

SM6110-LR
Omada 25GBase-LR SFP28 LC Transceiver
- Single-mode SFP+/SFP28 LC Transceiver
- Hot-Pluggable with maximum flexibility
- Supports Digital Diagnostic Monitoring (DDM)
- Low Power Consumption no more than 1.2 W
- Compatible with 10G/25G Small Form Pluggable Multi-Source Agreement (SFP+/SFP28 MSA)
- Compatible with switches with 25G ports like SX6632YF; and 10G ports like SG3428X and SG3452X.
What This Product Does
The SM6110-LR is designed to extend transfer distances based on 10G/25G Ethernet connectivity. It is a 10G/25GBASE-LR high performance 1310 nm single-mode SFP+/SFP28 transceiver. It supports full duplex, 10G/25G Ethernet connections up to 10 km with 9/125µm fiber cables respectively.
SM6110-LR
Omada 25GBase-LR SFP28 LC Transceiver
- Single-mode SFP+/SFP28 LC Transceiver
- Hot-Pluggable with maximum flexibility
- Supports Digital Diagnostic Monitoring (DDM)
- Low Power Consumption no more than 1.2 W
- Compatible with 10G/25G Small Form Pluggable Multi-Source Agreement (SFP+/SFP28 MSA)
- Compatible with switches with 25G ports like SX6632YF; and 10G ports like SG3428X and SG3452X.
What This Product Does
The SM6110-LR is designed to extend transfer distances based on 10G/25G Ethernet connectivity. It is a 10G/25GBASE-LR high performance 1310 nm single-mode SFP+/SFP28 transceiver. It supports full duplex, 10G/25G Ethernet connections up to 10 km with 9/125µm fiber cables respectively.
| SM6110-LR SFP28 Transceiver Specifications | |
|---|---|
| Transceiver | |
| Standards and Protocols | • IEEE 802.3ae, 802.3cc • SFF-8402, SFF-8431, SFF-8432, SFF-8472 • eCPRI, CPRI • TCP/IP |
| Wave Length | 1310 nm |
| Power Supply | 3.3 V |
| Fiber Type | 9/125 μm Single-Mode |
| Max. Cable Length | 10 km |
| Connector | Duplex LC/UPC |
| Regulatory Compliance | CE, FCC, RoHS |
| Environment | |
| Operating Temperature | 0°C to 70°C (32°F to 158°F) |
| Storage Temperature | −40°C to 85°C (−40°F to 185°F) |
| Operating Humidity | 10% to 90% RH (Non-condensing) |
| Storage Humidity | 5% to 90% RH (Non-condensing) |
| Hardware Features | |
| DDM | Yes |
| SFP-MSA | Yes |
| Hot Swappable | Yes |
| Dimensions (W × D × H) | 57 × 14 × 12 mm (2.24 × 0.55 × 0.47 in) |
| Package Content | |
| Included Items | • SM6110-LR Transceiver • Installation Guide |
| SFP28 Cable | |
| Data Rate | Dual Rate: 25.78 Gbps and 10.31 Gbps |
