Overview

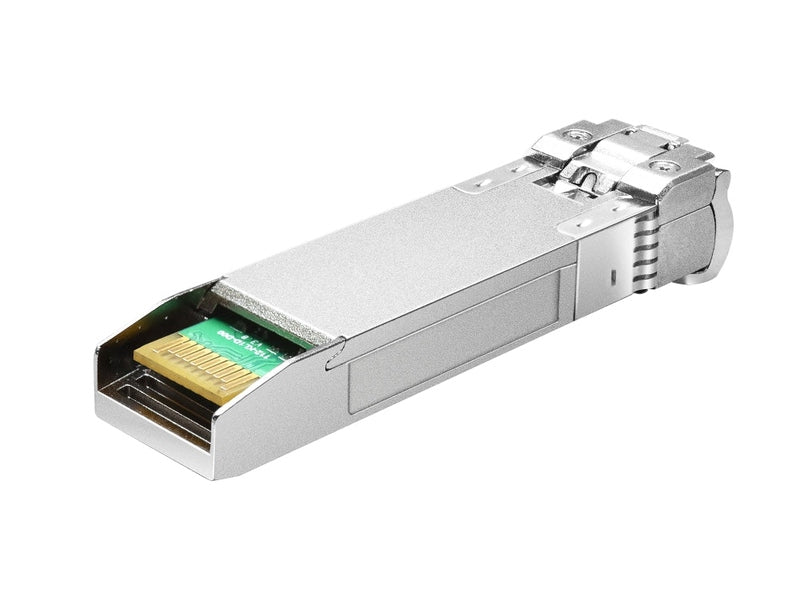

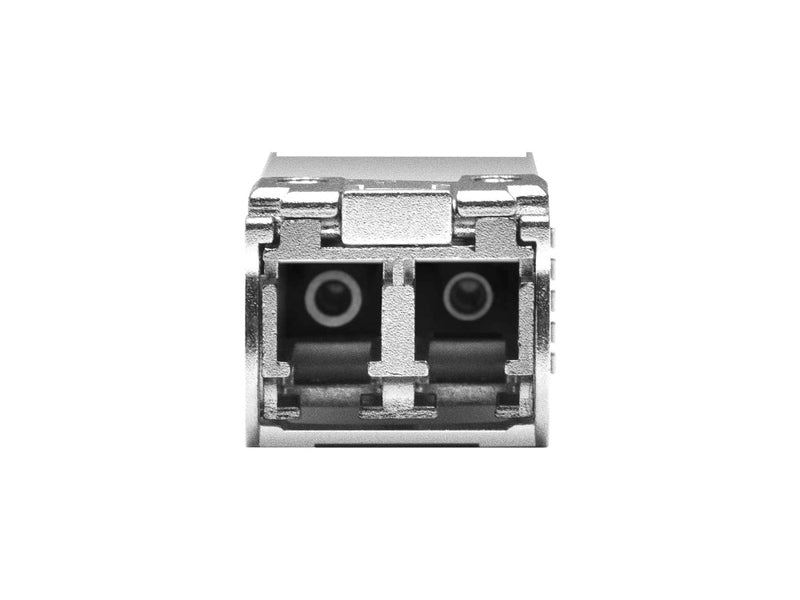

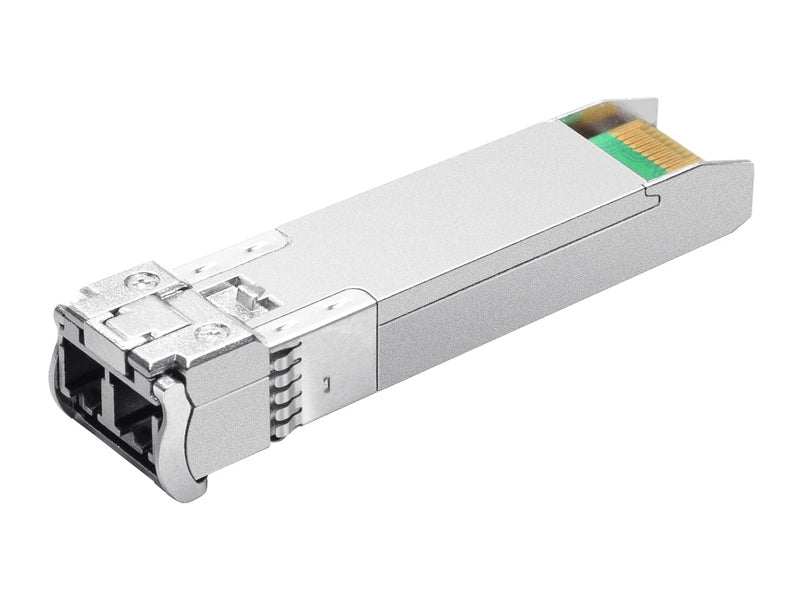

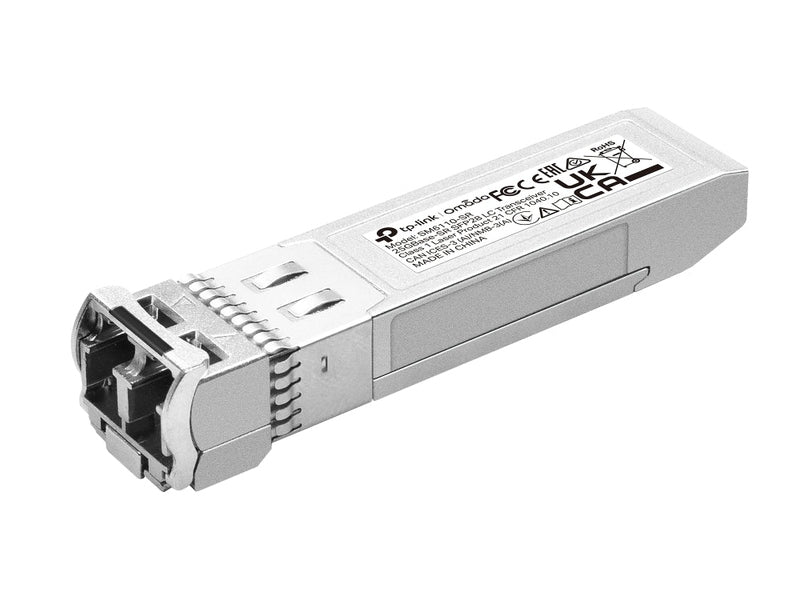

SM6110-SR
Omada 25GBase-SR SFP28 LC Transceiver
- Multi-mode SFP+/SFP28 LC Transceiver
- Hot-Pluggable with maximum flexibility
- Supports Digital Diagnostic Monitoring (DDM)
- Low Power Consumption no more than 1 W
- Compatible with 10G/25G Small Form Pluggable Multi-Source Agreement (SFP+/SFP28 MSA)
- Compatible with switches with 25G ports like SX6632YF; and 10G ports like SG3428X and SG3452X.
What This Product Does
The SM6110-SR is designed to extend transfer distances based on 10G/25G Ethernet connectivity. It is a 10G/25GBASE-SR high performance 850nm multi-mode SFP+/SFP28 transceiver. It supports full duplex, 10G/25G Ethernet connections up to 70m (OM3) @25.78Gbps, 100m (OM4) @25.78Gbps and 300m (OM3) @10.31Gbps respectively.
SM6110-SR
Omada 25GBase-SR SFP28 LC Transceiver
- Multi-mode SFP+/SFP28 LC Transceiver
- Hot-Pluggable with maximum flexibility
- Supports Digital Diagnostic Monitoring (DDM)
- Low Power Consumption no more than 1 W
- Compatible with 10G/25G Small Form Pluggable Multi-Source Agreement (SFP+/SFP28 MSA)
- Compatible with switches with 25G ports like SX6632YF; and 10G ports like SG3428X and SG3452X.
What This Product Does
The SM6110-SR is designed to extend transfer distances based on 10G/25G Ethernet connectivity. It is a 10G/25GBASE-SR high performance 850nm multi-mode SFP+/SFP28 transceiver. It supports full duplex, 10G/25G Ethernet connections up to 70m (OM3) @25.78Gbps, 100m (OM4) @25.78Gbps and 300m (OM3) @10.31Gbps respectively.
SM6110-SR SFP28 Transceiver Specifications | |
---|---|
Transceiver | |
Standards and Protocols | • IEEE 802.3ae, 802.3by • SFF-8402, SFF-8431, SFF-8432, SFF-8472 • eCPRI, CPRI • TCP/IP |
Wave Length | 850 nm |
Power Supply | 3.3 V |
Fiber Type | 50/125 µm or 62.5/125 µm Multi-mode |
Max. Cable Length | • 70 m (OM3) @ 25.78 Gbps • 100 m (OM4) @ 25.78 Gbps • 300 m (OM3) @ 10.31 Gbps |
Connector | Duplex LC/UPC |
Regulatory Compliance | CE, FCC, RoHS |
Environment | |
Operating Temperature | 0°C to 70°C (32°F to 158°F) |
Storage Temperature | −40°C to 85°C (−40°F to 185°F) |
Operating Humidity | 10% to 90% RH (non-condensing) |
Storage Humidity | 5% to 90% RH (non-condensing) |
Hardware Features | |
DDM | Yes |
SFP-MSA | Yes |
Hot Swappable | Yes |
Dimensions (W × D × H) | 57 × 14 × 13.45 mm (2.24 × 0.55 × 0.53 in) |
Package Content | |
Included Items | • SM6110-SR Transceiver • Installation Guide |
SFP28 Cable | |
Data Rate | Dual Rate: 25.78 Gbps and 10.31 Gbps |
