SM6220-1M

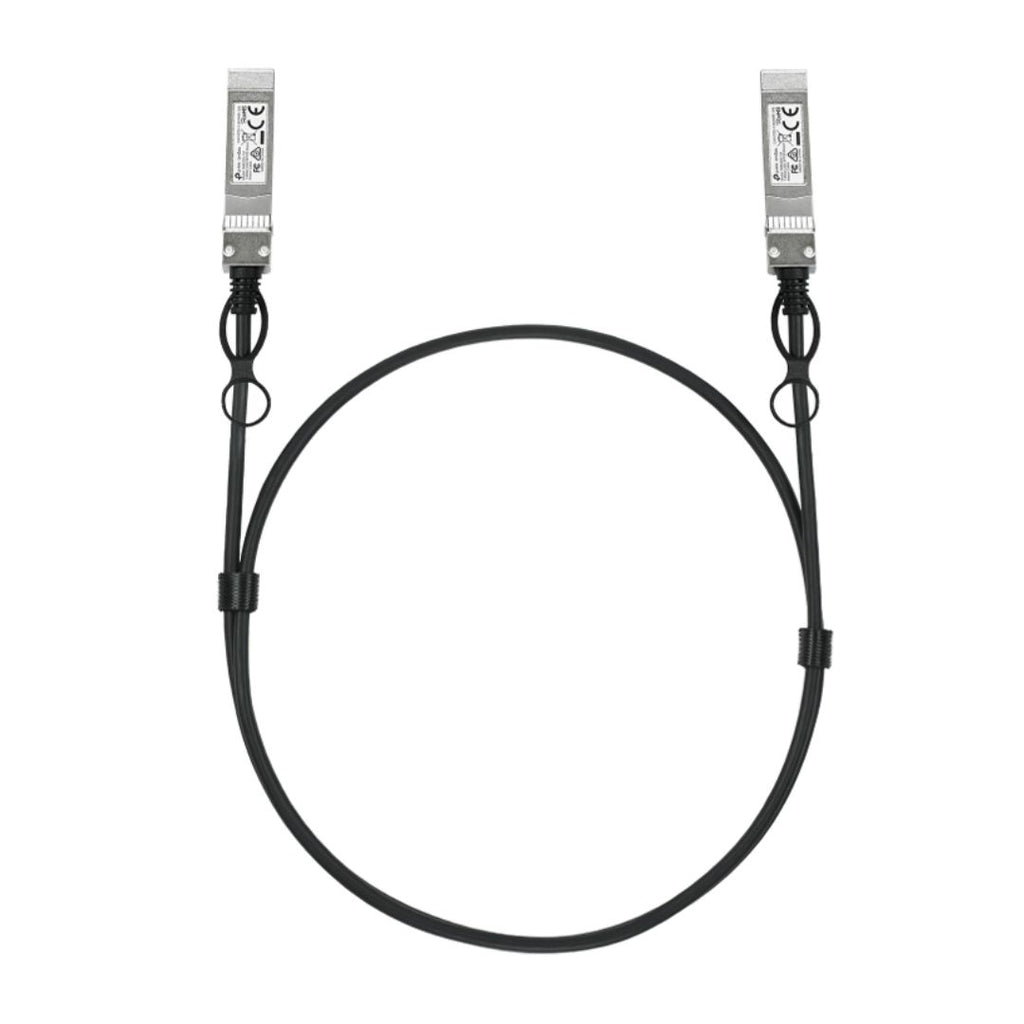

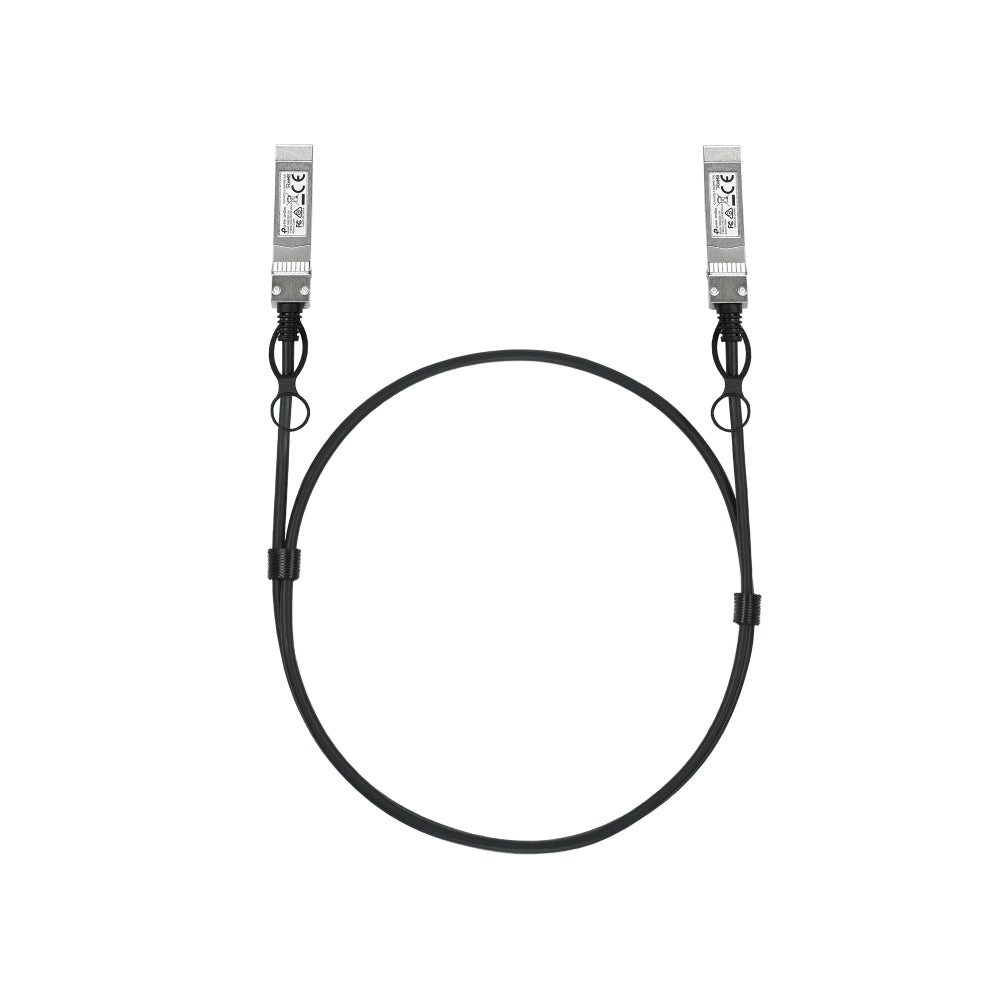

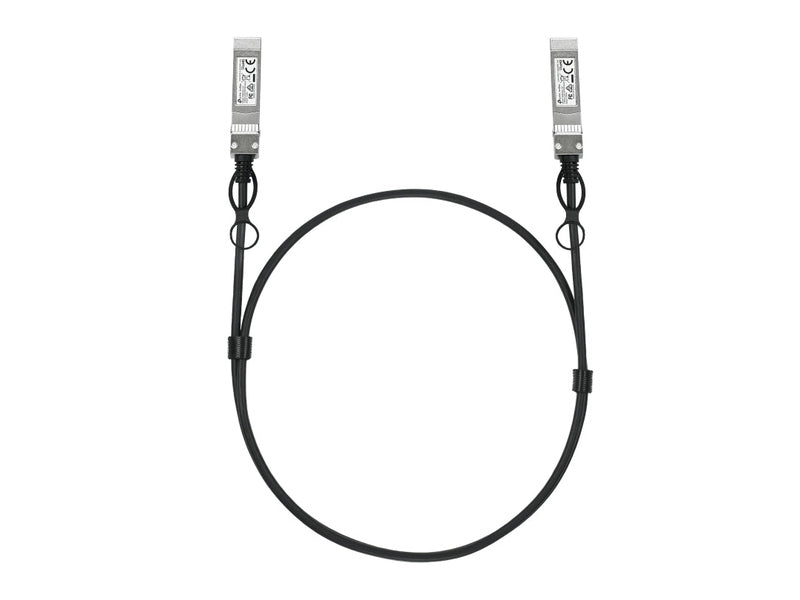

Omada 1 Meter 25G SFP28 Direct Attach Cable
- 25G SFP28 connector on both sides
- Drives 25 Gigabit Ethernet (1m distance)
What This Product Does
With a passive twin-ax cable assembly of 1 meter and two SFP28 connectors on each side, SM6220-1M is suitable for short distances and offers a cost-effective way to connect within racks and across adjacent racks.
SM6220-1M
Omada 1 Meter 25G SFP28 Direct Attach Cable
- 25G SFP28 connector on both sides
- Drives 25 Gigabit Ethernet (1m distance)
What This Product Does
With a passive twin-ax cable assembly of 1 meter and two SFP28 connectors on each side, SM6220-1M is suitable for short distances and offers a cost-effective way to connect within racks and across adjacent racks.
| SFP28 Direct Attach Cable Specifications | |
|---|---|
| General | |
| Product Dimensions | • Plug: 57.5 × 13.55 × 8.55 mm (2.26 × 0.53 × 0.34 in) • Overall Length: 1,000 mm (39.37 in) |
| SFP28 Cable | |
| Environment | • Operating Temperature: 0–70°C (32–158°F) • Storage Temperature: −40–85°C (−40–185°F) • Operating Humidity: 10–90% RH (non-condensing) • Storage Humidity: 5–90% RH (non-condensing) |
| Data Rate | 25 Gbps / 10 Gbps / 1 Gbps |
| Conductor | Silver Plated Copper |
| Wire Gauge | 30 AWG |
| Minimum Bend Radius | 22.5 mm |
| Maximum Cable Length | 1 m |
