Description
Overview

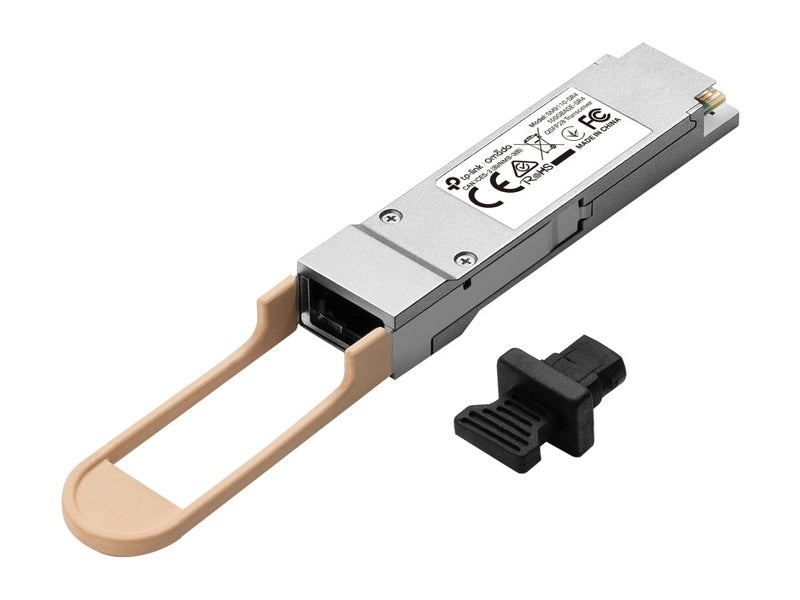

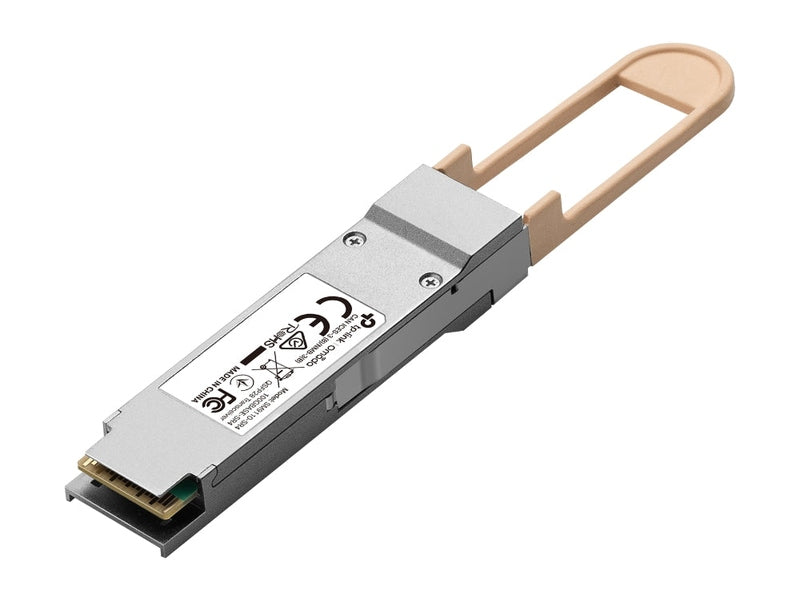

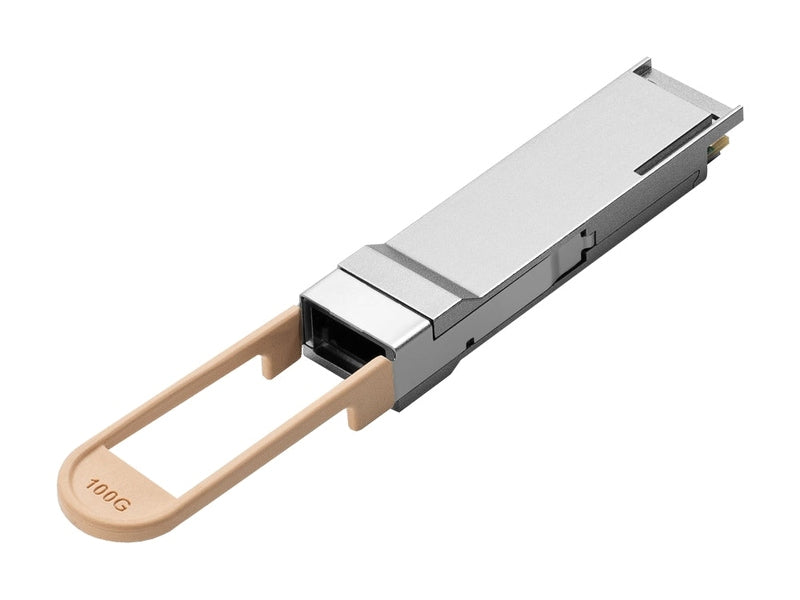

SM9110-SR4
Omada 100GBASE-SR4 QSFP28 Transceiver
- 100GBASE-SR4 multi-mode QSFP28 Transceiver
- Supports Digital Diagnostic Monitoring (DDM)
- Up to 100 m transmission distance
- Hot-Pluggable with maximum flexibility
- Wide operating temperature
- Compatible with 100G/40G Quad Small Form-Factor Pluggable 28 (QSFP28)
What This Product Does
The SM9110-SR4 is designed to extend transmission distance based on ultra-fast Ethernet connectivity. It is a 100G/40GBASE-SR4 high performance 850nm multi-mode QSFP28 transceiver. It supports 100G Ethernet connection up to 100 m (OM4) and 40G Ethernet connection up to 150 m (OM4).
SM9110-SR4
Omada 100GBASE-SR4 QSFP28 Transceiver
- 100GBASE-SR4 multi-mode QSFP28 Transceiver
- Supports Digital Diagnostic Monitoring (DDM)
- Up to 100 m transmission distance
- Hot-Pluggable with maximum flexibility
- Wide operating temperature
- Compatible with 100G/40G Quad Small Form-Factor Pluggable 28 (QSFP28)
What This Product Does
The SM9110-SR4 is designed to extend transmission distance based on ultra-fast Ethernet connectivity. It is a 100G/40GBASE-SR4 high performance 850nm multi-mode QSFP28 transceiver. It supports 100G Ethernet connection up to 100 m (OM4) and 40G Ethernet connection up to 150 m (OM4).
| SM9110-SR4 QSFP28 Transceiver Specifications | |
|---|---|
| Transceiver | |
| Form Factor | QSFP28 |
| Standards and Protocols | • IEEE 802.3bm, IEEE 802.3ba, QSFP28 MSA • SFF-8665, SFF-8636, SFF-8436 • CPRI, eCPRI • TCP/IP |
| Wave Length | 850 nm |
| Power Supply | 3.3 V |
| Max. Power Consumption | • 1.8 W @ 100 Gbps • 1.54 W @ 40 Gbps |
| Fiber Type | 50/125 µm MMF (Multimode) |
| Max. Cable Length | • 70 m (OM3), 100 m (OM4) @ 103.125 Gbps • 100 m (OM3), 150 m (OM4) @ 41.2 Gbps |
| Data Rate | Dual Rate: 103.125 Gbps and 41.2 Gbps |
| Connector | MTP/MPO-12 |
| Transmission Power | • −8.4 dBm to 2.4 dBm @ 103.125 Gbps • −7.6 dBm to 2.4 dBm @ 41.2 Gbps |
| Transmitter Type | VCSEL 850 nm |
| Receiver Type | PIN |
| Receiver Sensitivity | • <−10.3 dBm @ 103.125 Gbps • <−9.5 dBm @ 41.2 Gbps |
| Receiver Overload | • >2.4 dBm @ 103.125 Gbps • >2.4 dBm @ 41.2 Gbps |
| Extinction Ratio | • >2 dB @ 103.125 Gbps • >3 dB @ 41.2 Gbps |
| Regulatory Compliance | CE, FCC, RoHS |
| Hardware Features | |
| DDM | Yes |
| QSFP28 MSA | Yes |
| Hot Swappable | Yes |
| Dimensions (W × D × H) | 124 × 18.35 × 11.7 mm (4.88 × 0.72 × 0.46 in) |
| Package Content | |
| Included Items | • SM9110-SR4 Transceiver • Installation Guide |
| Environment | |
| Operating Temperature | 0°C to 70°C (32°F to 158°F) |
| Storage Temperature | −40°C to 85°C (−40°F to 185°F) |
| Operating Humidity | 0 to 85% RH (Non-condensing) |
| Storage Humidity | 0 to 85% RH (Non-condensing) |
