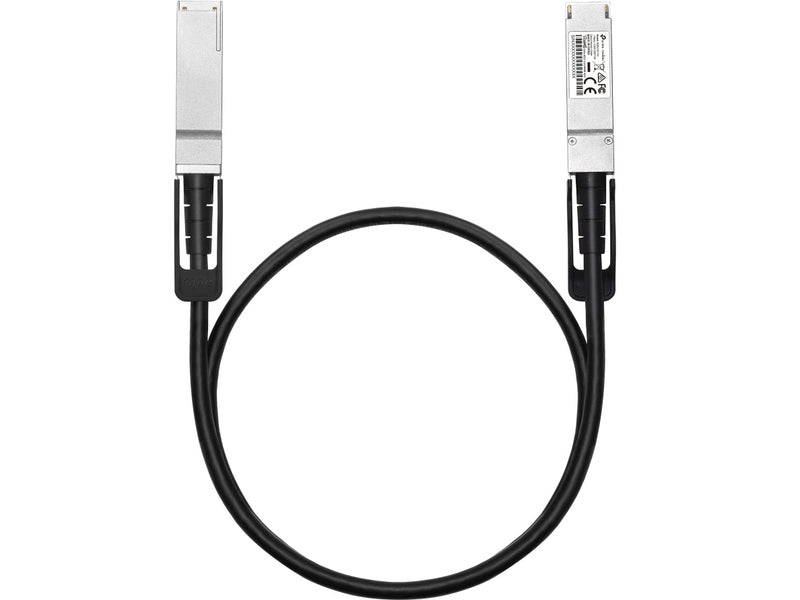

SM9220-1M
Omada 1 Meter 100G QSFP28 Direct Attach Cable
- 100 Gbps data transmission
- QSFP28 connector on both sides
- Up to 1 m transmission distance
- Wide operating temperature
- Hot Swappable
What This Product Does
SM9220-1M is a passive Direct Attach Cable. With a passive Twinax cable assembly of 1 meter and two QSFP28 connectors on each side, SM9220-1M is suitable for short distance transmission of extreme-high speed data (100 Gbps) and offers a cost-effective way to connect within racks and across adjacent racks.
SM9220-1M
Omada 1 Meter 100G QSFP28 Direct Attach Cable
- 100 Gbps data transmission
- QSFP28 connector on both sides
- Up to 1 m transmission distance
- Wide operating temperature
- Hot Swappable
What This Product Does
SM9220-1M is a passive Direct Attach Cable. With a passive Twinax cable assembly of 1 meter and two QSFP28 connectors on each side, SM9220-1M is suitable for short distance transmission of extreme-high speed data (100 Gbps) and offers a cost-effective way to connect within racks and across adjacent racks.
SFP28 Direct Attach Cable Specifications | |
---|---|
General | |
Product Dimensions | • Plug: 72.45 × 18.35 × 13.50 mm (2.85 × 0.72 × 0.53 in) • Overall Length: 1,000 mm (39.37 in) |
SFP28 Cable | |
Environment | • Operating Temperature: 0–70°C (32–158°F) • Storage Temperature: −40–85°C (−40–185°F) • Operating Humidity: 10–90% RH (non-condensing) • Storage Humidity: 5–90% RH (non-condensing) |
Data Rate | 100 Gbps / 40 Gbps |
Conductor | Silver Plated Copper |
Wire Gauge | 30 AWG |
Minimum Bend Radius | 33 mm |
Maximum Cable Length | 1 m |
