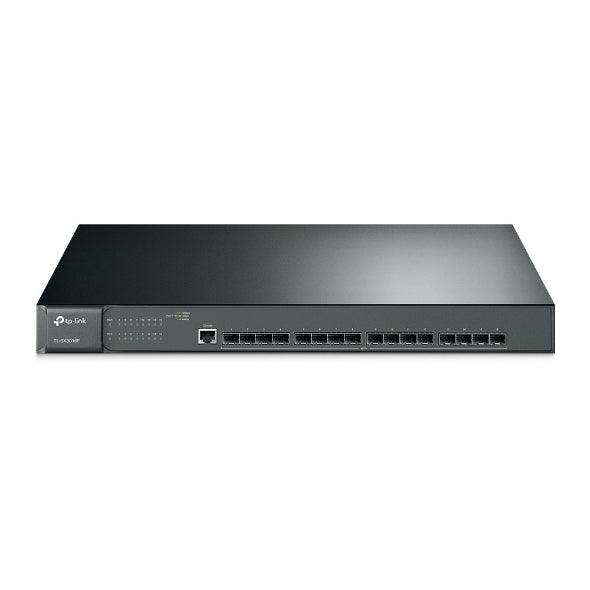

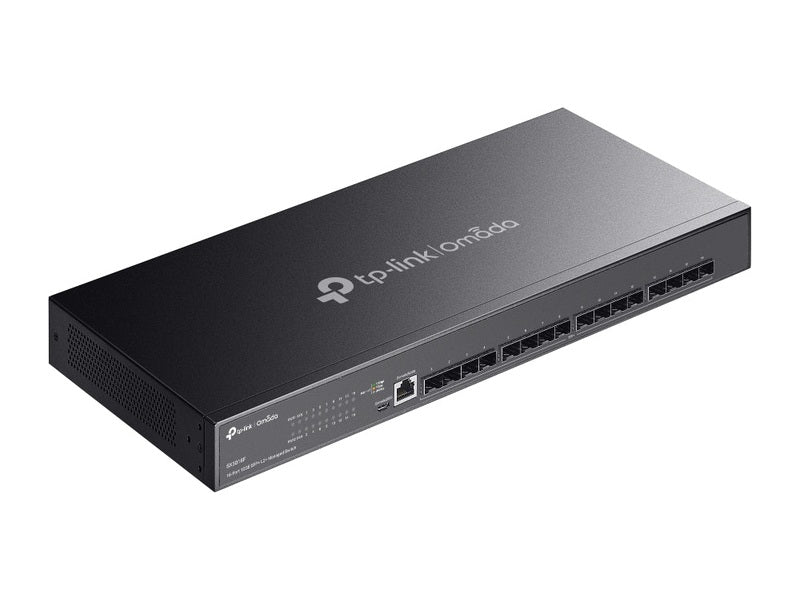

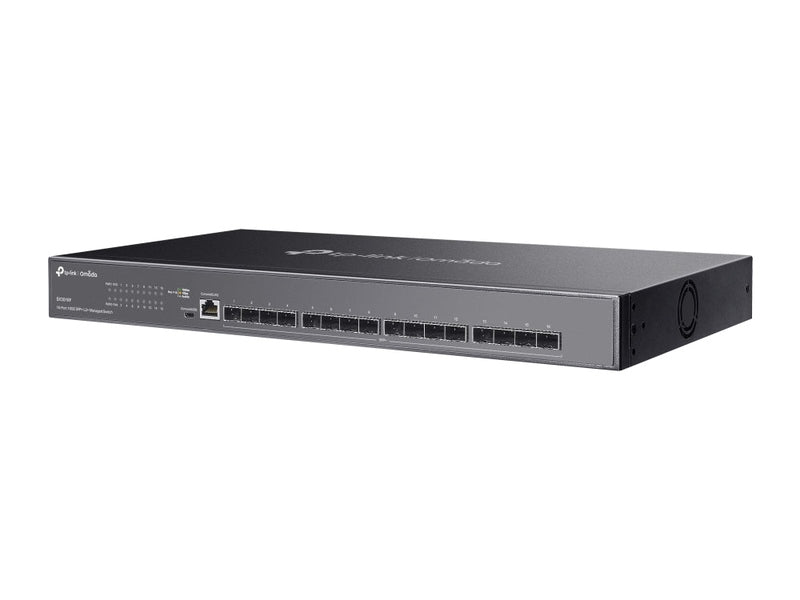

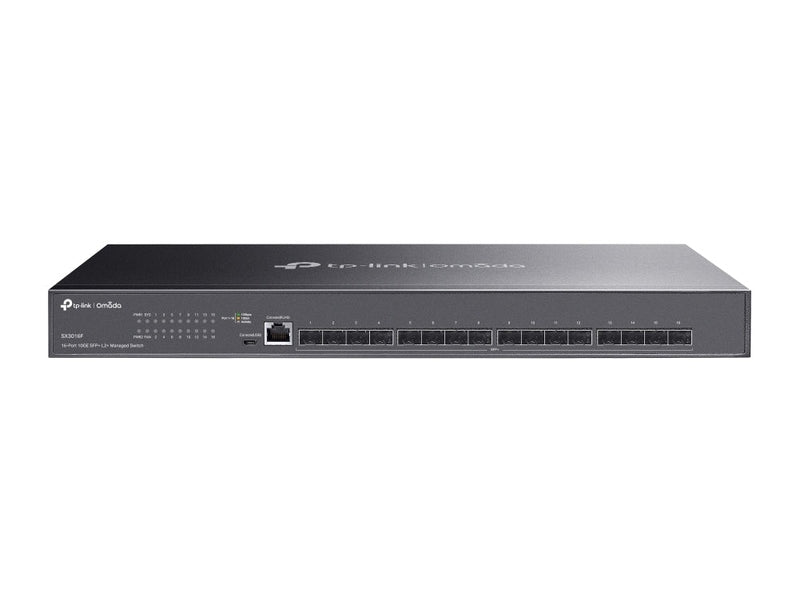

SX3016F
Omada 16-Port 10GE SFP+ L2+ Managed Switch
- 16× 10 Gbps SFP+ slots
- 320 Gbps switching capacity
- Two power supply modules back each other up
- Centralised cloud management via the web or the Omada app†
- Standalone management via web, CLI, SNMP, and RMON
- Static Routing helps route internal traffic for higher efficiency
- VLAN, ACL, QoS, IGMP Snooping, OAM, and DDM
- ERPS supports rapid protection and recovery in a ring topology
- Durable metal casing and rack-mountable design
SX3016F
Omada 16-Port 10GE SFP+ L2+ Managed Switch
- 16× 10 Gbps SFP+ slots
- 320 Gbps switching capacity
- Two power supply modules back each other up
- Centralised cloud management via the web or the Omada app†
- Standalone management via web, CLI, SNMP, and RMON
- Static Routing helps route internal traffic for higher efficiency
- VLAN, ACL, QoS, IGMP Snooping, OAM, and DDM
- ERPS supports rapid protection and recovery in a ring topology
- Durable metal casing and rack-mountable design
| TP-Link 16× 10G SFP+ L3 Managed Aggregation Switch Specifications | |
|---|---|
| Hardware Features | |
| Interfaces | • 16× 10G SFP+ Slots • 1× RJ45 Console Port • 1× Micro-USB Console Port |
| Fan Quantity | 1 |
| Physical Security Lock | Yes |

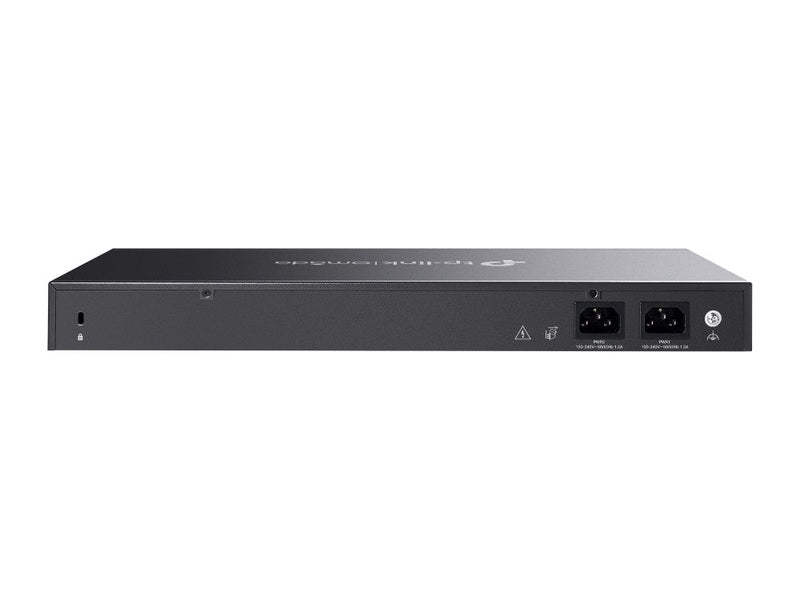

| Power Supply | • Dual Redundant Power Supplies • 100–240 V AC ~ 50/60 Hz |
| Dimensions (W × D × H) | 440 × 220 × 44 mm (17.3 × 8.7 × 1.7 in) |
| Mounting | Rack Mountable |
| Max Power Consumption | 32.74 W (220 V / 50 Hz) |
| Max Heat Dissipation | 111.71 BTU/hr (220 V / 50 Hz) |
| Performance | |
| Switching Capacity | 320 Gbps |
| Packet Forwarding Rate | 238.08 Mpps |
| MAC Address Table | 32K |
| Packet Buffer Memory | 24 Mbit |
| Jumbo Frame | 9 KB |
| Software Features | |
| Quality of Service (QoS) | • 8 Priority Queues • 802.1p CoS / DSCP Priority • Scheduling: SP, WRR, SP+WRR • Port/Flow-Based Rate Limiting • QoS Remark (802.1P, DSCP) |
| L2 and L2+ Features | • 128 IPv4/IPv6 Interfaces • 48 Static Routes • 128 Static ARP Entries • 512 ARP Entries • Proxy & Gratuitous ARP • DHCP Server & Relay (Interface/VLAN/L2) • Link Aggregation, STP, Loopback Detection • 802.3x Flow Control, Mirroring |
| L2 Multicast | • 1000 IGMP Groups (IPv4/IPv6) • IGMP Snooping & Authentication • MLD Snooping • Multicast VLAN Registration (MVR) • Multicast Filtering (256 profiles × 16 entries) |
| Advanced Features | • Auto Device Discovery • Batch Config & Firmware Upgrade • Network Monitoring • Event Warnings • Unified Configuration • Reboot Scheduling |
| ISP Features | • L2PT, DLDP, PPPoE ID Insertion • ERPS, Ethernet Link OAM (802.3ah) • DDM, sFlow |
| VLAN | • Max 4K VLAN Groups (802.1Q) • MAC VLAN (30 Entries) • Protocol VLAN (16 Templates / 12 Entries) • Private VLAN, GVRP • VLAN VPN (Port-Based / Selective QinQ) • Voice VLAN |
| Access Control List (ACL) | • Time-Based, MAC, IP, IPv6, Combined, Content ACL • Policy Actions: Mirror, Redirect, Rate Limit, QoS Remark • ACL applies to Port/VLAN |
| Security | • IP-MAC-Port Binding (512 Entries) • DHCP Snooping, ARP Inspection • IPv4/IPv6 Source Guard • Port Security (64 MAC/port) • Storm Control • 802.1X, AAA (TACACS+) • HTTPS, SSHv1/v2, CLI Access Control |
| IPv6 Features | • Dual Stack IPv4/IPv6 • MLD Snooping, IPv6 ACL • Static Routing, ND, MTU Discovery • DHCPv6, Ping6, Tracert6, Telnet(v6) • IPv6 SNMP, SSH, SSL, TFTP, Http/Https |
| MIBs | • RFC1213, RFC2233, RFC1643, RFC1493 • RFC2674, RFC2819, RFC2021 • RFC2620, RFC2618, RFC2925 • TP-Link Private MIB |
| Management Features | |
| Omada App | Yes. Requires Omada Hardware Controller, Cloud-Based Controller, or Software Controller |
| Centralized Management | • Omada Cloud-Based Controller • Omada Hardware Controller • Omada Software Controller |
| Cloud Access | Yes. Requires Omada Controller (Hardware, Cloud-Based, or Software) |
| Zero-Touch Provisioning | Yes. Requires Omada Cloud-Based Controller |
| Management Capabilities | • Web-based GUI • CLI via Console Port / Telnet • SNMP v1/v2c/v3 (Trap/Inform) • RMON (Groups 1, 2, 3, 9) • SDM Template • DHCP/BOOTP Client • LLDP / LLDP-MED • DHCP Auto Install • Dual Image / Dual Configuration • CPU Monitoring • Cable Diagnostics • Password Recovery • SNTP • System Log |
| Others | |
| Certification | CE, FCC, RoHS |
| Package Contents | • SX3016F Switch • 2× Power Cords • Quick Installation Guide • Rackmount Kit • Rubber Feet |
| System Requirements | • Microsoft® Windows® 98SE, NT, 2000, XP, Vista™, 7/8/10/11 • macOS, NetWare®, UNIX®, Linux |
| Environment | • Operating Temperature: 0–45°C (32–113°F) • Storage Temperature: −40–70°C (−40–158°F) • Operating Humidity: 10% to 90% RH (non-condensing) • Storage Humidity: 5% to 90% RH (non-condensing) |
