TP-Link TL-SF1005LP 4-Port PoE 41W 10/100Mbps Desktop Switch with 1-Port RJ45

TP-LinkSKU: TL-SF1005LP

Availability:

✅ In Stock at Supplier (ETA: Usually in 1-3 Business Days)

Price:
Sale price$56.00

Customer Reviews

Be the first to write a review
0%
(0)
0%
(0)
0%
(0)
0%
(0)
0%
(0)

Payment & Security

Apple Pay Google Pay Mastercard PayPal Shop Pay Visa

Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.

Estimate shipping

Description


5-Port 10/100Mbps Desktop Switch with 4-Port PoE [TL-SF1005LP]



    • 5× 10/100 Mbps RJ45 ports
    • 4× PoE ports transfer data and power on individual cables
    • Works with IEEE 802.3af compliant PDs
    • Up to 250 m data and power transmitting range under Extend Mode**
    • Priority Mode ensures high priority of ports 1–2 to guarantee the quality of sensitive application
    • Supports PoE Power up to 41 W for all PoE ports*
    • Plug and play with no configuration required

    Professional Fast Ethernet Switch with 4 PoE Ports

    Plug and Play, with PoE Transmission for Surveillance up to 250 m

    TL-SF1005LP

    Ideal for IP Surveillance —Up to 250 m Transmissions

    With extend mode, the PoE transmission distance reaches up to 250 m**—perfect for IP Camera deployment in large areas.

    **The speed of the ports in extend mode will downgrade to 10 Mbps. The actual transmission distance may vary due to power consumption of PoE-powered devices or the cable quality and type.

    Priority Video Quality Guaranteed

    Quality of sensitive applications like video monitoring in critical business areas is guaranteed by offering higher priority options for ports 1–2 when one-touch Priority Mode is on.

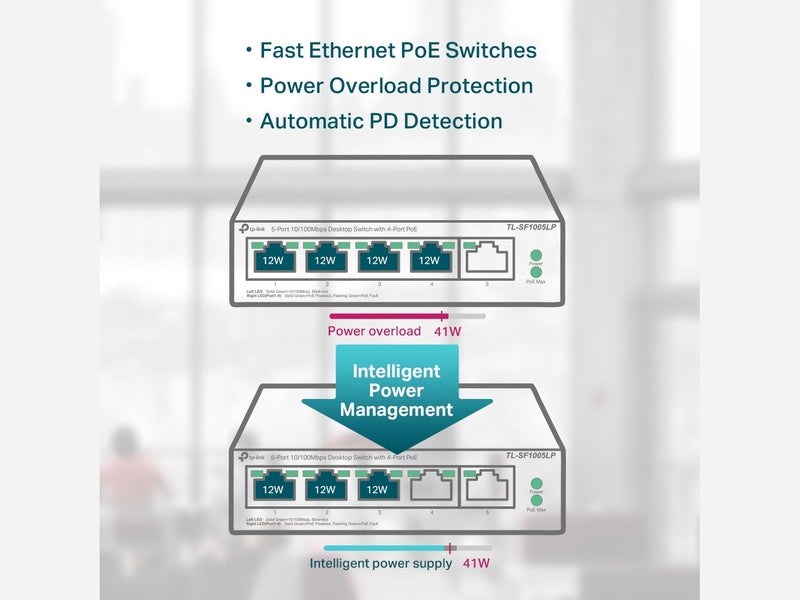

    Intelligent Power Management

    When total power consumption exceeds 41 W, the intelligent power management will cut the lower priority port power. This ensures the high priority port’s power supply and protects the device from power overload. It also automatically detects and provides the required power for your PoE devices while protecting your PoE and non-PoE equipment from being damaged.

    Durable Metal Casing

    The interior components of TL-SF1005LP are protected by high-quality metal casing to ensure a long product life. Having passed an array of stringent reliability tests, TL-SF1005LP delivers switching performance you can depend on.



    Specifications


    HARDWARE FEATURES
    Interface • 5× 10/100 Mbps RJ45 Ports (Ports 1–4 support 802.3af PoE)
    • AUTO Negotiation
    • AUTO MDI/MDIX
    Network Media • 10BASE-T: UTP category 3, 4, 5 cable (maximum 100m)
    • EIA/TIA-568 100Ω STP (maximum 100m)
    • 100BASE-TX: UTP category 5, 5e cable (maximum 100m)
    • EIA/TIA-568 100Ω STP (maximum 100m)
    Fan Quantity Fanless
    Physical Security Lock Yes
    External Power Supply External Power Adapter (Output: 53.5 V DC / 0.81 A)
    Packet Forwarding Rate 0.744 Mpps
    PoE Ports (RJ45) • Standard: 802.3 af compliant
    • PoE Ports: Ports 1–4
    • Power Supply: 41 W
    Mac Address Table 2K
    Jumbo Frame 2 KB
    Switching Capacity 1 Gbps
    Dimensions ( W x D x H ) 3.9 x 3.9 x 1.0 in (100 x 98 x 25 mm)
    Max Power Consumption • 1.9 W (220 V / 50 Hz, no PD connected)
    • 47 W (220 V / 50 Hz, with 41 W PD connected)
    Max Heat Dissipation • 6.48 BTU/h(no PD connected)
    • 160.27 BTU/h(with 41 W PD connected)
    SOFTWARE FEATURES
    Transmission Method Store-And-Forward
    Advanced Functions • Compatible With IEEE 802.3af/at Compliant PDs
    • Extend Mode Button (Ports 1–4)
    • Priority Mode Button (Ports 1–2)
    • Mac Address Auto-Learning And Auto-Aging
    • IEEE802.3x Flow Control For Full-Duplex Mode and Backpressure for Half-Duplex Mode
    OTHERS
    Certification FCC, CE, RoHS
    Package Contents • TL-SF1005LP
    • Power Adapter
    • Installation Guide
    Environment • Operating Temperature: 0–40 ℃ (32–104 ℉)
    • Storage Temperature: -40–70 ℃ (-40–158 ℉)
    • Operating Humidity: 10–90% RH non-condensing
    • Storage Humidity: 5–90% RH non-condensing
